DLK-316

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

HOOD STAY : Disposal

INFOID:0000000005517773

1.

Fix hood stay (1) using a vise (C).

2.

Using hacksaw (A) slowly make 2 holes in the hood stay, in
numerical order as shown in the figure.

CAUTION:

• When cutting a hole on hood stay, always cover a hack-

saw using a shop cloth (B) to avoid scattering metal frag-
ments or oil.

• Wear eye protection (safety glasses).
• Wear gloves.

JMKIA3336ZZ

A:

20 mm (0.787 in)

B:

Cut at the groove.

JMKIA3609ZZ

RADIATOR CORE SUPPORT

DLK-317

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

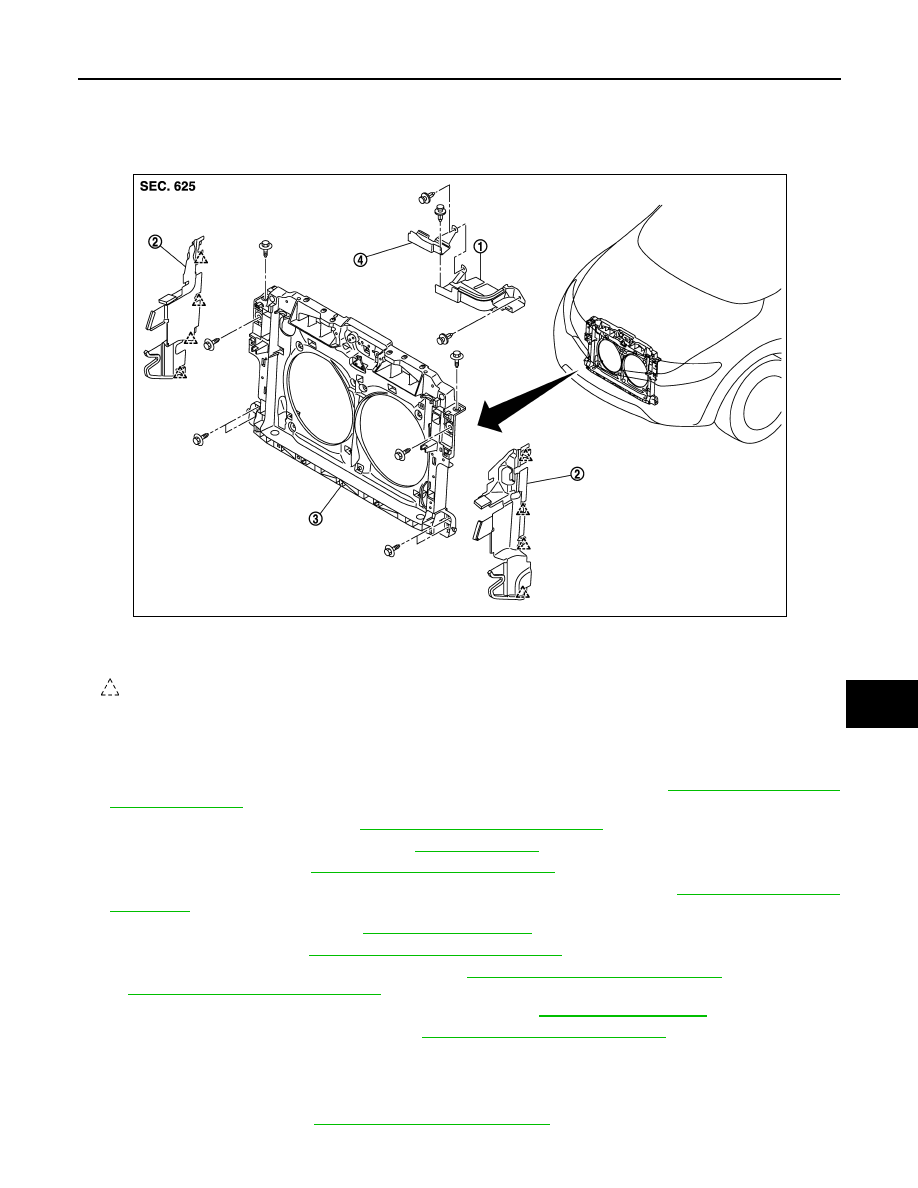

RADIATOR CORE SUPPORT

Exploded View

INFOID:0000000005517774

Removal and Installation

INFOID:0000000005517775

REMOVAL

1.

Use a refrigerant collecting equipment to discharge the refrigerant. Refer to

HA-25, "Maintenance of

Lubricant Quantity"

.

2.

Remove front under cover. Refer to

EXT-27, "Removal and Installation"

.

3.

Drain engine coolant from radiator. Refer to

CO-11, "Draining"

.

4.

Remove front grille. Refer to

EXT-19, "Removal and Installation"

.

5.

Remove front bumper fascia, energy absorber, bumper reinforcement. Refer to

EXT-14, "Removal and

Installation"

.

6.

Remove air duct assembly. Refer to

EM-31, "Exploded View"

.

7.

Remove hood lock. Refer to

DLK-340, "Removal and Installation"

.

8.

Remove front combination lamp (RH/LH). Refer to

EXL-180, "Removal and Installation"

 (XENON TYPE)

or

EXL-363, "Removal and Installation"

 (HALOGEN TYPE).

9.

Disconnect connector of refrigerant pressure sensor. Refer to

HA-51, "Exploded View"

.

10. Remove bumper retainer assembly. Refer to

EXT-14, "Removal and Installation"

.

11. Remove clips, and then remove air guide center and air guide upper.
12. Disengage harness clip from air guide side (RH).

13. Disengage pawls, and then remove air guide side (RH/LH).

14. Remove condenser. Refer to

HA-49, "Removal and Installation"

.

1.

Air guide upper

2.

Air guide side (RH/LH)

3.

Radiator core support

4.

Air guide center

: Pawl

JMKIA1805ZZ

DLK-318

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

RADIATOR CORE SUPPORT

15. Remove radiator and engine coolant reservoir tank. Refer to

CO-16, "Removal and Installation"

.

CAUTION:

Operate with two workers, because of it is heavy weight.

16. Disconnect connectors of the following parts.

• Ambient sensor. Refer to

VTL-26, "Removal and Installation"

.

• Cooling fan (RH/LH) and cooling fan control module. Refer to

CO-19, "Exploded View"

.

• Crash zone sensor. Refer to

SR-21, "Removal and Installation"

.

17. Remove radiator upper hose from radiator core support. Refer to

CO-16, "Exploded View"

.

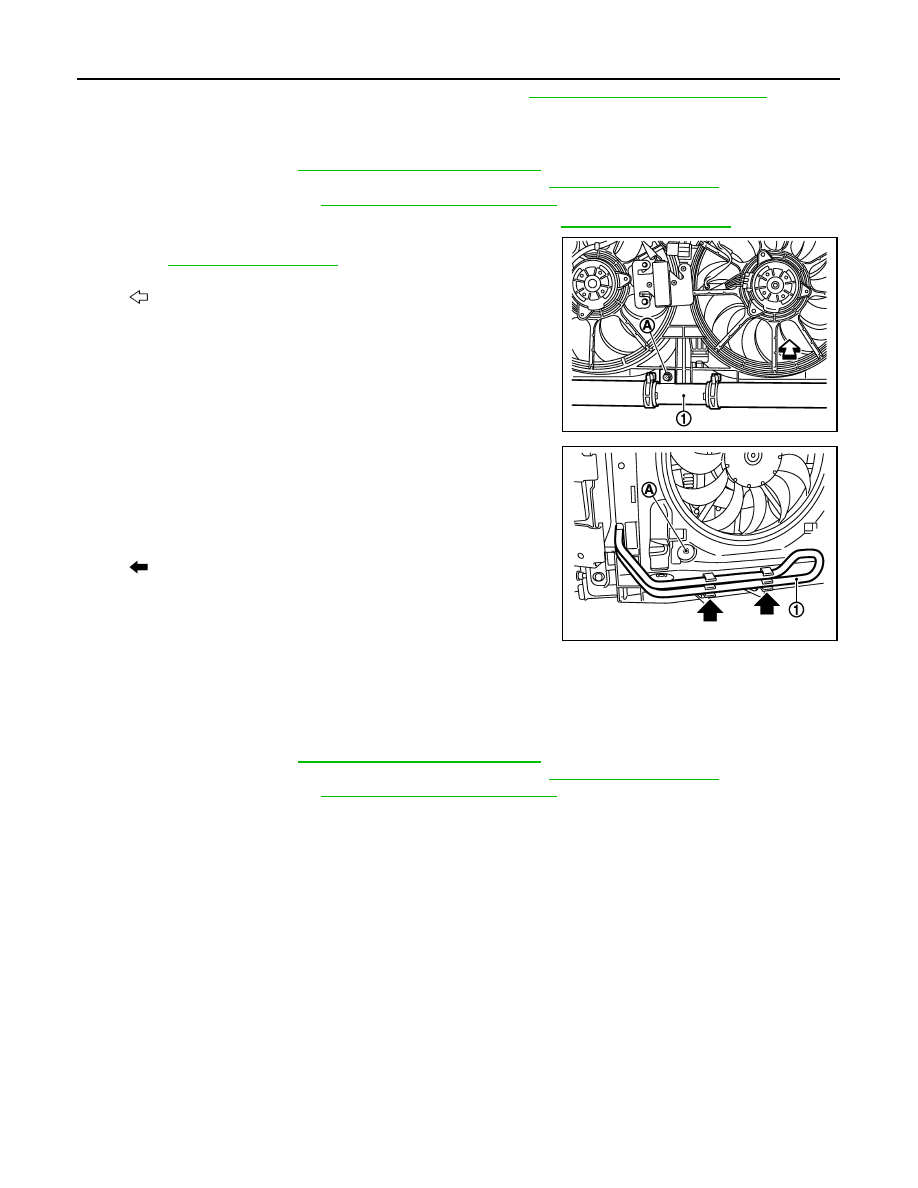

18. Remove mounting bolt (A) of radiator lower hose bracket (1).

Refer to

CO-16, "Exploded View"

.

19. Remove radiator lower hose clamp (A) from radiator core sup-

port.

20. Remove power steering oil cooler pipe (1) from radiator core

support.

21. Remove power steering oil cooler pipe clips.

22. Remove all harness clips from radiator core support.

23. Remove mounting bolts, and then remove radiator core support.

CAUTION:

Never damage power steering oil cooler pipe.

24. Remove the following parts after removing radiator core support.

• Ambient sensor. Refer to

VTL-26, "Removal and Installation"

.

• Cooling fan (RH/LH) and cooling fan control module. Refer to

CO-19, "Exploded View"

.

• Crash zone sensor. Refer to

SR-21, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

: Vehicle front

JMKIA1915ZZ

: Clip

JMKIA1916ZZ

FRONT FENDER

DLK-319

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT FENDER

Exploded View

INFOID:0000000005517776

Removal and Installation

INFOID:0000000005517777

CAUTION:

Use a shop cloth to protect the body from being damaged during removal and installation.

REMOVAL

1.

Remove clips and remove front fender seal (front/rear).

2.

Remove front grille. Refer to

EXT-19, "Removal and Installation"

.

3.

Remove front bumper fascia. Refer to

EXT-14, "Removal and Installation"

.

4.

Remove front combination lamp. Refer to

EXL-180, "Removal and Installation"

 (XENON TYPE),

EXL-363,

"Removal and Installation"

 (HALOGEN TYPE).

5.

Remove fender protector. Refer to

EXT-24, "FENDER PROTECTOR : Removal and Installation"

.

1.

Front fender seal (front)

2.

Front fender seal (rear)

3.

Front fender assembly

4.

Front fender finisher

5.

Insulator

: Clip

: Pawl

JMKIA1806ZZ
