DLK-328

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

Unit: mm (in)

1.

Remove center pillar lower garnish. Refer to

INT-20, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of rear door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting nuts and bolts on body side.

6.

Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension.

7.

After adjustment tighten bolts and nuts to the specified torque.

8.

Install center pillar lower garnish. Refer to

INT-20, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Exploded View

INFOID:0000000005517790

DOOR STRIKER : Removal and Installation

INFOID:0000000005517791

REMOVAL

Portion

Clearance

Surface height

Front door – Rear door

B – B

3.4 – 5.4 (0.134 – 0.213)

-1.0 – 1.0 (-0.039 – 0.039)

Rear door – Body side outer

C – C

3.4 – 5.4 (0.134 – 0.213)

-1.0 – 1.0 (-0.039 – 0.039)

Front door – Rear door

G – G

2.9 – 5.9 (0.114 – 0.237)

-1.5 – 1.5 (-0.059 – 0.059)

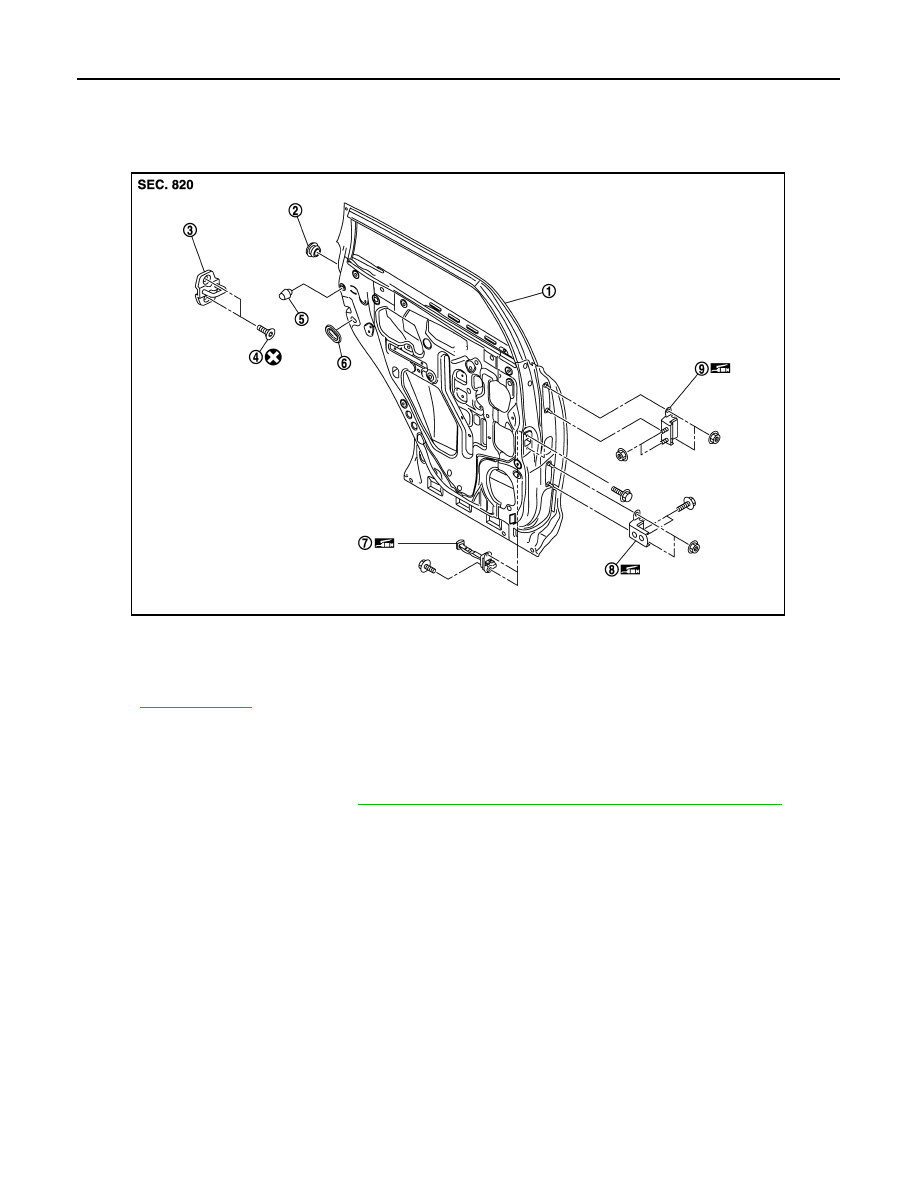

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Seal rubber

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3686ZZ

REAR DOOR

DLK-329

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Remove TORX bolts, and then remove door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close, lock/unlock operation after installation.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-327, "DOOR ASSEMBLY :

Adjustment"

.

DOOR HINGE

DOOR HINGE : Exploded View

INFOID:0000000005517792

DOOR HINGE : Removal and Installation

INFOID:0000000005517793

REMOVAL

1.

Remove center pillar lower garnish. Refer to

INT-20, "Removal and Installation"

.

2.

Remove rear door assembly. Refer to

DLK-326, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove rear door hinge mounting bolts and nuts (body side), and then remove door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• When removing and installing rear door assembly, perform the fitting adjustment. Refer to

DLK-327,

"DOOR ASSEMBLY : Adjustment"

.

• After installing, apply the touch-up paint (the body color) onto the head of door hinge mounting nuts.

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Seal rubber

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3686ZZ

DLK-330

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

DOOR CHECK LINK

DOOR CHECK LINK : Exploded View

INFOID:0000000005517794

DOOR CHECK LINK : Removal and Installation

INFOID:0000000005517795

REMOVAL

1.

Remove rear door finisher. Refer to

INT-16, "REAR DOOR FINISHER : Removal and Installation"

.

2.

Fully close the rear door window.

3.

Remove rear door speaker.

4.

Remove mounting bolts of the check link on the vehicle.

5.

Remove mounting bolts of the check link on door panel.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check rear door open/close operation after installation.

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Seal rubber

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3686ZZ

BACK DOOR

DLK-331

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR

BACK DOOR ASSEMBLY

BACK DOOR ASSEMBLY : Exploded View

INFOID:0000000005517796

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000005517797

CAUTION:

Perform work with 2 workers, because of its heavy weight.
NOTE:
The back door harness constitute the back door assembly.

REMOVAL

1.

Remove back door finisher inner, back door hinge cover, back door plate. Refer to

INT-38, "Removal and

Installation"

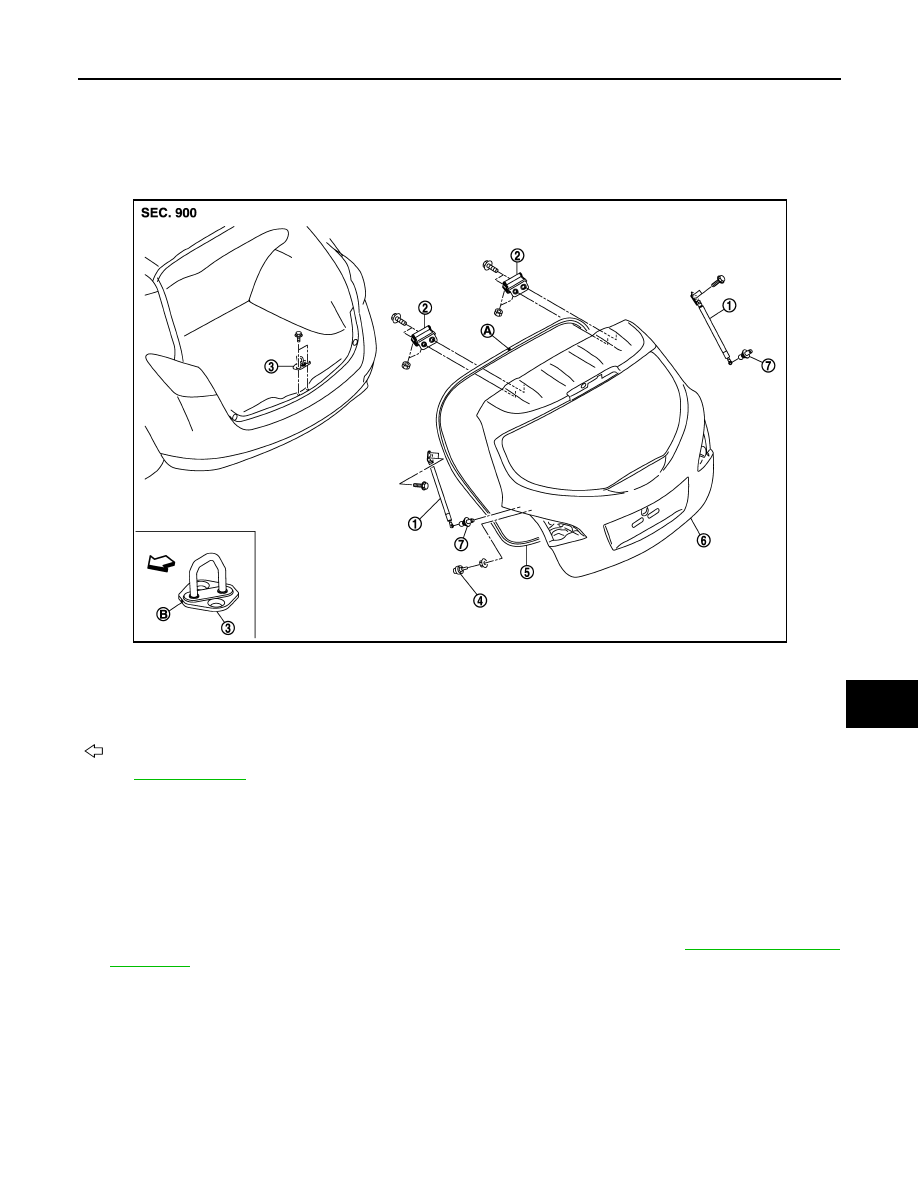

1.

Back door stay

2.

Back door hinge

3.

Back door striker

4.

Bumper rubber

5.

Back door weather-strip

6.

Back door assembly

7.

Stud ball

A

: Center mark

B

: Front mark

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3496ZZ
