AV

IPOD ADAPTER

AV-799

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

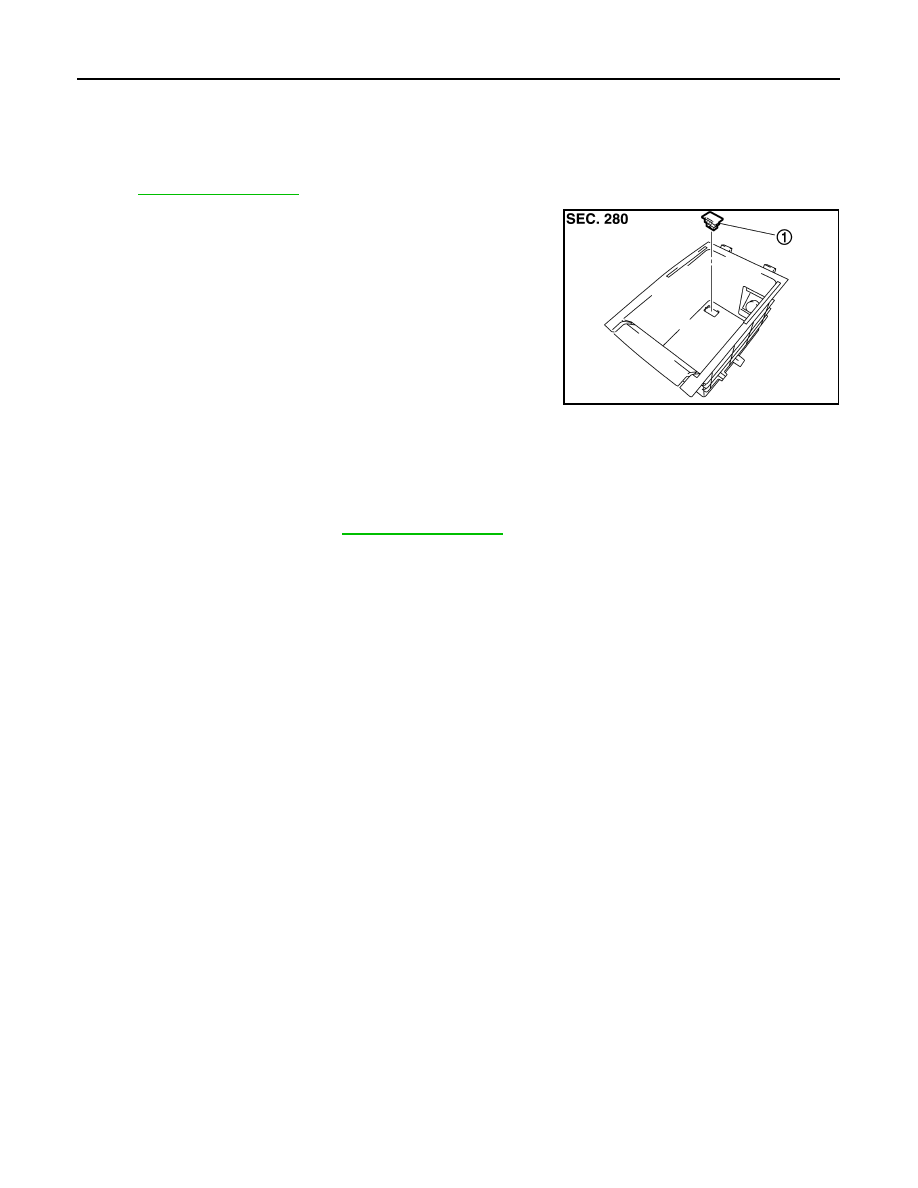

IPOD ADAPTER

Exploded View

INFOID:0000000005528843

Removal and Installation

INFOID:0000000005528844

REMOVAL

1.

Remove front console pocket assembly. Refer to

IP-20, "Exploded View"

.

2.

Disconnect iPod adapter connector, remove iPod adapter screws and remove the iPod adapter.

INSTALLATION

Install in the reverse order of removal.

JPNIA0788ZZ

1.

iPod adapter

AV-800

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

IPOD CONNECTOR

IPOD CONNECTOR

Exploded View

INFOID:0000000005528845

REMOVAL

Refer to

IP-20, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528846

REMOVAL

1.

Remove center console. Refer to

IP-20, "Exploded View"

.

2.

Press the pawl from the back of center console to remove iPod connector.

INSTALLATION

Install in the reverse order of removal.

JPNIA0787ZZ

1.

iPod connector

AV

AUXILIARY INPUT JACKS

AV-801

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUXILIARY INPUT JACKS

Exploded View

INFOID:0000000005528847

REMOVAL

Refer to

IP-20, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528848

REMOVAL

1.

Remove console rear finisher. Refer to

IP-20, "Exploded View"

.

2.

Remove auxiliary input jacks from center console.

INSTALLATION

Install in the reverse order of removal.

JPNIA0795ZZ

1.

Auxiliary input jacks

AV-802

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

MICROPHONE

MICROPHONE

Exploded View

INFOID:0000000005528849

REMOVAL

Refer to

INL-121, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528850

REMOVAL

1.

Remove map lamp. Refer to

INL-121, "Exploded View"

.

2.

Remove microphone from map lamp.

INSTALLATION

Install in the reverse order of removal.

JSNIA0132ZZ

1.

Microphone
