FRONT SQUAWKER

Exploded View

INFOID:0000000005528827

Removal and Installation

INFOID:0000000005528828

REMOVAL

1.

Remove speaker grille. Refer to

IP-12, "Exploded View"

.

2.

Remove front squawker screws, lift up the front squawker and disconnect front squawker connector. Then
remove the front squawker.

INSTALLATION

Install in the reverse order of removal.

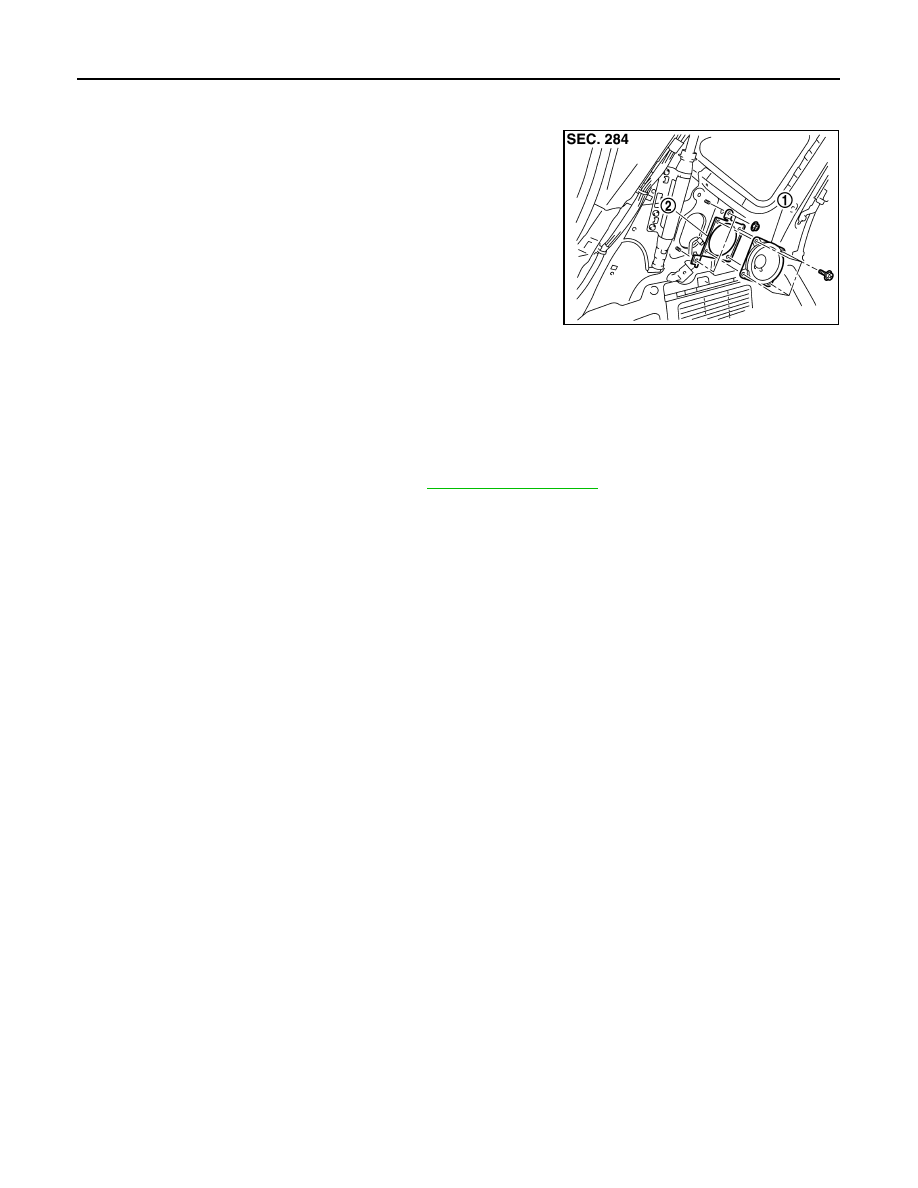

JPNIA0775ZZ

1.

Front squawker

AV-792

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

REAR SPEAKER

REAR SPEAKER

Exploded View

INFOID:0000000005528829

Removal and Installation

INFOID:0000000005528830

REMOVAL

1.

Remove luggage side finisher upper. Refer to

INT-34, "Exploded View"

.

2.

Remove rear speaker screws, lift up the rear speaker and disconnect rear speaker connector. Then
remove the rear speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0781ZZ

1.

Rear speaker

2.

Rear speaker bracket

AV

CENTER SPEAKER

AV-793

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CENTER SPEAKER

Exploded View

INFOID:0000000005528831

Removal and Installation

INFOID:0000000005528832

REMOVAL

1.

Remove center speaker grille. Refer to

IP-12, "Exploded View"

.

2.

Remove center speaker screws, lift up the center speaker and disconnect center speaker connector. Then
remove the center speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0780ZZ

1.

Center speaker

AV-794

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

WOOFER

WOOFER

Exploded View

INFOID:0000000005528833

Removal and Installation

INFOID:0000000005528834

REMOVAL

1.

Remove luggage floor finisher center (back). Refer to

INT-34, "Exploded View"

.

2.

Remove clamp, disconnect woofer connector and remove the woofer.

INSTALLATION

Install in the reverse order of removal.

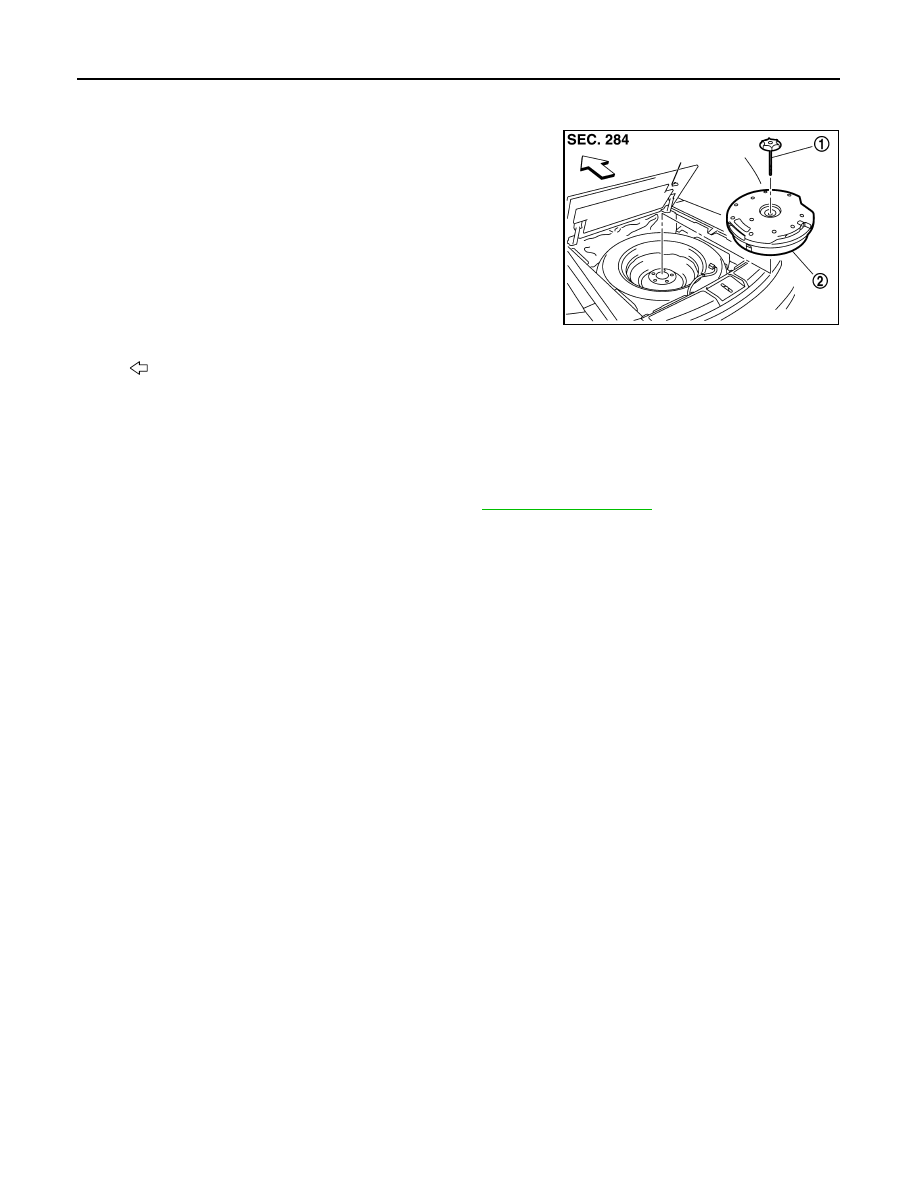

JPNIA0782ZZ

:

Vehicle front

1.

Clamp

2.

Woofer
