Nissan Murano Z51. Manual - part 254

AV

BOSE AMP.

AV-795

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE AMP.

Exploded View

INFOID:0000000005528835

Removal and Installation

INFOID:0000000005528836

REMOVAL

1.

Remove luggage floor finisher. Refer to

INT-34, "Exploded View"

.

2.

Remove BOSE amp. screws, disconnect BOSE amp. connector and remove the BOSE amp.

INSTALLATION

Install in the reverse order of removal.

JPNIA0783ZZ

:

Vehicle front

1.

BOSE amp.

AV-796

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

MULTIFUNCTION SWITCH

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000005528837

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528838

REMOVAL

1.

Remove cluster lid D. Refer to

IP-12, "Exploded View"

.

2.

Remove multifunction switch with center ventilator grille as a single unit.

3.

Remove multifunction switch screws, remove multifunction switch from cluster lid D.

INSTALLATION

Install in the reverse order of removal.

JPNIA0800ZZ

1.

Multifunction switch

2.

Cluster lid D

AV

PRESET SWITCH

AV-797

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

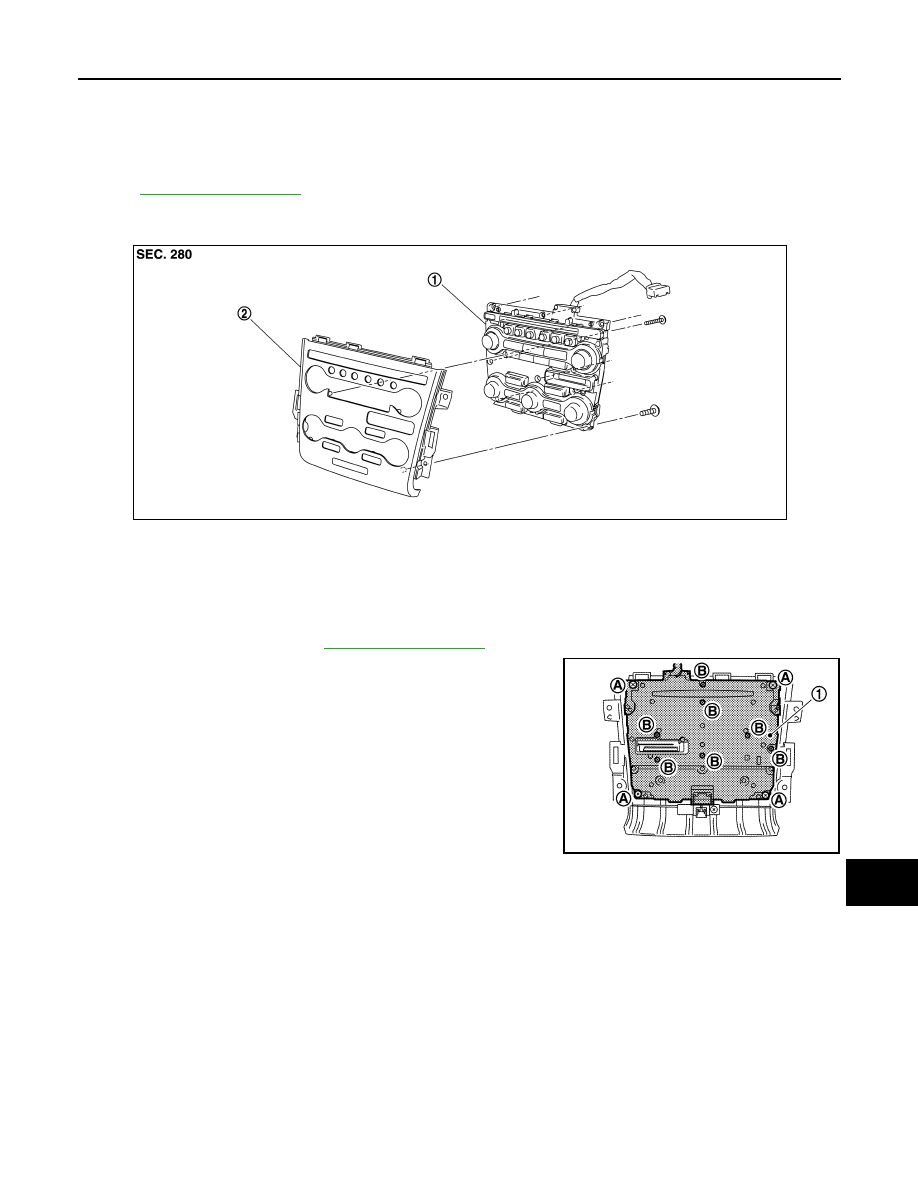

PRESET SWITCH

Exploded View

INFOID:0000000005528839

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528840

REMOVAL

1.

Remove cluster lid C. Refer to

IP-12, "Exploded View"

.

2.

Remove preset switch screws (A) (B), remove preset switch (1)
from cluster lid C.

INSTALLATION

Install in the reverse order of removal.

1.

Preset switch

2.

Cluster lid C

JPNIA0801ZZ

1.

Preset switch

A.

Screw

B.

Screw

JPNIA0802ZZ

AV-798

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

STEERING SWITCH

STEERING SWITCH

Exploded View

INFOID:0000000005528841

Refer to

ST-17, "Exploded View"

.

Removal and Installation

INFOID:0000000005528842

REMOVAL

Refer to

ST-17, "Exploded View"

.

INSTALLATION

Install in the reverse order of removal.
