REMOVAL AND INSTALLATION

AV CONTROL UNIT

Exploded View

INFOID:0000000005528819

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528820

REMOVAL

1.

Remove cluster lid C. Refer to

IP-12, "Exploded View"

.

2.

Remove AV control unit with a A/C auto amp. as a single unit from the body.

3.

Remove bracket screws, and then remove AV control unit.

INSTALLATION

Install in the reverse order of removal.

1.

AV control unit

2.

Bracket LH

3.

A/C auto amp.

4.

Bracket RH

JPNIA0799ZZ

AV-788

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

FRONT DISPLAY UNIT

FRONT DISPLAY UNIT

Exploded View

INFOID:0000000005528821

Removal and Installation

INFOID:0000000005528822

REMOVAL

1.

Remove center ventilator assembly. Refer to

IP-12, "Exploded View"

.

2.

Remove display unit with bracket as a single unit.

INSTALLATION

Install in the reverse order of removal.

JPNIA0779ZZ

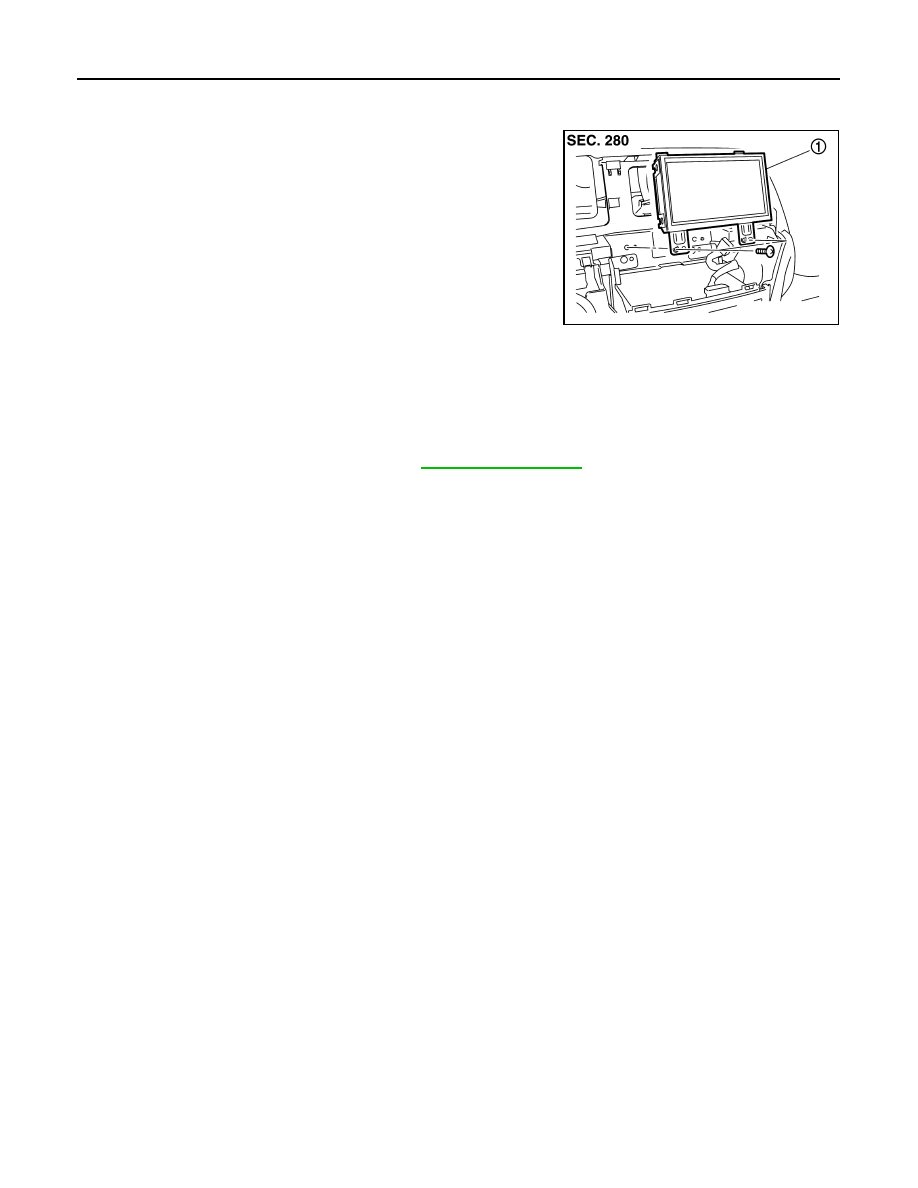

1.

Front display unit

AV

FRONT DOOR SPEAKER

AV-789

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000005528823

Removal and Installation

INFOID:0000000005528824

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Exploded View"

.

2.

Remove front door speaker screws, then disconnect front door speaker connector and remove front door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0773ZZ

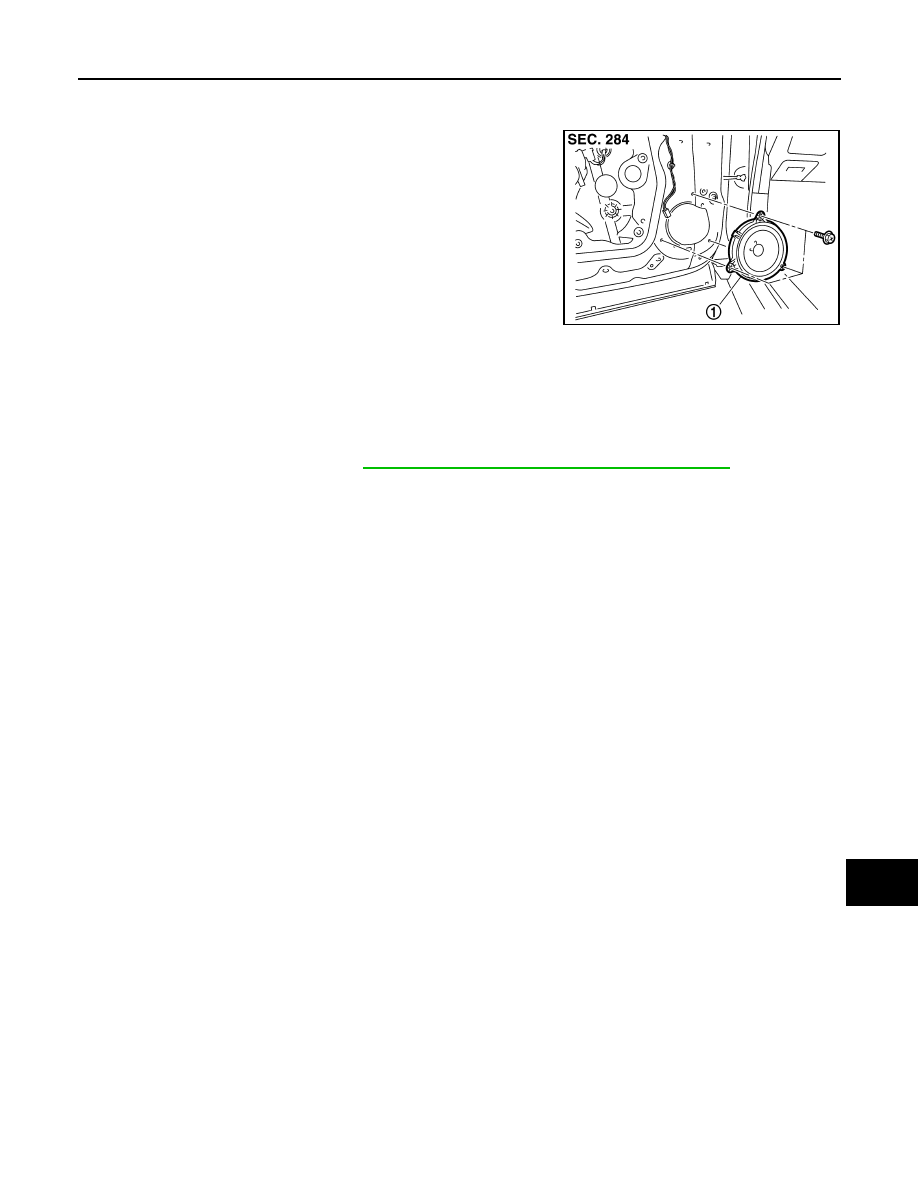

1.

Front door speaker

AV-790

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Exploded View

INFOID:0000000005528825

Removal and Installation

INFOID:0000000005528826

REMOVAL

1.

Remove rear door finisher. Refer to

INT-16, "REAR DOOR FINISHER : Exploded View"

.

2.

Remove rear door speaker screws, then disconnect rear door speaker connector and remove rear door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0774ZZ

1.

Rear door speaker
