DUCT AND GRILLE

VTL-127

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

1.

Remove the rear foot duct 2 (right). Refer to

VTL-124, "REAR FOOT DUCT 2 : Exploded View"

.

2.

Remove the mounting screw (A), and then remove the rear foot
duct 3 (right) (1).

INSTALLATION

Install in the reverse order of removal.

HEATER DUCT

HEATER DUCT : Exploded View

INFOID:0000000005674597

JPIIA0594ZZ

1.

Ventilator seal

2.

Upper ventilator seal

3.

Defroster seal

4.

Adapter case

5.

Center case

6.

Intake sensor bracket

7.

Intake sensor

8.

Upper ventilator door motor

9.

Upper ventilator door rod

JPIIA0454GB

VTL-128

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

HEATER DUCT : Removal and Installation

INFOID:0000000005517245

REMOVAL

1.

Remove the instrument lower panel LH. Refer to

IP-12, "Exploded View"

.

2.

Remove the mounting screw (A), and then remove the heater
duct (1).

INSTALLATION

Install in the reverse order of removal.

FOOT DUCT

10. Upper ventilator door lever

11.

Filter cover

12.

In-cabin microfilter/Air conditioner fil-
ter*

13. Foot duct 1 (right)

14.

Foot duct 2 (right)

15.

Air mix door motor (passenger side)

16. Heater & cooling unit case cover

17.

Evaporator pipe assembly

18.

O-ring

19. Evaporator

20.

Expansion valve

21.

Case packing

22. Grommet

23.

Cooler pipe grommet

24.

Drain hose

25. Heater & cooling unit case (right)

26.

Air mix door (Slide door)

27.

Heater pipe support

28. Heater pipe grommet

29.

Heater & cooling unit case (left)

30.

Heater core

31. Heater pipe cover

32.

Foot duct 2 (left)

33.

Foot duct 1 (left)

34. Heater duct

35.

Aspirator

36.

Aspirator hose

37. Mode door motor

38.

Main link

39.

Rod link

40. Max. cool door link

41.

Ventilator door link

42.

Foot door link

43. Mode door lever

44.

Defroster door link

45.

Ventilator door lever

46. Foot door lever

47.

Defroster door lever

48.

Max. cool door lever

49. Air mix door motor (driver side)

50.

Distributor upper case

51.

Distributor lower case

52. Ventilator door

53.

Foot door

54.

Max. cool door

55. Defroster door

56.

Upper ventilator door

*

: Models for Mexico.

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0599ZZ

DUCT AND GRILLE

VTL-129

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

FOOT DUCT : Exploded View

INFOID:0000000005517246

FOOT DUCT : Removal and Installation

INFOID:0000000005517247

REMOVAL

Driver side

1.

Remove instrument lower panel LH. Refer to

IP-12, "Exploded View"

.

2.

Remove mounting screws (A), and then remove foot duct (left)
(1).

Passenger side

1.

Defroster nozzle

2.

Side defroster nozzle (left)

3.

Foot duct (left)

4.

Heater duct

5.

Heater & cooling unit assembly

6.

Ventilator duct

7.

Side defroster grille (left)

8.

Instrument panel assembly

9.

Side ventilator grille (left)

10. Center ventilator grille assembly

11. Side ventilator grille (right)

12. Side defroster grille (right)

13. Center speaker grille

14. Blower unit assembly

15. Foot duct (right)

16. Side defroster nozzle (right)

17. Upper ventilator duct

JPIIA1225ZZ

: Vehicle front

JPIIA1226ZZ

VTL-130

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

1.

Remove blower unit assembly. Refer to

VTL-92, "Exploded View"

.

2.

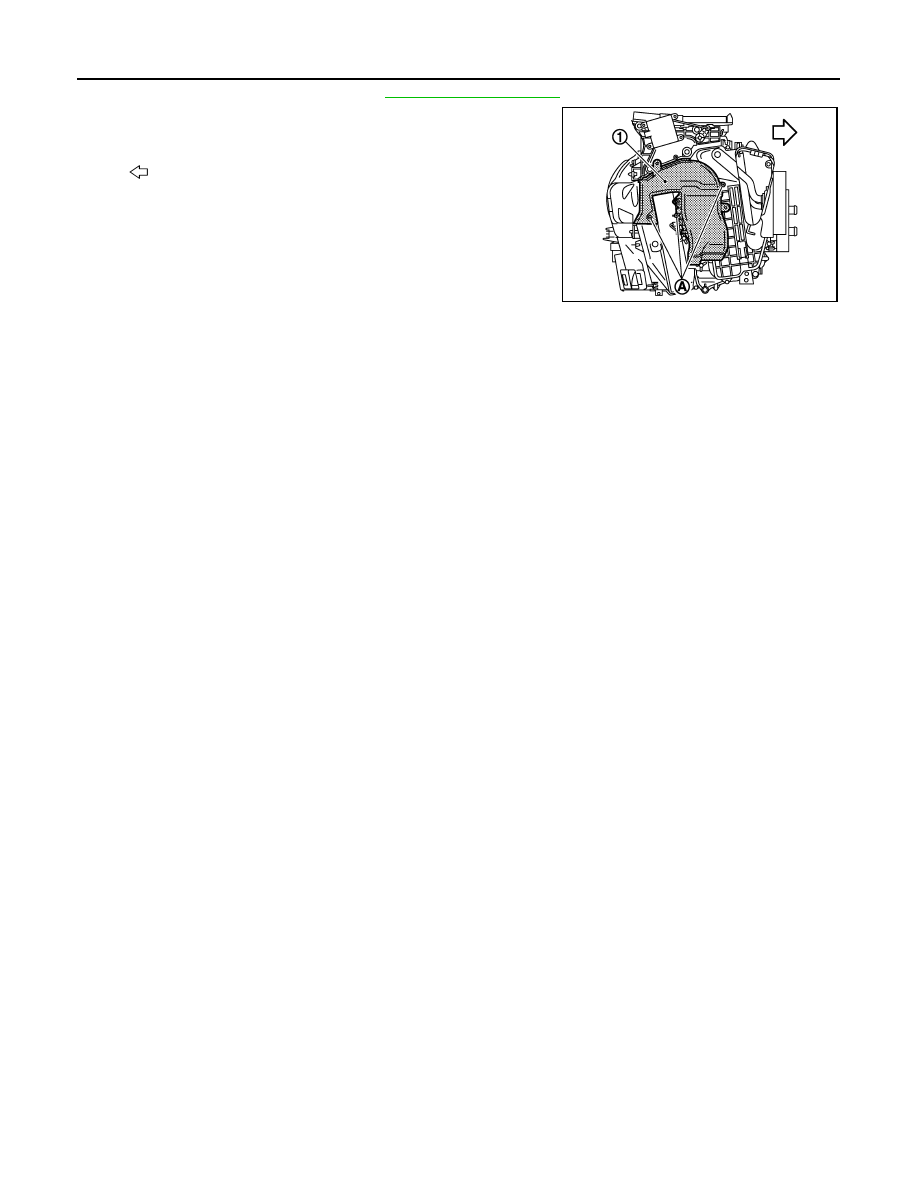

Remove mounting screws (A) and harness clip, and then
remove foot duct (right) (1).

INSTALLATION

Installation is basically the reverse order of removal.

: Vehicle front
