DUCT AND GRILLE

VTL-123

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

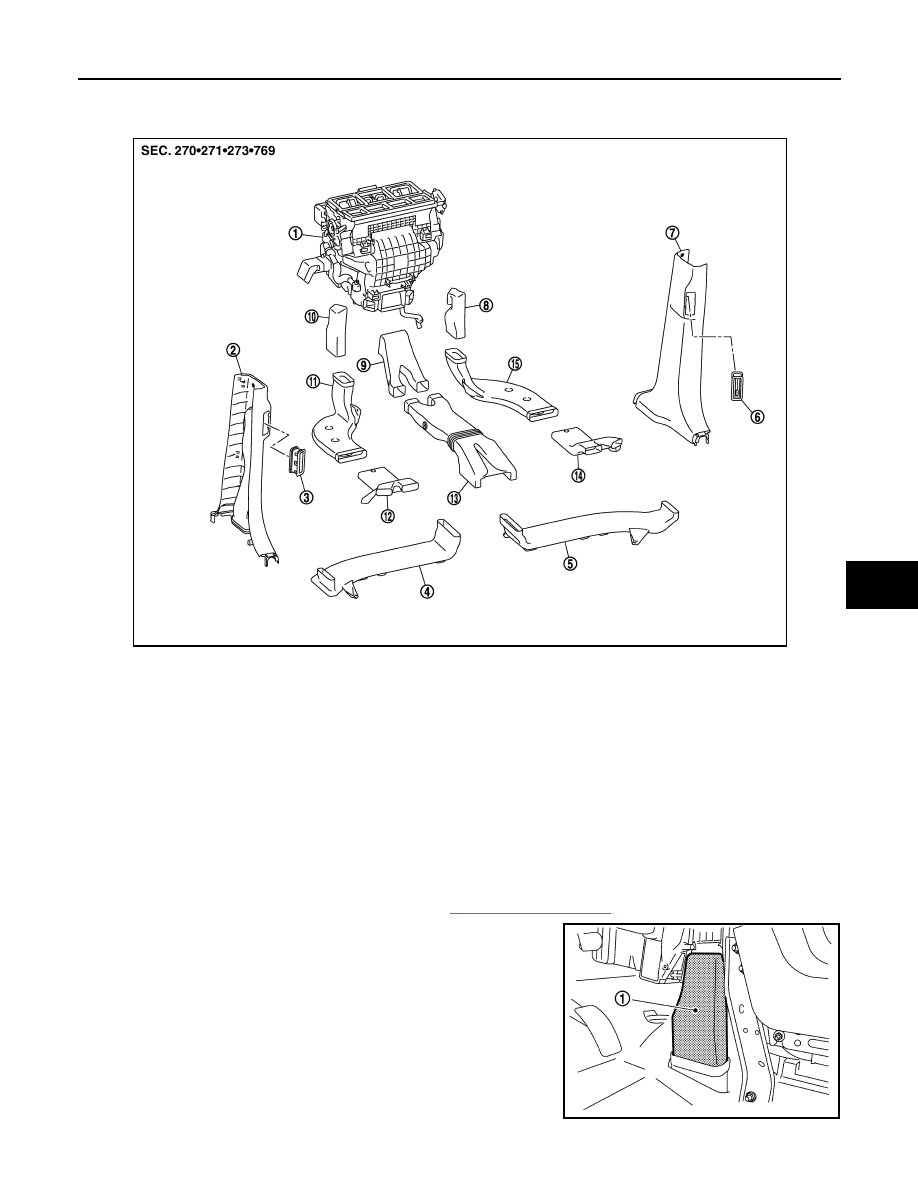

REAR FOOT DUCT 1 : Exploded View

INFOID:0000000005517238

REAR FOOT DUCT 1 : Removal and Installation

INFOID:0000000005517239

REMOVAL

Driver side

1.

Remove the instrument lower cover LH. Refer to

IP-20, "Exploded View"

.

2.

Remove the rear foot duct 1 (left) (1).

Passenger side

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4 (center pillar lower
garnish left)

3.

Rear ventilator grille (left)

4.

Rear ventilator duct 3 (left)

5.

Rear ventilator duct 3 (right)

6.

Rear ventilator grille (right)

7.

Rear ventilator duct 4 (center pillar lower
garnish right)

8.

Rear foot duct 1 (right)

9.

Rear ventilator duct 1

10.

Rear foot duct 1 (left)

11.

Rear foot duct 2 (left)

12. Rear foot duct 3 (left)

13.

Rear ventilator duct 2

14.

Rear foot duct 3 (right)

15. Rear foot duct 2 (right)

JPIIA0457ZZ

JPIIA0595ZZ

VTL-124

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

1.

Remove the instrument lower cover RH. Refer to

IP-20, "Exploded View"

.

2.

Remove the rear foot duct 1 (right) (1).

INSTALLATION

Install in the reverse order of removal.

REAR FOOT DUCT 2

REAR FOOT DUCT 2 : Exploded View

INFOID:0000000005517240

JPIIA0596ZZ

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4 (center pillar lower
garnish left)

3.

Rear ventilator grille (left)

4.

Rear ventilator duct 3 (left)

5.

Rear ventilator duct 3 (right)

6.

Rear ventilator grille (right)

7.

Rear ventilator duct 4 (center pillar lower
garnish right)

8.

Rear foot duct 1 (right)

9.

Rear ventilator duct 1

10.

Rear foot duct 1 (left)

11.

Rear foot duct 2 (left)

12. Rear foot duct 3 (left)

13.

Rear ventilator duct 2

14.

Rear foot duct 3 (right)

15. Rear foot duct 2 (right)

JPIIA0457ZZ

DUCT AND GRILLE

VTL-125

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REAR FOOT DUCT 2 : Removal and Installation

INFOID:0000000005517241

REMOVAL

Driver side

1.

Remove the rear foot duct 1 (left). Refer to

VTL-123, "REAR FOOT DUCT 1 : Exploded View"

.

2.

Pull up the driver side floor carpet. Refer to

INT-24, "Exploded View"

.

3.

Remove the mounting clip (A), and then remove the rear foot
duct 2 (left) (1).

Passenger side

1.

Remove the rear foot duct 1 (right). Refer to

VTL-123, "REAR FOOT DUCT 1 : Exploded View"

.

2.

Pull up the passenger side floor carpet. Refer to

INT-24, "Exploded View"

.

3.

Remove the mounting clip (A), and then remove the rear foot
duct 2 (right) (1).

INSTALLATION

Install in the reverse order of removal.

REAR FOOT DUCT 3

JPIIA0597ZZ

JPIIA0598ZZ

VTL-126

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

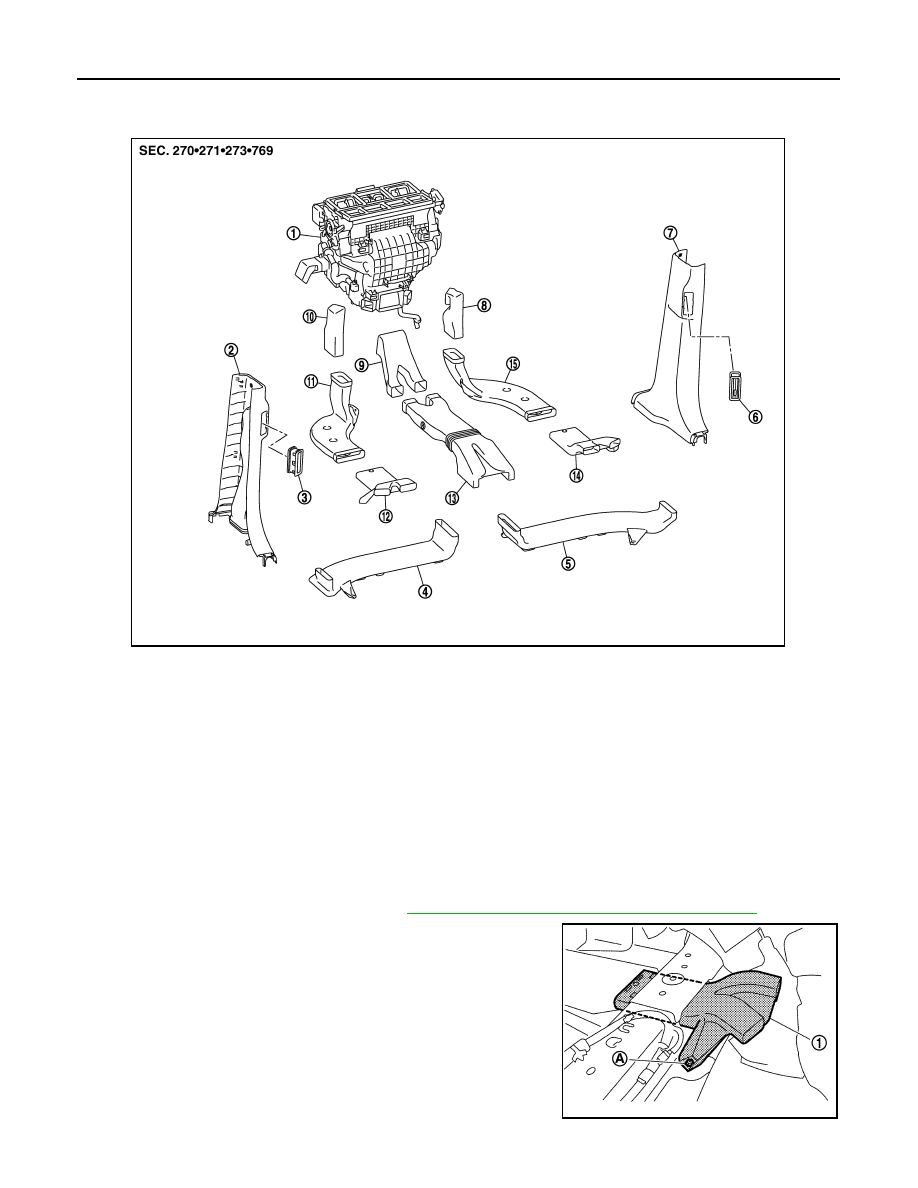

REAR FOOT DUCT 3 : Exploded View

INFOID:0000000005517242

REAR FOOT DUCT 3 : Removal and Installation

INFOID:0000000005517243

REMOVAL

Driver side

1.

Remove the rear foot duct 2 (left). Refer to

VTL-124, "REAR FOOT DUCT 2 : Exploded View"

.

2.

Remove the mounting screw (A), and then remove the rear foot
duct 3 (left) (1).

Passenger side

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4 (center pillar lower
garnish left)

3.

Rear ventilator grille (left)

4.

Rear ventilator duct 3 (left)

5.

Rear ventilator duct 3 (right)

6.

Rear ventilator grille (right)

7.

Rear ventilator duct 4 (center pillar lower
garnish right)

8.

Rear foot duct 1 (right)

9.

Rear ventilator duct 1

10.

Rear foot duct 1 (left)

11.

Rear foot duct 2 (left)

12. Rear foot duct 3 (left)

13.

Rear ventilator duct 2

14.

Rear foot duct 3 (right)

15. Rear foot duct 2 (right)

JPIIA0457ZZ

JPIIA0593ZZ
