DEFROSTER NOZZLE AND SIDE DEFROSTER NOZZLE

DEFROSTER NOZZLE AND SIDE DEFROSTER NOZZLE : Exploded View

INFOID:0000000005517226

DEFROSTER NOZZLE AND SIDE DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000005517227

REMOVAL

1.

Remove the instrument panel assembly. Refer to

IP-12, "Exploded View"

.

1.

Defroster nozzle

2.

Side defroster nozzle (left)

3.

Foot duct (left)

4.

Heater duct

5.

Heater & cooling unit assembly

6.

Ventilator duct

7.

Side defroster grille (left)

8.

Instrument panel assembly

9.

Side ventilator grille (left)

10. Center ventilator grille assembly

11. Side ventilator grille (right)

12. Side defroster grille (right)

13. Center speaker grille

14. Blower unit assembly

15. Foot duct (right)

16. Side defroster nozzle (right)

17. Upper ventilator duct

JPIIA1225ZZ

VTL-116

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

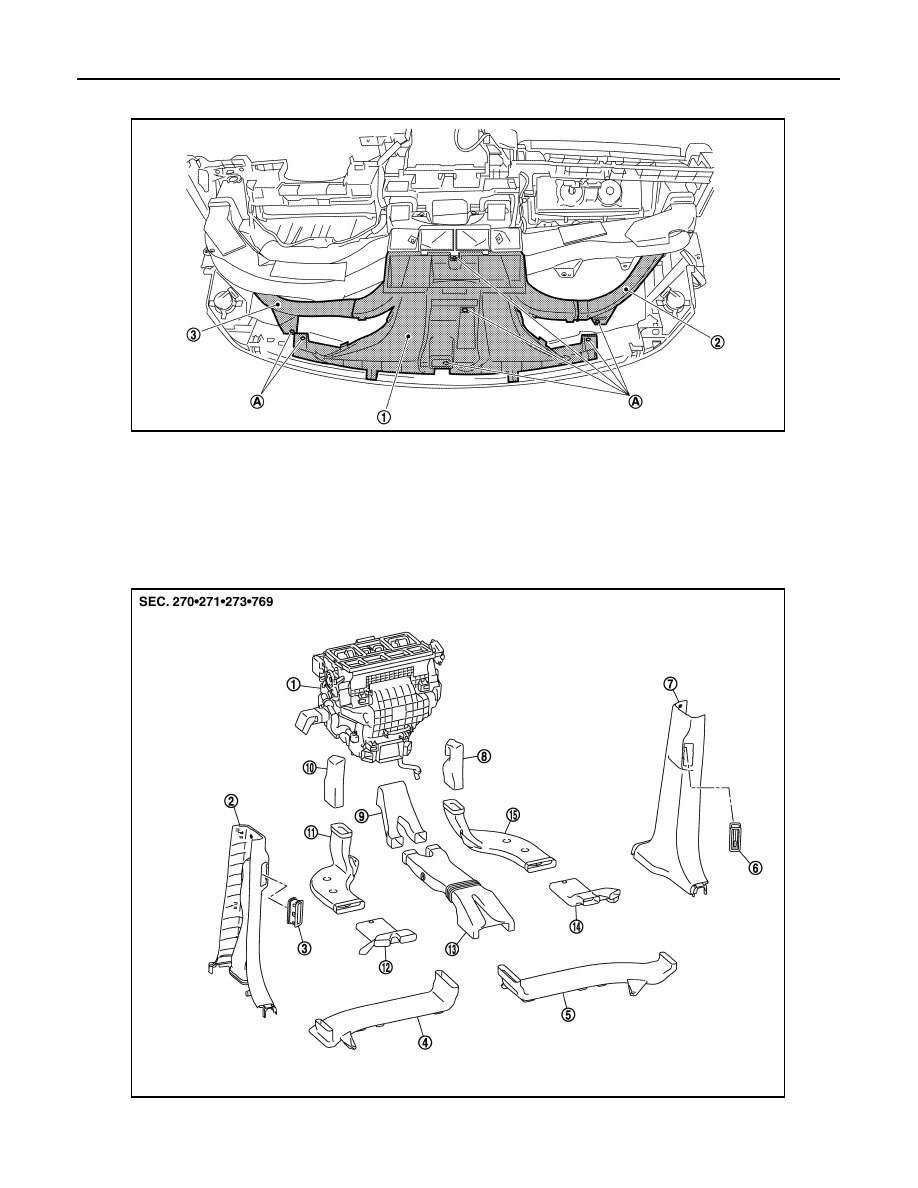

2.

Remove the mounting screws (A), and then remove the defroster nozzle (1) together with the side
defroster nozzle (right) (2) and side defroster nozzle (left) (3).

3.

Remove the side defroster nozzle (right) and side defroster nozzle (left) from the defroster nozzle.

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR GRILLE

REAR VENTILATOR GRILLE : Exploded View

INFOID:0000000005517228

JPIIA0587ZZ

JPIIA0457ZZ

DUCT AND GRILLE

VTL-117

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REAR VENTILATOR GRILLE : Removal and Installation

INFOID:0000000005517229

REMOVAL

1.

Remove the center pillar lower garnish (left/right). Refer to

INT-20, "Exploded View"

.

2.

Disengage the joints of the tabs, and then remove the rear venti-
lator grilles (left/right) (1).

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR DUCT 1

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4 (center pillar lower
garnish left)

3.

Rear ventilator grille (left)

4.

Rear ventilator duct 3 (left)

5.

Rear ventilator duct 3 (right)

6.

Rear ventilator grille (right)

7.

Rear ventilator duct 4 (center pillar lower
garnish right)

8.

Rear foot duct 1 (right)

9.

Rear ventilator duct 1

10.

Rear foot duct 1 (left)

11.

Rear foot duct 2 (left)

12. Rear foot duct 3 (left)

13.

Rear ventilator duct 2

14.

Rear foot duct 3 (right)

15. Rear foot duct 2 (right)

:Clip

JPIIA0588ZZ

VTL-118

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

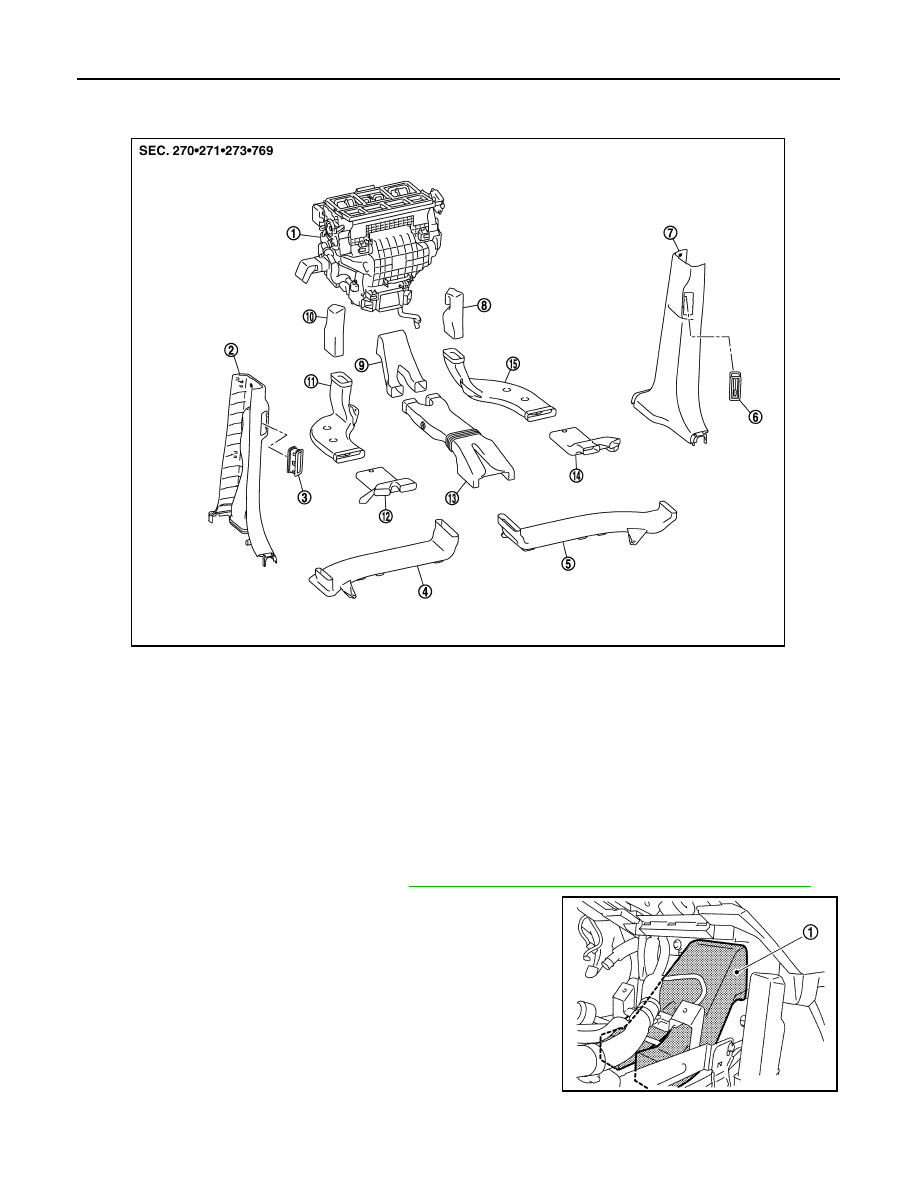

REAR VENTILATOR DUCT 1 : Exploded View

INFOID:0000000005517230

REAR VENTILATOR DUCT 1 : Removal and Installation

INFOID:0000000005517231

REMOVAL

1.

Remove the rear ventilator duct 2. Refer to

VTL-119, "REAR VENTILATOR DUCT 2 : Exploded View"

.

2.

Remove the rear ventilator duct 1 (1).

INSTALLATION

Install in the reverse order of removal.

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4 (center pillar lower
garnish left)

3.

Rear ventilator grille (left)

4.

Rear ventilator duct 3 (left)

5.

Rear ventilator duct 3 (right)

6.

Rear ventilator grille (right)

7.

Rear ventilator duct 4 (center pillar lower
garnish right)

8.

Rear foot duct 1 (right)

9.

Rear ventilator duct 1

10.

Rear foot duct 1 (left)

11.

Rear foot duct 2 (left)

12. Rear foot duct 3 (left)

13.

Rear ventilator duct 2

14.

Rear foot duct 3 (right)

15. Rear foot duct 2 (right)

JPIIA0457ZZ

JPIIA0589ZZ
