DUCT AND GRILLE

VTL-119

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REAR VENTILATOR DUCT 2

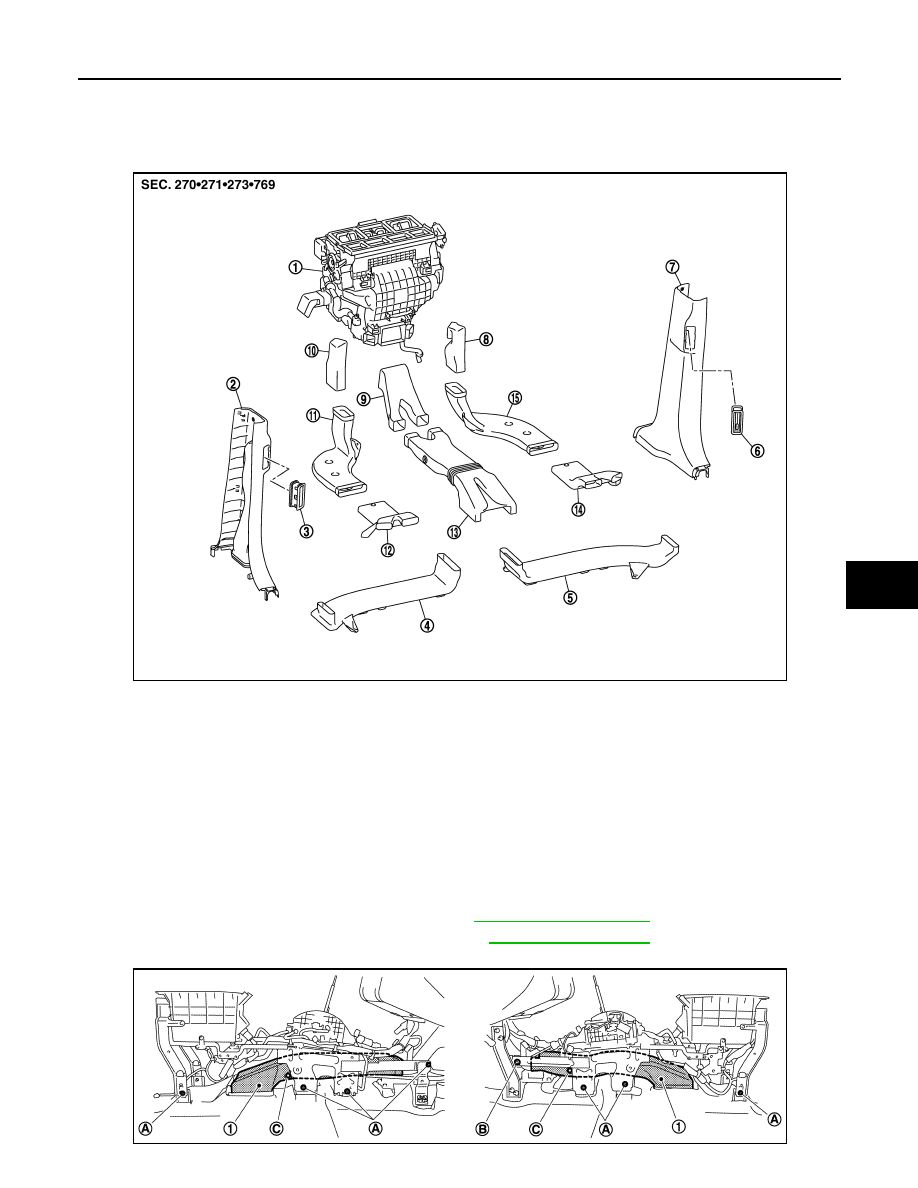

REAR VENTILATOR DUCT 2 : Exploded View

INFOID:0000000005517232

REAR VENTILATOR DUCT 2 : Removal and Installation

INFOID:0000000005517233

REMOVAL

1.

Remove the front seat assembly (left/right). Refer to

SE-105, "Exploded View"

.

2.

Remove the lower console finisher (left/right). Refer to

IP-20, "Exploded View"

.

3.

Remove the screws (A), nut (B), and clips (C), and then remove rear ventilator duct 2 (1).

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4 (center pillar lower
garnish left)

3.

Rear ventilator grille (left)

4.

Rear ventilator duct 3 (left)

5.

Rear ventilator duct 3 (right)

6.

Rear ventilator grille (right)

7.

Rear ventilator duct 4 (center pillar lower
garnish right)

8.

Rear foot duct 1 (right)

9.

Rear ventilator duct 1

10.

Rear foot duct 1 (left)

11.

Rear foot duct 2 (left)

12. Rear foot duct 3 (left)

13.

Rear ventilator duct 2

14.

Rear foot duct 3 (right)

15. Rear foot duct 2 (right)

JPIIA0457ZZ

JPIIA0590ZZ

VTL-120

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR DUCT 3

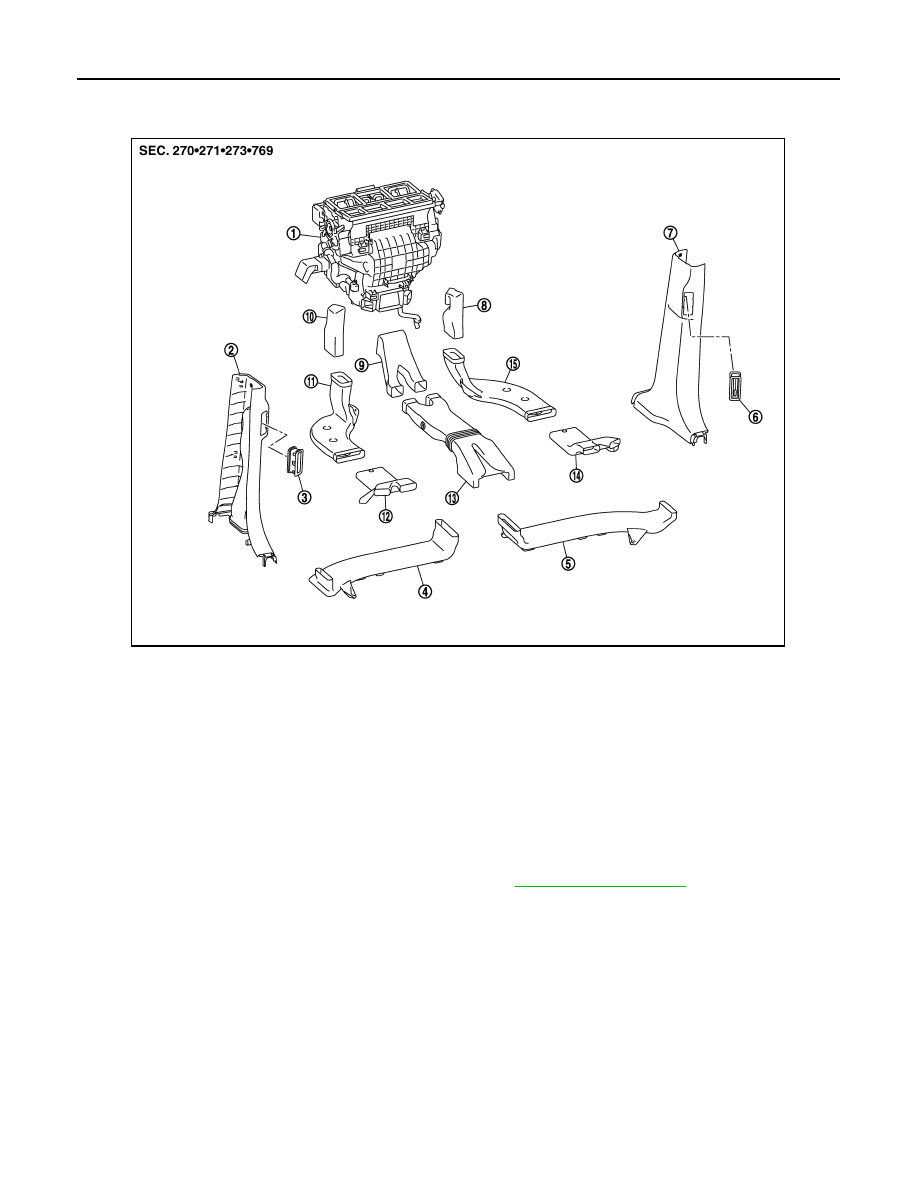

REAR VENTILATOR DUCT 3 : Exploded View

INFOID:0000000005517234

REAR VENTILATOR DUCT 3 : Removal and Installation

INFOID:0000000005517235

REMOVAL

Driver side

1.

Remove the front seat assembly (left). Refer to

SE-105, "Exploded View"

.

2.

Pull up the driver side floor carpet. Refer to

INT-24, "Exploded View"

.

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4 (center pillar lower
garnish left)

3.

Rear ventilator grille (left)

4.

Rear ventilator duct 3 (left)

5.

Rear ventilator duct 3 (right)

6.

Rear ventilator grille (right)

7.

Rear ventilator duct 4 (center pillar lower
garnish right)

8.

Rear foot duct 1 (right)

9.

Rear ventilator duct 1

10.

Rear foot duct 1 (left)

11.

Rear foot duct 2 (left)

12. Rear foot duct 3 (left)

13.

Rear ventilator duct 2

14.

Rear foot duct 3 (right)

15. Rear foot duct 2 (right)

JPIIA0457ZZ

DUCT AND GRILLE

VTL-121

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

3.

Remove the mounting screws (A), and then remove rear ventila-
tor duct 3 (left) (1).

Passenger side

1.

Remove the front seat assembly (right). Refer to

SE-105, "Exploded View"

.

2.

Pull up the passenger side floor carpet. Refer to

INT-24, "Exploded View"

.

3.

Remove the mounting screws (A), and then remove rear ventila-
tor duct 3 (right) (1).

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR DUCT 4

JPIIA0591ZZ

JPIIA0592ZZ

VTL-122

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

REAR VENTILATOR DUCT 4 : Exploded View

INFOID:0000000005517236

REAR VENTILATOR DUCT 4 : Removal and Installation

INFOID:0000000005517237

REMOVAL

1.

Remove the center pillar lower garnish (left/right). Refer to

INT-20, "Exploded View"

.

INSTALLATION

Install in the reverse order of removal.

REAR FOOT DUCT 1

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4 (center pillar lower
garnish left)

3.

Rear ventilator grille (left)

4.

Rear ventilator duct 3 (left)

5.

Rear ventilator duct 3 (right)

6.

Rear ventilator grille (right)

7.

Rear ventilator duct 4 (center pillar lower
garnish right)

8.

Rear foot duct 1 (right)

9.

Rear ventilator duct 1

10.

Rear foot duct 1 (left)

11.

Rear foot duct 2 (left)

12. Rear foot duct 3 (left)

13.

Rear ventilator duct 2

14.

Rear foot duct 3 (right)

15. Rear foot duct 2 (right)

JPIIA0457ZZ
