DUCT AND GRILLE

VTL-111

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

1.

Remove the instrument side finisher (LH/RH). Refer to

IP-12, "Exploded View"

.

2.

Remove the mounting screw (A).

3.

Remove side ventilator grille metal clip using remover tool (B),
and then remove side ventilator grille (1).

INSTALLATION

Install in the reverse order of removal.

SIDE DEFROSTER GRILLE

SIDE DEFROSTER GRILLE : Exploded View

INFOID:0000000005517220

: Metal clip

JPIIA0583ZZ

1.

Defroster nozzle

2.

Side defroster nozzle (left)

3.

Foot duct (left)

4.

Heater duct

5.

Heater & cooling unit assembly

6.

Ventilator duct

7.

Side defroster grille (left)

8.

Instrument panel assembly

9.

Side ventilator grille (left)

10. Center ventilator grille assembly

11. Side ventilator grille (right)

12. Side defroster grille (right)

13. Center speaker grille

14. Blower unit assembly

15. Foot duct (right)

16. Side defroster nozzle (right)

17. Upper ventilator duct

JPIIA1225ZZ

VTL-112

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

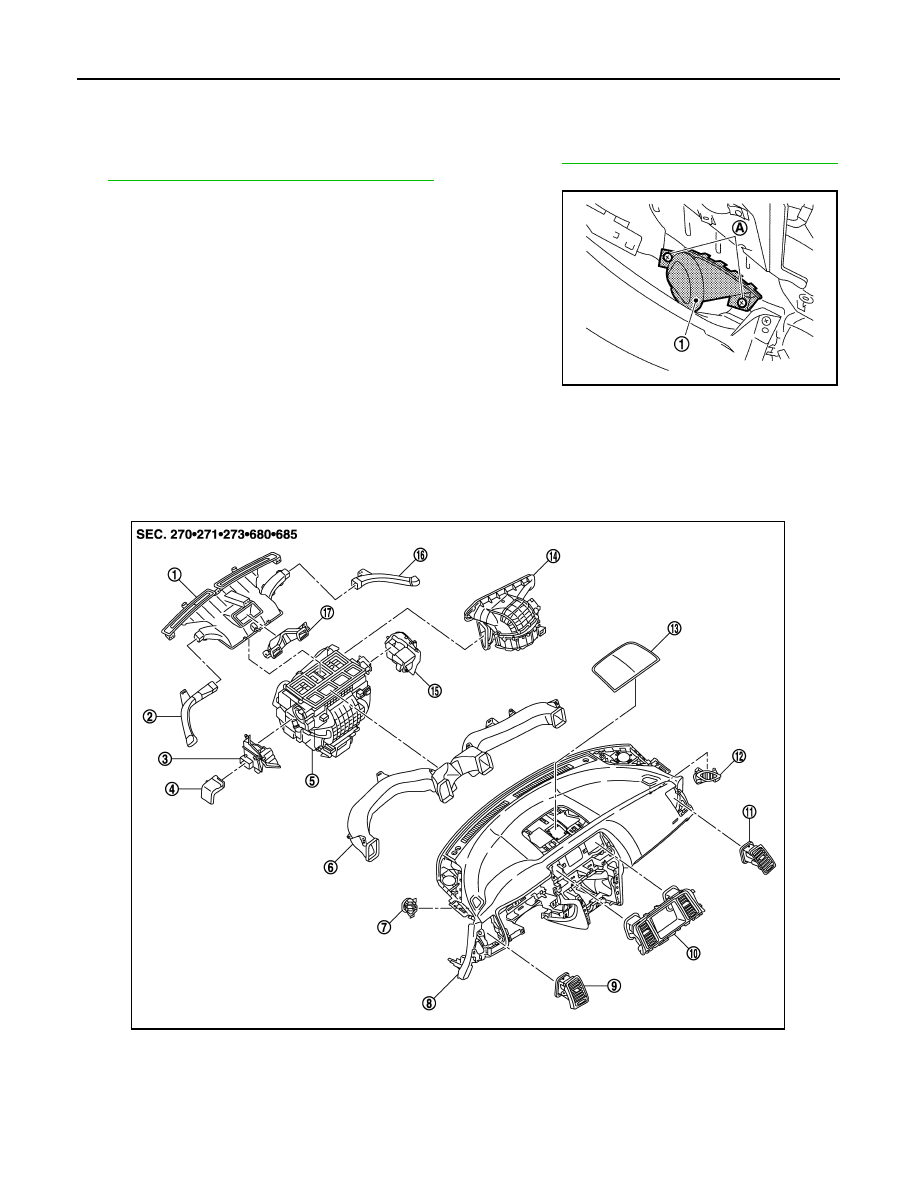

SIDE DEFROSTER GRILLE : Removal and Installation

INFOID:0000000005517221

REMOVAL

1.

Remove the defroster nozzle and side defroster nozzle. Refer to

VTL-115, "DEFROSTER NOZZLE AND

SIDE DEFROSTER NOZZLE : Exploded View"

.

2.

Remove the mounting screws (A), and then remove the side
defroster grilles (left/right) (1).

INSTALLATION

Install in the reverse order of removal.

VENTILATOR DUCT

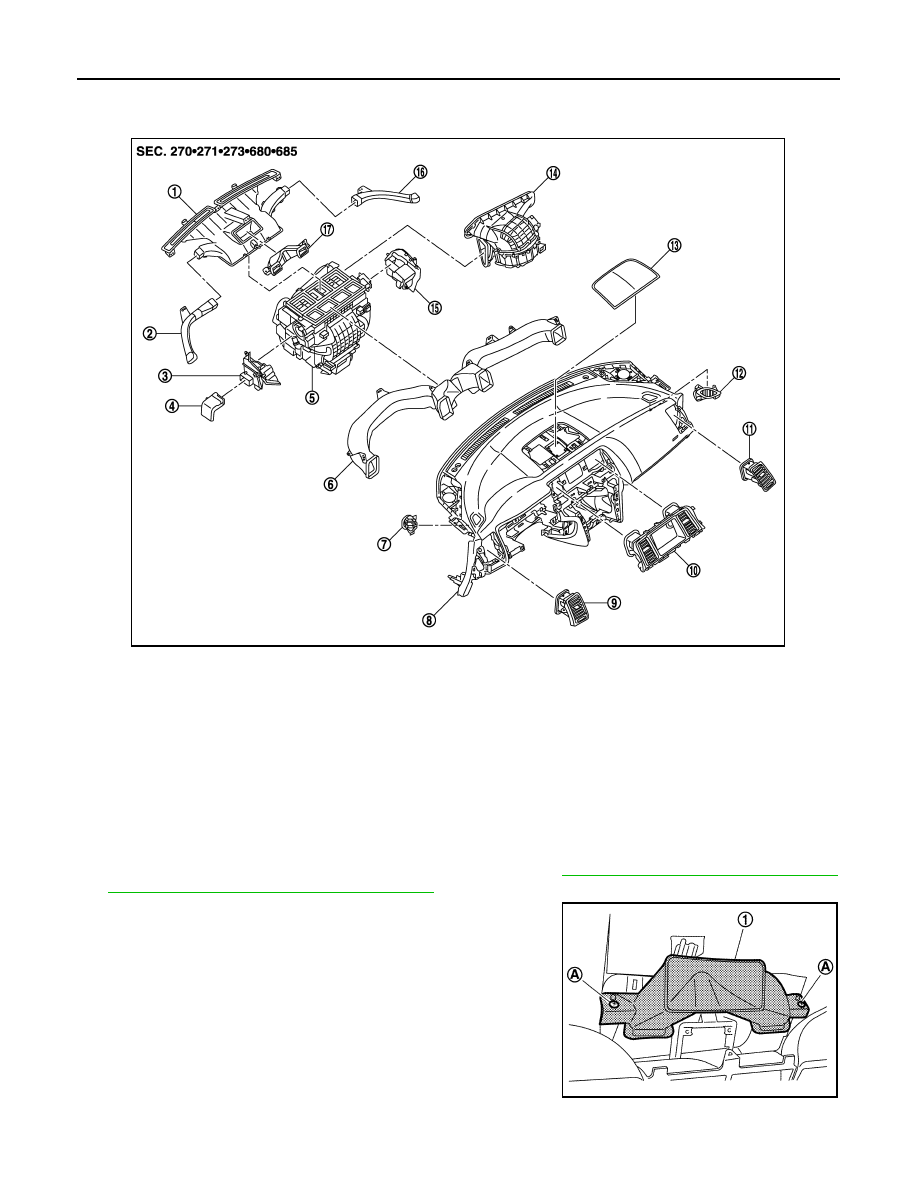

VENTILATOR DUCT : Exploded View

INFOID:0000000005517222

JPIIA0584ZZ

1.

Defroster nozzle

2.

Side defroster nozzle (left)

3.

Foot duct (left)

4.

Heater duct

5.

Heater & cooling unit assembly

6.

Ventilator duct

7.

Side defroster grille (left)

8.

Instrument panel assembly

9.

Side ventilator grille (left)

10. Center ventilator grille assembly

11. Side ventilator grille (right)

12. Side defroster grille (right)

JPIIA1225ZZ

DUCT AND GRILLE

VTL-113

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

VENTILATOR DUCT : Removal and Installation

INFOID:0000000005517223

REMOVAL

1.

Remove the defroster nozzle and side defroster nozzle. Refer to

VTL-115, "DEFROSTER NOZZLE AND

SIDE DEFROSTER NOZZLE : Exploded View"

.

2.

Remove the mounting screws (A), and then remove the ventilator duct (1).

INSTALLATION

Install in the reverse order of removal.

UPPER VENTILATOR DUCT

13. Center speaker grille

14. Blower unit assembly

15. Foot duct (right)

16. Side defroster nozzle (right)

17. Upper ventilator duct

JPIIA0585ZZ

VTL-114

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

UPPER VENTILATOR DUCT : Exploded View

INFOID:0000000005517224

UPPER VENTILATOR DUCT : Removal and Installation

INFOID:0000000005517225

REMOVAL

1.

Remove the defroster nozzle and side defroster nozzle. Refer to

VTL-115, "DEFROSTER NOZZLE AND

SIDE DEFROSTER NOZZLE : Exploded View"

.

2.

Remove the mounting screws (A), and then remove the upper
ventilator duct (1).

INSTALLATION

Install in the reverse order of removal.

1.

Defroster nozzle

2.

Side defroster nozzle (left)

3.

Foot duct (left)

4.

Heater duct

5.

Heater & cooling unit assembly

6.

Ventilator duct

7.

Side defroster grille (left)

8.

Instrument panel assembly

9.

Side ventilator grille (left)

10. Center ventilator grille assembly

11. Side ventilator grille (right)

12. Side defroster grille (right)

13. Center speaker grille

14. Blower unit assembly

15. Foot duct (right)

16. Side defroster nozzle (right)

17. Upper ventilator duct

JPIIA1225ZZ

JPIIA0586ZZ
