UPPER VENTILATOR DOOR MOTOR

VTL-103

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

UPPER VENTILATOR DOOR MOTOR

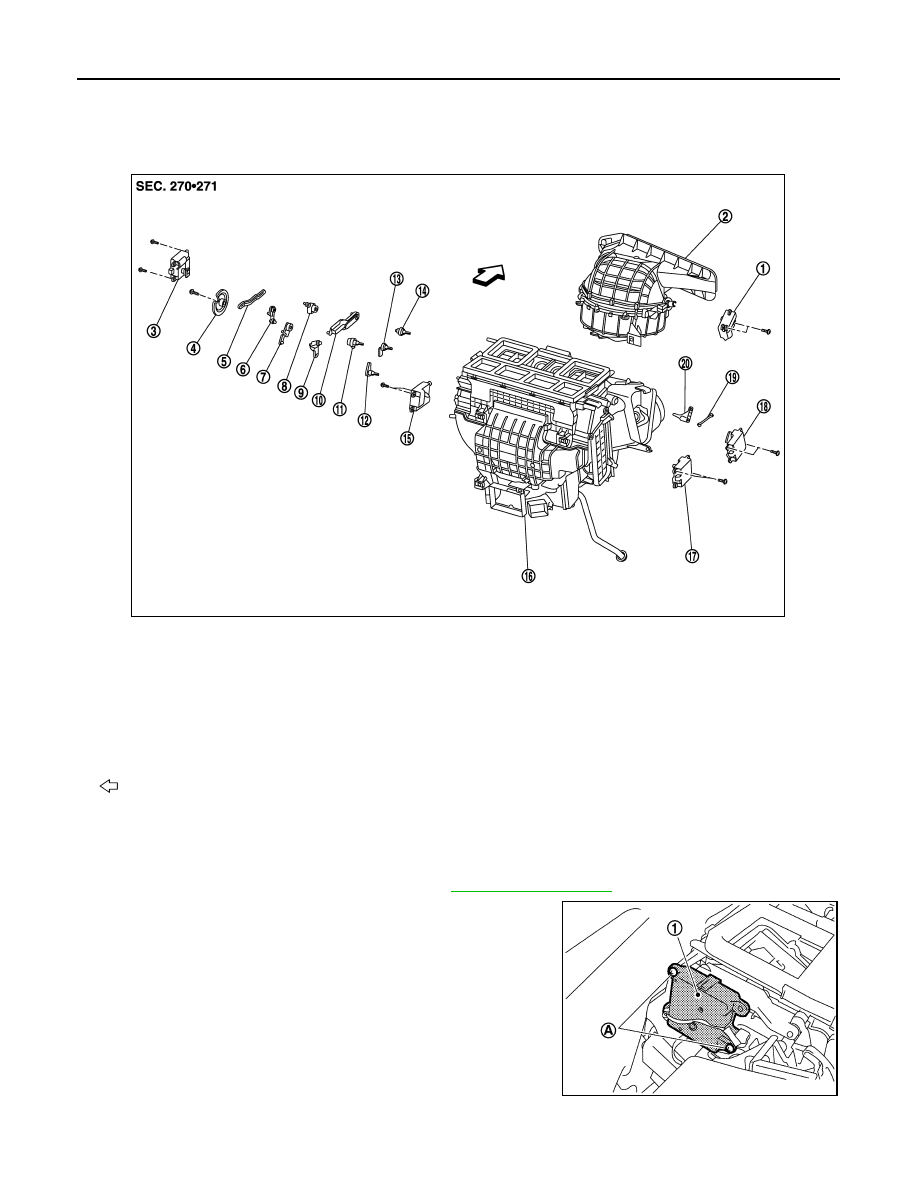

Exploded View

INFOID:0000000005517208

Removal and Installation

INFOID:0000000005517209

REMOVAL

1.

Remove the blower unit. Refer to

VTL-92, "Exploded View"

.

2.

Remove the mounting screws (A), and then remove the upper
ventilator door motor (1).

3.

Disconnect the upper ventilator door motor connector.

INSTALLATION

Install in the reverse order of removal.

1.

Intake door motor

2.

Bower unit assembly

3.

Mode door motor

4.

Main link

5.

Rod link

6.

Max. cool door link

7.

Max. cool door link

8.

Mode door lever

9.

Ventilator door link

10. Defroster door link

11.

Ventilator door lever

12. Foot door lever

13. Max. cool door lever

14.

Defroster door lever

15. Air mix door motor (driver side)

16. Heater & cooling unit assembly

17.

Air mix door motor (passenger side) 18. Upper ventilator door motor

19. Upper ventilator door rod

20.

Upper ventilator door lever

: Vehicle front

JPIIA1238ZZ

JPIIA0574ZZ

VTL-104

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

MODE DOOR MOTOR

MODE DOOR MOTOR

Exploded View

INFOID:0000000005517210

Removal and Installation

INFOID:0000000005517211

REMOVAL

1.

Remove the instrument panel assembly. Refer to

IP-12, "Exploded View"

.

2.

Remove the mounting screws (A), and then remove the mode
door motor (1).

3.

Disconnect the mode door motor connector.

INSTALLATION

Install in the reverse order of removal.

1.

Intake door motor

2.

Bower unit assembly

3.

Mode door motor

4.

Main link

5.

Rod link

6.

Max. cool door link

7.

Max. cool door link

8.

Mode door lever

9.

Ventilator door link

10. Defroster door link

11.

Ventilator door lever

12. Foot door lever

13. Max. cool door lever

14.

Defroster door lever

15. Air mix door motor (driver side)

16. Heater & cooling unit assembly

17.

Air mix door motor (passenger side) 18. Upper ventilator door motor

19. Upper ventilator door rod

20.

Upper ventilator door lever

: Vehicle front

JPIIA1238ZZ

JPIIA0575ZZ

AIR MIX DOOR MOTOR

VTL-105

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

AIR MIX DOOR MOTOR

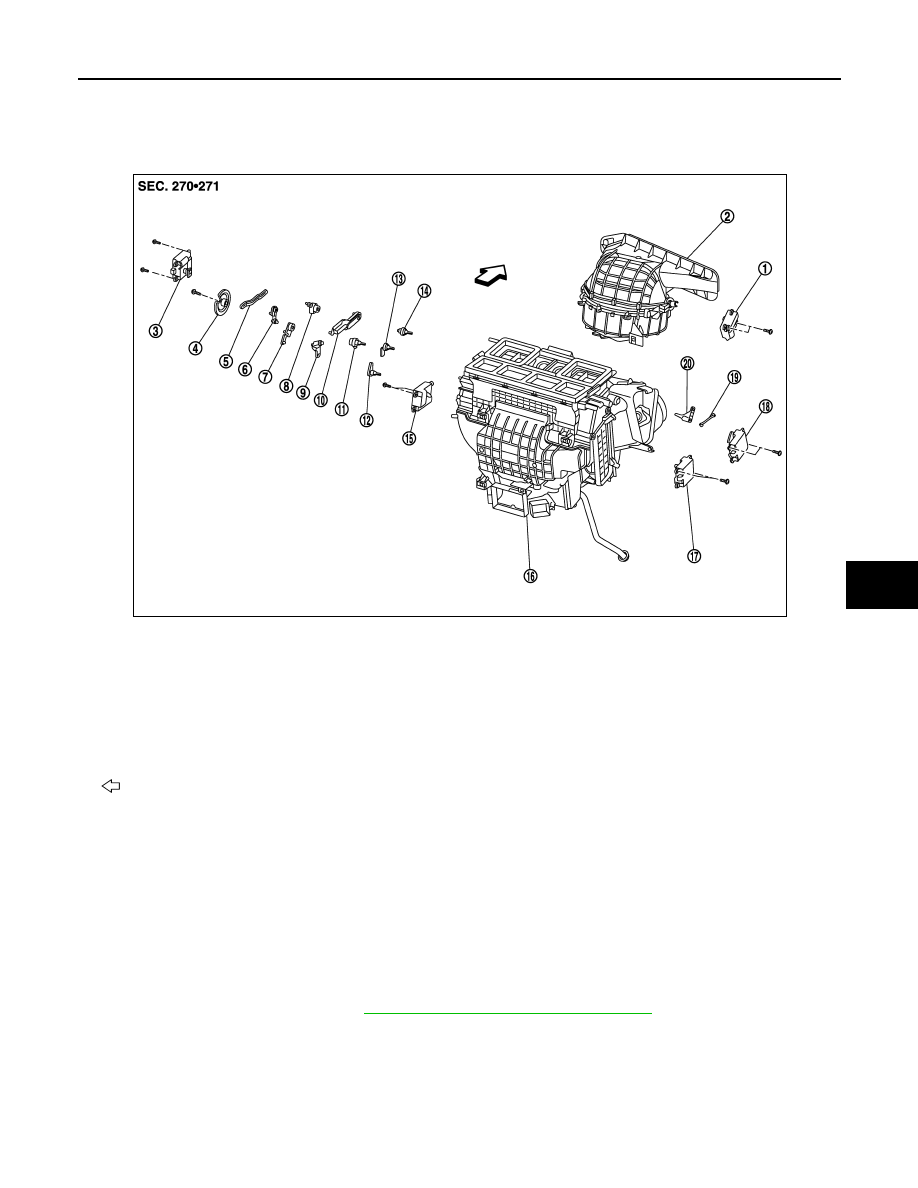

Exploded View

INFOID:0000000005517212

Removal and Installation

INFOID:0000000005517213

REMOVAL

Driver side

1.

Set the temperature (driver side) at 18

°

C (60

°

F).

CAUTION:

The angle may be out, when installing the air mix door motor to the air mix door, unless the above
procedure is performed.

2.

Disconnect the battery cable from the negative terminal.

3.

Remove the foot duct (left). Refer to

VTL-129, "FOOT DUCT : Exploded View"

.

1.

Intake door motor

2.

Bower unit assembly

3.

Mode door motor

4.

Main link

5.

Rod link

6.

Max. cool door link

7.

Max. cool door link

8.

Mode door lever

9.

Ventilator door link

10. Defroster door link

11.

Ventilator door lever

12. Foot door lever

13. Max. cool door lever

14.

Defroster door lever

15. Air mix door motor (driver side)

16. Heater & cooling unit assembly

17.

Air mix door motor (passenger side) 18. Upper ventilator door motor

19. Upper ventilator door rod

20.

Upper ventilator door lever

: Vehicle front

JPIIA1238ZZ

VTL-106

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

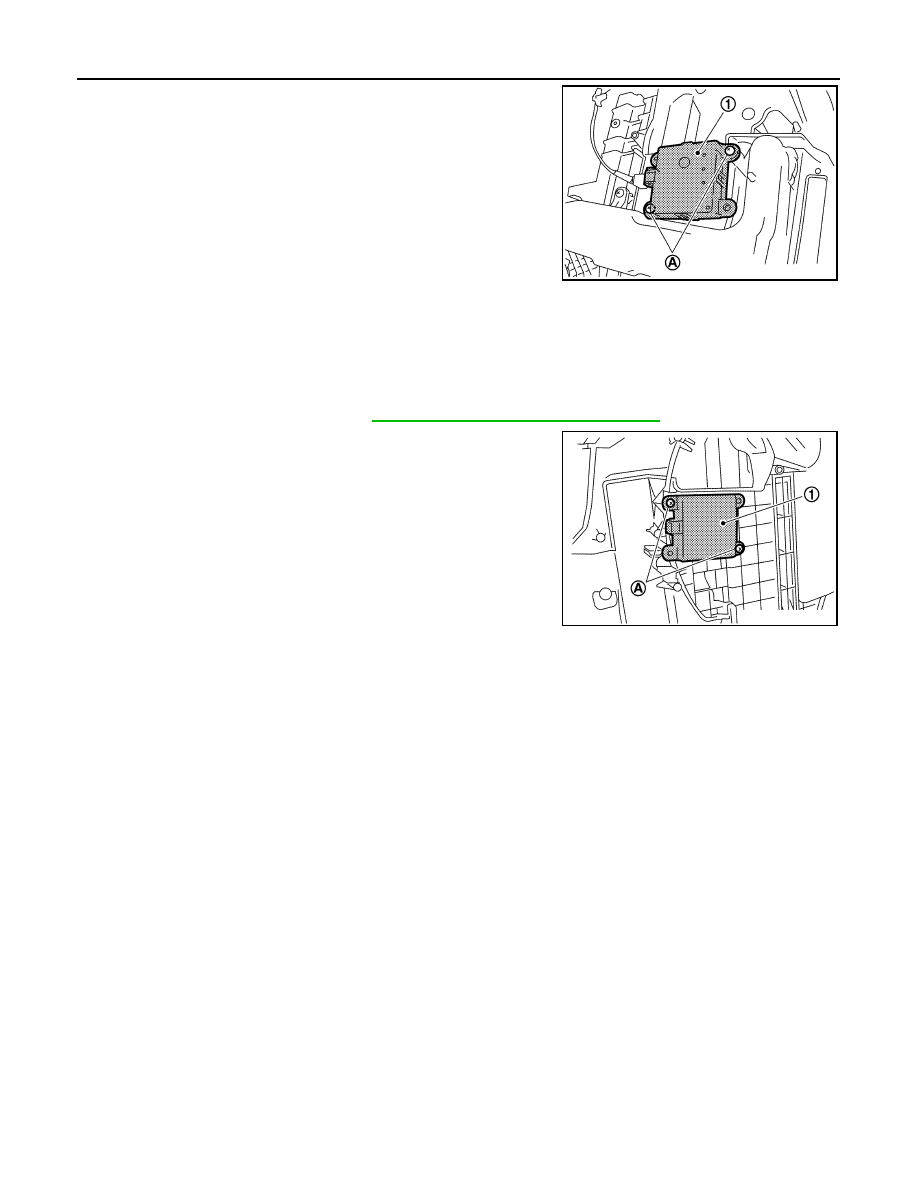

AIR MIX DOOR MOTOR

4.

Remove the mounting screws (A), and then remove the air mix
door motor (1).

5.

Disconnect the air mix door motor connector.

Passenger side

1.

Set the temperature (passenger side) at 18

°

C (60

°

F).

CAUTION:

The angle may be out, when installing the air mix door motor to the air mix door, unless the above
procedure is performed.

2.

Disconnect the battery cable from the negative terminal.

3.

Remove the foot duct (right). Refer to

VTL-129, "FOOT DUCT : Exploded View"

.

4.

Remove the mounting screws (A), and then remove the air mix
door motor (1).

5.

Disconnect the air mix door motor connector.

INSTALLATION

Install in the reverse order of removal.

JPIIA0577ZZ

JPIIA0578ZZ
