IN-VEHICLE SENSOR

Exploded View

INFOID:0000000005517115

Removal and Installation

INFOID:0000000005517116

REMOVAL

1.

Remove the instrument lower panel LH.  Refer to

IP-12, "Exploded View"

.

2.

Remove the mounting screw (A), and then remove the in-vehicle
sensor (1).

INSTALLATION

Install in the reverse order of removal.

1.

In-vehicle sensor

2.

Instrument lower panel LH

JPIIA0557ZZ

JPIIA0558ZZ

VTL-28

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

SUNLOAD SENSOR

SUNLOAD SENSOR

Exploded View

INFOID:0000000005517117

Removal and Installation

INFOID:0000000005517118

REMOVAL

1.

Disconnect the sunload sensor connector, and then remove the
sunload sensor (1).

INSTALLATION

Install in the reverse order of removal.

1.

Sunload sensor

JPIIA0559ZZ

JPIIA0560ZZ

INTAKE SENSOR

VTL-29

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INTAKE SENSOR

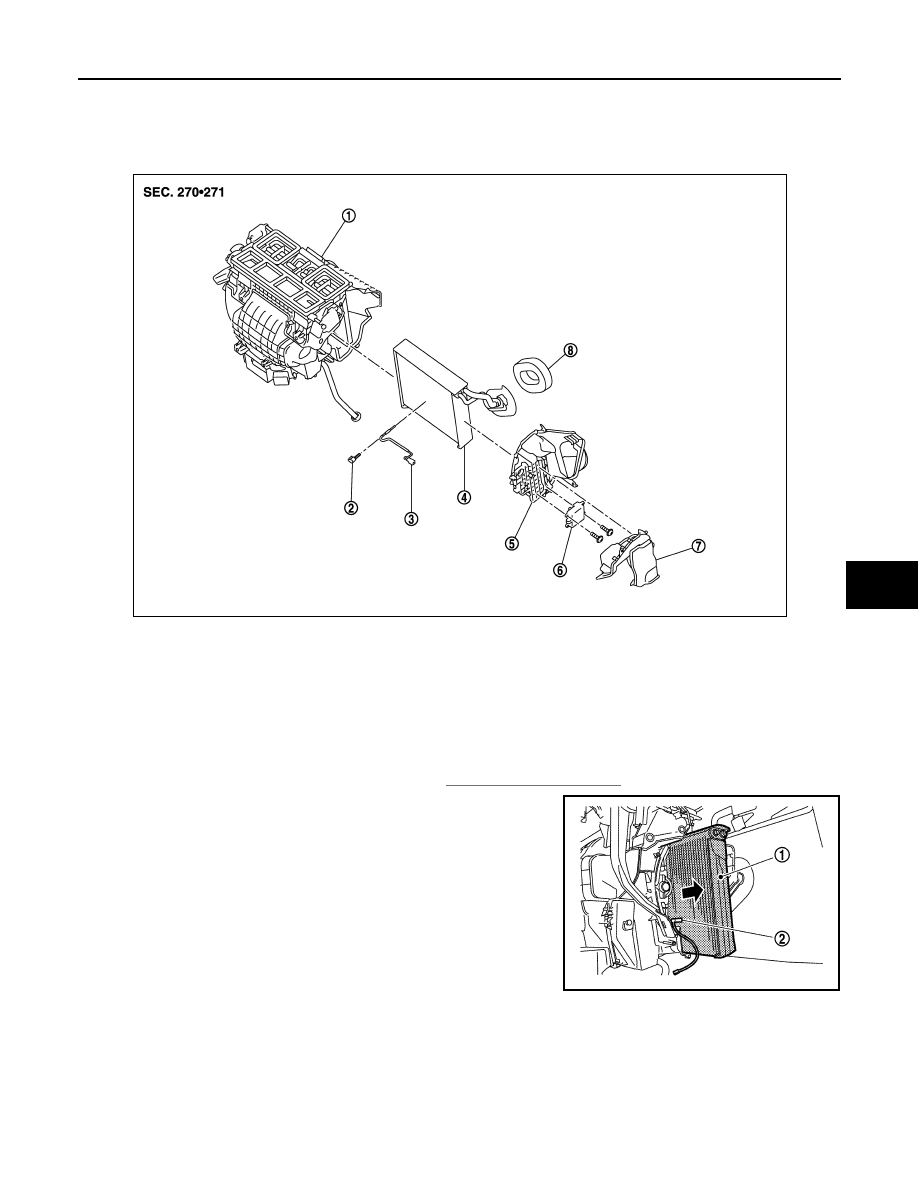

Exploded View

INFOID:0000000005517119

Removal and Installation

INFOID:0000000005517120

REMOVAL

1.

Remove the evaporator pipe assembly. Refer to

VTL-36, "Exploded View"

.

2.

Slide the evaporator (1) toward the right side of the vehicle, and
then remove the intake sensor (2).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Replace the O-ring with a new one. Apply a coat of compressor oil to the O-ring prior to installation.
• Install the intake sensor in the same position as the removed intake sensor when replacing the

intake sensor.

• Do not rotate the bracket insertion part when removing and installing the intake sensor.
• Check for refrigerant leakage when charging refrigerant.

1.

Heater & cooling unit assembly

2.

Intake sensor bracket

3.

Intake sensor

4.

Evaporator assembly

5.

Evaporator cover

6.

Air mix door motor (passenger side)

7.

Foot duct (right)

8.

Cooler pipe grommet

JPIIA1303ZZ

JPIIA0907ZZ

VTL-30

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

BLOWER UNIT

BLOWER UNIT

Exploded View

INFOID:0000000005517121

REMOVAL

DISASSEMBLY

1.

Blower unit assembly

2.

Heater & cooling unit assembly

3.

Steering member

4.

Instrument stay

5.

Instrument panel assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA1224GB
