PREPARATION

VTL-19

< PREPARATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

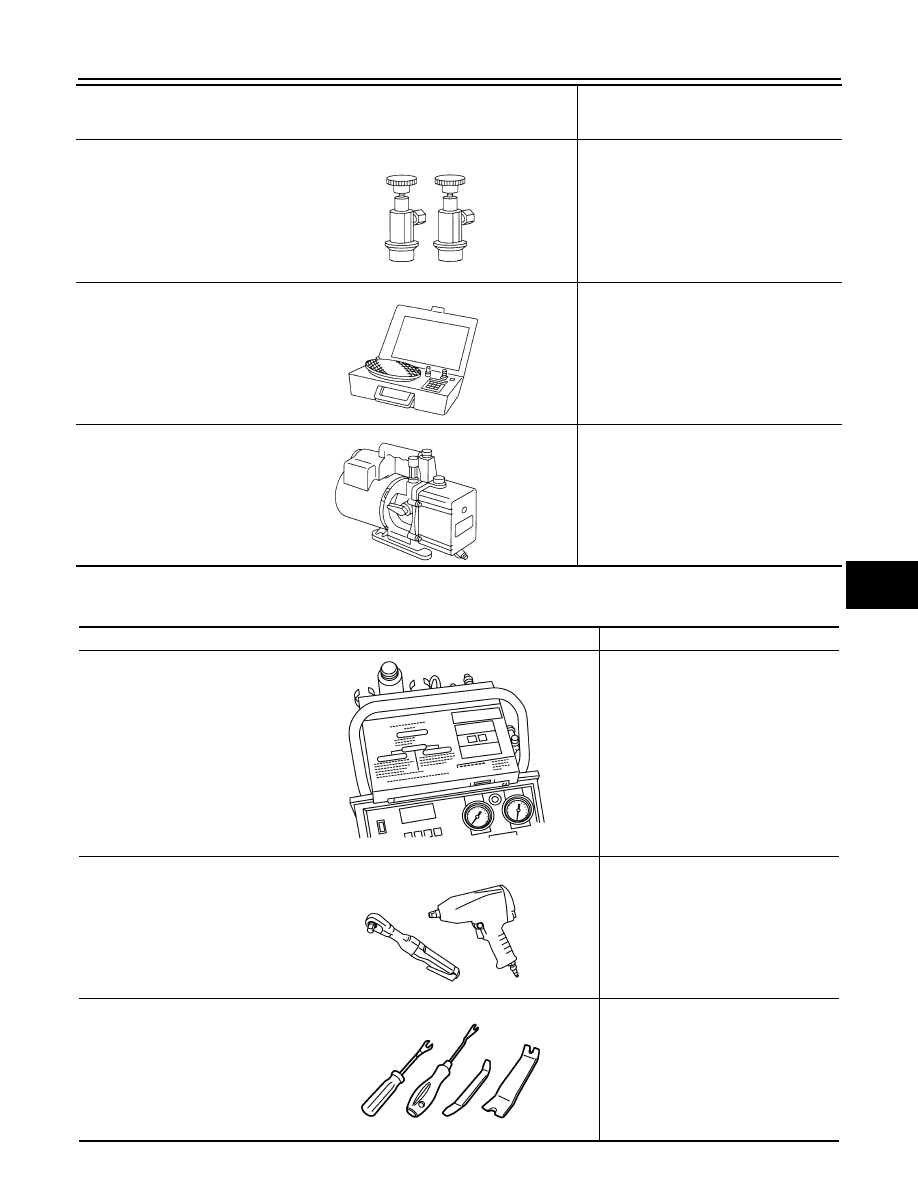

Commercial Service Tool

INFOID:0000000005517102

Service couplers
• High-pressure side coupler

(J-39500-20)

• Low-pressure side coupler

(J-39500-24)

Hose fitting to service hose:
M14 x 1.5 fitting is optional or permanently
attached.

(J-39650)
Refrigerant weight scale

For measuring of refrigerant
Fitting size: Thread size

1/2

″

-16 ACME

(J-39649)
Vacuum pump
(Including the isolator valve)

Capacity:
• Air displacement: 4 CFM
• Micron rating: 20 microns
• Oil capacity: 482 g (17 oz.)
Fitting size: Thread size

• 1/2

″

-16 ACME

Tool number

(Kent-Moore No.)

Tool name

Description

S-NT202

S-NT200

S-NT203

Tool name

Description

Refrigerant identifier equipment

Checking for refrigerant purity and
system contamination

Power tools

For loosening bolts and nuts

Remover tools

Remove clips, pawls, and metal clips

RJIA0197E

PBIC0190E

JMKIA3050ZZ

VTL-20

< PREPARATION >

[WITHOUT 7 INCH DISPLAY]

PREPARATION

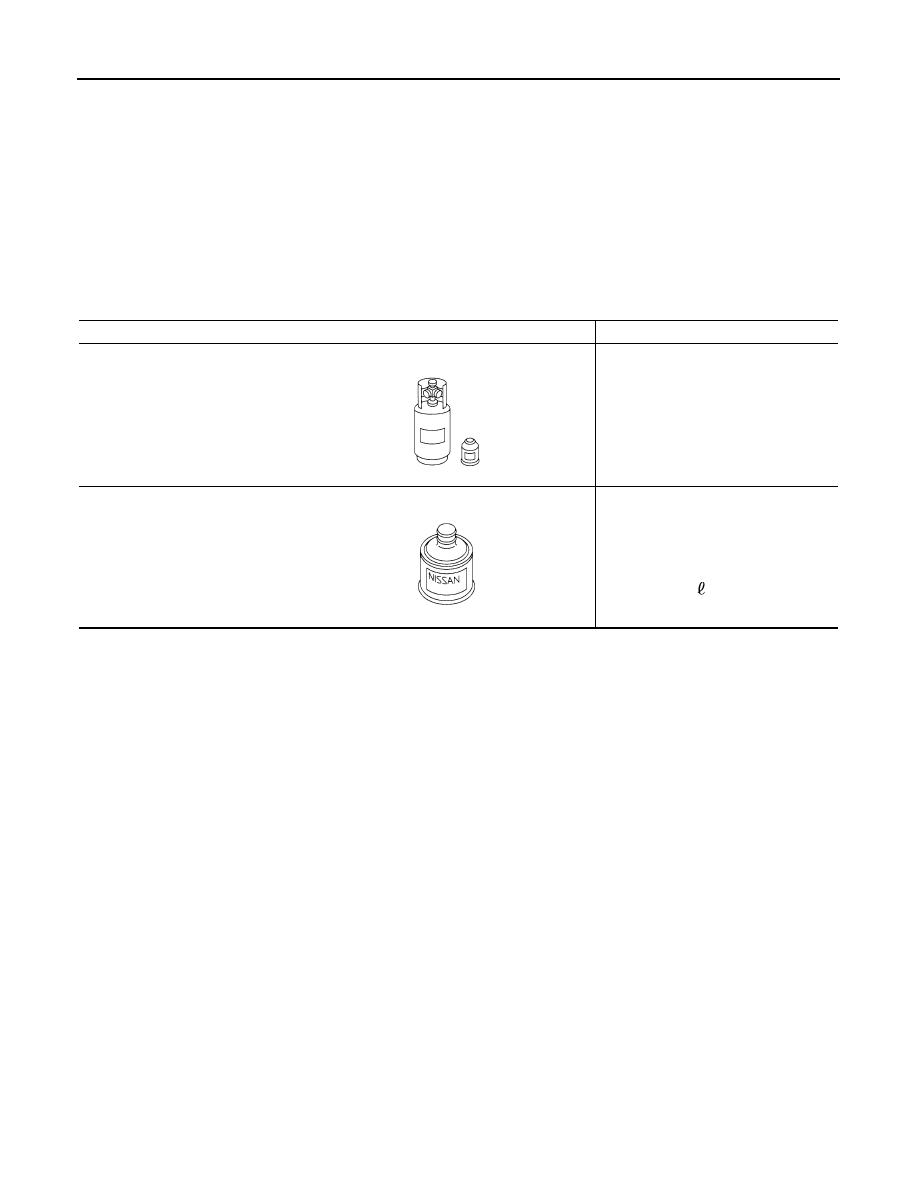

Sealant or/and Lubricant

INFOID:0000000005517103

HFC-134a (R-134a) Service Tool and Equipment

• Never mix HFC-134a (R-134a) refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/

or its lubricant.

• Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/

lubricant.

• Refrigerant container fittings, service hose fittings and service equipment fittings (equipment that handles

refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.

• Never use adapters that convert one size fitting to another. Refrigerant/lubricant contamination occurs and

compressor malfunction may result.

Tool name

Description

HFC-134a (R-134a) refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size

• Large container 1/2

″

-16 ACME

NISSAN A/C System Oil Type S
(DH-PS)

Type: Polyalkylene glycol oil (PAG),
type S (DH-PS)
Application:
HFC-134a (R-134a) swash plate com-
pressors (NISSAN only)

Capacity: 40 m

 (1.4 US fl oz., 1.4

Imp fl oz.)

S-NT196

S-NT197

IN-CABIN MICROFILTER

VTL-21

< PERIODIC MAINTENANCE >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

PERIODIC MAINTENANCE

IN-CABIN MICROFILTER

Exploded View

INFOID:0000000005517104

Removal and Installation

INFOID:0000000005517105

REMOVAL

1.

Remove the filter cover (1), and then remove the in-cabin micro-
filter/air conditioner filter (2).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• If the filter is deformed/damaged when removing, replace it with a new one. Deformed/damaged fil-

termay deteriorate the dust collecting performance.

• When installing, handle the filter with extreme care to avoid deforming/damaging.

Replacement

INFOID:0000000005517106

Replace in-cabin microfilter/air conditioner filter.
For NORTH AMERICA : Refer to

MA-8, "FOR NORTH AMERICA : Schedule 1"

 and

MA-10, "FOR NORTH

AMERICA : Schedule 2"

.

For MEXICO : Refer to

MA-11, "FOR MEXICO : Periodic Maintenance"

.

Affix a caution label inside the glove box when replacing filter.

1.

Heater & cooling unit assembly

2.

In-cabin microfilter/Air conditioner fil-
ter*

3.

Filter cover

*

: Models for Mexico.

JPIIA0895ZZ

JPIIA0552ZZ

VTL-22

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

A/C CONTROL

REMOVAL AND INSTALLATION

A/C CONTROL

Exploded View

INFOID:0000000005517107

DISASSEMBLY

Removal and Installation

INFOID:0000000005517108

REMOVAL

1.

Remove the instrument stay cover LH. Refer to

IP-12, "Exploded View"

.

2.

Remove the instrument stay cover RH. Refer to

IP-12, "Exploded View"

.

3.

Remove the mounting screws (A), and then remove the cluster
lid D (1).

4.

Remove the mounting screws (A), and then remove the A/C
control (1).

INSTALLATION

1.

Cluster lid D

2.

A/C control

JPIIA0600ZZ

JPIIA0601ZZ

JPIIA0602ZZ
