Nissan Murano Z51. Manual - part 1463

A/C CONTROL

VTL-23

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Install in the reverse order of removal.

VTL-24

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

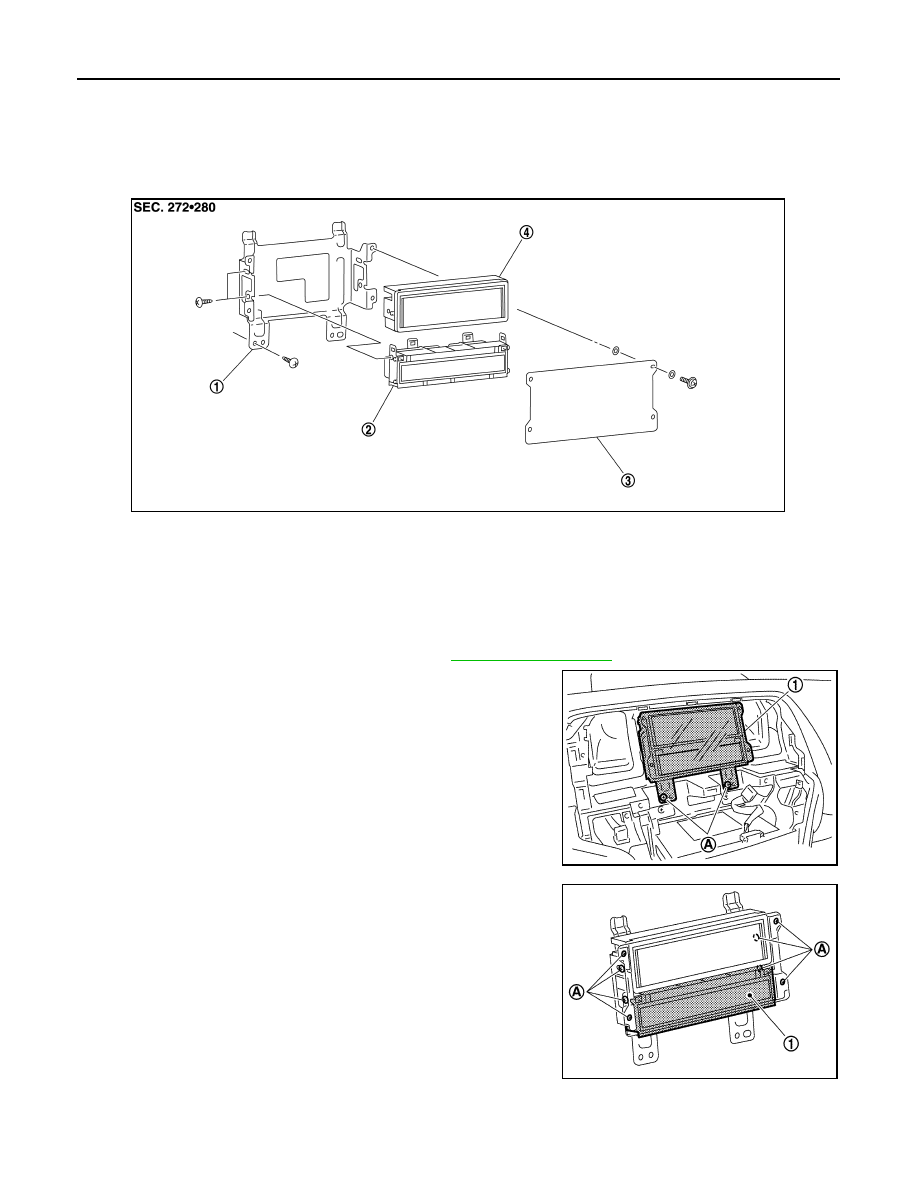

A/C DISPLAY

A/C DISPLAY

Exploded View

INFOID:0000000005517109

DISASSEMBLY

Removal and Installation

INFOID:0000000005517110

REMOVAL

1.

Remove the central ventilator assembly. Refer to

IP-12, "Exploded View"

.

2.

Remove the mounting screws (A), and then remove the mount-
ing bracket (1).

3.

Remove the mounting screws (A), and then remove the A/C dis-
play (1).

INSTALLATION

Install in the reverse order of removal.

1.

Bracket

2.

A/C display

3.

CRT filter

4.

AV display

JPIIA0603ZZ

JPIIA0604ZZ

JPIIA0605ZZ

A/C AUTO AMP.

VTL-25

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

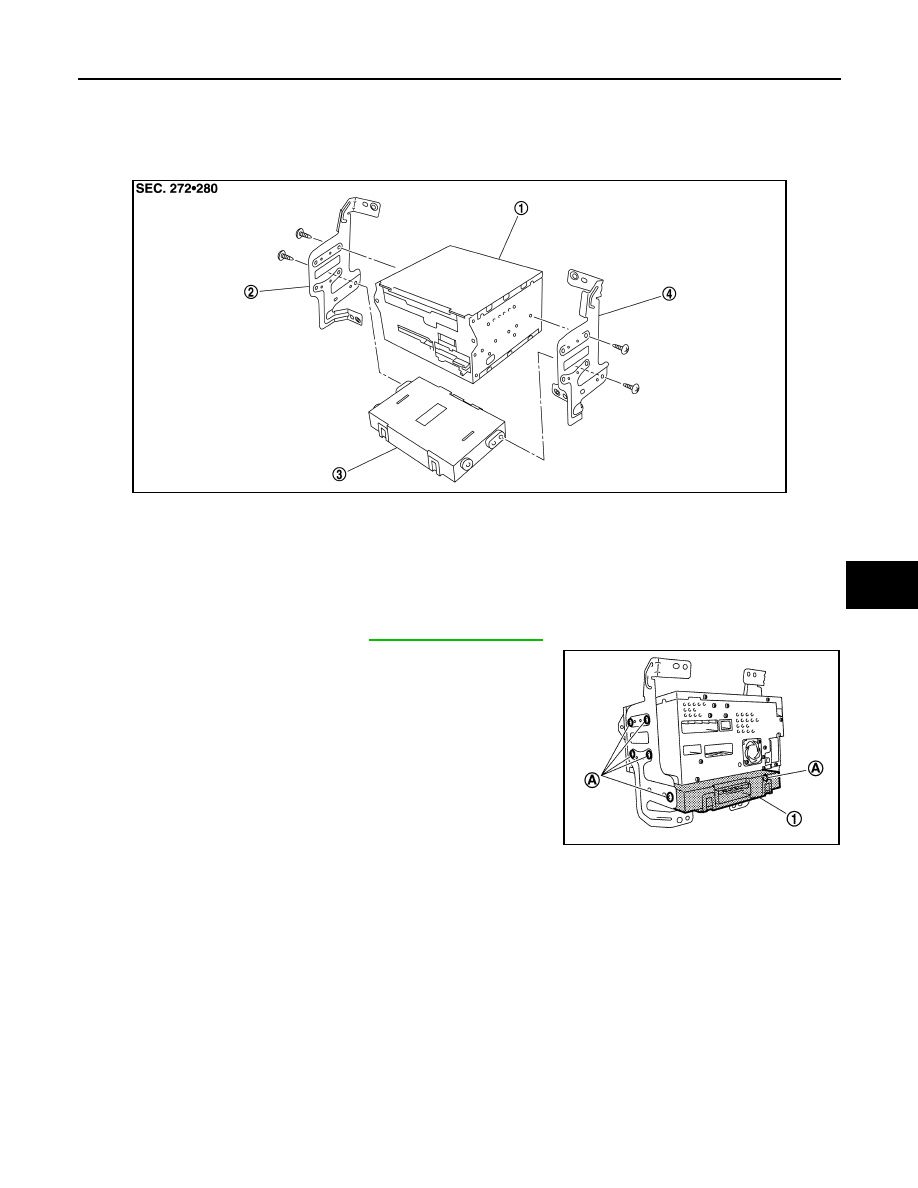

A/C AUTO AMP.

Exploded View

INFOID:0000000005517111

DISASSEMBLY

Removal and Installation

INFOID:0000000005517112

REMOVAL

1.

Remove the AV control unit. Refer to

AV-534, "Exploded View"

.

2.

Remove the mounting screws (A), and then remove the A/C
auto amp. (1).

INSTALLATION

Install in the reverse order of removal.

JPIIA0553ZZ

1.

AV control unit

2.

Bracket (LH)

3.

A/C auto amp.

4.

Bracket (RH)

JPIIA0554ZZ

VTL-26

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

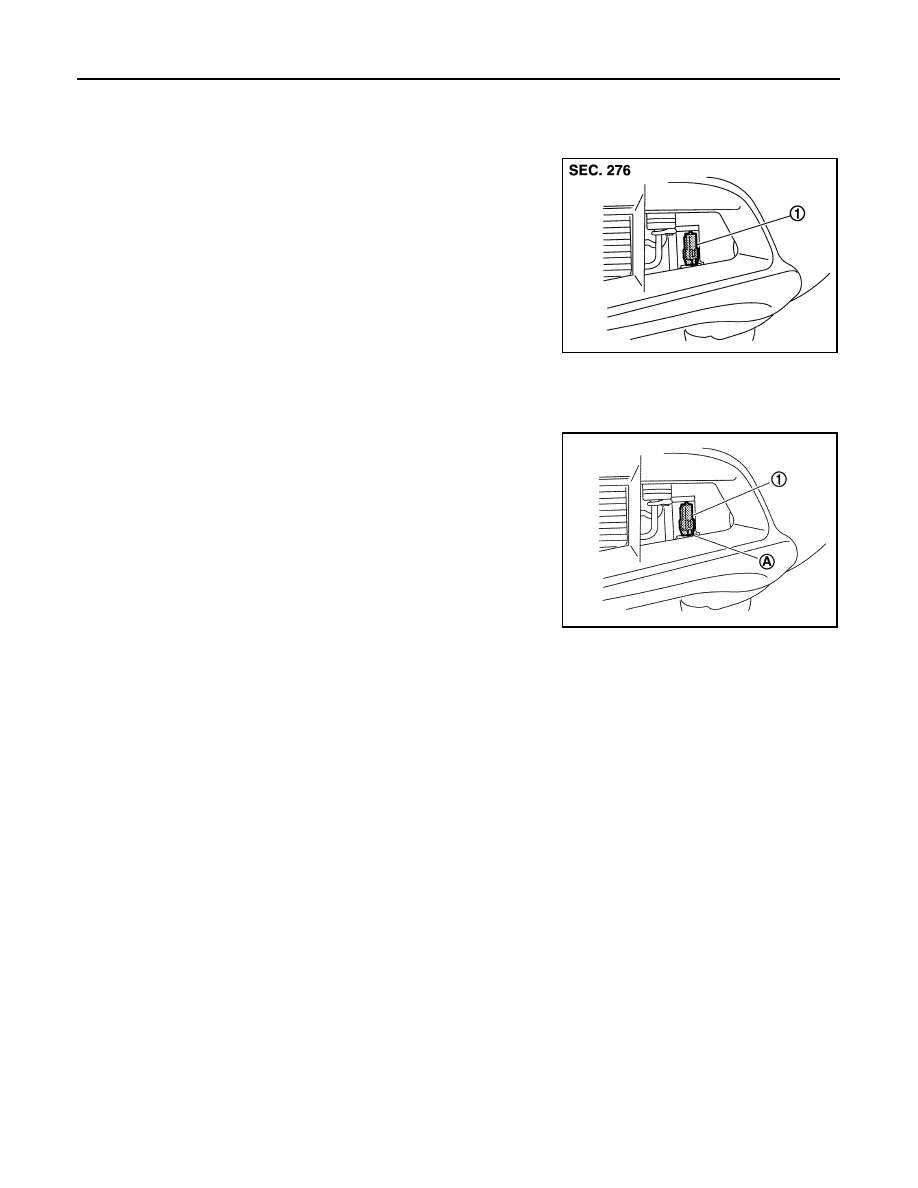

AMBIENT SENSOR

AMBIENT SENSOR

Exploded View

INFOID:0000000005517113

Removal and Installation

INFOID:0000000005517114

REMOVAL

1.

Disconnect the ambient sensor connector (A), and then remove
the ambient sensor (1).

INSTALLATION

Install in the reverse order of removal.

1.

Ambient sensor

JPIIA1300ZZ

JPIIA0556ZZ
