1.

Check hoses and hose connections for leaks.

2.

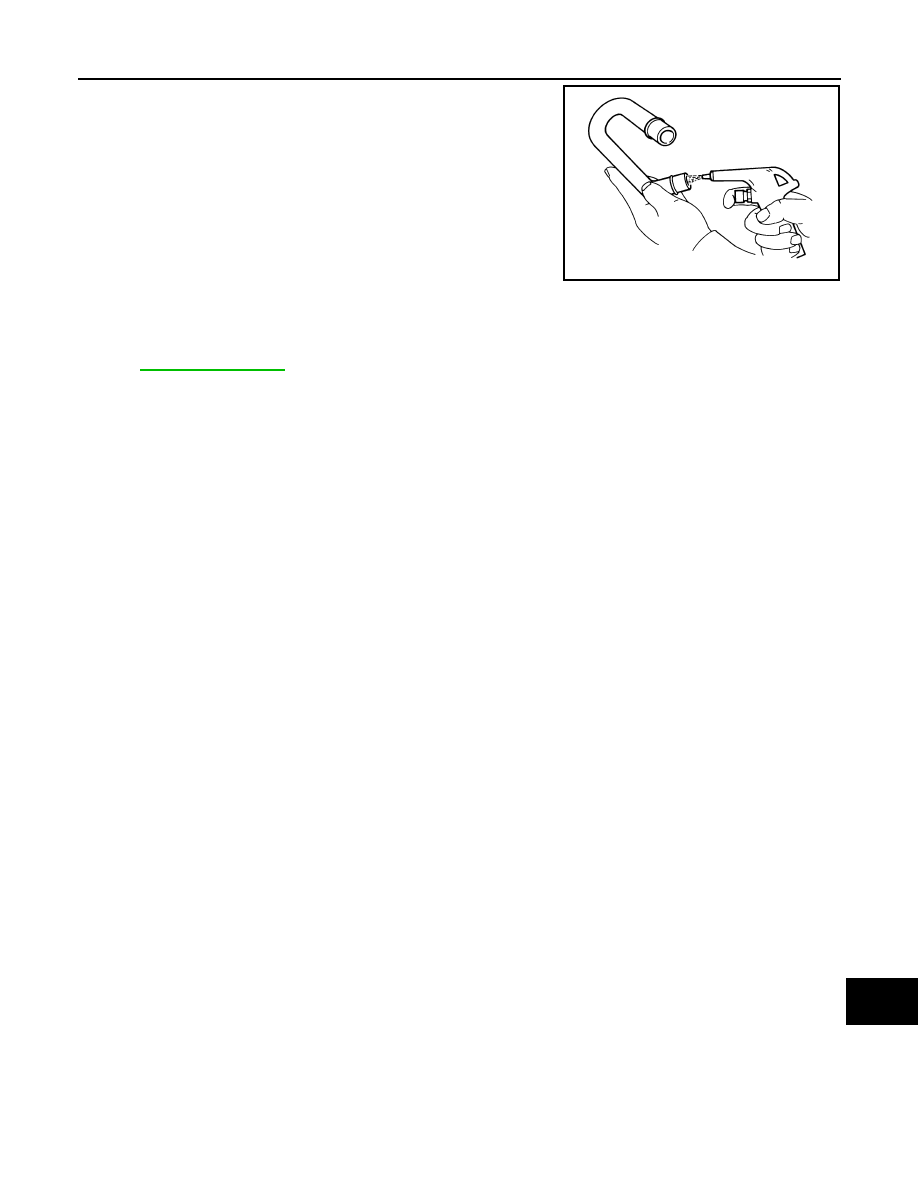

Disconnect all hoses and clean with compressed air. If any hose
cannot be freed of obstructions, replace.

EVAP VAPOR LINES

EVAP VAPOR LINES : Inspection

INFOID:0000000005516158

Refer to

EC-532, "Inspection"

 .

S-ET277

MA-28

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

CHASSIS MAINTENANCE

EXHAUST SYSTEM

EXHAUST SYSTEM : Inspection

INFOID:0000000005516159

Check exhaust pipes, muffler, and mounting for improper attach-
ment, leakage, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

CVT FLUID

CVT FLUID : Inspection

INFOID:0000000005516160

CHECKING CVT FLUID

The fluid level should be checked with the fluid warmed up to 50 to 80

°

C (122 to 176

°

F). The fluid level check

procedure is as follows:

1.

Check for fluid leakage.

2.

With the engine warmed up, drive the vehicle in an urban area.
When ambient temperature is 20

°

C (68

°

F), it takes about 10

minutes for the CVT fluid to warm up to 50 to 80

°

C (122 to

176

°

F).

3.

Park the vehicle on a level surface.

4.

Apply parking brake firmly.

5.

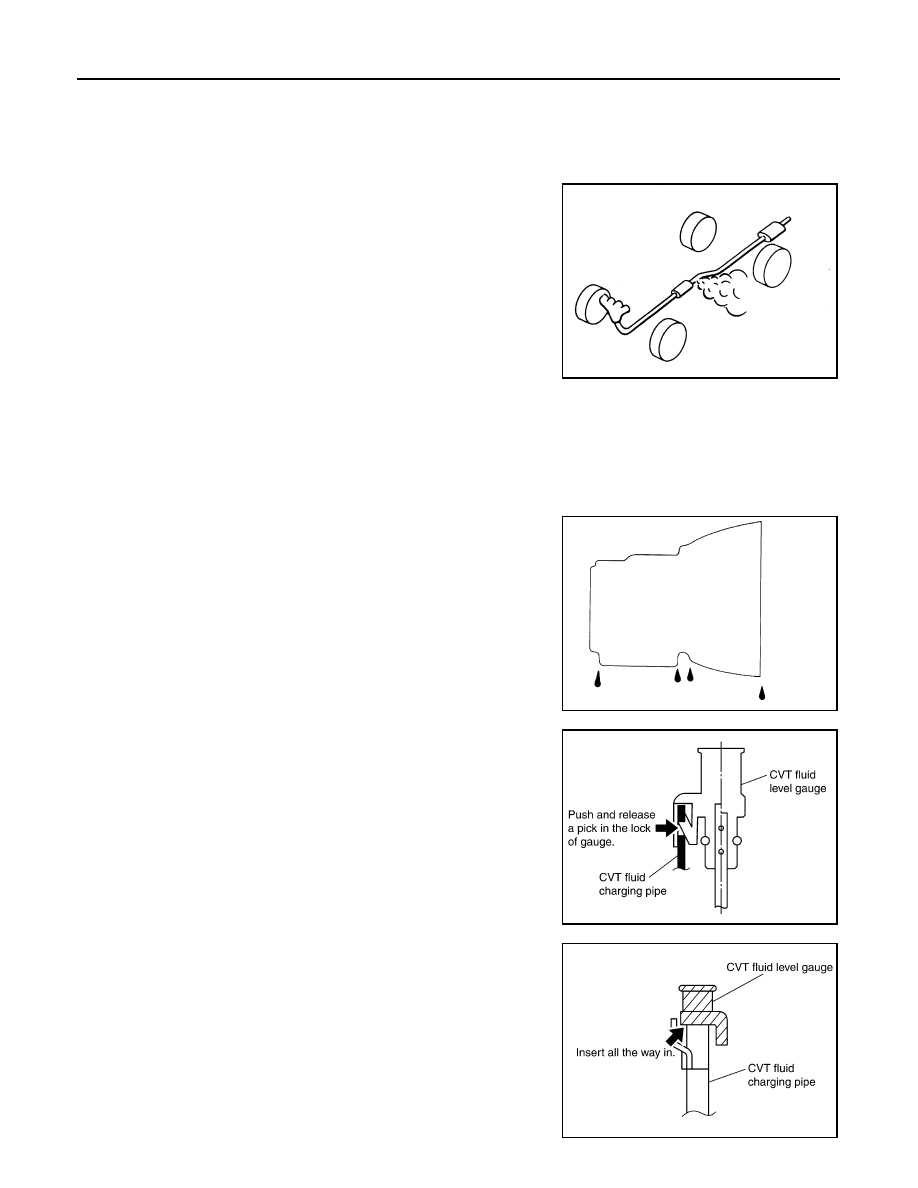

With engine at idle, while depressing brake pedal, move shift
selector throughout the entire shift range.

6.

Pull out the CVT fluid level gauge from the CVT fluid charging
pipe after pressing the tab on the CVT fluid level gauge to
release the lock.

7.

Wipe fluid off the CVT fluid level gauge. Insert the CVT fluid
level gauge rotating 180

°

 from the originally installed position,

then securely push the CVT fluid level gauge until it meets the
top end of the CVT fluid charging pipe.

CAUTION:

When wiping away the CVT fluid level gauge, always use
lint-free paper, not a cloth rag.

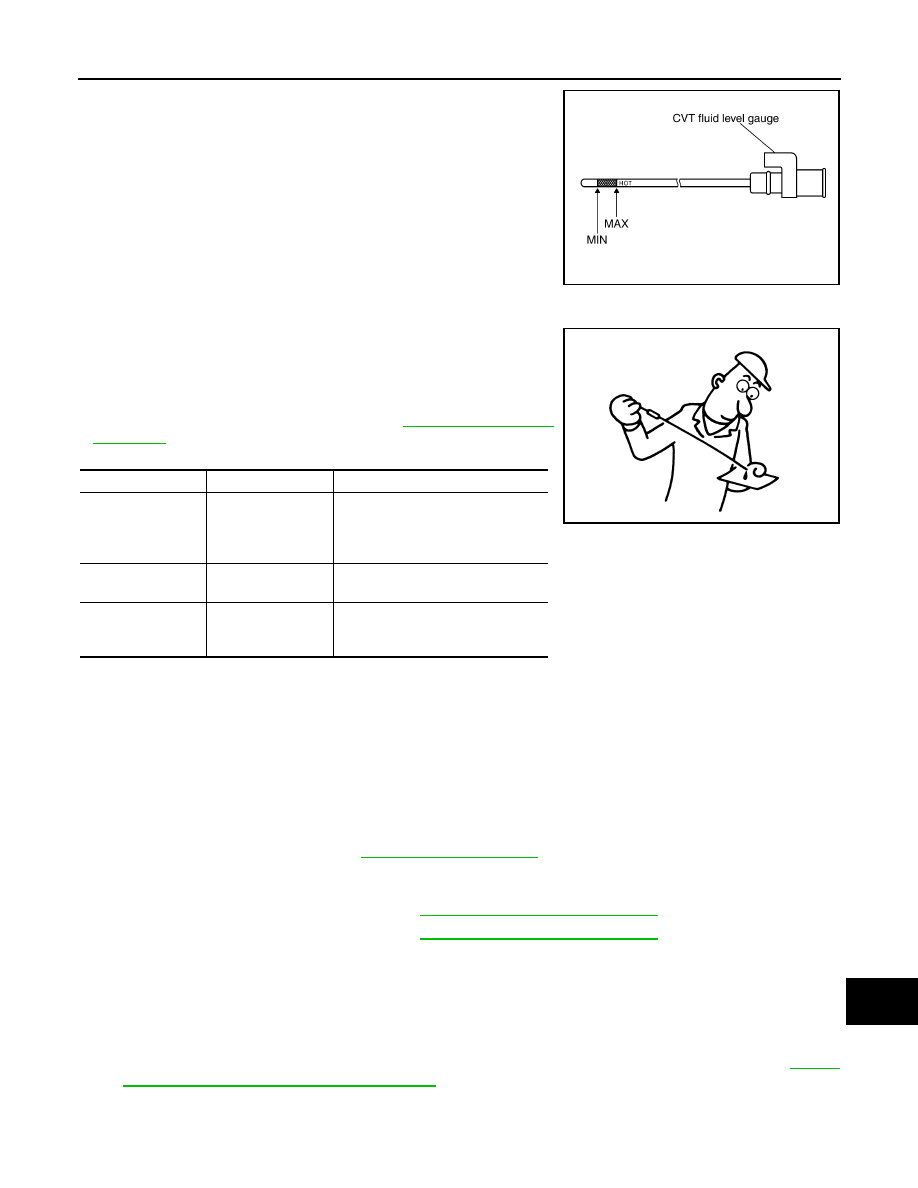

SMA211A

SMA146B

SCIA1933E

SCIA1931E

CHASSIS MAINTENANCE

MA-29

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

8.

Place the selector lever in “P” or “N” and check that the fluid
level is within the specified range.

CAUTION:

When reinstalling CVT fluid level gauge, insert it into the
CVT fluid charging pipe and rotate it to the original installa-
tion position until securely locked.

CVT FLUID CONDITION

Check CVT fluid condition.
• If CVT fluid is very dark or smells burned, check operation of CVT.

Flush cooling system after repair of CVT.

• If CVT fluid contains frictional material (clutches, brakes, etc.),

replace radiator and flush cooler line using cleaning solvent and
compressed air after repair of CVT. Refer to

MA-29, "CVT FLUID :

Changing"

.

CVT FLUID : Changing

INFOID:0000000005516161

CAUTION:

Replace a O-ring with new ones at the final stage of the operation when installing.

1.

Remove drain plug from oil pan.

2.

Remove O-ring from drain plug.

3.

Install O-ring to drain plug.

CAUTION:

Never reuse O-ring.

4.

Install drain plug to oil pan. Refer to

TM-166, "Exploded View"

.

5.

Fill CVT fluid from CVT fluid charging pipe to the specified level.

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-2. Never mix with other fluid.
• Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and

CVT durability, and may damage the CVT, which is not covered by the warranty.

• When filling CVT fluid, take care not to scatter heat generating parts such as exhaust.
• Sufficiently shake the container of CVT fluid before using.
• Delete CVT fluid deterioration date with CONSULT-III after changing CVT fluid. Refer to

TM-36,

"CONSULT-III Function (TRANSMISSION)"

.

6.

With the engine warmed up, drive the vehicle in an urban area.
NOTE:

SCIA1932E

Fluid status

Conceivable cause

Required operation

Varnished (viscous
varnish state)

CVT fluid becomes
degraded due to
high temperatures.

Replace the CVT fluid and check the
CVT main unit and the vehicle for
malfunctions (wire harnesses, cool-
er pipes, etc.)

Milky white or
cloudy

Water in the fluid

Replace the CVT fluid and check for
places where water is getting in.

Large amount of
metal powder mixed
in

Unusual wear of
sliding parts within
CVT

Replace the CVT fluid and check for
improper operation of the CVT.

ATA0022D

CVT fluid

: Refer to

TM-179, "General Specification"

.

Fluid capacity

: Refer to

TM-179, "General Specification"

.

MA-30

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

When ambient temperature is 20

°

C (68

°

F), it takes about 10 minutes for the CVT fluid to warm up to 50 to

80

°

C (122 to 176

°

F).

7.

Check CVT fluid level and condition.

8.

Repeat steps 1 to 5 if CVT fluid has been contaminated.

TRANSFER OIL

TRANSFER OIL : Inspection

INFOID:0000000005516162

OIL LEAKAGE

Check transfer surrounding area (oil seal, drain plug, filler plug, and transfer case, etc.) for oil leakage.

OIL LEVEL

1.

Remove filler plug (1) and gasket. Then check that oil is filled up
(A) from mounting hole for the filler plug.

2.

Before installing filler plug, set a new gasket. Install filler plug on
transfer and tighten to the specified torque. Refer to

DLN-56,

"Exploded View"

.

CAUTION:

Never reuse gaskets.

TRANSFER OIL : Draining

INFOID:0000000005516163

1.

Run the vehicle to warm up the transfer unit sufficiently.

2.

Stop the engine and remove drain plug (1) and gaskets to drain
the transfer oil.

3.

Before installing drain plug, set a new gasket. Install drain plug
on transfer and tighten to the specified torque. Refer to

DLN-56,

"Exploded View"

.

CAUTION:

Never reuse gaskets.

TRANSFER OIL : Refilling

INFOID:0000000005516164

1.

Remove filler plug (1) and gasket. Then fill oil up to mounting
hole (A) for the filler plug.

CAUTION:

Carefully fill the oil. (Fill up for approximately 3 minutes.)

2.

Leave the vehicle for 3 minutes. Then check oil level again.

3.

Before installing filler plug, set a new gasket. Install filler plug on transfer and tighten to the specified
torque. Refer to

DLN-56, "Exploded View"

.

CAUTION:

: Vehicle front

JPDIE0017ZZ

: Vehicle front

JPDIE0016ZZ

: Vehicle front

Oil grade and viscosity

: Refer to

MA-15, "FOR

NORTH AMERICA : Fluids
and Lubricants"

.

Oil capacity

: Refer to

DLN-79, "General

Specifications"

.

JPDIE0017ZZ
