HA-56

< REMOVAL AND INSTALLATION >

EVAPORATOR PIPE ASSEMBLY

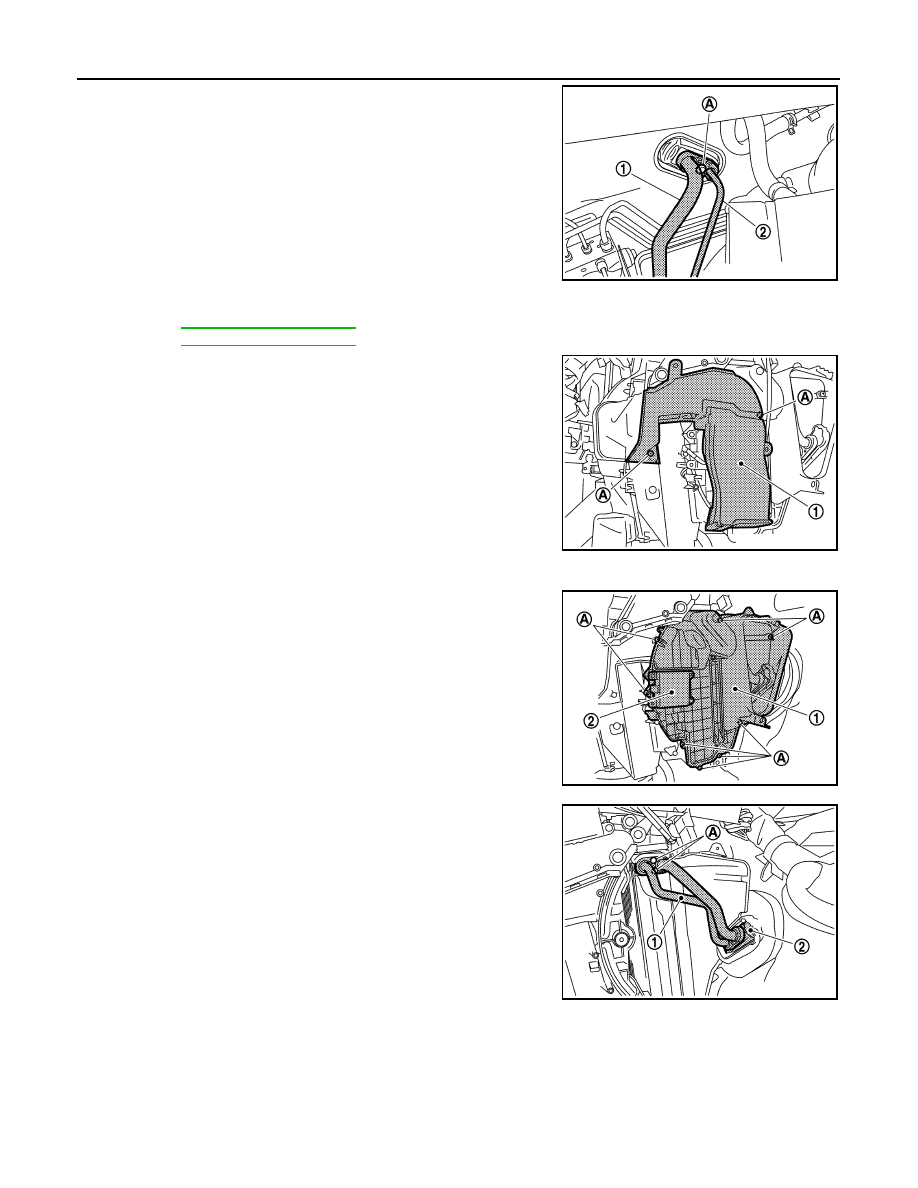

4.

Remove mounting bolt (A) and then disconnect low-pressure
pipe (1) and high-pressure pipe (2) from expansion valve.

CAUTION:

Cap or wrap the joint of the A/C piping and expansion valve
with suitable material such as vinyl tape to avoid the entry
of air.

5.

Remove blower unit assembly. Refer to the following.
• Refer  to

VTL-30, "Exploded View"

 (WITHOUT 7 INCH DISPLAY).

• Refer  to

VTL-94, "Exploded View"

 (WITH 7 INCH DISPLAY).

6.

Remove fixing screws (A) and then remove foot duct assembly
RH (1).

7.

Disconnect air mix door motor (passenger side) connector.

8.

Remove fixing screws (A) and then remove heater & cooling unit
case cover (1) together with the air mix door motor (2). (Passen-
ger side)

9.

Remove mounting bolts (A) and then remove evaporator pipe
assembly (1) and the expansion valve (2) from evaporator.

CAUTION:

Cap or wrap the joint of the A/C piping and evaporator with
suitable material such as vinyl tape to avoid the entry of air.

JPIIA0561ZZ

JPIIA0562ZZ

JPIIA0563ZZ

JPIIA0546ZZ

EVAPORATOR PIPE ASSEMBLY

HA-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

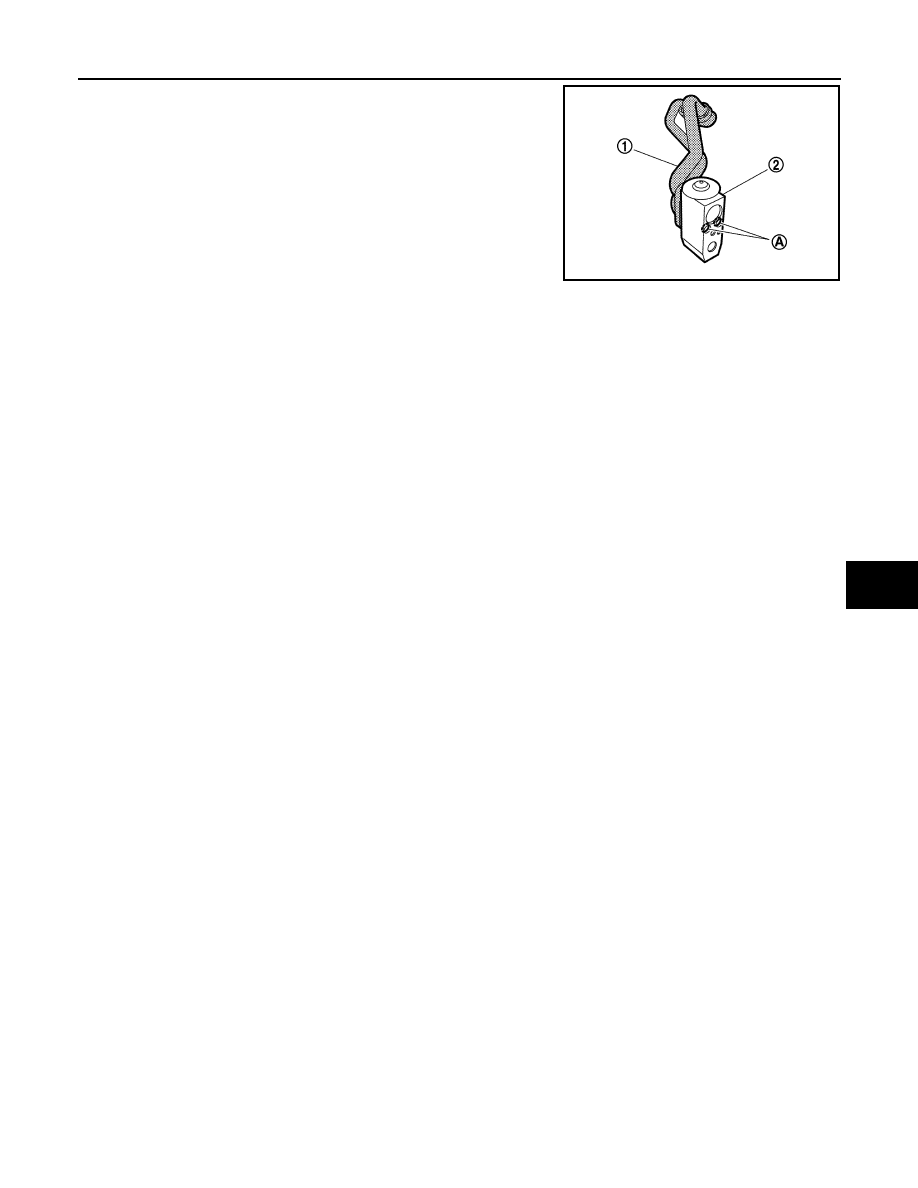

10. Remove mounting bolts (A) and then remove evaporator pipe

(2) from evaporator assembly (1).

CAUTION:

Cap or wrap the joint of the A/C piping and expansion valve
with suitable material such as vinyl tape to avoid the entry
of air.

INSTALLATION

Note the following items and then install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant.

JPIIA0547ZZ

HA-58

< REMOVAL AND INSTALLATION >

EVAPORATOR

EVAPORATOR

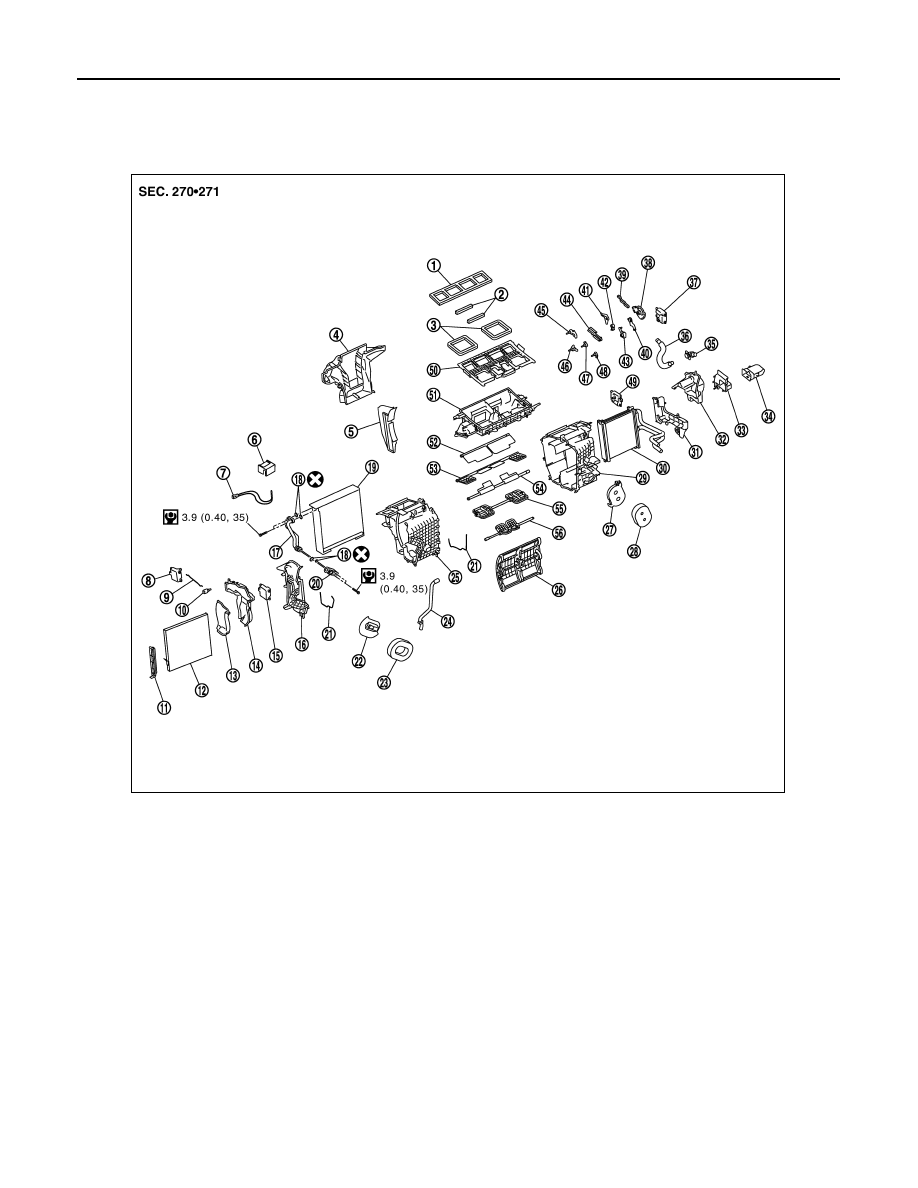

Exploded View

INFOID:0000000009718660

1.

Ventilator seal

2.

Upper ventilator seal

3.

Defroster seal

4.

Adapter case

5.

Center case

6.

Intake sensor bracket

7.

Intake sensor

8.

Upper ventilator door motor

9.

Upper ventilator door rod

10. Upper ventilator door lever

11.

Filter cover

12.

In-cabin microfilter

13. Foot duct 1 RH

14.

Foot duct 2 RH

15.

Air mix door motor (Passenger side)

16. Heater & cooling unit case cover

17.

Evaporator pipe assembly

18.

O-ring

19. Evaporator

20.

Expansion valve

21.

Case packing

22. Grommet

23.

Cooler pipe grommet

24.

Drain hose

25. Heater & cooling unit case RH

26.

Air mix door (Slide door)

27.

Heater pipe support

28. Heater pipe grommet

29.

Heater & cooling unit case LH

30.

Heater core

31. Heater pipe cover

32.

Foot duct 2 LH

33.

Foot duct 1 LH

34. Heater duct

35.

Aspirator

36.

Aspirator hose

37. Mode door motor

38.

Main link

39.

Rod link

40. Max. cool door link

41.

Ventilator door link

42.

Foot door link

43. Mode door lever

44.

Defroster door link

45.

Ventilator door lever

46. Foot door lever

47.

Defroster door lever

48.

Max. cool door lever

JPIIA0454GB

EVAPORATOR

HA-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

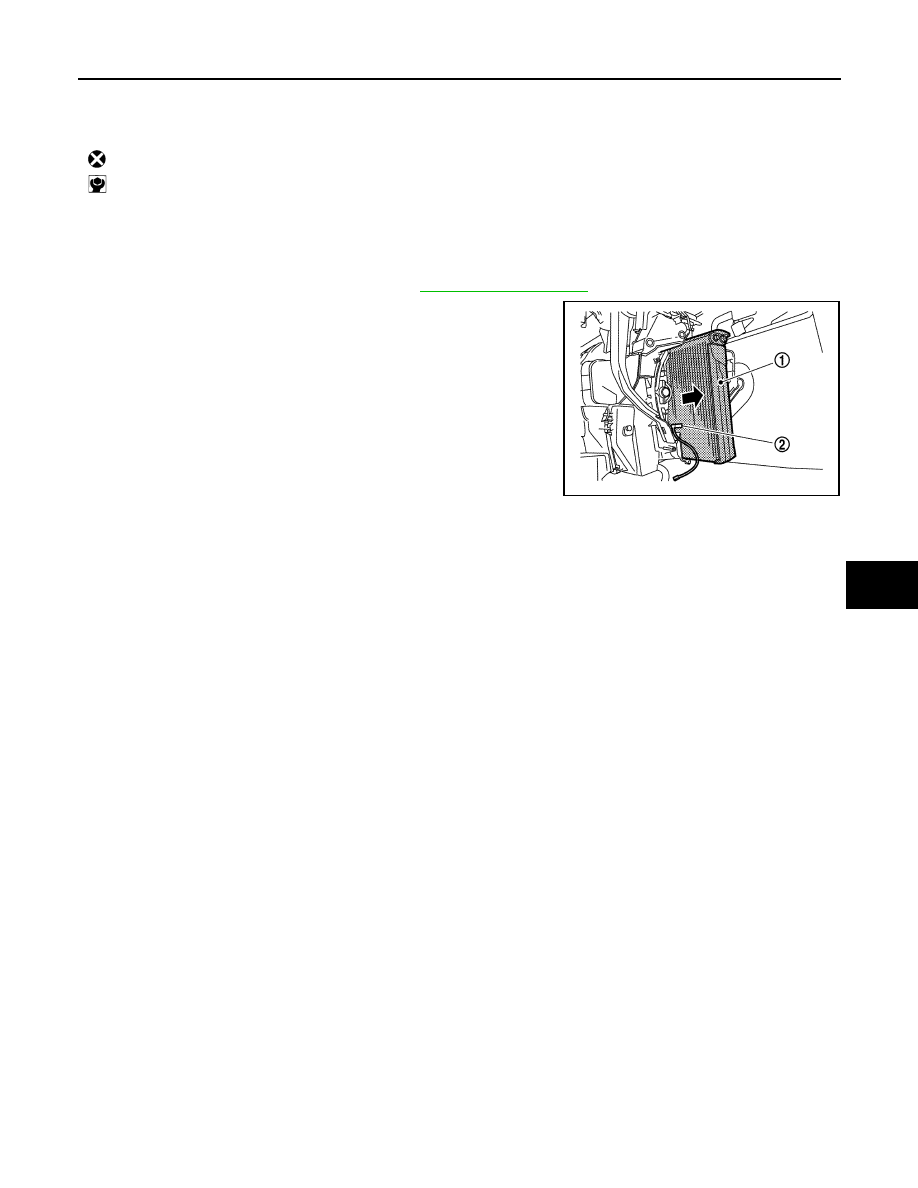

Removal and Installation

INFOID:0000000009718661

REMOVAL

1.

Remove evaporator pipe assembly. Refer to

HA-55, "Exploded View"

.

2.

Slide the evaporator (1) toward the right side of vehicle.

3.

Remove intake sensor (2) and then remove evaporator.

INSTALLATION

Note the following items and then install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor

can be located in the same position.

• Never rotate the bracket insertion part when removing and installing the intake sensor.
• Check for leakages when recharging refrigerant.

49.

Air mix door motor (Driver side)

50.

Distributor upper case

51. Distributor lower case

52.

Ventilator door

53.

Foot door

54. Max. cool door

55.

Defroster door

56.

Upper ventilator door

: Always replace after every disassembly.

: N·m (kg-m, in-lb)
