CONDENSER PIPE ASSEMBLY

CONDENSER PIPE ASSEMBLY

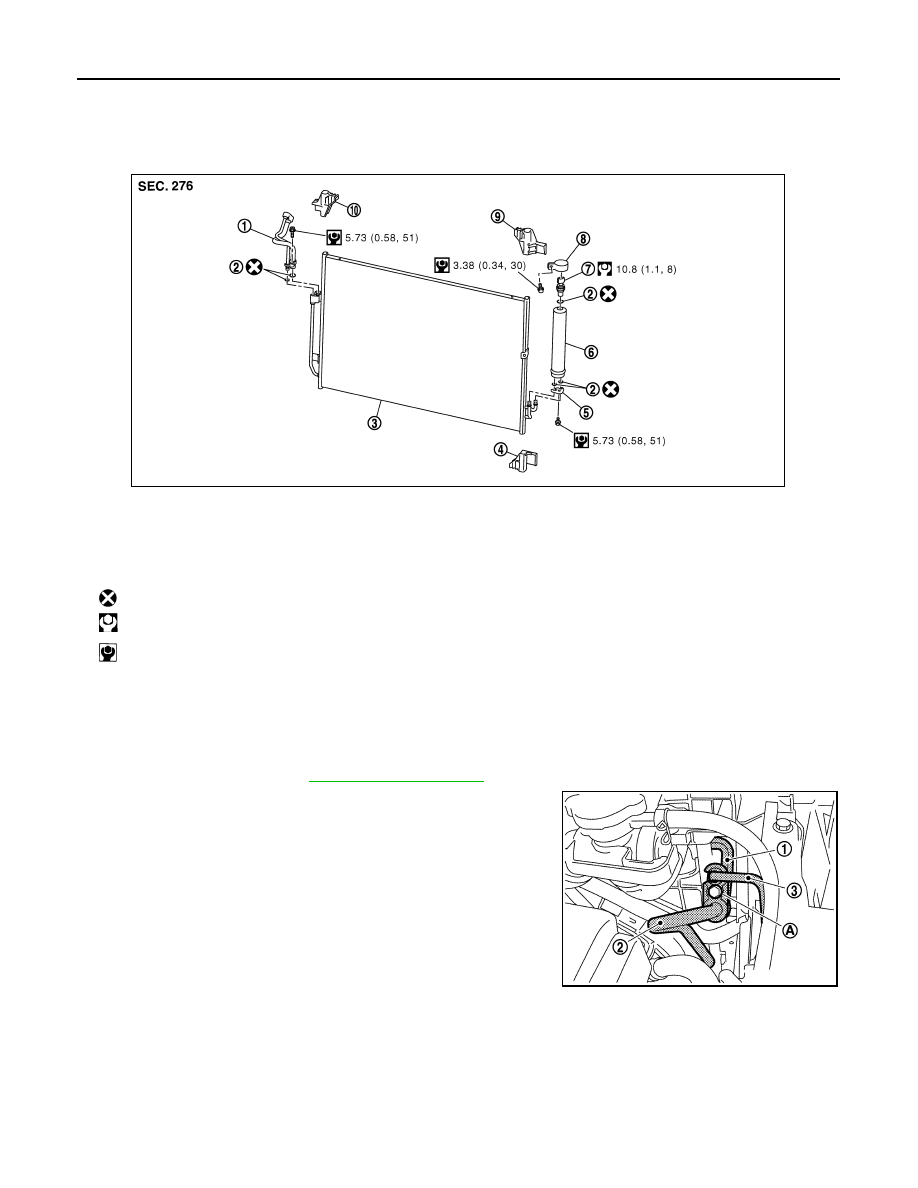

Exploded View

INFOID:0000000009718650

Removal and Installation

INFOID:0000000009718651

REMOVAL

1.

Use refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove front grille. Refer to

EXT-21, "Exploded View"

.

3.

Remove mounting bolt (A) and then disconnect high-pressure
flexible hose (2) and high-pressure pipe (3) from condenser pipe
assembly (1).

CAUTION:

Cap or wrap the joint of the A/C piping with suitable mate-
rial such as vinyl tape to avoid the entry of air.

1.

Condenser pipe assembly

2.

O-ring

3.

Condenser assembly

4.

Condenser lower bracket LH

5.

Bracket

6.

Liquid tank

7.

Refrigerant pressure sensor

8.

Liquid tank bracket

9.

Condenser upper bracket LH

10. Condenser upper bracket RH

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JPIIA0460GB

JPIIA0541ZZ

CONDENSER PIPE ASSEMBLY

HA-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

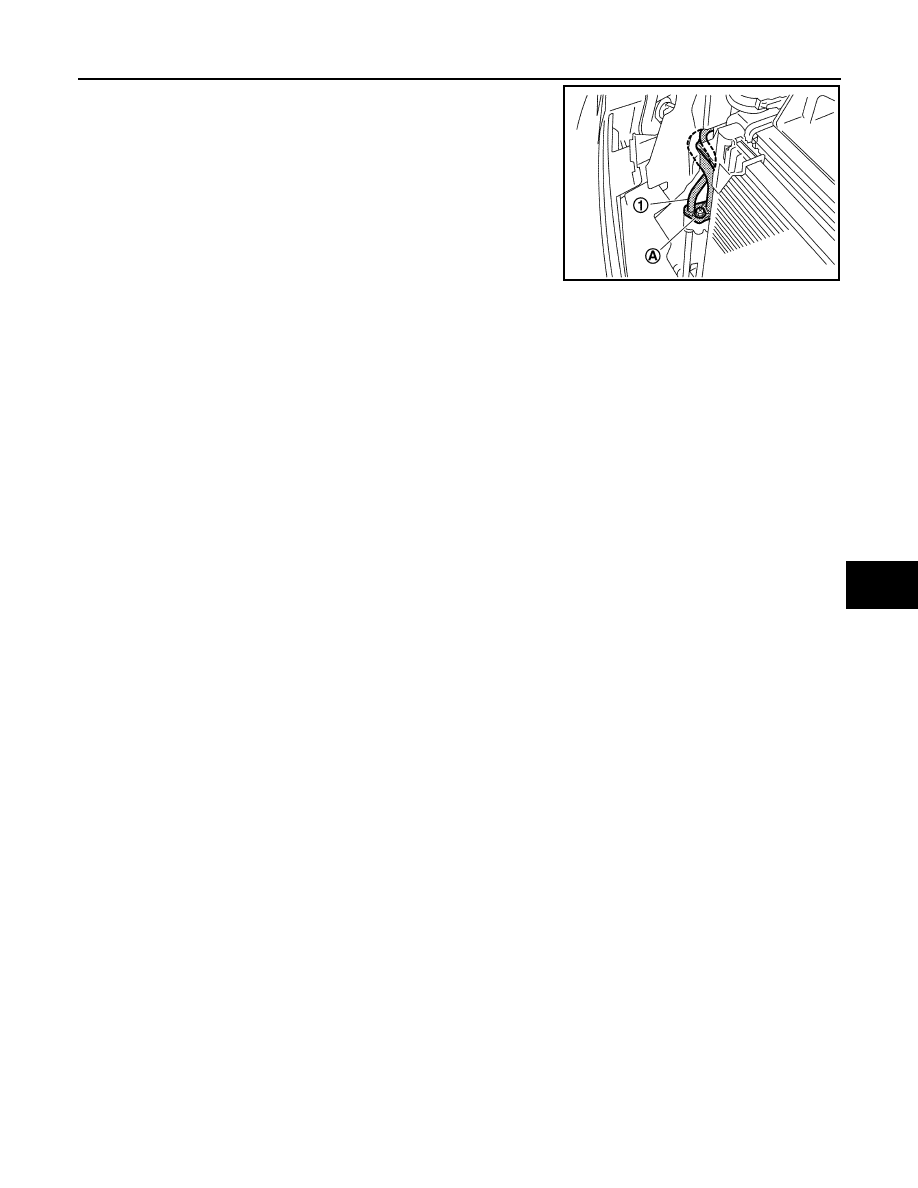

4.

Remove mounting bolt (A) and then remove condenser pipe
assembly (1) from condenser.

CAUTION:

Cap or wrap the joint of the A/C piping and condenser with
suitable material such as vinyl tape to avoid the entry of air.

INSTALLATION

Note the following items and then install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant.

JPIIA0542ZZ

HA-50

< REMOVAL AND INSTALLATION >

CONDENSER

CONDENSER

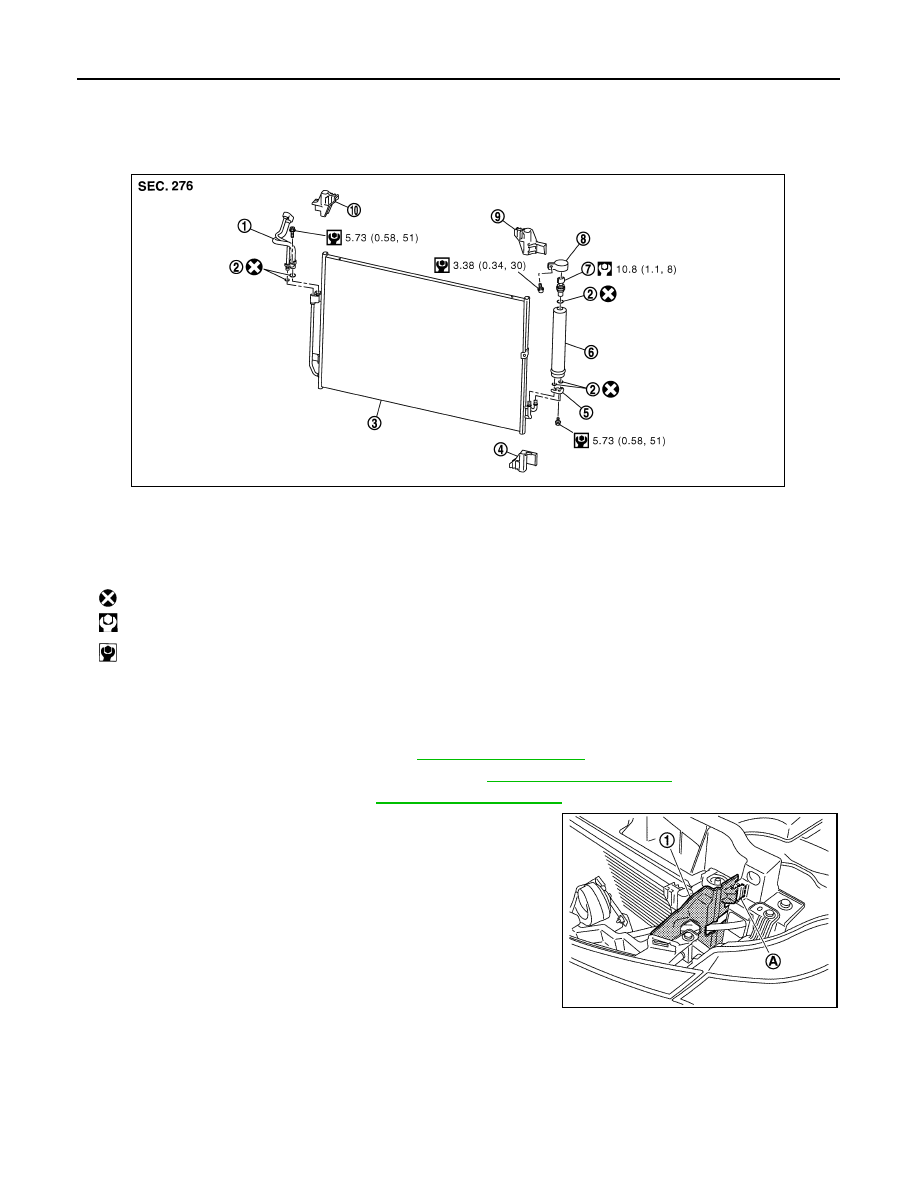

Exploded View

INFOID:0000000009718652

Removal and Installation

INFOID:0000000009718653

REMOVAL

1.

Remove condenser pipe assembly. Refer to

HA-48, "Exploded View"

.

2.

Remove air guide upper and air guide center. Refer to

DLK-314, "Exploded View"

.

3.

Remove hood lock assembly. Refer to

DLK-338, "Exploded View"

.

4.

Disengage the joints of the pawl (A) and then move air guide
side LH (1) to the position without the hindrance for work.

1.

Condenser pipe assembly

2.

O-ring

3.

Condenser assembly

4.

Condenser lower bracket LH

5.

Bracket

6.

Liquid tank

7.

Refrigerant pressure sensor

8.

Liquid tank bracket

9.

Condenser upper bracket LH

10. Condenser upper bracket RH

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JPIIA0460GB

JPIIA1348ZZ

CONDENSER

HA-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

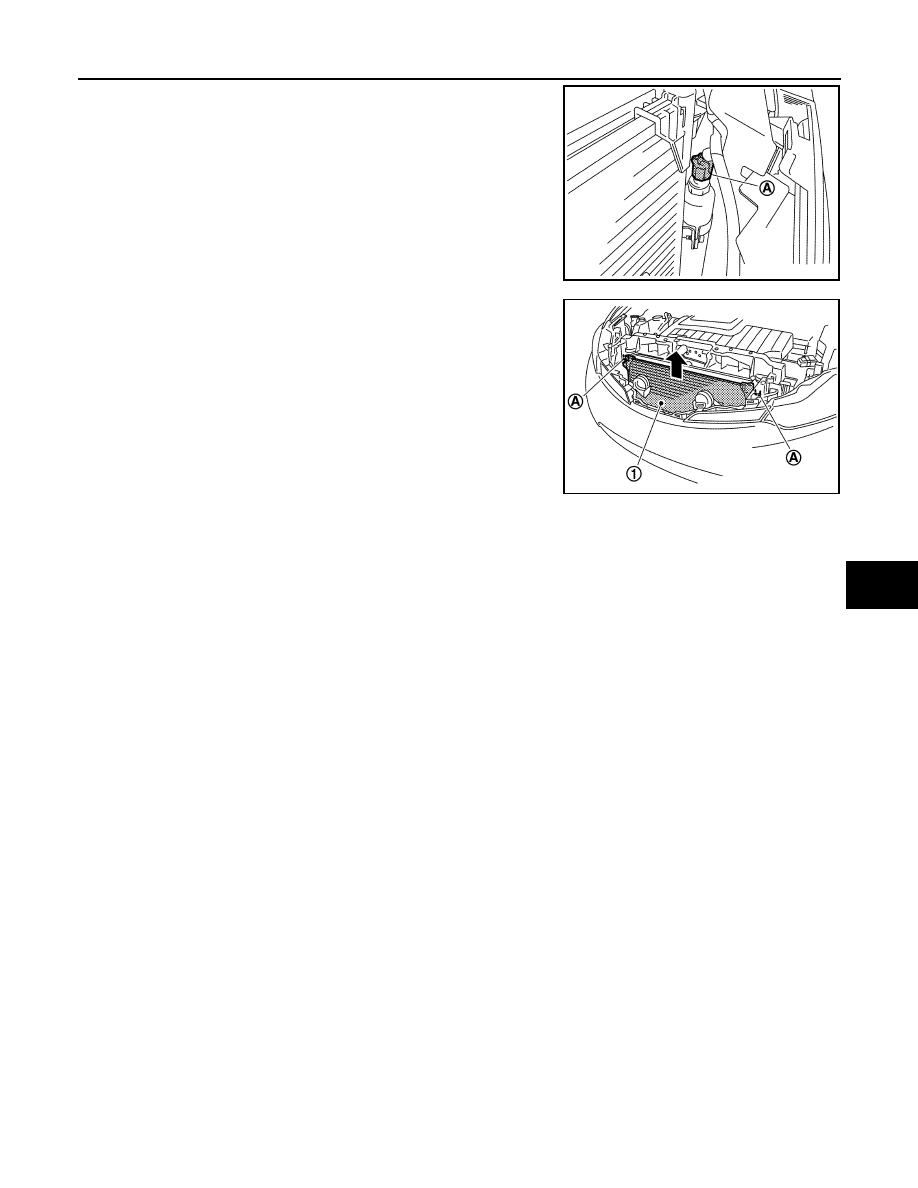

5.

Disconnect refrigerant pressure sensor connector (A).

6.

Remove tabs (A). Pull the condenser (1) in the direction shown
by the arrow, and then remove it.

CAUTION:

Be careful not to damage core surface of condenser.

INSTALLATION

Note the following items and then install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant.

JPIIA0543ZZ
