HA-40

< REMOVAL AND INSTALLATION >

LOW-PRESSURE FLEXIBLE HOSE

LOW-PRESSURE FLEXIBLE HOSE

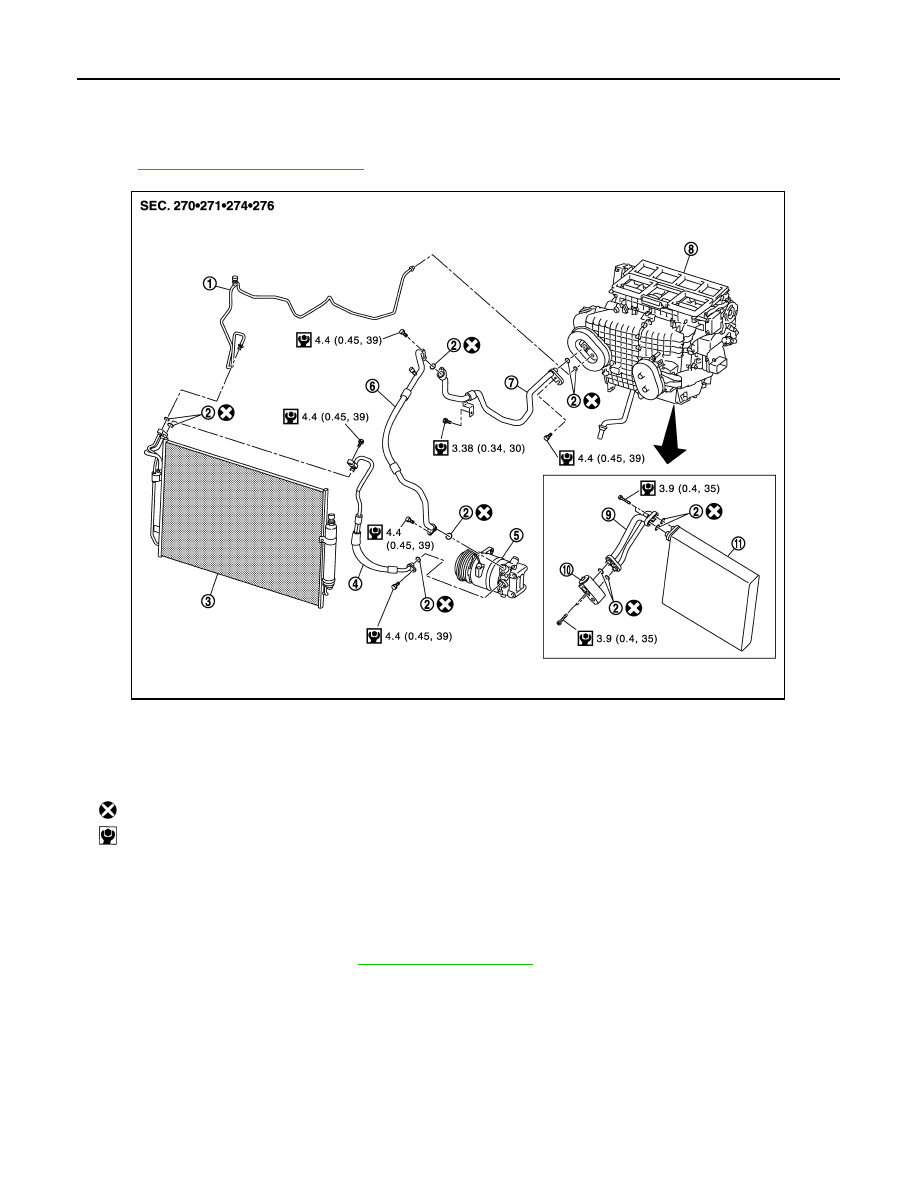

Exploded View

INFOID:0000000009718642

Refer to

HA-14, "Refrigerant Connection"

.

Removal and Installation

INFOID:0000000009718643

REMOVAL

1.

Use refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove front under cover. Refer to

EXT-29, "Exploded View"

.

1.

High-pressure pipe

2.

O-ring

3.

Condenser assembly

4.

High-pressure flexible hose

5.

Compressor

6.

Low-pressure flexible hose

7.

Low-pressure pipe

8.

Heater & cooling unit assembly

9.

Evaporator pipe assembly

10. Expansion valve

11.

Evaporator

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JPIIA1257GB

LOW-PRESSURE FLEXIBLE HOSE

HA-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

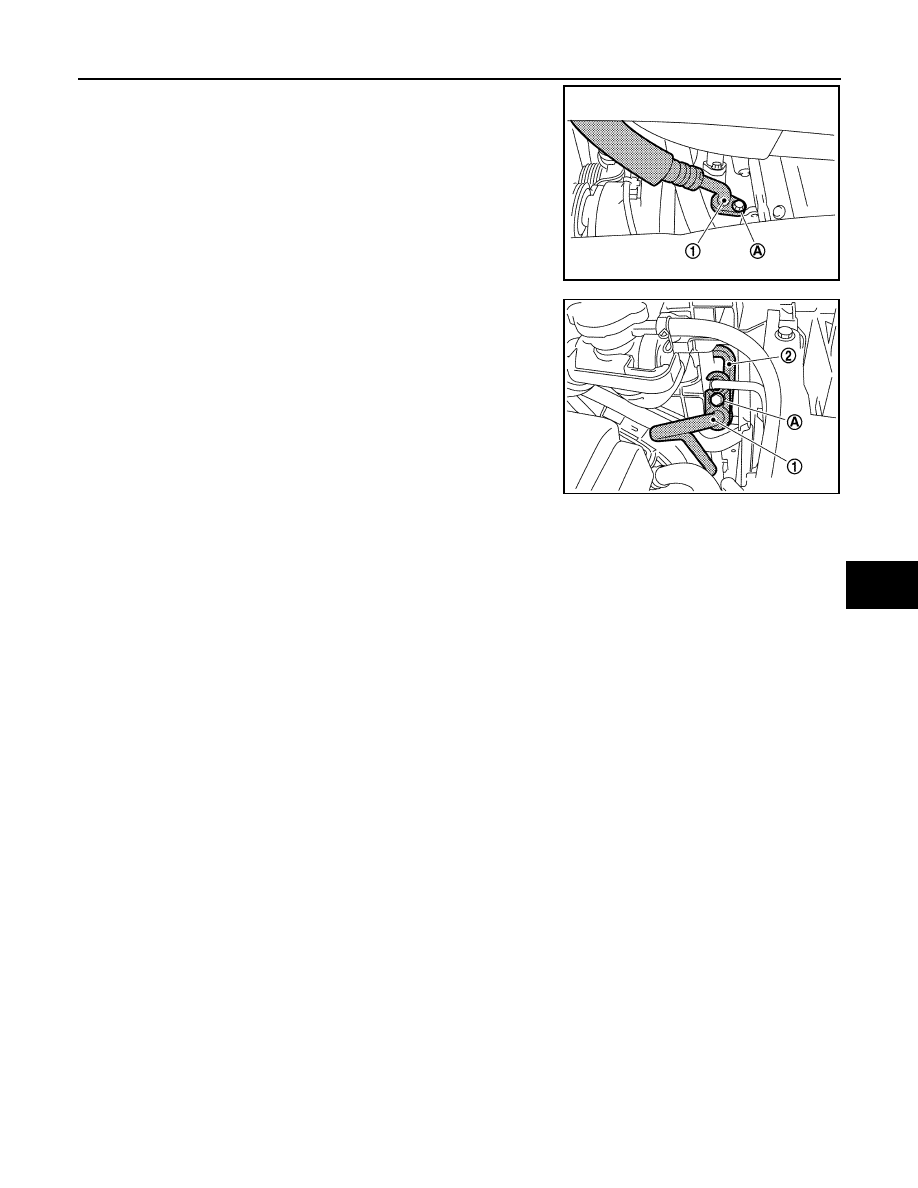

3.

Remove mounting bolt (A) and then disconnect low-pressure
flexible hose (1) from compressor.

CAUTION:

Cap or wrap the joint of the A/C piping and compressor with
suitable material such as vinyl tape to avoid the entry of air.

4.

Remove mounting bolt (A) and then remove low-pressure flexi-
ble hose (1) from low-pressure pipe (2).

CAUTION:

Cap or wrap the joint of the A/C piping with suitable mate-
rial such as vinyl tape to avoid the entry of air.

INSTALLATION

Note the following items and then install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant.

JPIIA0532ZZ

JPIIA0533ZZ

HA-42

< REMOVAL AND INSTALLATION >

HIGH-PRESSURE FLEXIBLE HOSE

HIGH-PRESSURE FLEXIBLE HOSE

Exploded View

INFOID:0000000009718644

Refer to

HA-14, "Refrigerant Connection"

.

Removal and Installation

INFOID:0000000009718645

REMOVAL

1.

Use refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove front under cover. Refer to

EXT-29, "Exploded View"

.

1.

High-pressure pipe

2.

O-ring

3.

Condenser assembly

4.

High-pressure flexible hose

5.

Compressor

6.

Low-pressure flexible hose

7.

Low-pressure pipe

8.

Heater & cooling unit assembly

9.

Evaporator pipe assembly

10. Expansion valve

11.

Evaporator

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JPIIA1257GB

HIGH-PRESSURE FLEXIBLE HOSE

HA-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

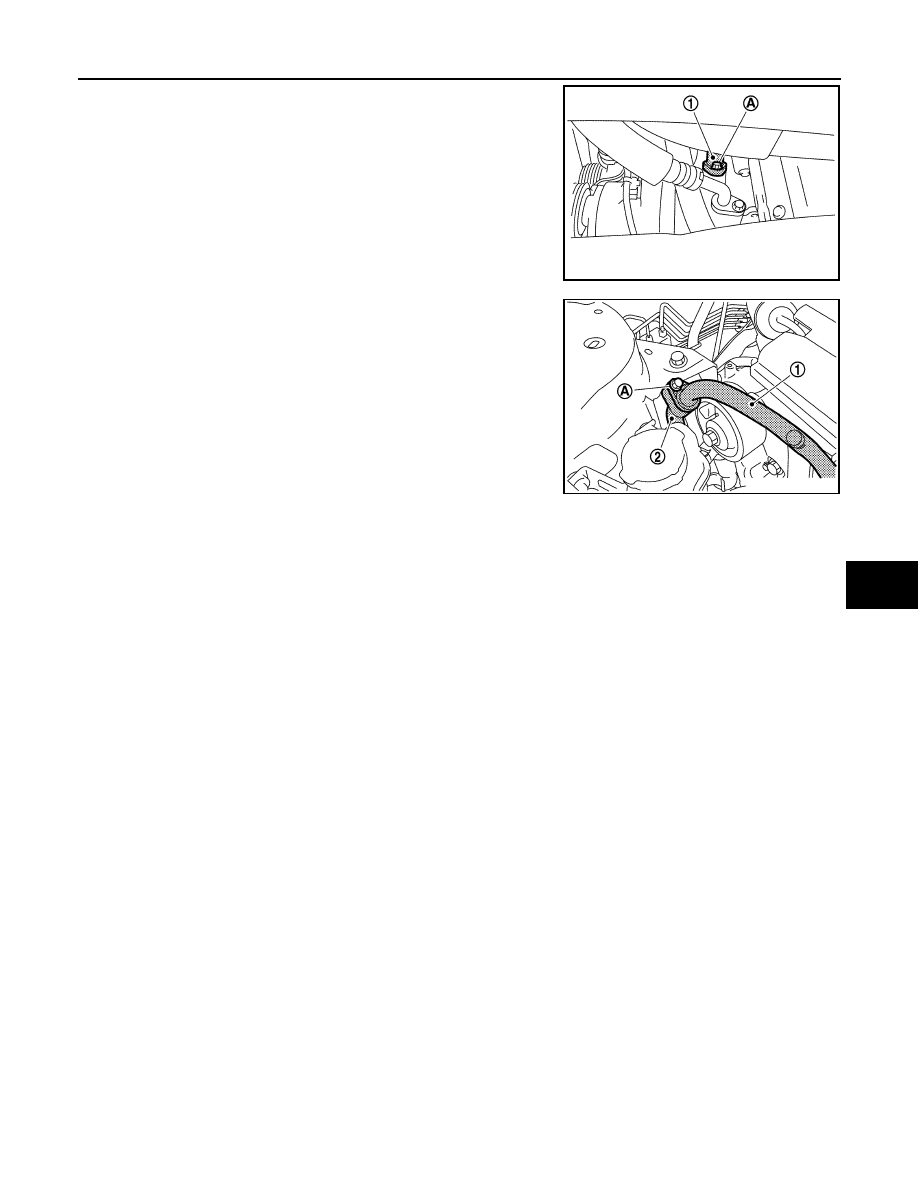

3.

Remove mounting bolt (A) and then disconnect high-pressure
flexible hose (1) from compressor.

CAUTION:

Cap or wrap the joint of the A/C piping and compressor with
suitable material such as vinyl tape to avoid the entry of air.

4.

Remove mounting bolt (A) and then remove high-pressure flexi-
ble hose (1) from condenser pipe assembly (2).

CAUTION:

Cap or wrap the joint of the A/C piping with suitable mate-
rial such as vinyl tape to avoid the entry of air.

INSTALLATION

Note the following items and then install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant.

JPIIA0534ZZ

JPIIA0535ZZ
