FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

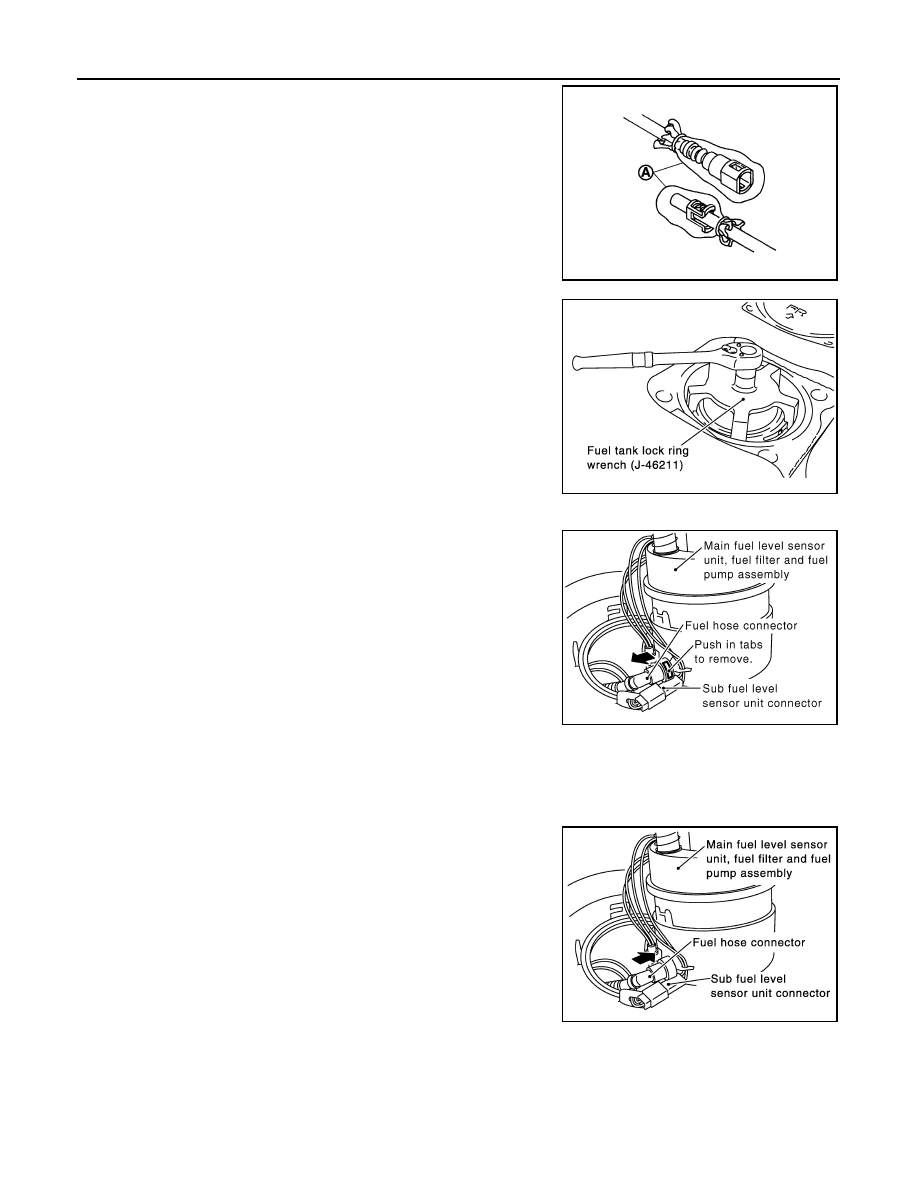

• To keep the connecting portion clean and to avoid dam-

age and foreign materials, cover them completely with
plastic bags (A) or something similar.

8.

Remove retainer for main fuel level sensor unit, fuel filter and
fuel pump assembly and sub fuel level sensor unit with fuel tank
lock ring wrench (SST) by turning counterclockwise.

9.

Remove main fuel level sensor unit, fuel filter and fuel pump assembly, and sub fuel level sensor unit.
• Raise main fuel level sensor unit, fuel filter and fuel pump

assembly, and disconnect fuel hose connector (push in tabs
and pull out) and sub fuel level sensor unit harness connector.

• Raise and release sub fuel level sensor unit to remove.

INSTALLATION

Note to the following, and install in the reverse order of removal.

Main and Sub Fuel Level Sensor Unit

1.

Install new seal packing to fuel tank without any twist.

2.

Connect fuel hose connector (push in until it stops) and sub fuel
level sensor unit harness connector.
NOTE:
When installing fuel hose connector insert them fully until a click
sound of full stopper engagement is heard.

JPBIA0135ZZ

SBIA0411E

SBIA0396E

SBIA0398E

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

3.

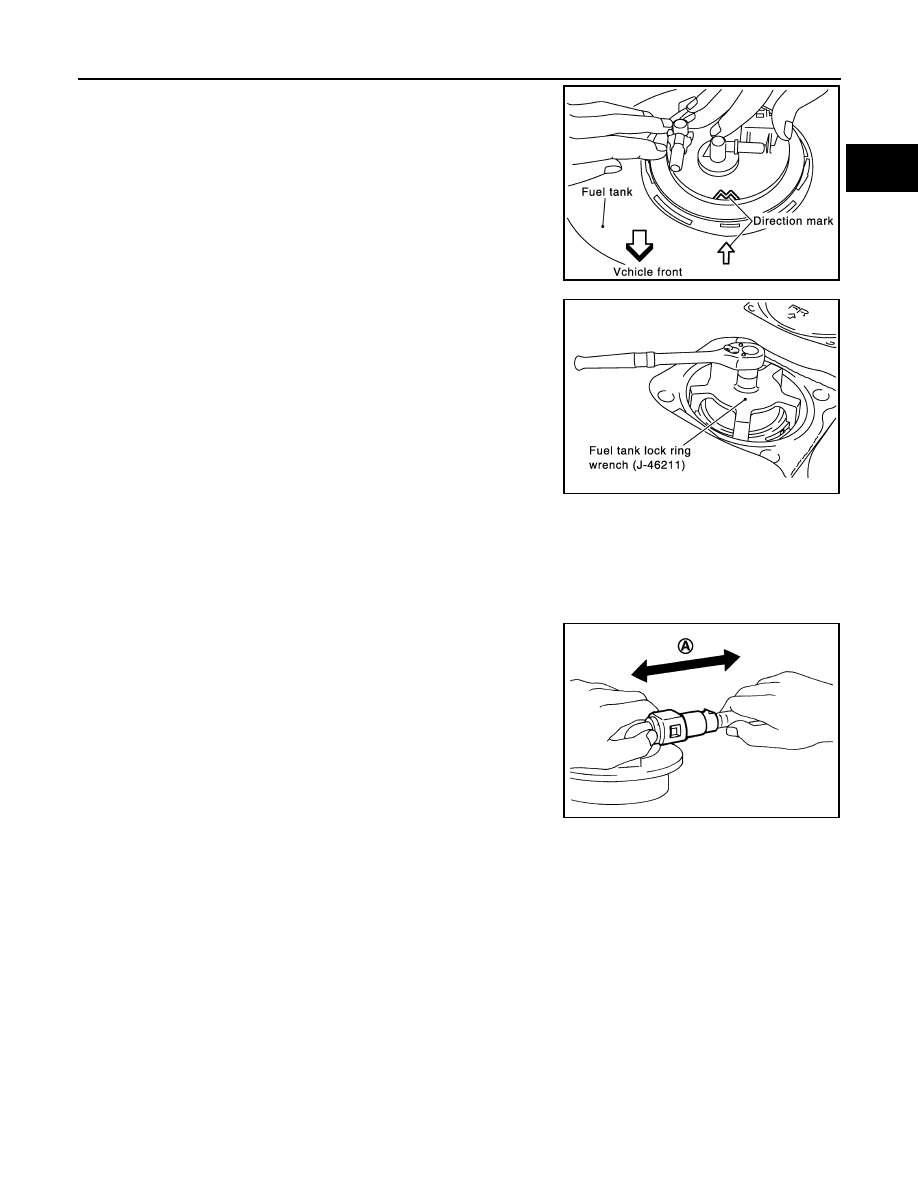

Align the direction mark on main fuel level sensor unit, fuel filter
and fuel pump assembly and sub fuel level sensor unit with that
on fuel tank as shown in the figure, and install them to fuel tank.

CAUTION:

• Never allow seal packing to drop.
• Never bend float arm during installing.

4.

Install retainer for main fuel level sensor unit, fuel filter and fuel
pump assembly and sub fuel level sensor unit with fuel tank lock
ring wrench (SST) by turning clockwise.

CAUTION:

Install retainer horizontally.

Quick Connector

Connect quick connector as follows:

1.

Check the connection for damage or any foreign materials.

2.

Align the connector with the tube, then insert the connector straight into the tube until a click sound is
heard.

3.

After connecting, check that the connection is secure by following method.
• Pull (A) the tube and the connector to check they are securely

connected.

• Visually confirm that the two retainer tabs are connected to the

connector.

Disassembly and Assembly

INFOID:0000000009720457

DISASSEMBLY

Fuel level sensor unit, fuel filter and fuel pump assembly side

1.

Disconnect harness connector.

2.

Remove fuel level sensor unit according to the following procedure.

SBIA0397E

SBIA0411E

JPBIA0140ZZ

FL-10

< REMOVAL AND INSTALLATION >

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

a.

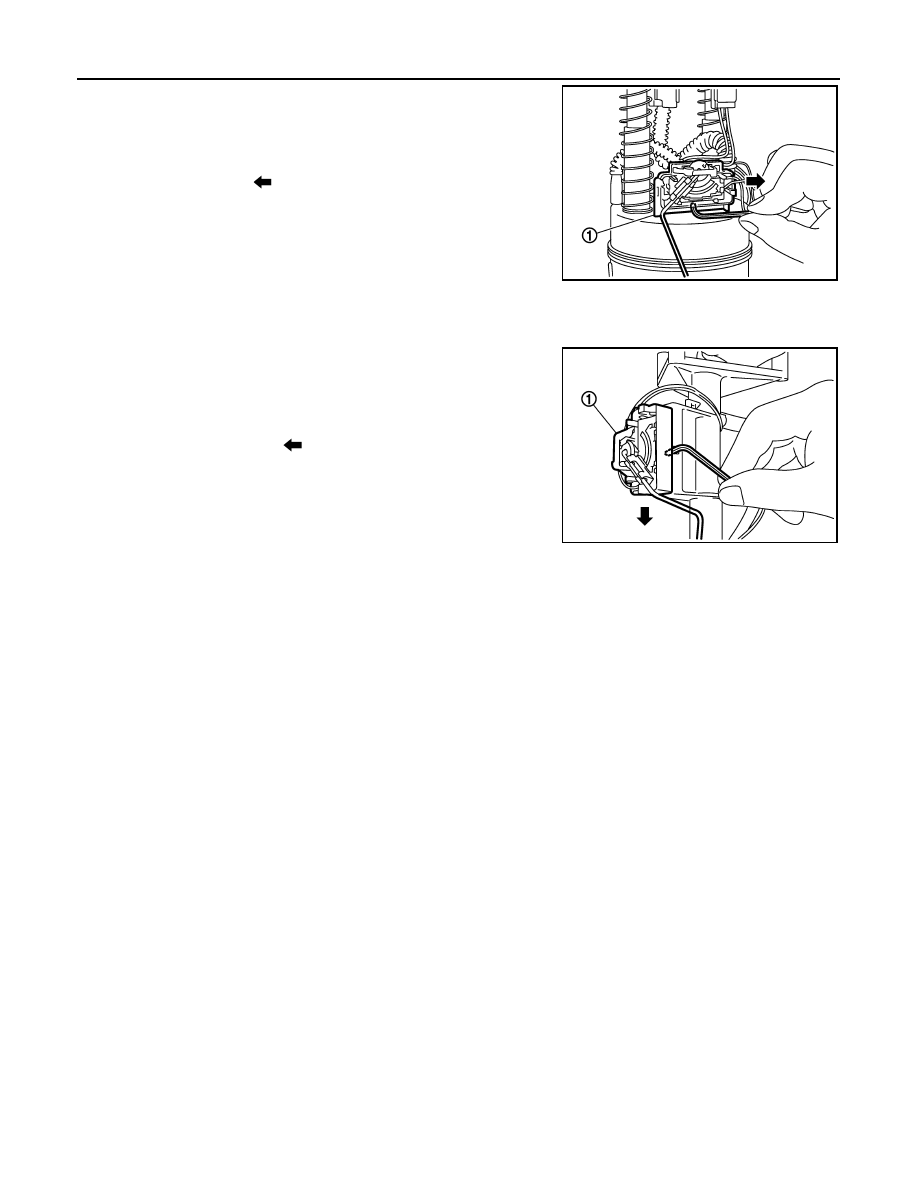

Push the pawl of fuel level sensor unit (1) mounting area with an
L-shaped iron rod or an equivalent to unlock.

CAUTION:

Be careful not to damage it.

b.

With the fuel level sensor unit unlocked, slide it in the direction
shown by the arrow (

).

Sub fuel level sensor unit assembly side

1.

Remove sub fuel level sensor unit according to the following procedure.

a.

Push the pawl of sub fuel level sensor unit (1) mounting area
with an L-shaped iron rod or an equivalent to unlock.

CAUTION:

Be careful not to damage it.

b.

With the sub fuel level sensor unit unlocked, slide it in the direc-
tion shown by the arrow (

).

ASSEMBLY

Install fuel level sensor unit and sub fuel level sensor unit according to the following procedure.
• Insert fuel level sensor unit and sub fuel level sensor unit all the way to the end until a “click” touch and

sound can be recognized.

• Pull fuel level sensor unit and sub fuel level sensor unit in the removal direction to ensure that they do not

become detached.

Inspection

INFOID:0000000009720458

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leakage.
1.

Turn ignition switch “ON” (with engine stopped), then check connections for leakage by applying fuel pres-
sure to fuel piping.

2.

Start engine and let it idle and check there are no fuel leakage at the fuel system connections.

PBIC4900J

PBIC4899J

FUEL TANK

FL-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

FUEL TANK

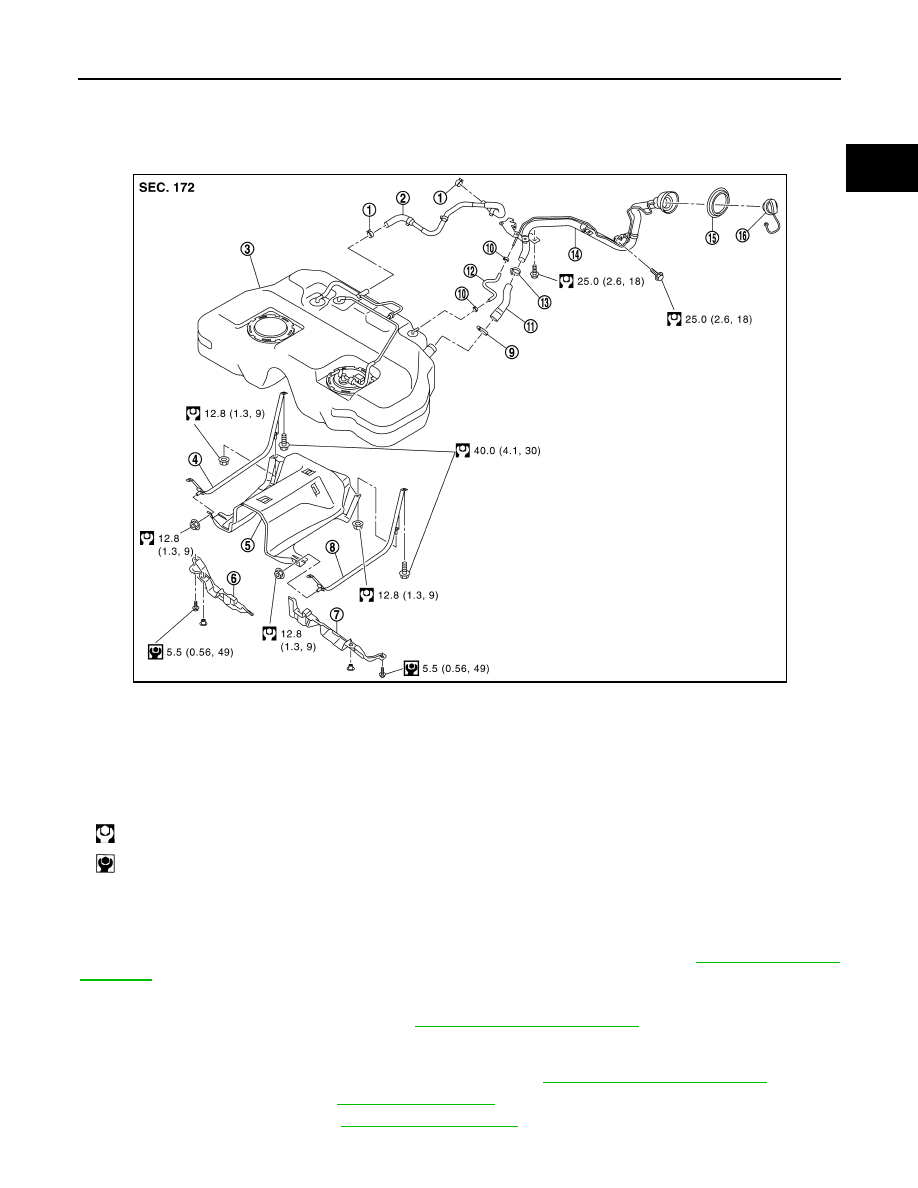

Exploded View

INFOID:0000000009720459

Removal and Installation

INFOID:0000000009720460

WARNING:

Be sure to read “General Precautions” when working on the fuel system. Refer to

FL-2, "General Pre-

cautions"

.

REMOVAL

• Drain fuel from fuel tank if necessary. Refer to

FL-6, "Removal and Installation"

.

• Perform work on level place.

1.

Perform steps 2 to 7 of “REMOVAL” in “ FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP
ASSEMBLY” on main and sub fuel level sensor units. Refer to

FL-6, "Removal and Installation"

.

2.

Remove center muffler. Refer to

EX-5, "Exploded View"

.

3.

Remove propeller shaft. Refer to

DLN-85, "Exploded View"

. (AWD models)

1.

Clamp

2.

EVAP/Vent line hose

3.

Fuel tank

4.

Fuel tank mounting band (RH)

5.

Fuel tank protector

6.

Fuel tank protector (RH)

7.

Fuel tank protector (LH)

8.

Fuel tank mounting band (LH)

9.

Clamp

10. Clamp

11.

Fuel filler hose

12. EVAP (Recirculation) hose

13. Clamp

14.

Fuel filler tube

15. Grommet

16. Fuel filler cap

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSBIA4294GB
