Nissan Murano. Manual - part 765





SERVICE DATA AND SPECIFICATIONS (SDS)

FAX-55

< SERVICE DATA AND SPECIFICATIONS (SDS)

[AWD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000009717931

Drive Shaft

INFOID:0000000009717932

Item

Standard

Axial end play

0.05 mm (0.002 in) or less

Item

Standard

Left side

Right side

Grease quantity

Wheel side

170 – 190 g (6.00 – 6.70 oz)

Transaxle side

155 – 175 g (5.47 – 6.17 oz)

Boots installed length

Wheel side

158.6 mm (6.24 in)

Transaxle side

163.67 mm (6.44 in)

159.47 mm (6.28 in)

Dimension of dynamic damper

202 – 208 mm (7.95 – 8.19 in)

FL-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

FL

A

FL

N

O

P

CONTENTS

FUEL SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precautions for Removing of Battery Terminal  .........

2

General Precautions  .................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

PERIODIC MAINTENANCE ..........................

4

FUEL SYSTEM  ....................................................

4

Inspection ..................................................................

4

Quick Connector  .......................................................

4

REMOVAL AND INSTALLATION ................

5

FUEL LEVEL SENSOR UNIT, FUEL FILTER
AND FUEL PUMP ASSEMBLY  ..........................

5

Exploded View  ..........................................................

5

Removal and Installation  ..........................................

6

Disassembly and Assembly ......................................

9

Inspection ................................................................

10

FUEL TANK  ......................................................

11

Exploded View .........................................................

11

Removal and Installation  .........................................

11

Inspection ................................................................

13

EVAP CANISTER ..............................................

14

Hydraulic Layout ......................................................

14

Exploded View .........................................................

16

Removal and Installation  .........................................

16

Inspection ................................................................

17

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

18

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

18

Fuel Tank .................................................................

18

FL-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

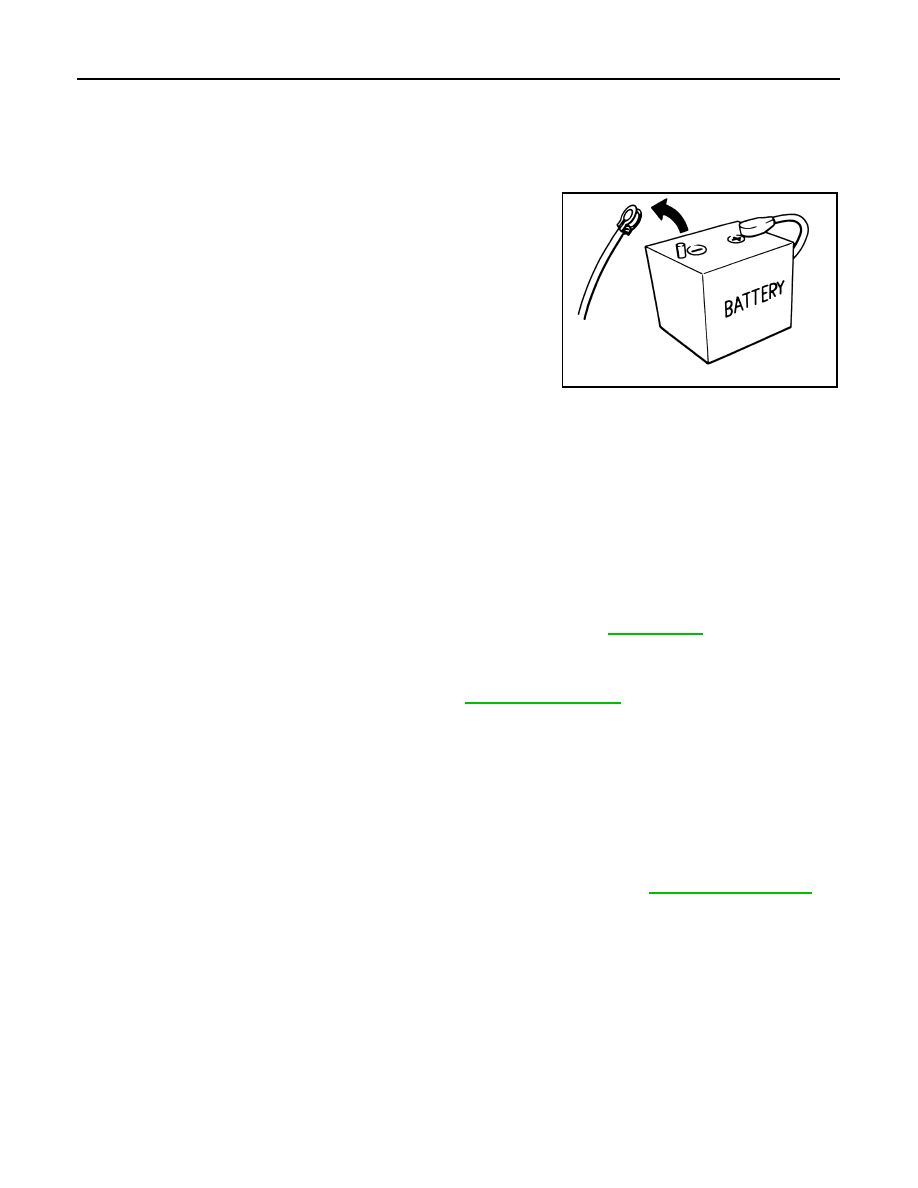

Precautions for Removing of Battery Terminal

INFOID:0000000010055828

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

General Precautions

INFOID:0000000009720450

WARNING:

When replacing fuel line parts, be sure to observe the following.
• Put a “CAUTION: FLAMMABLE” sign in the workshop.
• Be sure to work in a well ventilated area and furnish workshop with a CO

2

 fire extinguisher.

• Never smoke while servicing fuel system. Keep open flames and sparks away from the work area.

CAUTION:

• Use gasoline required by the regulations for octane number. Refer to

GI-35, "Fuel"

.

• Before removing fuel line parts, perform out the following procedures:
- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in

safe area.

- Release fuel pressure from the fuel lines. Refer to

EC-532, "Inspection"

.

- Disconnect the battery cable from the negative terminal.
• Always replace O-ring and clamps with new ones.
• Never kink or twist tubes when they are being installed.
• Never tighten hose clamps excessively to avoid damaging hoses.
• After installing tubes, check there is no fuel leakage at connections in the following steps.
- Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then check

for fuel leakage at connections.

- Start engine and rev it up and check for fuel leakage at connections.
• Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the

“MIL” may come on.

• For servicing “On Board Refueling Vapor Recovery (ORVR)” parts, refer to

EC-459, "Description"

.

SEF289H

PREPARATION

FL-3

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

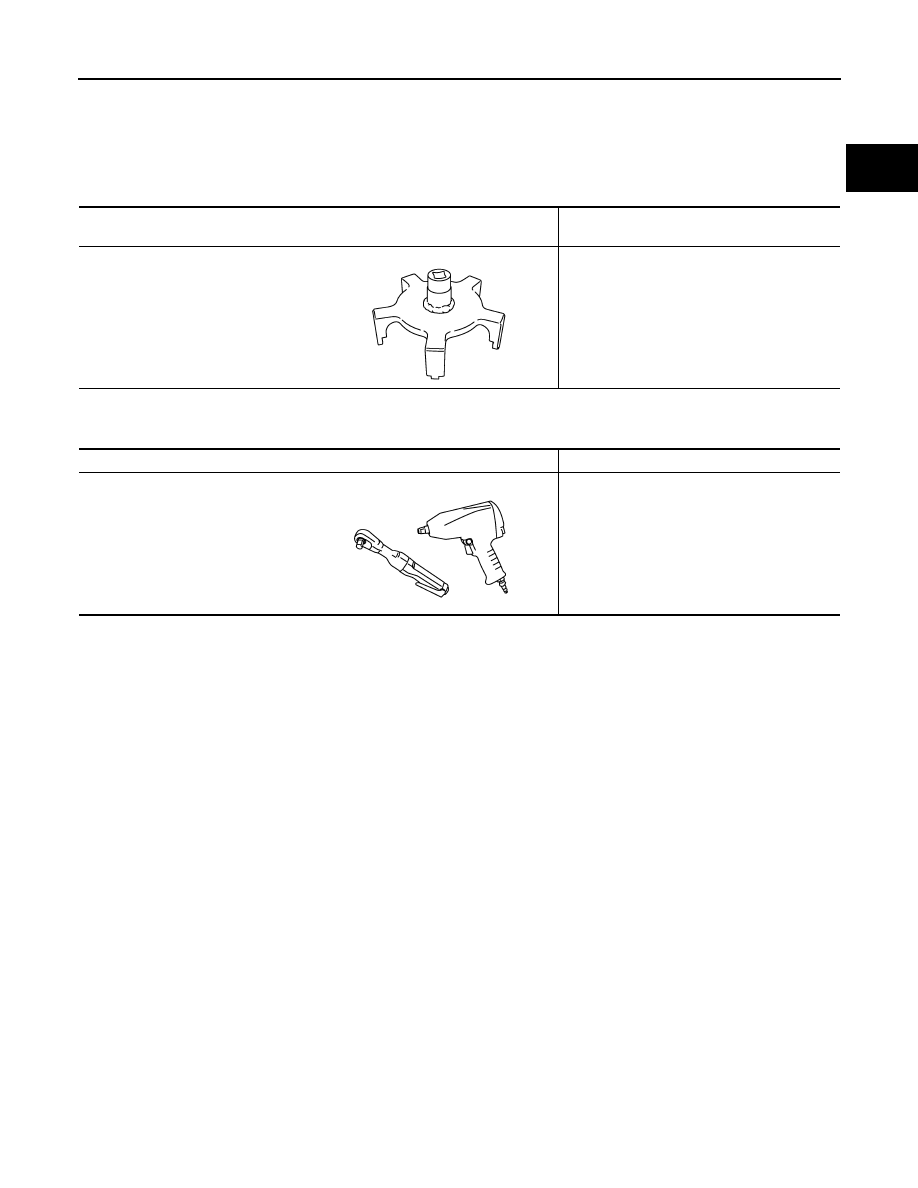

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009720451

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009720452

(Kent-Moore No.)
Tool name

Description

(J-46211)
Fuel tank lock ring wrench

Removing and installing fuel tank retainer

SBIA0388E

Tool name

Description

Power tool

Loosening nuts and bolts

PBIC0190E
