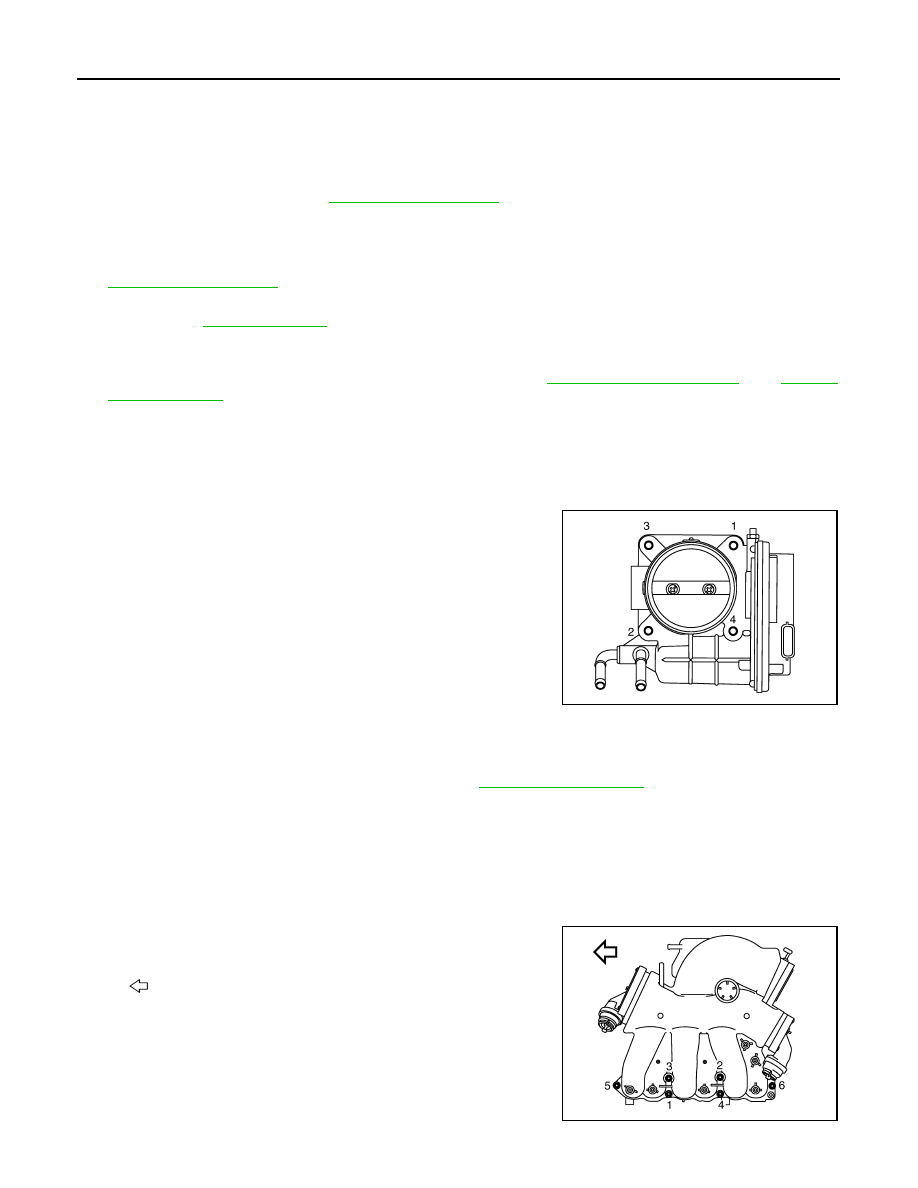

EM-34

< REMOVAL AND INSTALLATION >

INTAKE MANIFOLD COLLECTOR

Removal and Installation

INFOID:0000000009717967

REMOVAL

WARNING:

To avoid the danger of being scalded, never drain engine coolant when the engine is hot.

1.

Remove engine cover. Refer to

EM-29, "Exploded View"

.

CAUTION:

Be careful not to damage or scratch engine cover.

2.

Remove air cleaner cases (upper and lower) with mass air flow sensor and air duct assembly. Refer to

EM-31, "Exploded View"

.

3.

Drain engine coolant, or when water hoses are disconnected, attach plug to prevent engine coolant leak-
age. Refer to

CO-11, "Draining"

.

CAUTION:

Perform this step when the engine is cold.

4.

Remove front wiper arm and extension cowl top. Refer to

WW-134, "Exploded View"

 and

EXT-23,

"Exploded View"

.

5.

Disconnect water hoses from electric throttle control actuator.
• When engine coolant is not drained from radiator, attach plug to water hoses to prevent engine coolant

leakage.

6.

Remove electric throttle control actuator as follows:

a.

Disconnect harness connector.

b.

Loosen mounting bolts in the reverse order as shown in the fig-
ure.

CAUTION:

• Handle carefully to avoid any shock to electric throttle

control actuator.

• Never disassemble.

7.

Remove the following parts:
• Vacuum hose
• PCV hose
• High pressure piping from intake manifold: Refer to

ST-64, "Exploded View"

.

• Electronic controlled engine mount control solenoid valve

8.

Disconnect EVAP hoses and harness connector from EVAP canister purge volume control solenoid valve.

9.

Remove EVAP canister purge volume control solenoid valve and bracket assembly.

10. Remove VIAS control solenoid valve mounting bolts and vacuum gallery mounting bolts, and then move

vacuum gallery.
• Add mating marks if necessary for easier installation.

11. Loosen mounting nuts and bolts in the reverse order as shown

in the figure, and remove intake manifold collector and gasket.

CAUTION:

Cover engine openings to avoid entry of foreign materials.

JPBIA1631ZZ

: Engine front

JPBIA1628ZZ

INTAKE MANIFOLD COLLECTOR

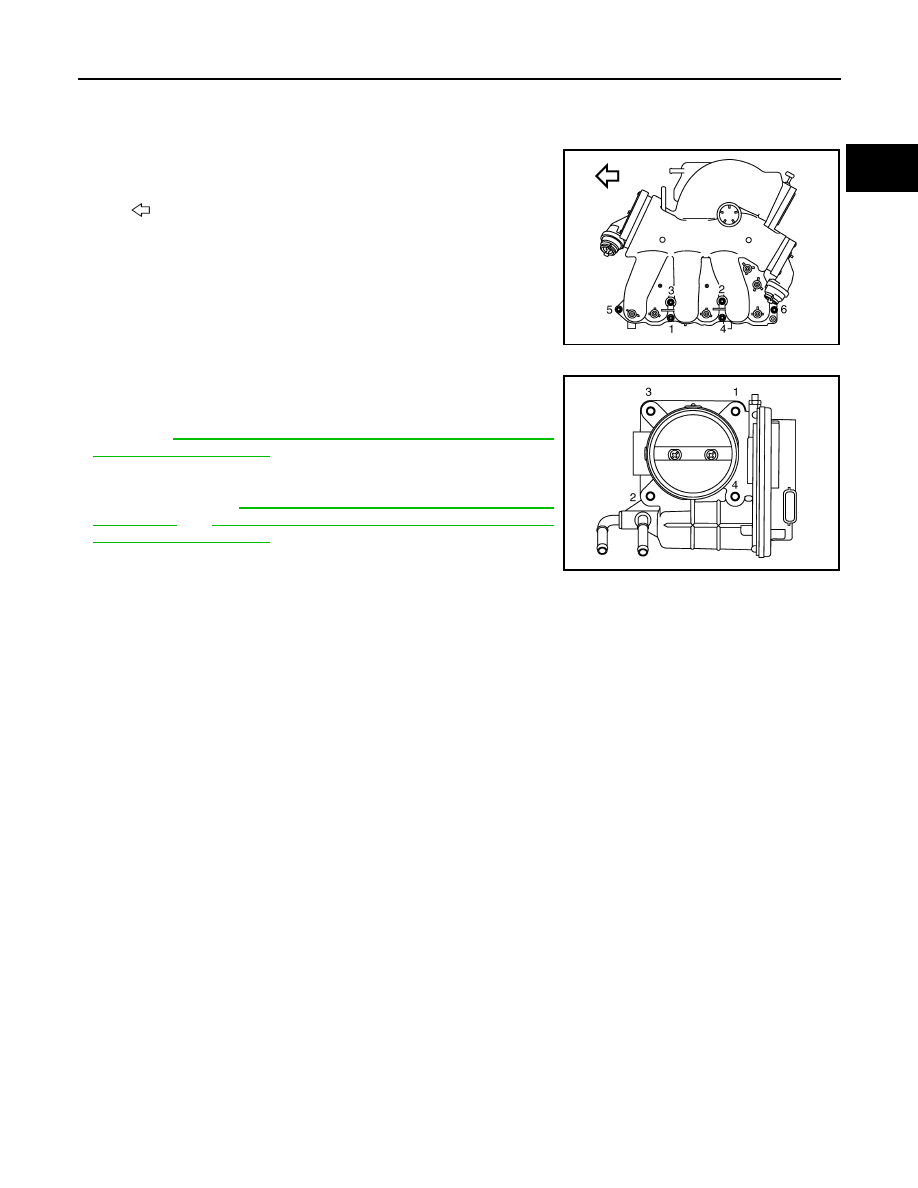

EM-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

INSTALLATION

Note the following, and install in the reverse order of removal.

Intake Manifold Collector

Tighten mounting nuts and bolts in numerical order as shown in the
figure.

Electric Throttle Control Actuator

• Tighten mounting bolts in numerical order as shown in the figure.
• Perform the “Throttle Valve Closed Position Learning” when har-

ness connector of electric throttle control actuator is disconnected.
Refer to

EC-19, "THROTTLE VALVE CLOSED POSITION

LEARNING : Description"

.

• Perform the “Idle Air Volume Learning” and “Throttle Valve Closed

Position Learning” when electric throttle control actuator is
replaced. Refer to

EC-20, "IDLE AIR VOLUME LEARNING :

Description"

 and

EC-19, "THROTTLE VALVE CLOSED POSITION

LEARNING : Description"

.

: Engine front

JPBIA1628ZZ

JPBIA1631ZZ

EM-36

< REMOVAL AND INSTALLATION >

INTAKE MANIFOLD

INTAKE MANIFOLD

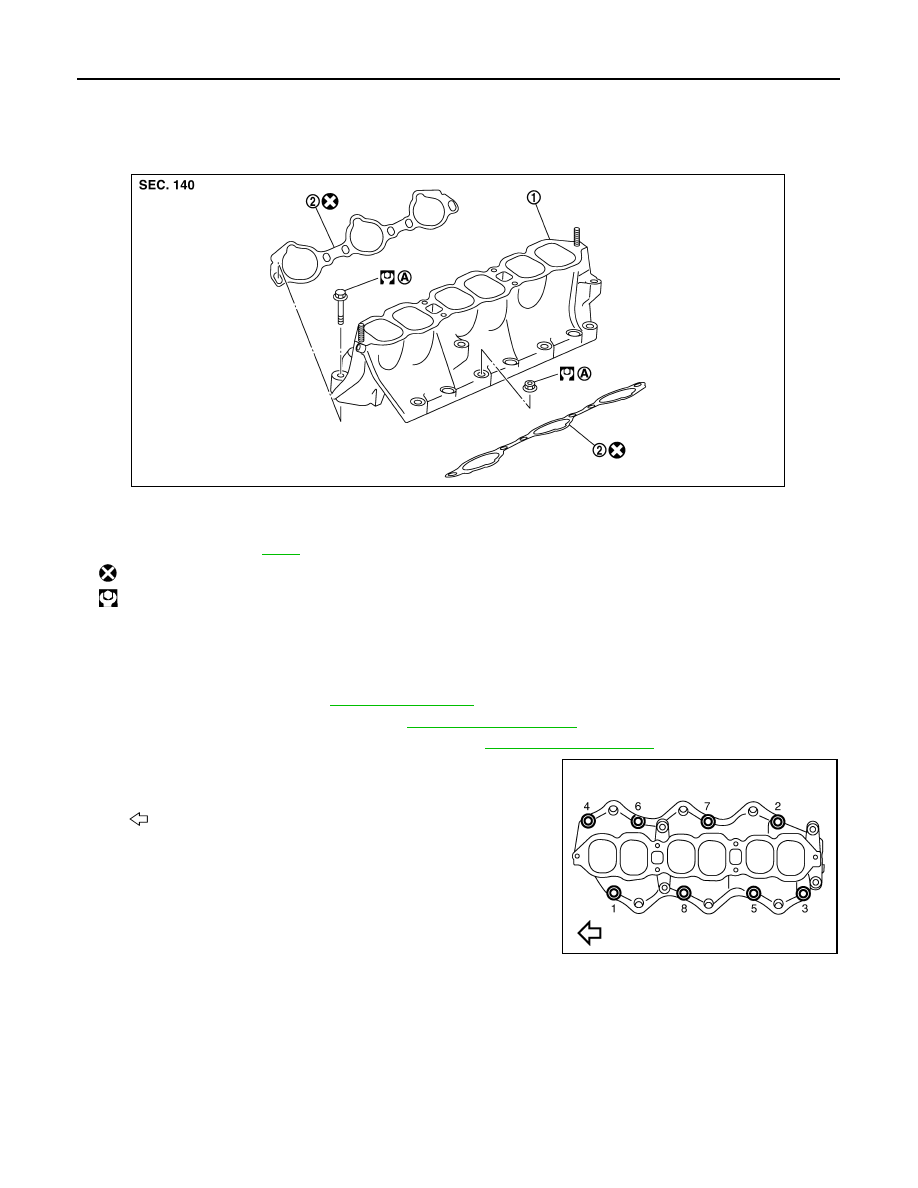

Exploded View

INFOID:0000000009717968

Removal and Installation

INFOID:0000000009717969

REMOVAL

1.

Release fuel pressure. Refer to

EC-532, "Inspection"

.

2.

Remove intake manifold collector. Refer to

EM-33, "Exploded View"

.

3.

Remove fuel tube and fuel injector assembly. Refer to

EM-49, "Exploded View"

.

4.

Loosen mounting nuts and bolts in the reverse order as shown
in the figure to remove intake manifold with power tool.

5.

Remove gaskets.

CAUTION:

Cover engine openings to avoid entry of foreign materials.

INSTALLATION

Note the following, and install in the reverse order or removal.

Intake Manifold

• If stud bolts were removed, install them and tighten to the specified torque below.

1.

Intake manifold

2.

Gasket

A.

Comply with the assembly procedure
when tightning. Refer to

EM-36

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JPBIA1629GB

: Engine front

JPBIA1630ZZ

INTAKE MANIFOLD

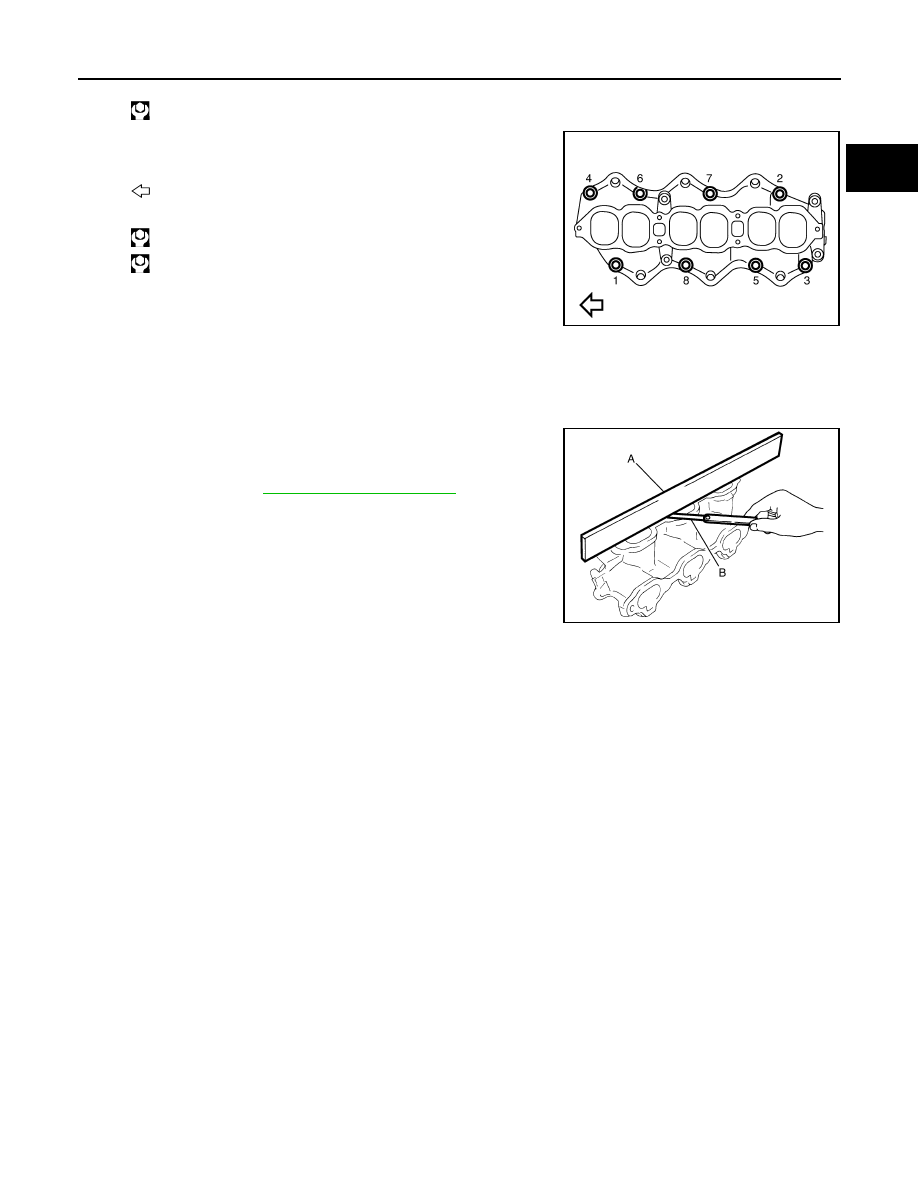

EM-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Tighten all mounting nuts and bolts to the specified torque in two or

more steps in numerical order shown in the figure.

Inspection

INFOID:0000000009717970

INSPECTION AFTER REMOVAL

Surface Distortion

• Check the surface distortion of the intake manifold mating surface

with a straightedge (A) and a feeler gauge (B).

• If it exceeds the limit, replace intake manifold.

: 10.8 N·m (1.1 kg-m, 8 ft-lb)

: Engine front

 1st step

: 7.4 N·m (0.75 kg-m, 5 ft-lb)

 2nd step and after

: 25.5 N·m (2.6 kg-m, 19 ft-lb)

JPBIA1630ZZ

Limit

: Refer to

EM-147, "Intake Manifold"

.

JPBIA0015ZZ
