EM-30

< REMOVAL AND INSTALLATION >

DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

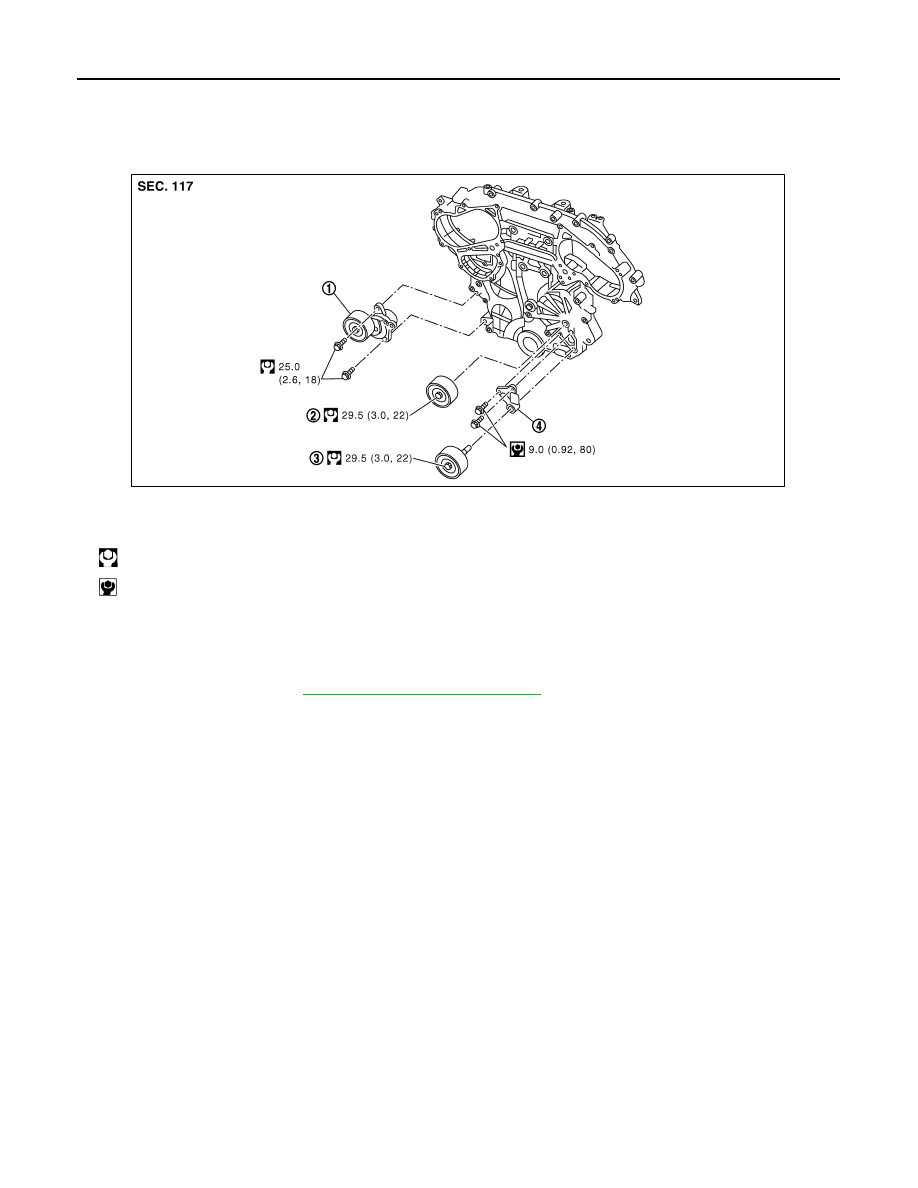

Exploded View

INFOID:0000000009717961

Removal and Installation

INFOID:0000000009717962

Removal

1.

Remove drive belt. Refer to

EM-17, "Removal and Installation"

.

• Keep auto-tensioner pulley arm locked after drive belt is removed.

2.

Remove auto-tensioner and idler pulley.
• Keep auto-tensioner pulley arm locked to install or remove auto-tensioner.

Installation

Install in the reverse order of removal.

CAUTION:

If there is damage greater than peeled paint, replace drive belt auto-tensioner.

1.

Drive belt auto-tensioner

2.

Idler pulley

3.

Idler pulley

4.

Bracket

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JPBIA1626GB

AIR CLEANER AND AIR DUCT

EM-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

AIR CLEANER AND AIR DUCT

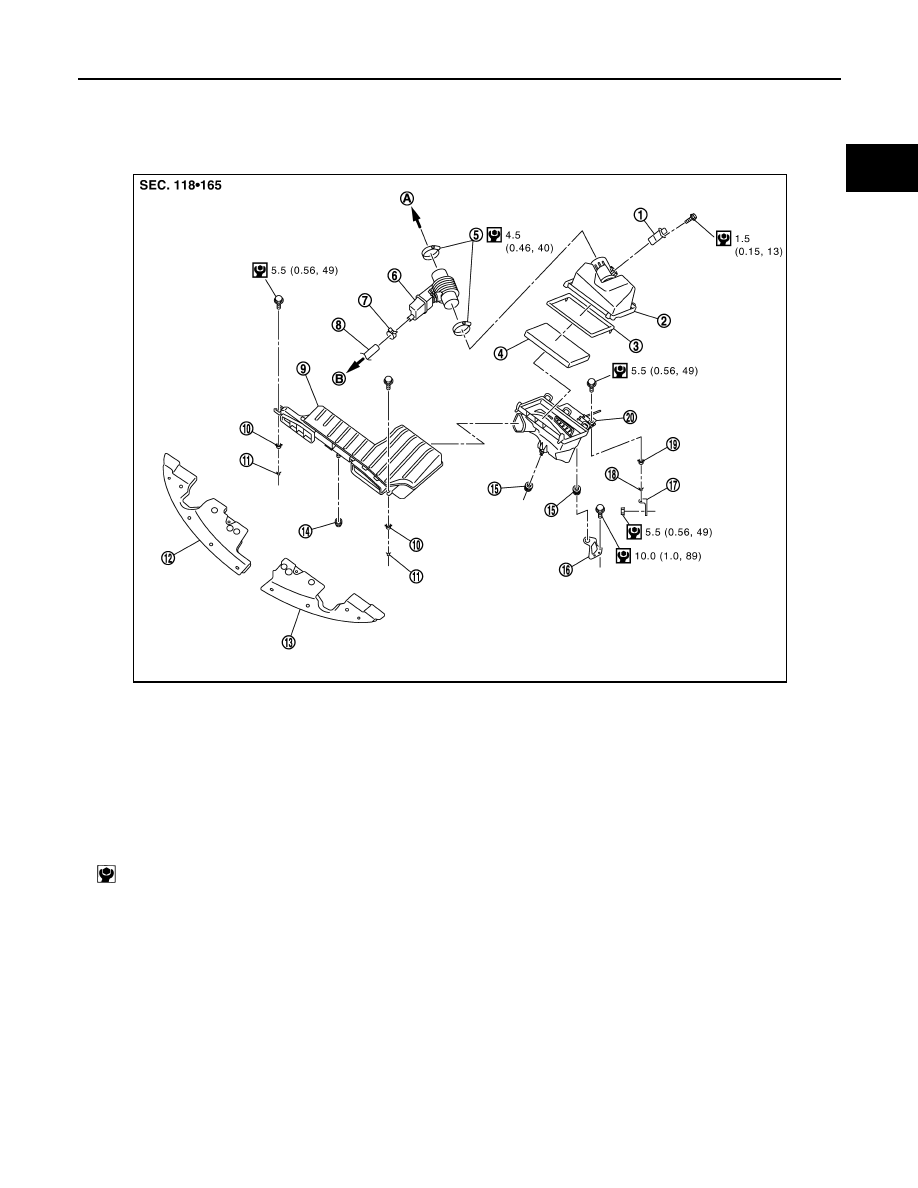

Exploded View

INFOID:0000000009717963

Removal and Installation

INFOID:0000000009717964

REMOVAL

NOTE:
Mass air flow sensor is removable under the car-mounted condition.

1.

Remove radiator core support covers (RH and LH).

2.

Remove air duct (inlet).

3.

Disconnect harness connector from mass air flow sensor.

4.

Disconnect PCV hose.

5.

Remove air cleaner cases (upper and lower) with mass air flow sensor and air duct assembly disconnect-
ing their joints.
• Add mating marks if necessary for easier installation.

1.

Mass air flow sensor

2.

Air cleaner case (upper)

3.

Holder

4.

Air cleaner filter

5.

Clamp

6.

Air duct assembly

7.

Clamp

8.

PCV hose

9.

Air duct (inlet)

10. Grommet

11.

Collar

12. Radiator core support cover (RH)

13. Radiator core support cover (LH)

14. Grommet

15. Grommet

16. Bracket

17. Bracket

18. Collar

19. Grommet

20. Air cleaner case (lower)

A.

To electric throttle control actuator

B.

To rocker cover (bank 2)

: N·m (kg-m, in-lb)

JPBIA1670GB

EM-32

< REMOVAL AND INSTALLATION >

AIR CLEANER AND AIR DUCT

6.

Remove mass air flow sensor from air cleaner case (upper), if necessary.

CAUTION:

Handle the mass air flow sensor with following cares.
• Never shock the mass air flow sensor.
• Never disassemble the mass air flow sensor.
• Never touch the sensor of the mass air flow sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Align marks. Attach each joint. Screw clamps firmly.

Inspection

INFOID:0000000009717965

INSPECTION AFTER REMOVAL

Inspect air duct assembly for crack or tear.
• If anything found, replace air duct assembly.

INTAKE MANIFOLD COLLECTOR

EM-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

INTAKE MANIFOLD COLLECTOR

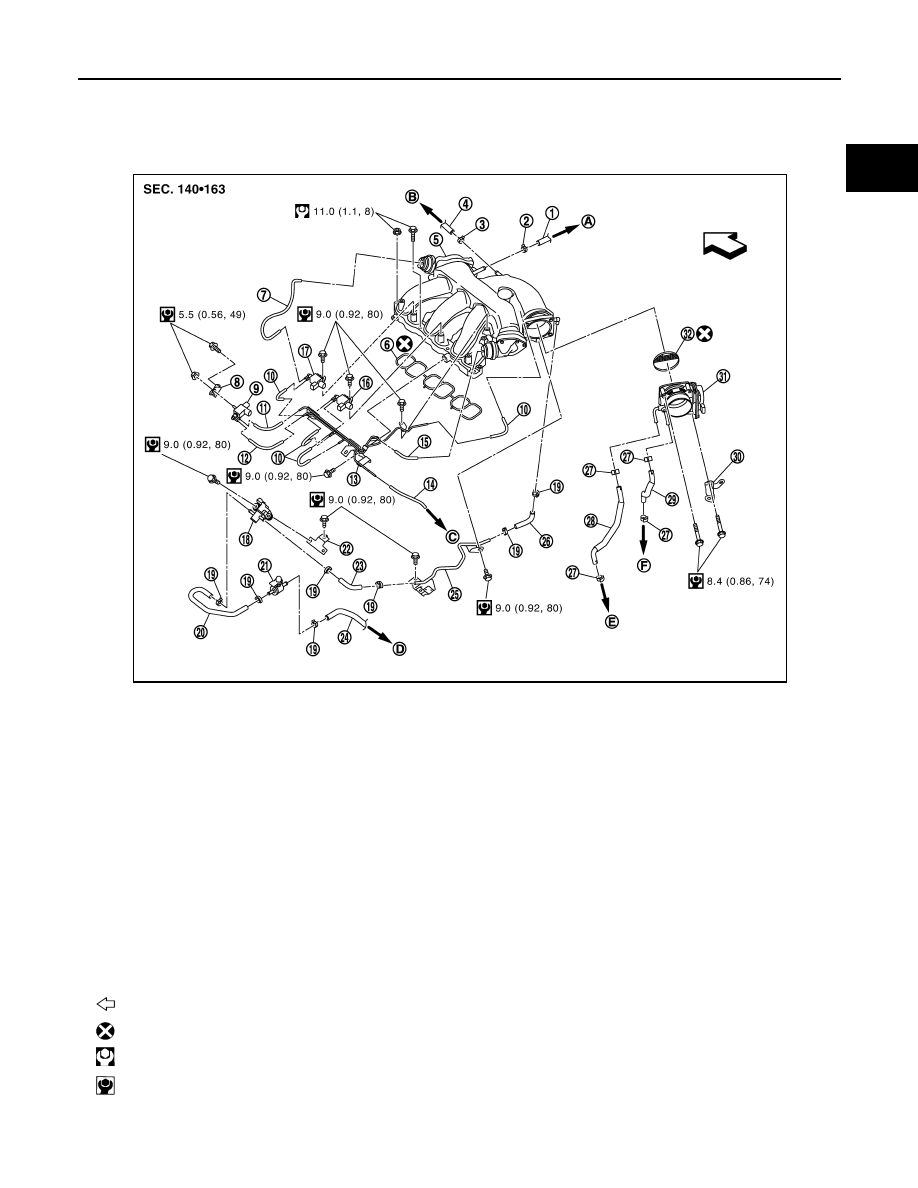

Exploded View

INFOID:0000000009717966

1.

Vacuum hose

2.

Clamp

3.

Clamp

4.

PCV hose

5.

Intake manifold collector

6.

Gasket

7.

Vacuum hose

8.

Bracket

9.

Electronic controlled engine mount
control solenoid valve

10. Vacuum hose

11.

Vacuum hose

12. Vacuum hose

13. Vacuum gallery

14. Vacuum hose

15. Vacuum hose

16. VIAS control solenoid valve 2

17. VIAS control solenoid valve 1

18.

EVAP canister purge control solenoid
valve

19. Clamp

20. EVAP hose

21. Service port

22. Bracket

23. EVAP hose

24. EVAP hose

25. EVAP pipe

26. EVAP hose

27. Clamp

28. Water hose

29. Water hose

30. Bracket

31. Electric throttle control actuator

32. Gasket

A.

To brake booster

B.

To rocker cover (bank 1)

C.

To vacuum tube

D.

To vacuum pipe

E.

To heater pipe

F.

To water outlet

: Engine front

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JPBIA1713GB
