CAMSHAFT VALVE CLEARANCE

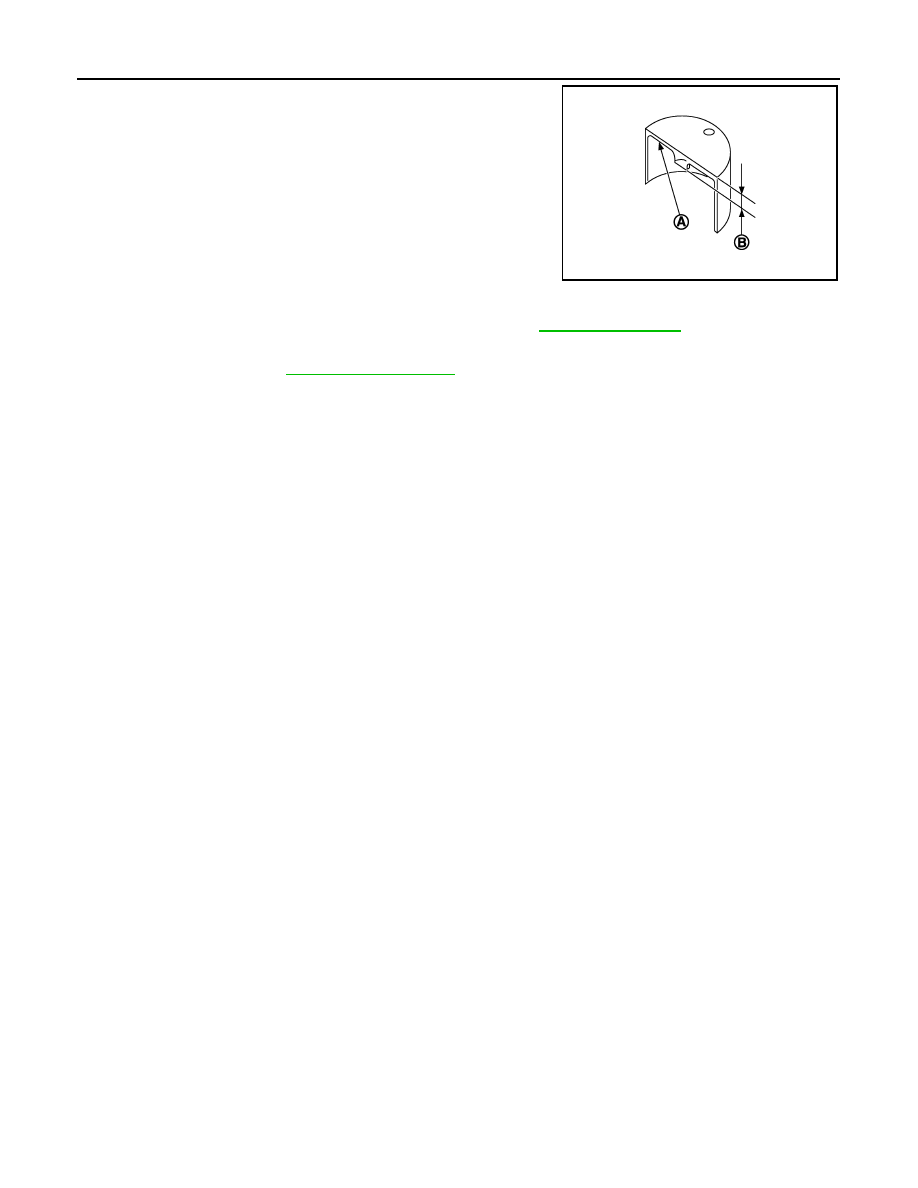

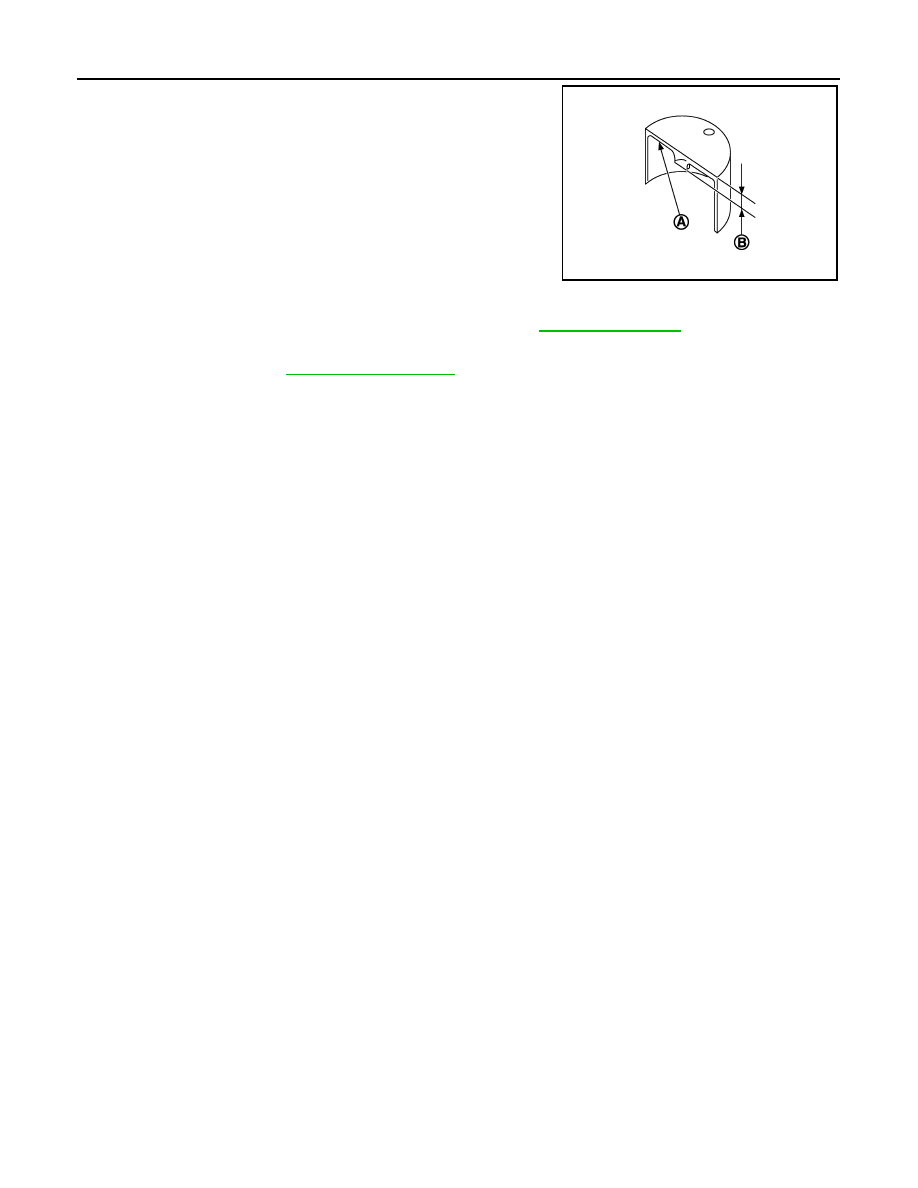

• Thickness of new valve lifter can be identified by stamp marks

on the reverse side (inside the cylinder).
Stamp mark 788P indicates 7.88 mm (0.3102 in) in thickness.

Available thickness of valve lifter: 27 sizes with range 7.88 to 8.40 mm (0.3102 to 0.3307 in) in steps of
0.02 mm (0.0008 in) (when manufactured at factory). Refer to

EM-147, "Camshaft"

.

6.

Install selected valve lifter.

7.

Install camshaft. Refer to

EM-98, "Exploded View"

.

8.

Manually turn crankshaft pulley a few turns.

9.

Check that the valve clearances for cold engine are within the specifications by referring to the specified
values.

10. Install all removal parts in the reverse order of removal.

11. Warm up the engine, and check for unusual noise and vibration.

A

:  Stamp

B

: Thickness of valve lifter

JPBIA0170ZZ

COMPRESSION PRESSURE

EM-27

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

COMPRESSION PRESSURE

Inspection

INFOID:0000000009717958

1.

Warm up engine thoroughly. Then, stop it.

2.

Release fuel pressure. Refer to

EC-532, "Inspection"

.

3.

Disconnect fuel pump fuse to avoid fuel injection during measurement. Refer to

EC-36,

"Component Parts Location"

.

4.

Remove engine cover. Refer to

EM-29, "Exploded View"

.

5.

Remove ignition coil and spark plug from each cylinder. Refer to

EM-54, "Exploded View"

.

6.

Connect engine tachometer (not required in use of CONSULT).

7.

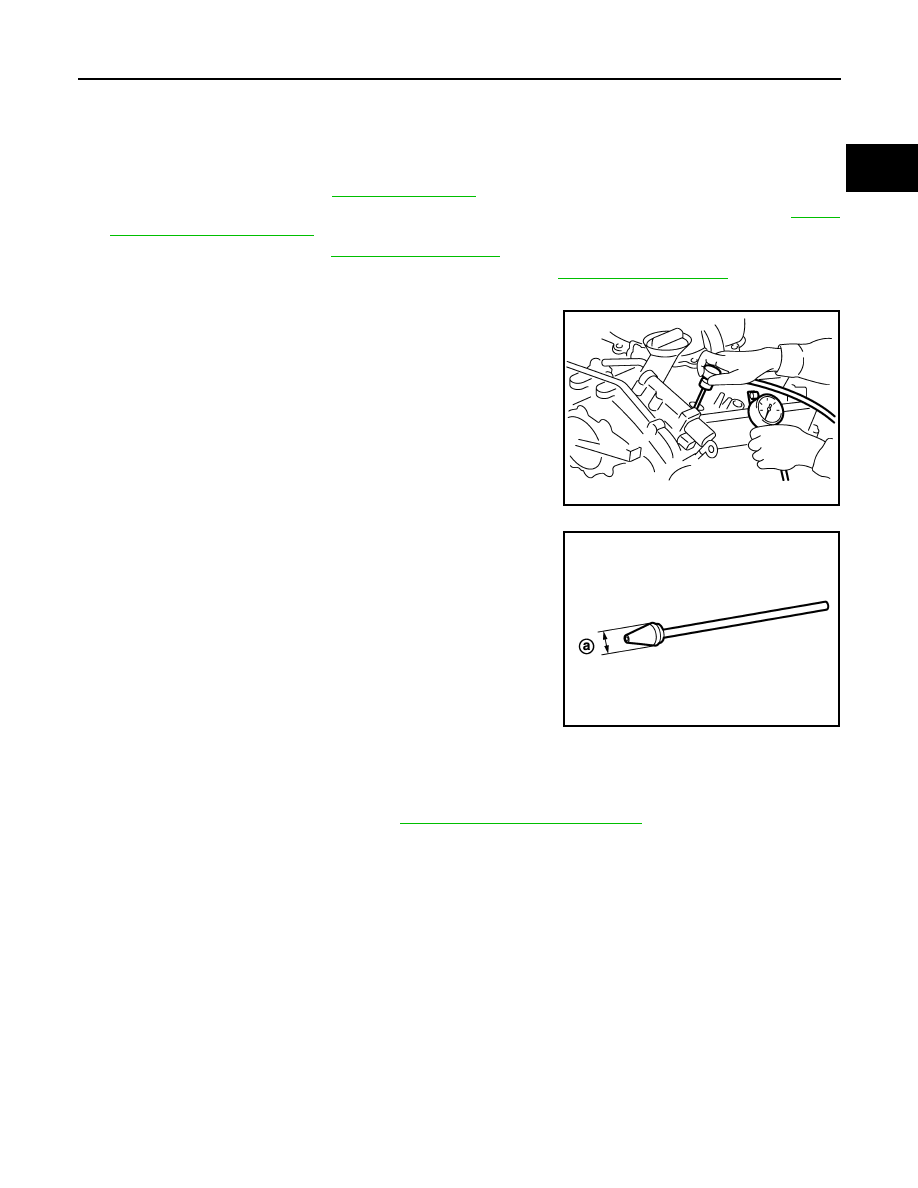

Install compression gauge with an adapter (commercial service
tool) onto spark plug hole.

• Use the adapter whose picking up end inserted to spark plug

hole is smaller than 20 mm (0.79 in) in diameter. Otherwise, it
may be caught by cylinder head during removal.

8.

With accelerator pedal fully depressed, turn ignition switch to “START” for cranking. When the gauge
pointer stabilizes, read the compression pressure and the engine rpm. Perform these steps to check each
cylinder.

CAUTION:

Always use a fully charged battery to obtain the specified engine speed.
• If the engine speed is out of the specified range, check battery liquid for proper gravity. Check the

engine speed again with normal battery gravity.

• If compression pressure is below minimum value, check valve clearances and parts associated with

combustion chamber (valve, valve seat, piston, piston ring, cylinder bore, cylinder head, cylinder head
gasket). After the checking, measure compression pressure again.

• If some cylinder has low compression pressure, pour small amount of engine oil into the spark plug hole

of the cylinder to recheck it for compression.

- If the added engine oil improves the compression, piston rings may be worn out or damaged. Check pis-

ton rings and replace if necessary.

- If the compression pressure remains at low level despite the addition of engine oil, valves may be mal-

functioning. Check valves for damage. Replace valve or valve seat accordingly.

• If two adjacent cylinders have respectively low compression pressure and their compression remains

low even after the addition of engine oil, cylinder head gaskets are leaking. In such a case, replace cyl-
inder head gaskets.

9.

After inspection is completed, install removed parts.

PBIC0900E

a

: 20 mm (0.79 in)

JPBIA0171ZZ

Compression pressure

: Refer to

EM-146, "General Specification"

.

EM-28

< PERIODIC MAINTENANCE >

COMPRESSION PRESSURE

10. Start the engine, and check that the engine runs smoothly.

11. Perform trouble diagnosis. If DTC appears, erase it. Refer to

EC-140, "Description"

.

ENGINE COVER

EM-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

REMOVAL AND INSTALLATION

ENGINE COVER

Exploded View

INFOID:0000000009717959

Removal and Installation

INFOID:0000000009717960

REMOVAL

1.

Remove radiator core support covers (RH and LH) and air duct (inlet). Refer to

EM-31, "Exploded View"

.

2.

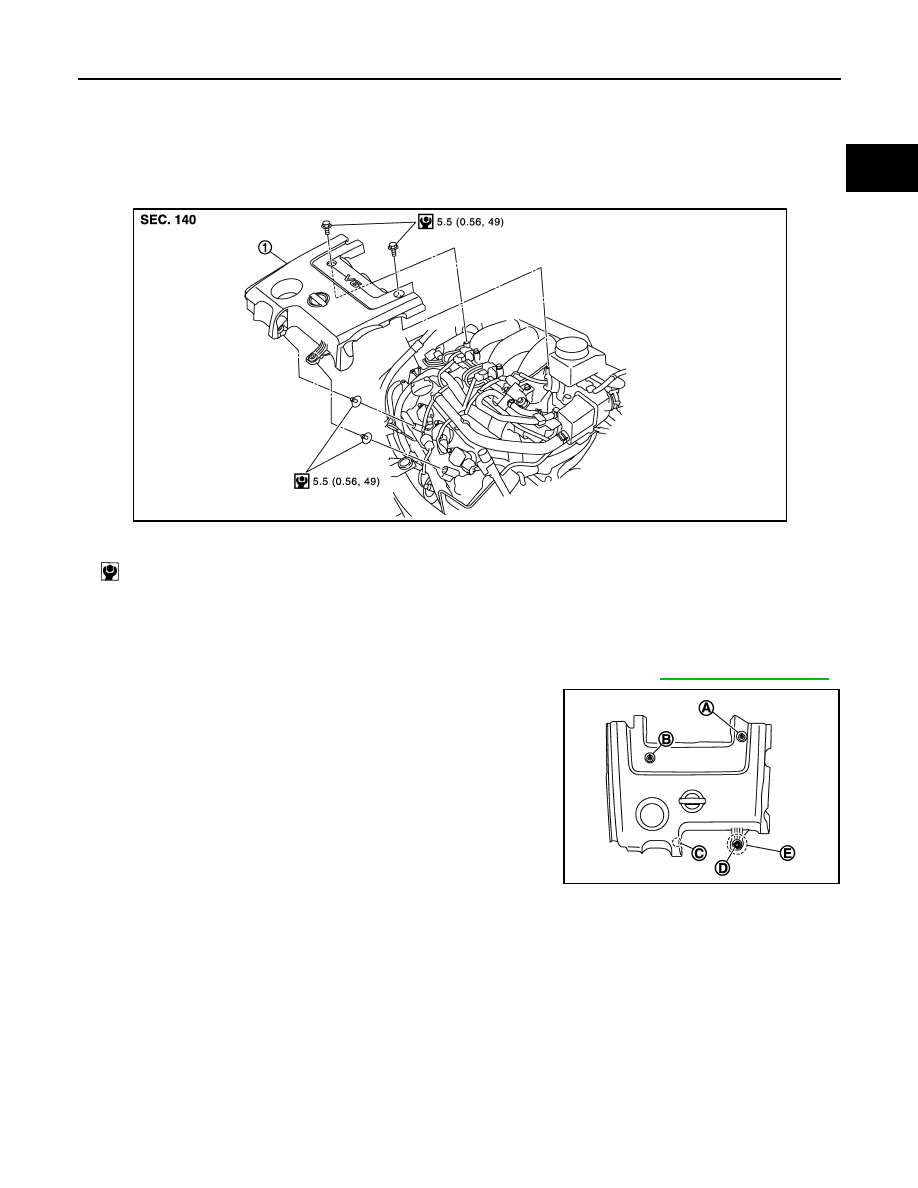

Remove engine cover mounting bolts (A) and (B).

3.

Draw and pull out engine cover from engine cover mounting bolts (C) and (D).

CAUTION:

Pull engine cover from mounting bolt (D) holding with hand the position (E) as shown in the figure.

4.

Remove engine cover mounting bolts (C) and (D) if necessary.

INSTALLATION

Install in the reverse order of removal.

1.

Engine cover

: N·m (kg-m, in-lb)

JPBIA1712GB

JPBIA1718ZZ
