PREPARATION

DLN-83

< PREPARATION >

[REAR PROPELLER SHAFT: 3F63A-EDJ75]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PREPARATION

PREPARATION

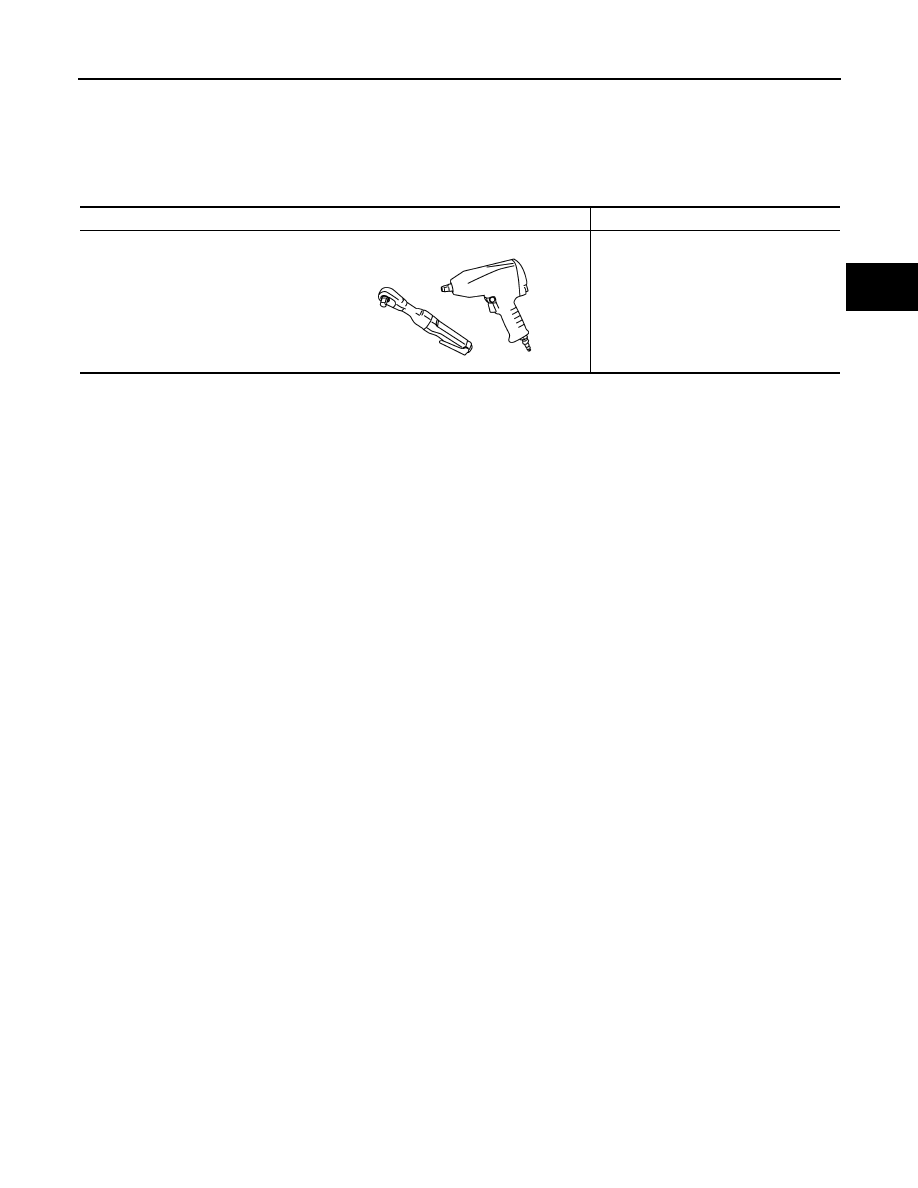

Commercial Service Tool

INFOID:0000000009718166

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

DLN-84

< PERIODIC MAINTENANCE >

[REAR PROPELLER SHAFT: 3F63A-EDJ75]

REAR PROPELLER SHAFT

PERIODIC MAINTENANCE

REAR PROPELLER SHAFT

Inspection

INFOID:0000000009718167

NOISE

• Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.
• If center bearing is noisy or damaged, replace propeller shaft assembly.

VIBRATION

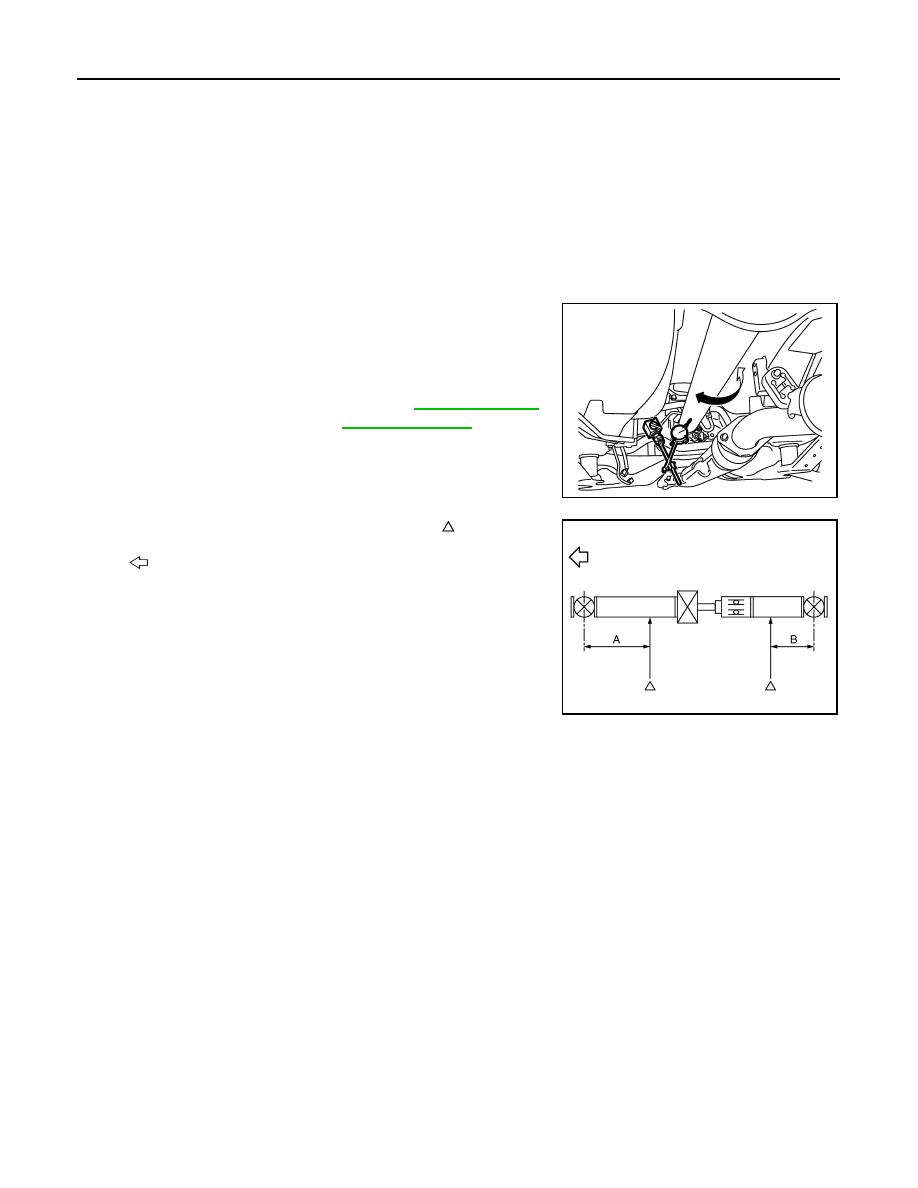

If vibration is present at high speed, inspect propeller shaft runout first.

1.

With a dial indicator, measure propeller shaft runout at runout
measuring points by rotating final drive companion flange with
hands.

• Propeller shaft runout measuring point (Point “ ”).

2.

If runout still exceeds specifications, separate propeller shaft at
final drive companion flange or transfer companion flange; then
change the phase between companion flange and propeller
shaft by the one bolt hole at a time and install propeller shaft.

3.

Check runout again. If runout still exceeds specifications, replace propeller shaft assembly.

4.

Check the vibration by driving vehicle.

Limit

Propeller shaft runout

: Refer to

DLN-89, "Propel-

ler Shaft Runout"

.

JPDID0172ZZ

: Vehicle front

Dimension

A: 506.5 mm (19.94 in)

B: 497.5 mm (19.59 in)

JPDID0156ZZ

REAR PROPELLER SHAFT

DLN-85

< REMOVAL AND INSTALLATION >

[REAR PROPELLER SHAFT: 3F63A-EDJ75]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REMOVAL AND INSTALLATION

REAR PROPELLER SHAFT

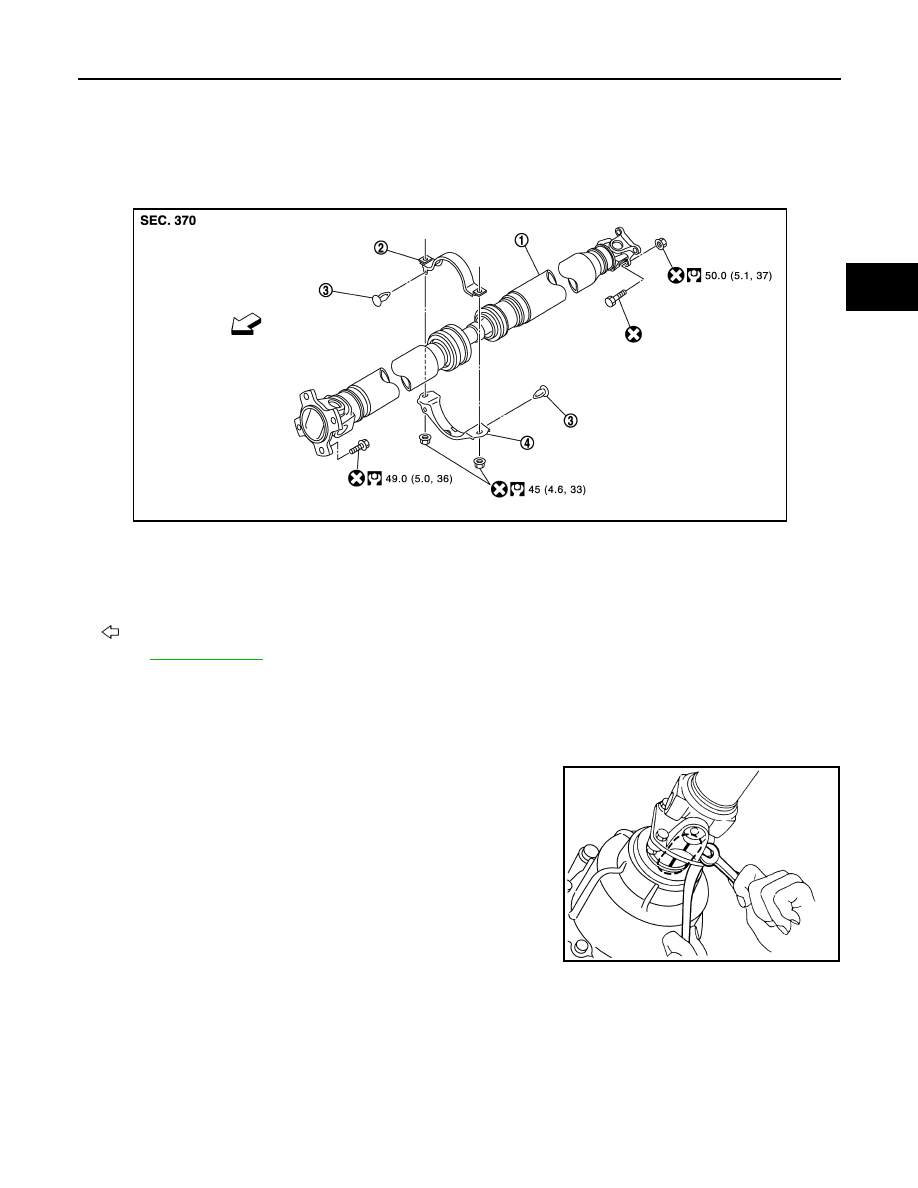

Exploded View

INFOID:0000000009718168

Removal and Installation

INFOID:0000000009718169

REMOVAL

1.

Shift the transaxle to the neutral position, and then release the parking brake.

2.

Put matching marks onto propeller shaft flange yoke and final
drive and transfer companion flanges.

CAUTION:

For matching marks, use paint. Never damage propeller
shaft flange yoke and transfer companion flange.

1.

Propeller shaft assembly

2.

Center bearing mounting bracket
(upper)

3.

Clip

4.

Center bearing mounting bracket
(lower)

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDID0157GB

JSDIA0194ZZ

DLN-86

< REMOVAL AND INSTALLATION >

[REAR PROPELLER SHAFT: 3F63A-EDJ75]

REAR PROPELLER SHAFT

3.

Loosen mounting nuts of center bearing mounting brackets
(upper/lower).

CAUTION:

Tighten mounting nuts temporarily.

4.

Remove propeller shaft assembly fixing bolts and nuts.

5.

Remove center bearing mounting bracket fixing nuts.

6.

Remove propeller shaft assembly.

CAUTION:

If constant velocity joint was bent during propeller shaft
assembly removal, installation, or transportation, its boot may be damaged. Wrap boot interfer-
ence area to metal part with shop cloth or rubber to protect boot from breakage.

7.

Remove clips and center bearing mounting bracket (upper/lower).

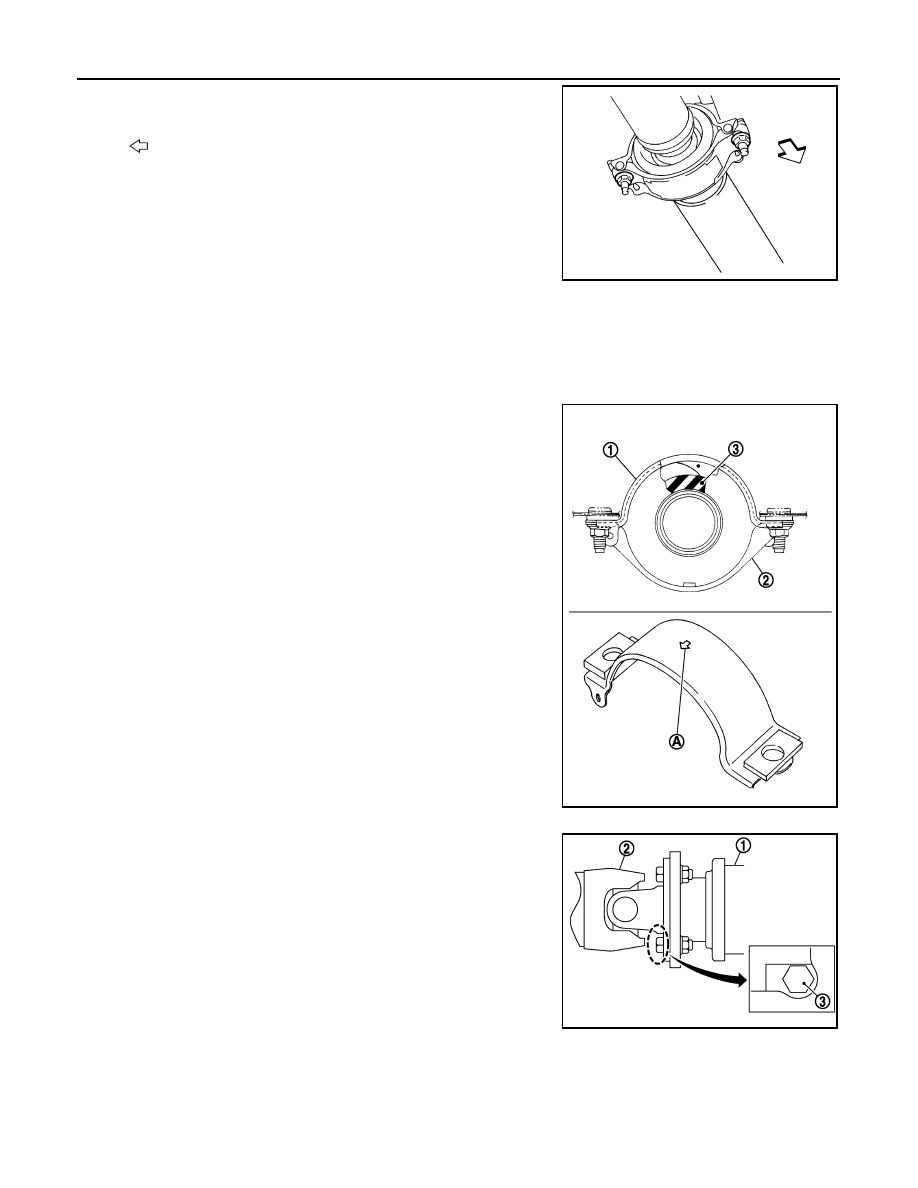

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install center bearing mounting bracket (upper) (1) with its arrow

mark (A) facing forward.

• Adjust position of center bearing mounting bracket (upper), center

bearing mounting bracket (lower) (2) sliding back and forth to pre-
vent play in thrust direction of center bearing insulator (3). Install
center bearing mounting bracket (upper/lower) to vehicle.

• Align matching marks to install propeller shaft assembly to final

drive and transfer companion flanges.

• After assembly, perform a driving test to check propeller shaft

vibration. If vibration occurred, separate propeller shaft from final
drive. Reinstall companion flange after rotating it by 90, 180, 270
degrees. Then perform driving test and check propeller shaft vibra-
tion again at each point.

• After tightening the bolts and nuts to the specified torque, check

that the bolts (3) on the flange side is tightened as shown in the fig-
ure.

• If propeller shaft assembly or final drive assembly has been replaced, connect them as follows:

: Vehicle front

JSDIA0195ZZ

JSDIA0127ZZ

1

: Final drive assembly

2

: Propeller shaft assembly

JSDIA0196ZZ
