REAR PROPELLER SHAFT

DLN-87

< REMOVAL AND INSTALLATION >

[REAR PROPELLER SHAFT: 3F63A-EDJ75]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

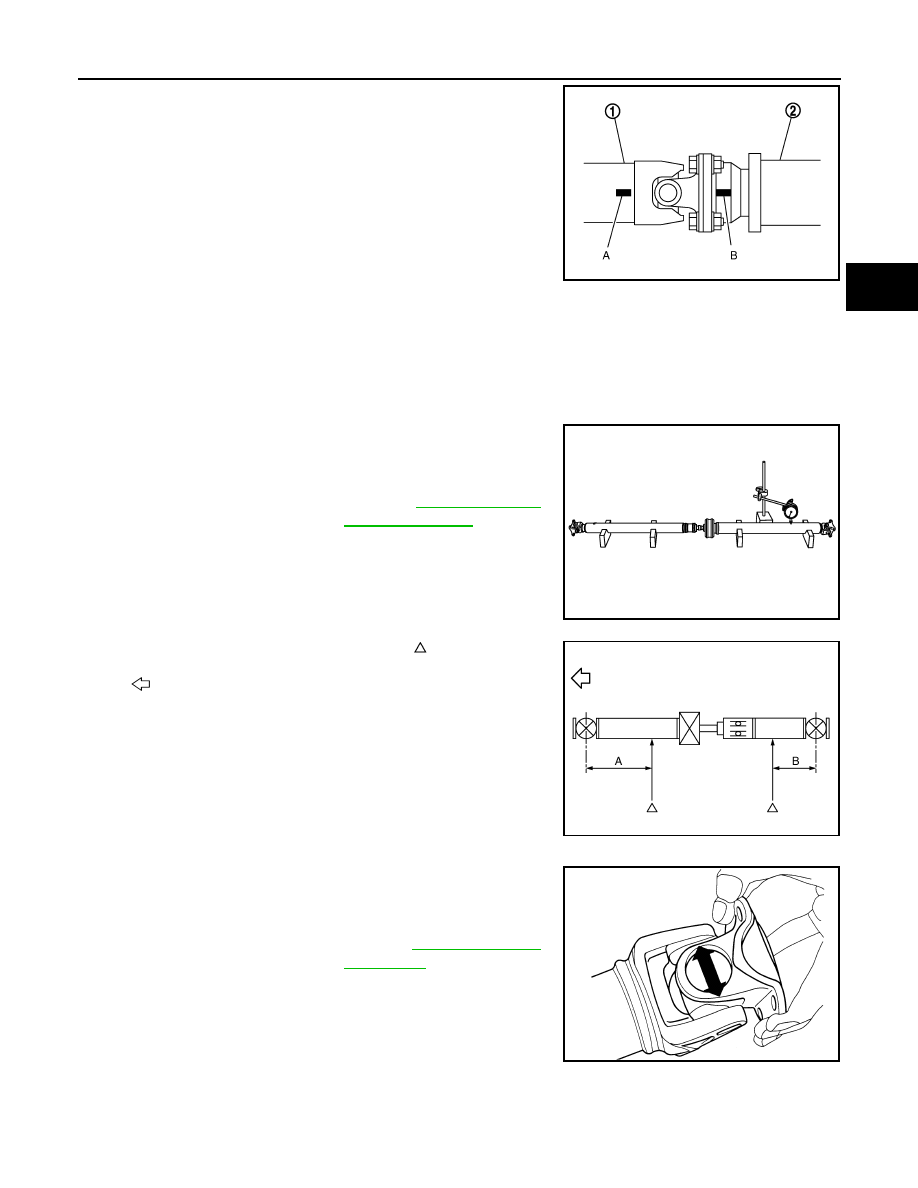

- Install propeller shaft (1) while aligning its matching mark (A) with

the matching mark (B) of the final drive (2) on the joint as close as
possible.

- Tighten mounting bolts and nuts of propeller shaft and final drive to

the specified torque.

Inspection

INFOID:0000000009718170

INSPECTION AFTER REMOVAL

Appearance

Check propeller shaft for bend and damage. If damage is detected, replace propeller shaft assembly.

Propeller Shaft Runout

Check propeller shaft runout at measuring points with a dial indica-
tor. If runout exceeds specifications, replace propeller shaft assem-
bly.

• Propeller shaft runout measuring point (Point “ ”).

Journal Axial Play

As shown in the figure, while fixing yoke on one side, check axial
play of joint. If it is outside the standard, replace propeller shaft
assembly.

CAUTION:

Never disassemble joints.

Center Bearing

Check center bearing for noise and damage. If noise or damage is detected, replace propeller shaft assembly.

CAUTION:

Never disassemble center bearing.

JPDID0165ZZ

Propeller shaft runout

: Refer to

DLN-89, "Propel-

ler Shaft Runout"

.

JPDID0158ZZ

: Vehicle front

Dimension

A: 506.5 mm (19.94 in)

B: 497.5 mm (19.59 in)

JPDID0156ZZ

Journal axial play

: Refer to

DLN-89, "Journal

Axial Play"

.

PDA0005D

DLN-88

< REMOVAL AND INSTALLATION >

[REAR PROPELLER SHAFT: 3F63A-EDJ75]

REAR PROPELLER SHAFT

INSPECTION AFTER INSTALLATION

After assembly, perform a driving test to check propeller shaft vibration. If vibration occurred, separate propel-
ler shaft from final drive or transfer. Reinstall companion flange by changing the phase between companion
flange and propeller shaft by the one bolt hole at a time. Then perform driving test and check propeller shaft
vibration again at each point.

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-89

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR PROPELLER SHAFT: 3F63A-EDJ75]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000009718171

Propeller Shaft Runout

INFOID:0000000009718172

Unit: mm (in)

Journal Axial Play

INFOID:0000000009718173

Unit: mm (in)

Applied model

AWD

VQ35DE

CVT

Propeller shaft model

3F63A-EDJ75

Number of joints

3

Type of journal bearings
(Non-disassembly type)

1st joint

Shell type

2nd joint

EDJ type

3rd joint

Shell type

Coupling method with transfer

Flange type

Coupling method with rear final drive

Flange type

Shaft length

1st (Spider to EDJ joint center)

1142 mm (44.96 in)

2nd (EDJ joint center to spider)

987 mm (38.86 in)

Shaft outer diameter

1st

63.5 mm (2.500 in)

2nd

75 mm (2.95 in)

Item

Limit

Propeller shaft runout

0.8 (0.031)

Item

Standard

Journal axial play

0 (0)

DLN-90

< SYSTEM DESCRIPTION >

[REAR FINAL DRIVE: R145]

REAR FINAL DRIVE ASSEMBLY

SYSTEM DESCRIPTION

REAR FINAL DRIVE ASSEMBLY

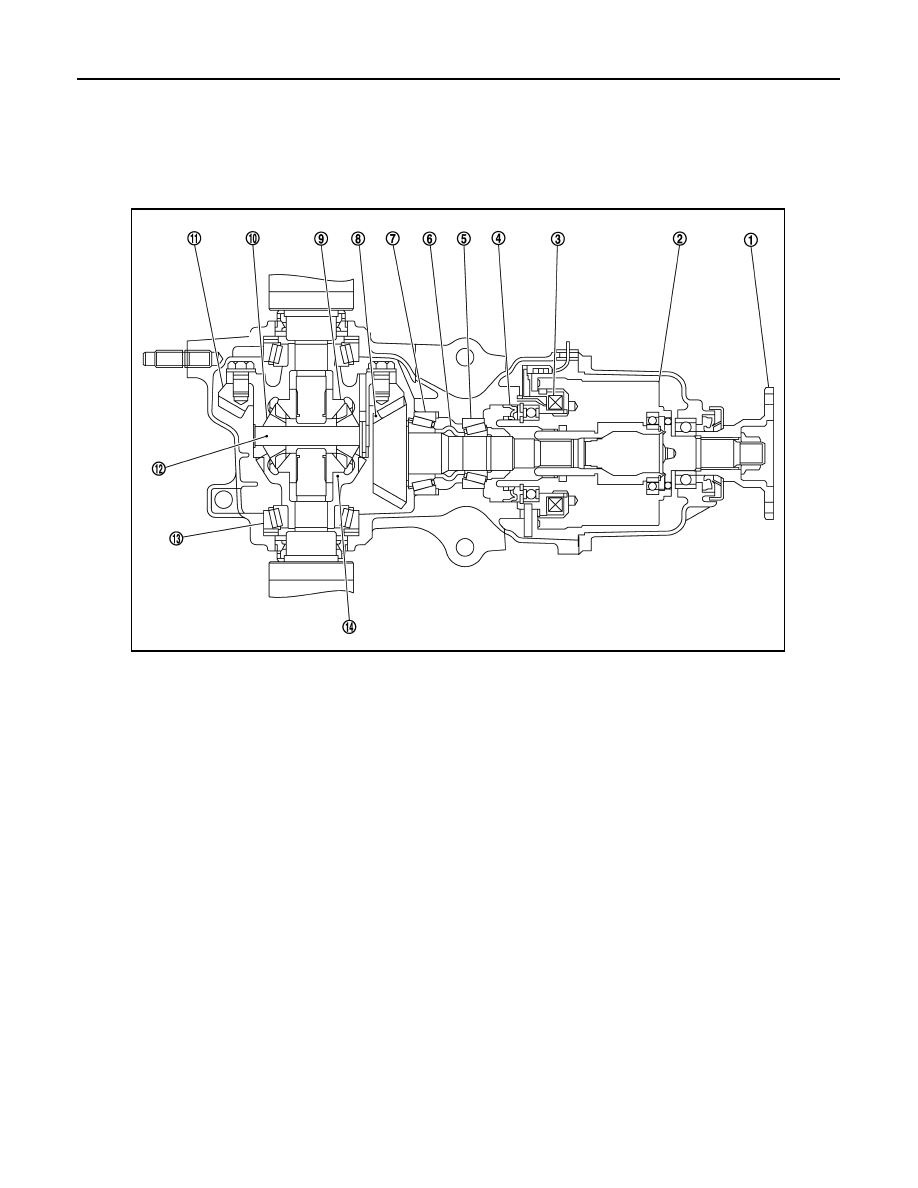

System Diagram

INFOID:0000000009718174

1.

Companion flange

2.

Electric controlled coupling

3.

AWD solenoid

4.

Center oil seal

5.

Pinion front bearing

6.

Collapsible spacer

7.

Pinion rear bearing

8.

Drive pinion

9.

Side gear

10. Pinion mate gear

11.

Drive gear

12. Pinion mate shaft

13. Side bearing

14. Differential case
