BACK DOOR LOCK

DLK-355

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

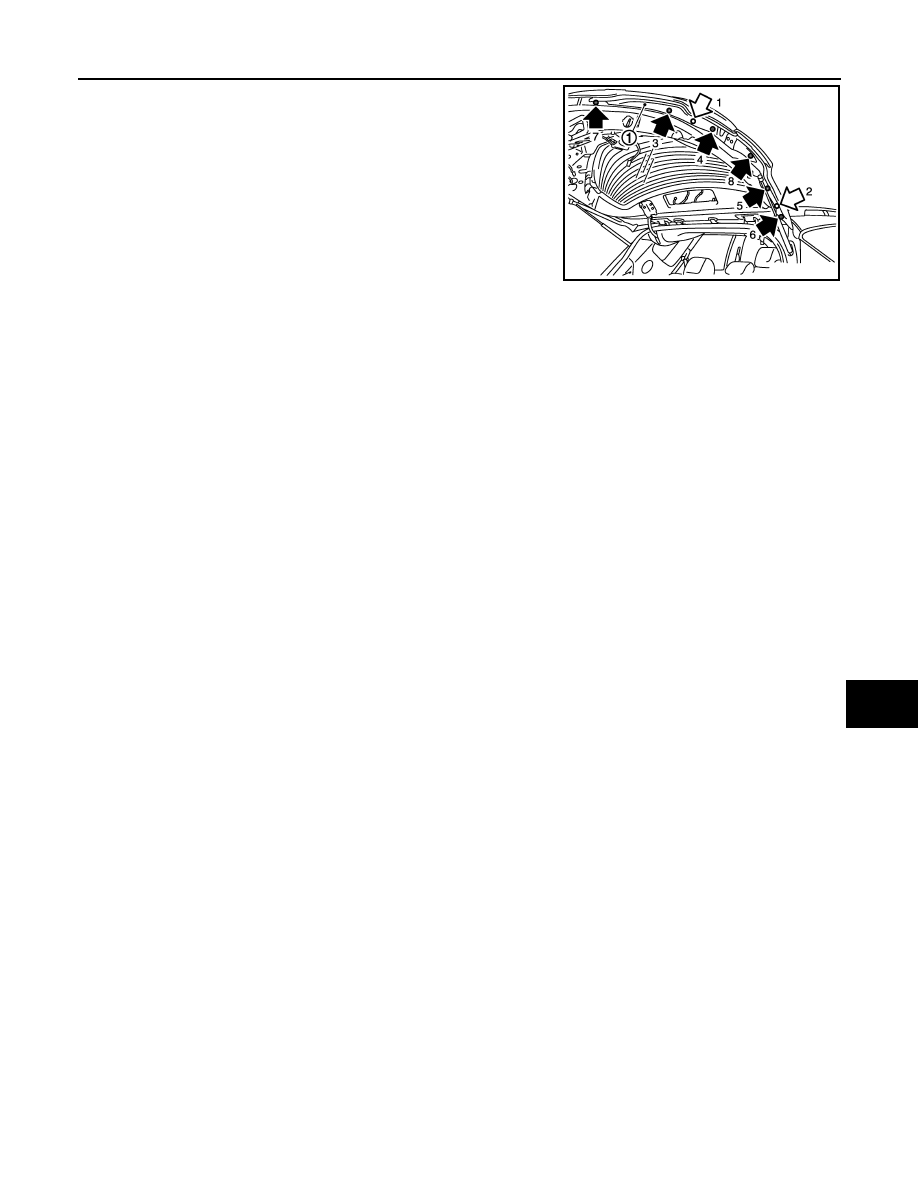

Remove clips and TORX bolts touch sensor (1).

CAUTION:

Remove the TORX bolts (black arrow) and clips (white
arrow) of touch sensor referring to figure.

4.

Pull harness of touch sensor out of back door and remove touch sensor.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Install the clips and TORX bolts of touch sensor in the reverse order of removal.
• Never place back door side seal between touch sensor.
• Check back door open/close operation after installation.

JMKIA1920ZZ

DLK-356

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

Exploded View

INFOID:0000000009719275

Removal and Installation

INFOID:0000000009719276

NOTE:
When fuel filler lid opener actuator is a defective operation, pull the
rod to open fuel filler lid.

REMOVAL

1.

Remove filler cap.

2.

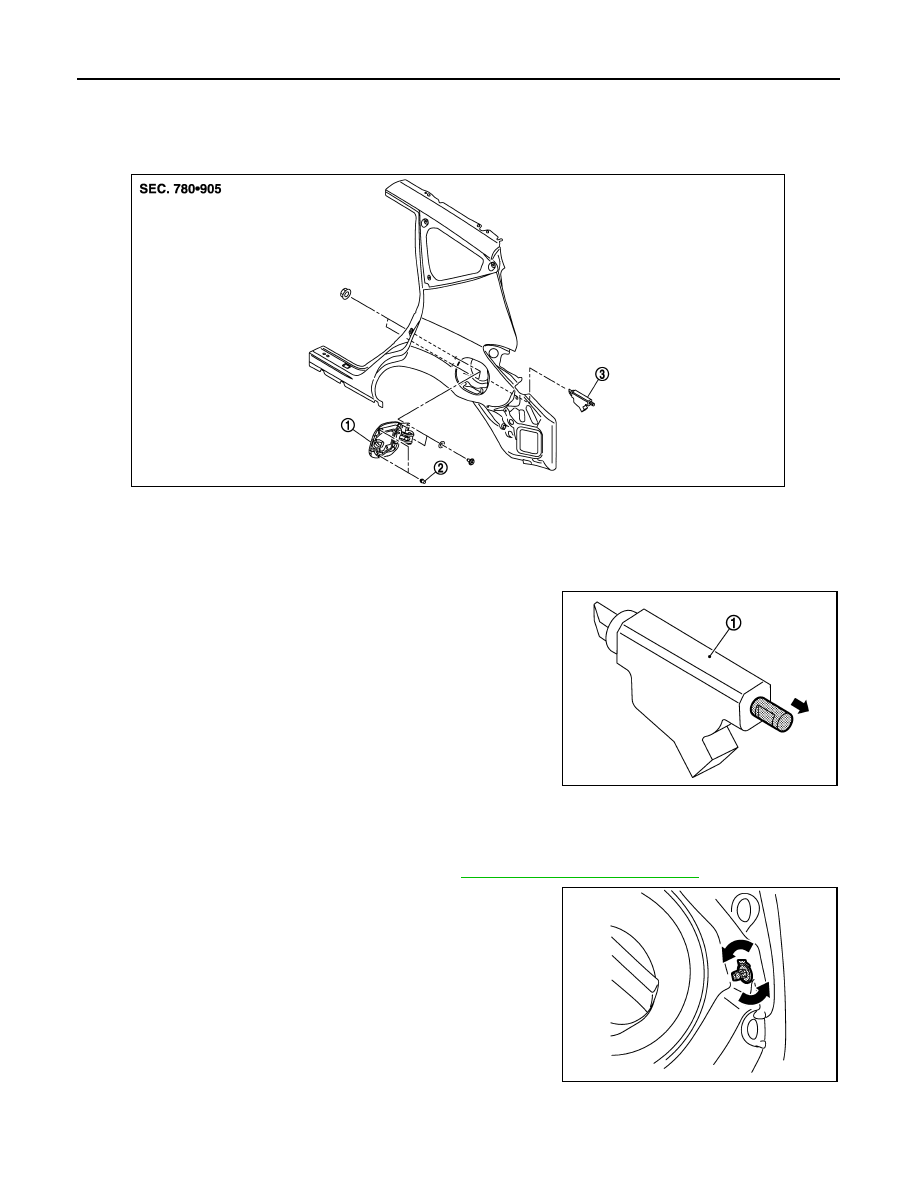

Remove mounting screws (A), and then remove fuel filler lid (1).

3.

Remove luggage side finisher lower (LH). Refer to

INT-35, "Removal and Installation"

.

4.

Locate fuel filler lid opener actuator, and then remove the fuel
filler lid opener actuator.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

1.

Fuel filler lid assembly

2.

Bumper rubber

3.

Fuel filler lid opener actuator

JMKIA1957ZZ

JMKIA1960ZZ

JMKIA1959ZZ

FUEL FILLER LID OPENER

DLK-357

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

After installation, apply the touch-up paint (the body color) onto the head of the mounting screws.

DLK-358

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

DOOR SWITCH

DOOR SWITCH

Exploded View

INFOID:0000000009719277

Removal and Installation

INFOID:0000000009719278

REMOVAL

1.

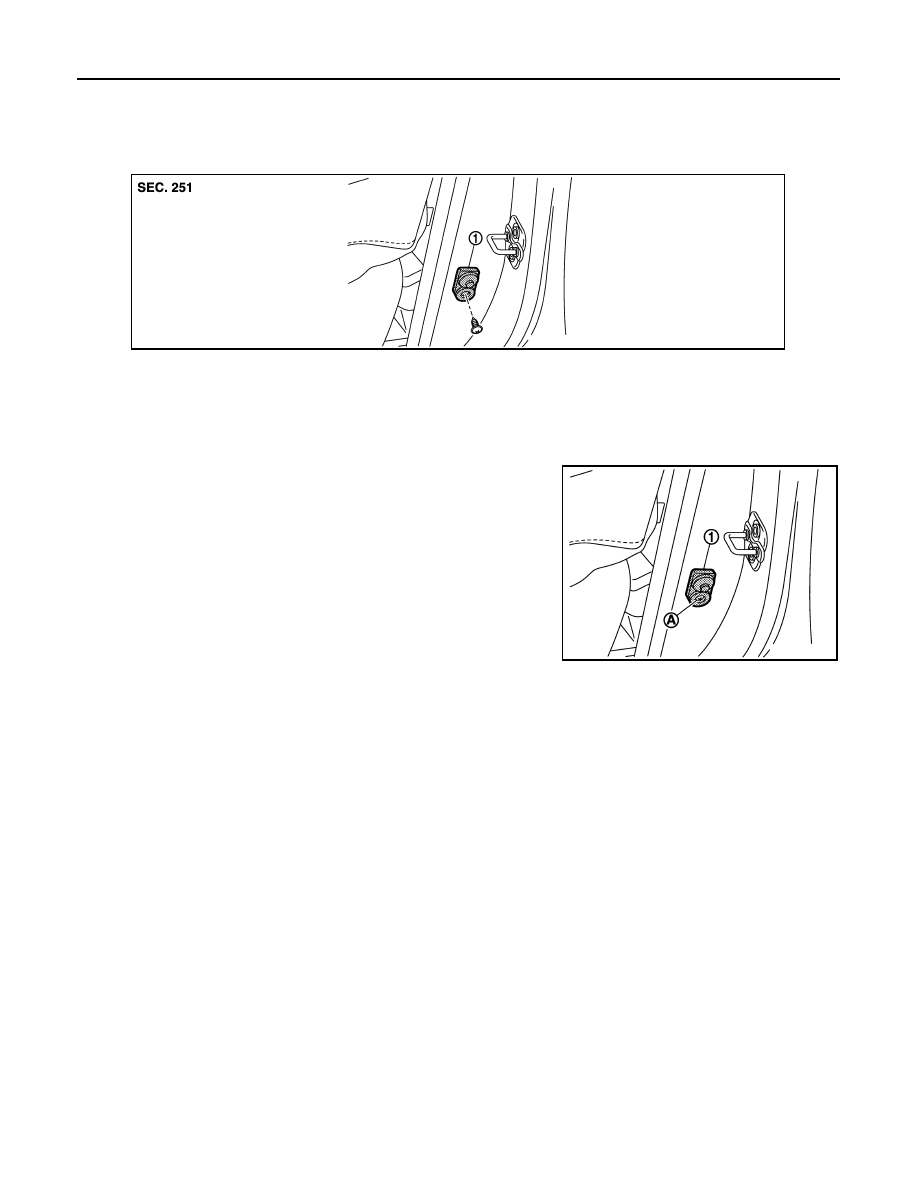

Remove the door switch mounting bolt (A), and then remove
door switch (1).

INSTALLATION

Install in the reverse order of removal.

1.

Door switch

JMKIA2180ZZ

JMKIA2173ZZ
