INSIDE KEY ANTENNA

DLK-359

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSIDE KEY ANTENNA

CONSOLE

CONSOLE : Exploded View

INFOID:0000000009719279

CONSOLE : Removal and Installation

INFOID:0000000009719280

REMOVAL

1.

Remove the console pocket and rear finisher. Refer to

IP-23, "Removal and Installation"

.

2.

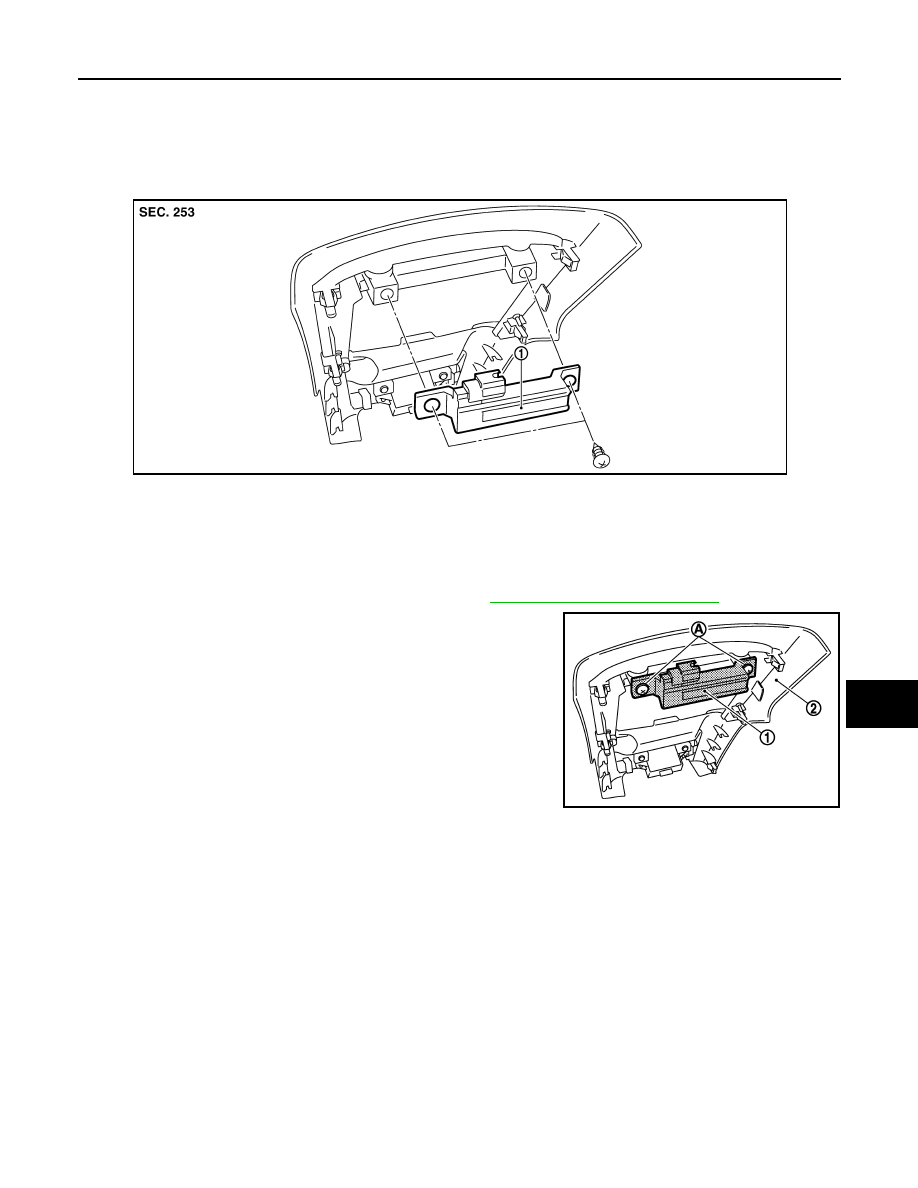

Remove the inside key antenna mounting screw (A), and then
remove inside key antenna (console) (1) from console rear fin-
isher (2).

INSTALLATION

Install in the reverse order of removal.

LUGGAGE ROOM

1.

Inside key antenna (console)

JMKIA1818ZZ

JMKIA1819ZZ

DLK-360

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

INSIDE KEY ANTENNA

LUGGAGE ROOM : Exploded View

INFOID:0000000009719281

LUGGAGE ROOM : Removal and Installation

INFOID:0000000009719282

REMOVAL

1.

Remove the luggage floor finisher front. Refer to

INT-35, "Removal and Installation"

.

2.

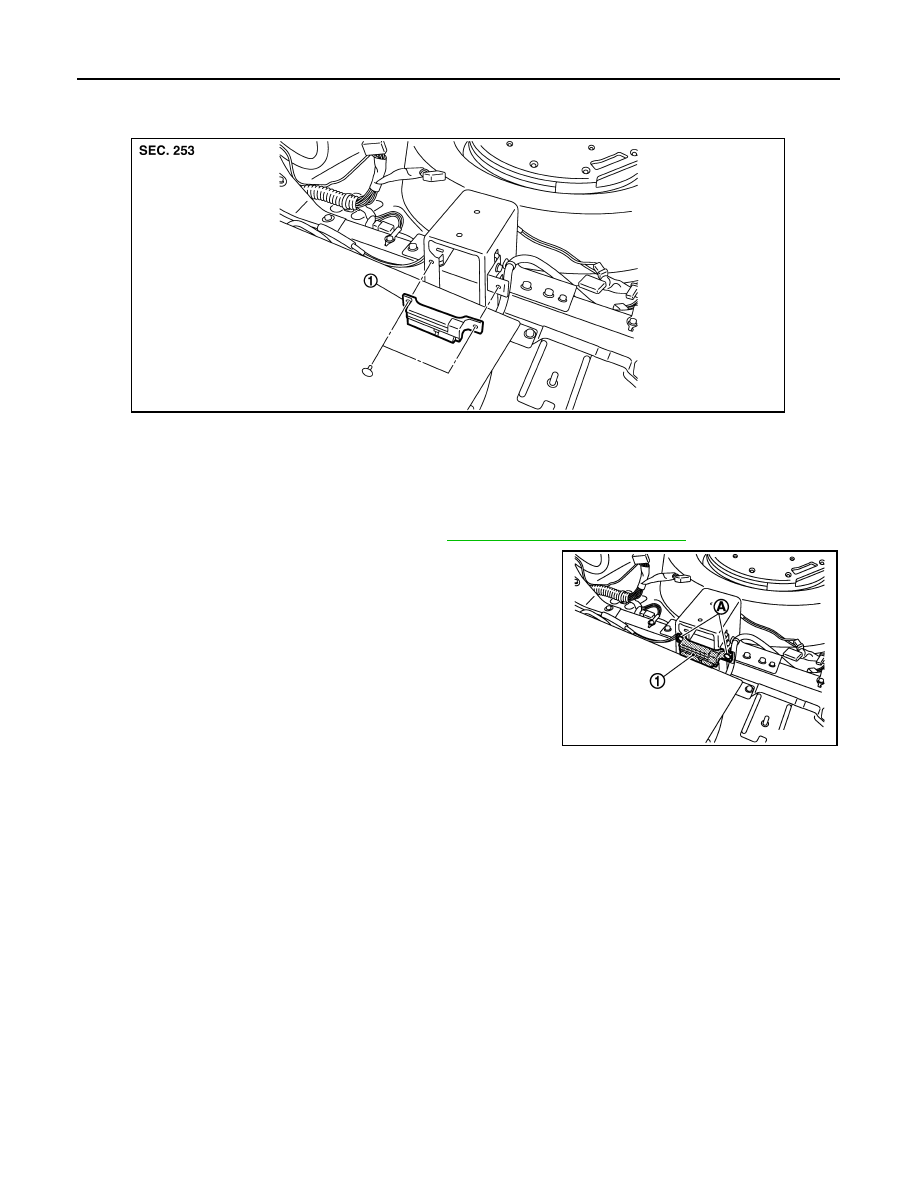

Remove the inside key antenna (luggage room) mounting clip
(A), and then remove inside key antenna (luggage room) (1).

INSTALLATION

Install in the reverse order of removal.

1.

Inside key antenna (luggage room)

JMKIA1816ZZ

JMKIA1817ZZ

OUTSIDE KEY ANTENNA

DLK-361

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OUTSIDE KEY ANTENNA

DRIVER SIDE

DRIVER SIDE : Exploded View

INFOID:0000000009719283

Refer to

DLK-320, "DOOR STRIKER : Exploded View"

.

DRIVER SIDE : Removal and Installation

INFOID:0000000009719284

REMOVAL

Remove the front outside handle LH. Refer to

DLK-344, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

PASSENGER SIDE

PASSENGER SIDE : Exploded View

INFOID:0000000009719285

Refer to

DLK-320, "DOOR STRIKER : Exploded View"

.

PASSENGER SIDE : Removal and Installation

INFOID:0000000009719286

REMOVAL

Remove the front outside handle RH. Refer to

DLK-344, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

REAR BUMPER

REAR BUMPER : Exploded View

INFOID:0000000009719287

REAR BUMPER : Removal and Installation

INFOID:0000000009719288

REMOVAL

1.

Remove the rear bumper. Refer to

EXT-18, "Removal and Installation"

.

1.

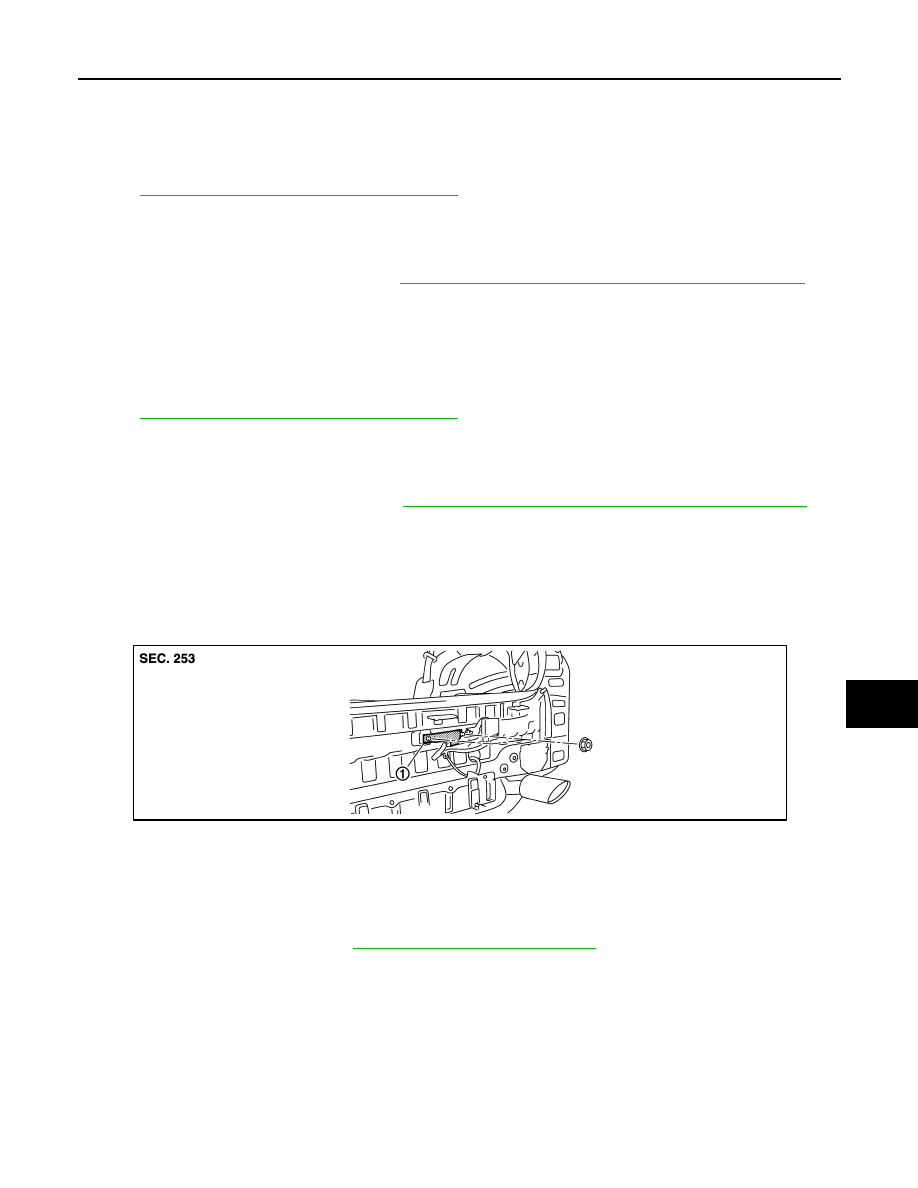

Outside key antenna (rear bumper)

JMKIA2179ZZ

DLK-362

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

OUTSIDE KEY ANTENNA

2.

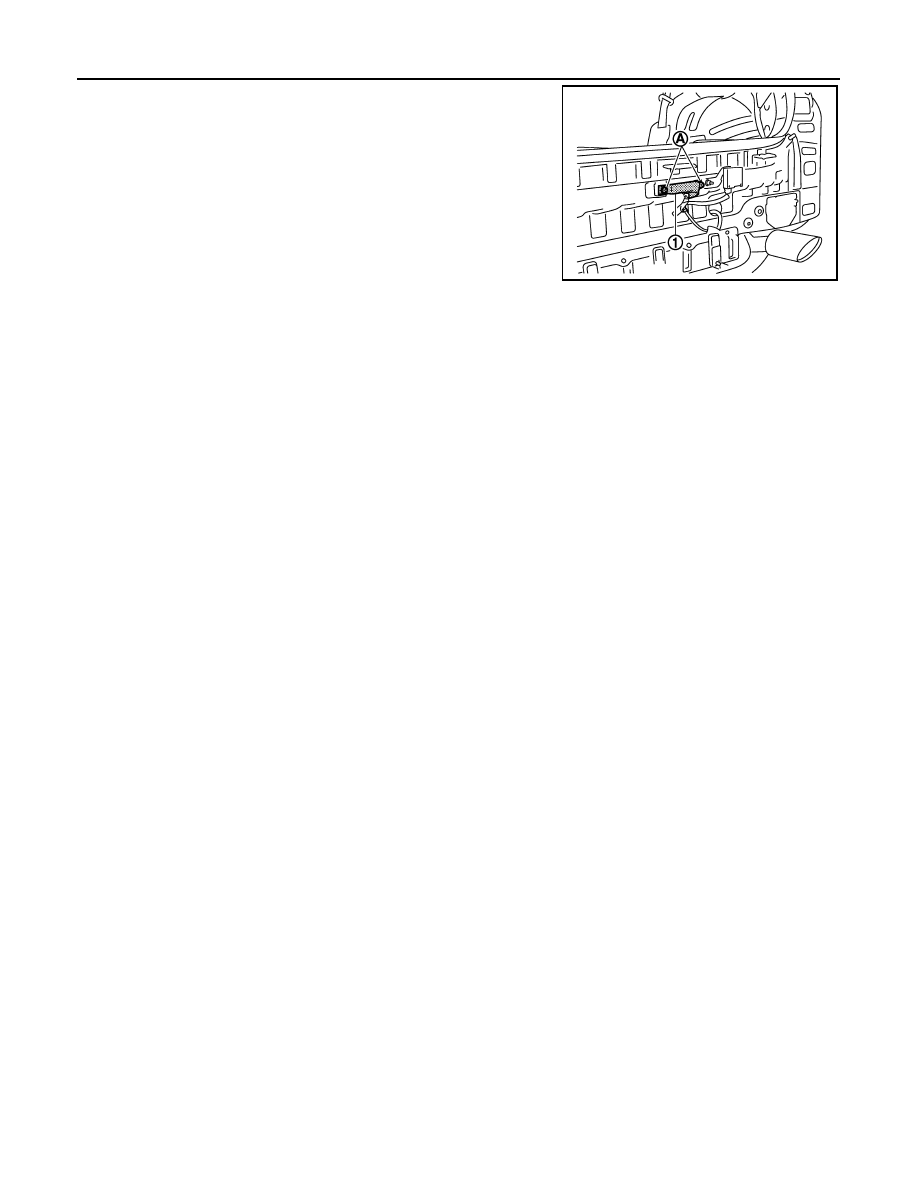

Remove the outside key antenna (rear bumper) mounting nuts
(A), and then remove outside key antenna (rear bumper) (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2172ZZ
