REAR DOOR LOCK

DLK-347

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

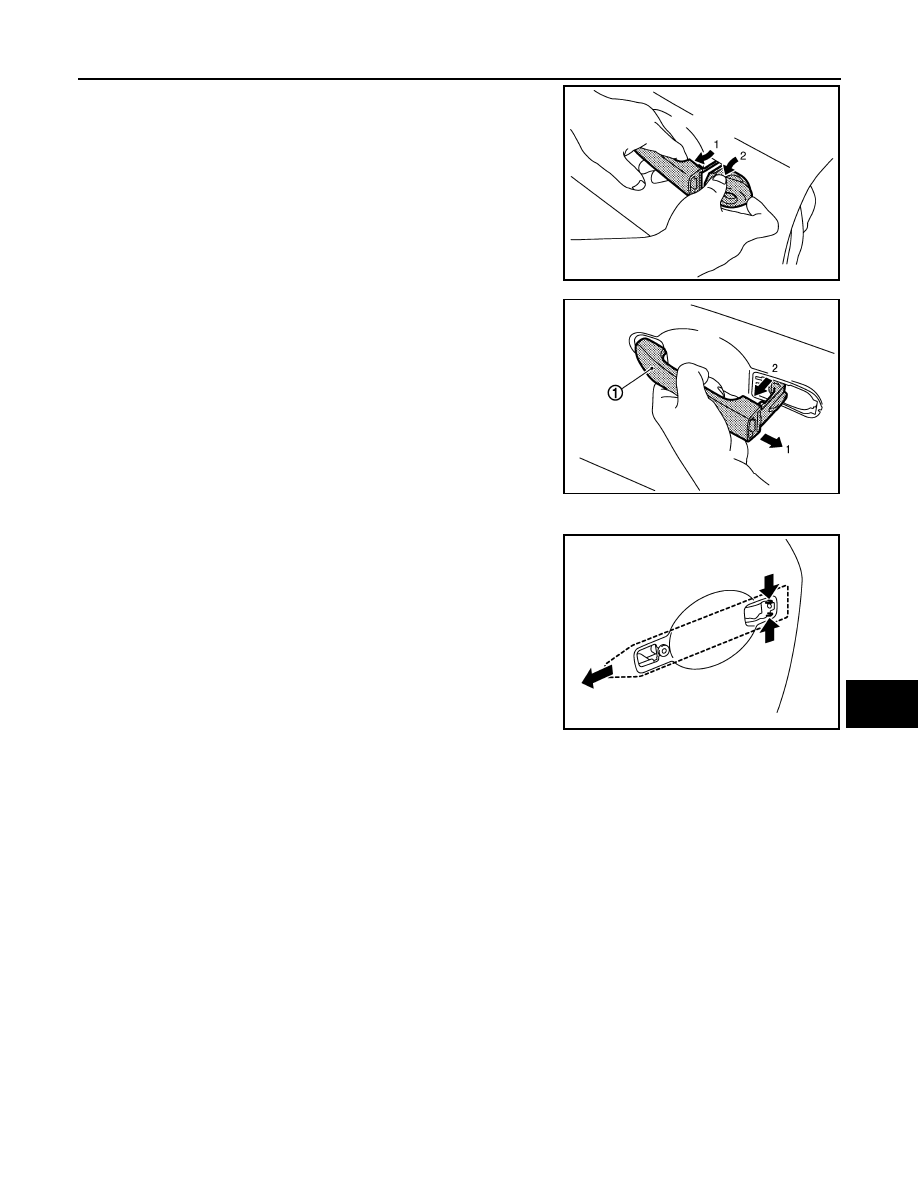

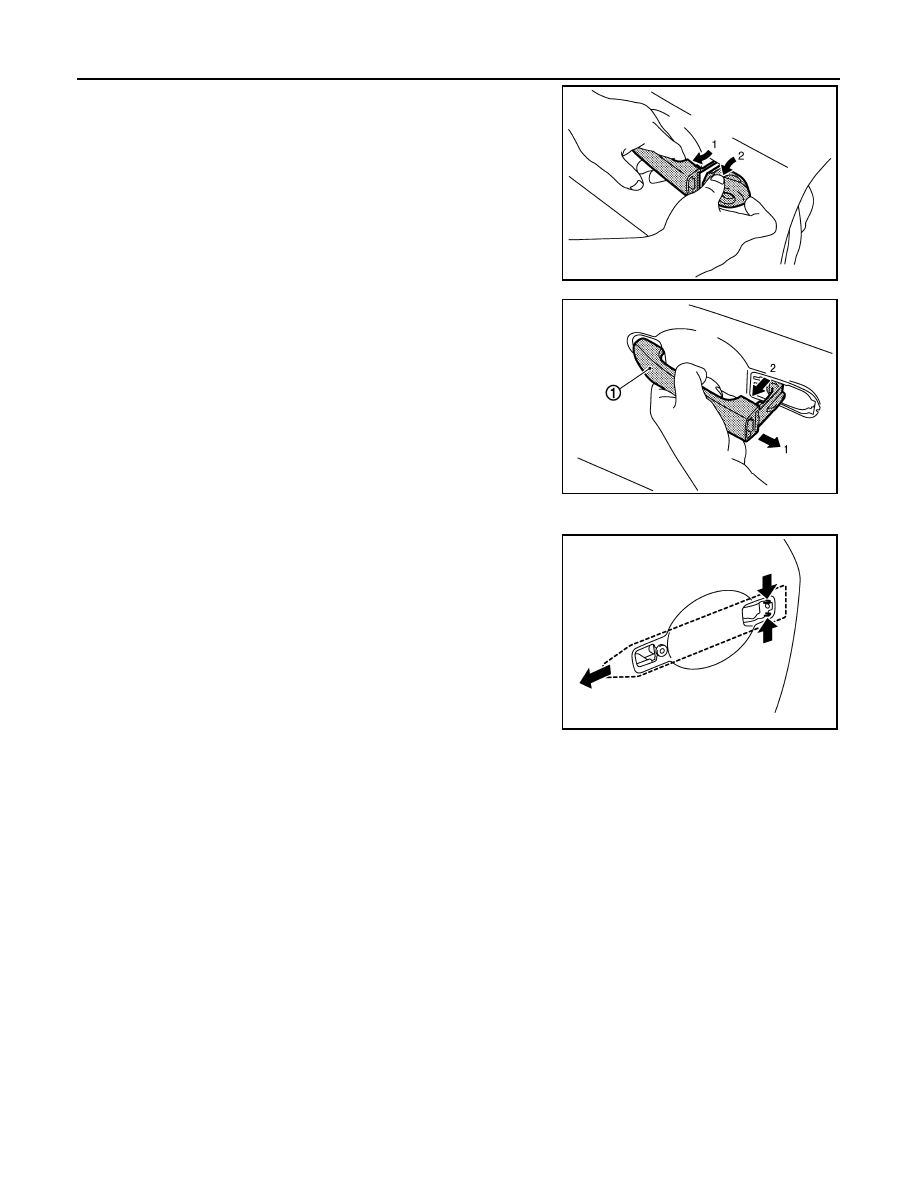

5.

While pulling outside handle, remove outside handle escutch-
eon.

6.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

7.

Remove front gasket and rear gasket.

8.

While pulling outside handle bracket, slide toward rear of vehicle
to remove outside handle bracket.

9.

Reach in to separate outside handle cable connection on outside handle bracket.

10. Disconnect harness connector from door lock actuator.

11. Remove door lock mounting bolts.

12. Remove door lock assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

INSIDE HANDLE

JMKIA0560ZZ

JMKIA0524ZZ

PIIB5814E

DLK-348

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

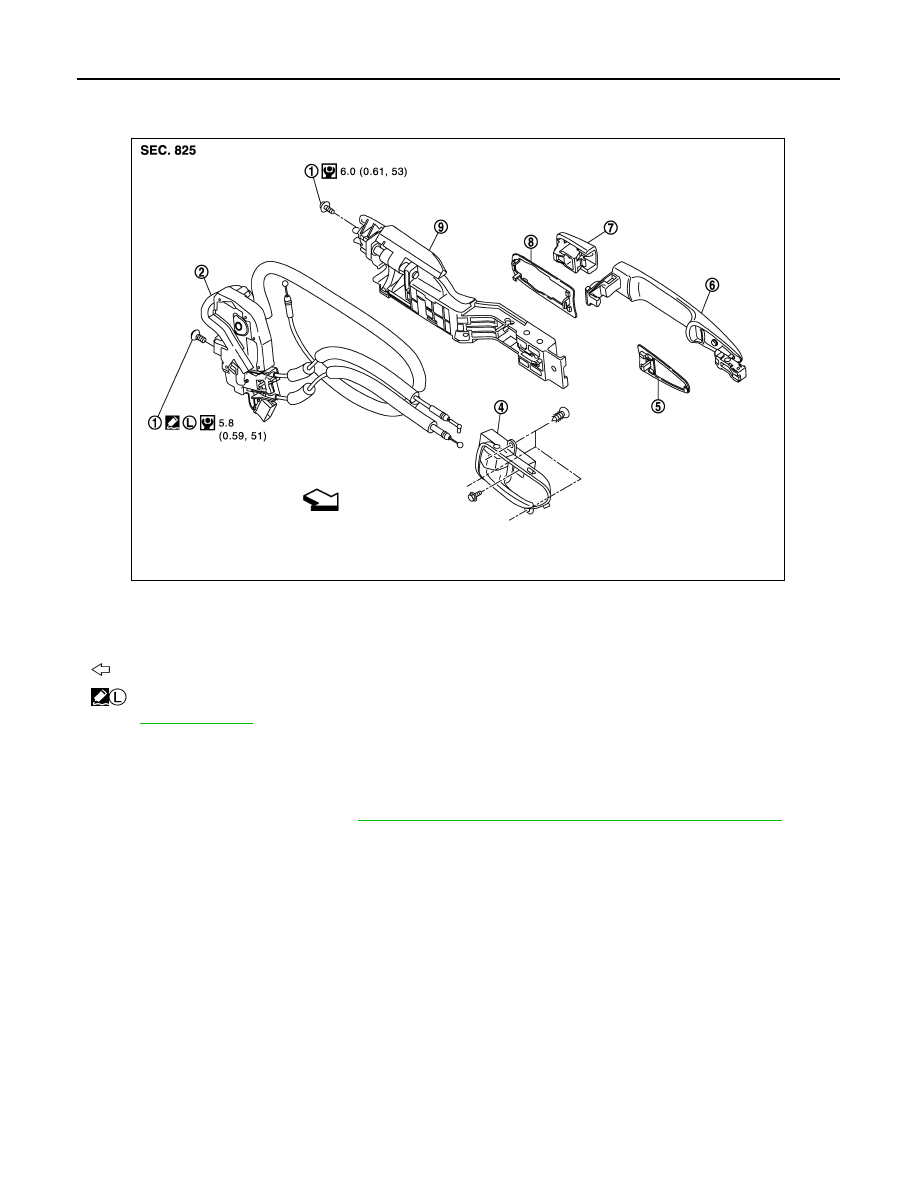

INSIDE HANDLE : Exploded View

INFOID:0000000009719265

INSIDE HANDLE : Removal and Installation

INFOID:0000000009719266

REMOVAL

1.

Remove rear door finisher. Refer to

INT-17, "REAR DOOR FINISHER : Removal and Installation"

.

2.

Remove inside handle mounting screws.

3.

Disconnect inside handle cable, and then remove inside handle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE

1.

TORX bolt

2.

Door lock assembly

3.

Inside handle cap

4.

Inside handle

5.

Front gasket

6.

Outside handle

7.

Outside handle escutcheon

8.

Rear gasket

9.

Outside handle bracket

: Vehicle front

  : Apply genuine high strength thread locking sealant or equivalent.

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1803GB

REAR DOOR LOCK

DLK-349

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

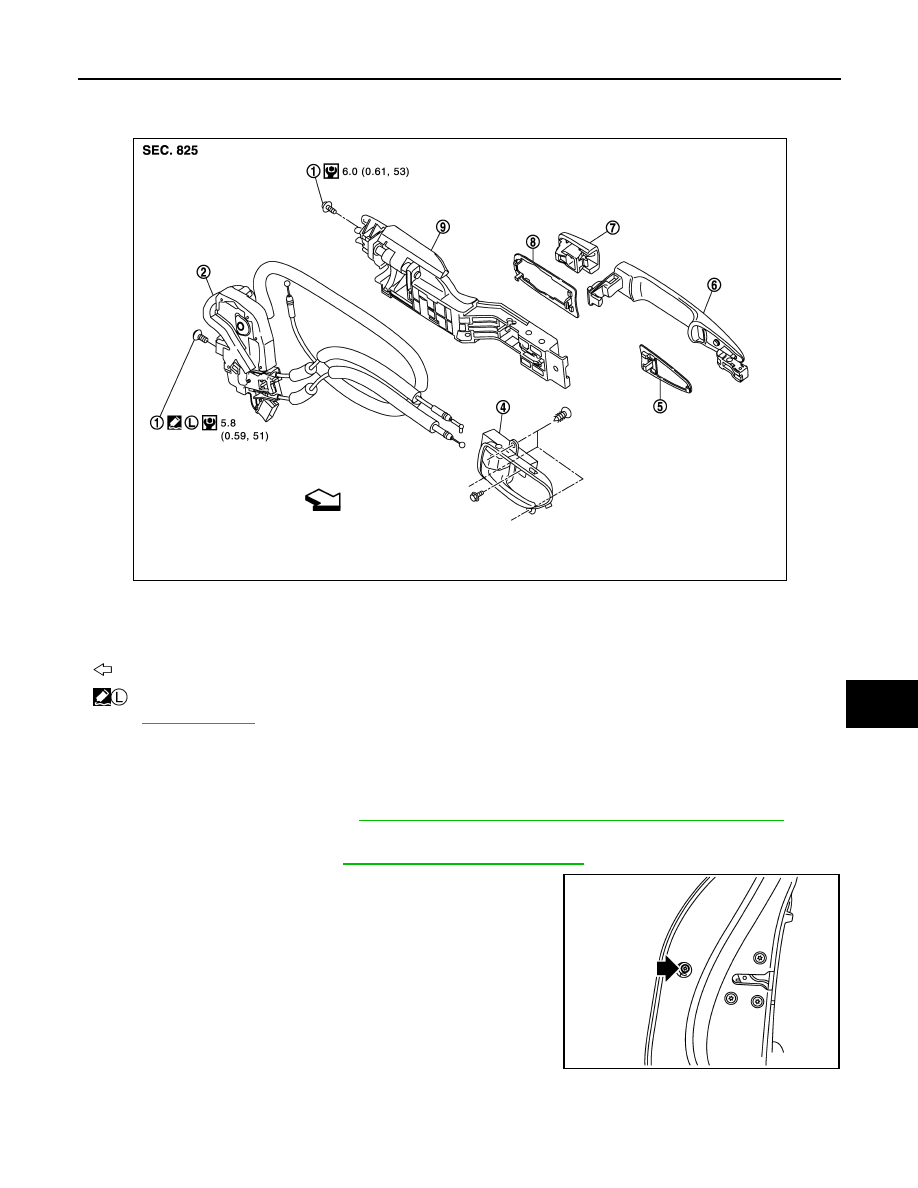

OUTSIDE HANDLE : Exploded View

INFOID:0000000009719267

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009719268

REMOVAL

1.

Remove rear door finisher. Refer to

INT-17, "REAR DOOR FINISHER : Removal and Installation"

.

2.

Fully close rear door glass.

3.

Remove sealing screen. Refer to

GW-25, "Removal and Installation"

.

4.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

1.

TORX bolt

2.

Door lock assembly

3.

Inside handle cap

4.

Inside handle

5.

Front gasket

6.

Outside handle

7.

Outside handle escutcheon

8.

Rear gasket

9.

Outside handle bracket

: Vehicle front

  : Apply genuine high strength thread locking sealant or equivalent.

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1803GB

JMKIA1467ZZ

DLK-350

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

5.

While pulling outside handle, remove outside handle escutch-
eon.

6.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

7.

Remove front gasket and rear gasket.

8.

While pulling outside handle bracket, slide toward rear of vehicle
to remove outside handle bracket.

9.

Reach in to separate outside handle cable connection on outside handle bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

JMKIA0560ZZ

JMKIA0524ZZ

PIIB5814E
