BACK DOOR

DLK-331

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Remove back door hinge cover. Refer to

INT-38, "Removal and Installation"

.

2.

Loosen back door hinge mounting bolts (back door side).

3.

Loosen bumper rubber.

4.

Remove luggage rear plate mask. Refer to

INT-35, "Removal and Installation"

.

5.

Loosen back door striker mounting bolts.

6.

Lift up back door approximately 100 – 150 mm (3.937 – 5.906 in) height then close it lightly and check that
it is engaged firmly with back door closed.

7.

Check the clearance and surface height.

8.

Finally tighten back door hinge, bumper rubber, and back door striker.

9.

Install back door hinge cover and luggage rear plate mask. Refer to

INT-38, "Removal and Installation"

and

INT-35, "Removal and Installation"

.

CAUTION:

Adjust the following parts.
• Rear view camera.
- BASE AUDIO WITH COLOR DISPLAY: Refer to

AV-159, "Adjustment"

.

- BOSE AUDIO WITHOUT NAVIGATION: Refer to

AV-290, "Adjustment"

.

- BOSE AUDIO WITH NAVIGATION: Refer to

AV-466, "Adjustment (Models without BSW and LDW)"

.

BACK DOOR STRIKER ADJUSTMENT

Adjust back door striker so that becomes parallel with back door lock insertion direction.

BACK DOOR STRIKER

Back door – Rear fender

B – B

H

Clearance

4.0 – 8.0 (0.157 – 0.315)

—

I

Surface height

-2.0 – 2.0 (-0.079 – 0.079)

—

Back door – Rear combination
lamp

C – C

J

Clearance

4.0 – 8.0 (0.157 – 0.315)

< 2.0 (0.079)

Back door – Rear bumper fascia

D – D

K

Clearance

4.0 – 8.0 (0.157 – 0.315)

< 2.0 (0.079)

E – E

L

Clearance

5.0 – 9.0 (0.197 – 0.354)

—

Portion

Standard

Difference

(RH/LH)

DLK-332

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

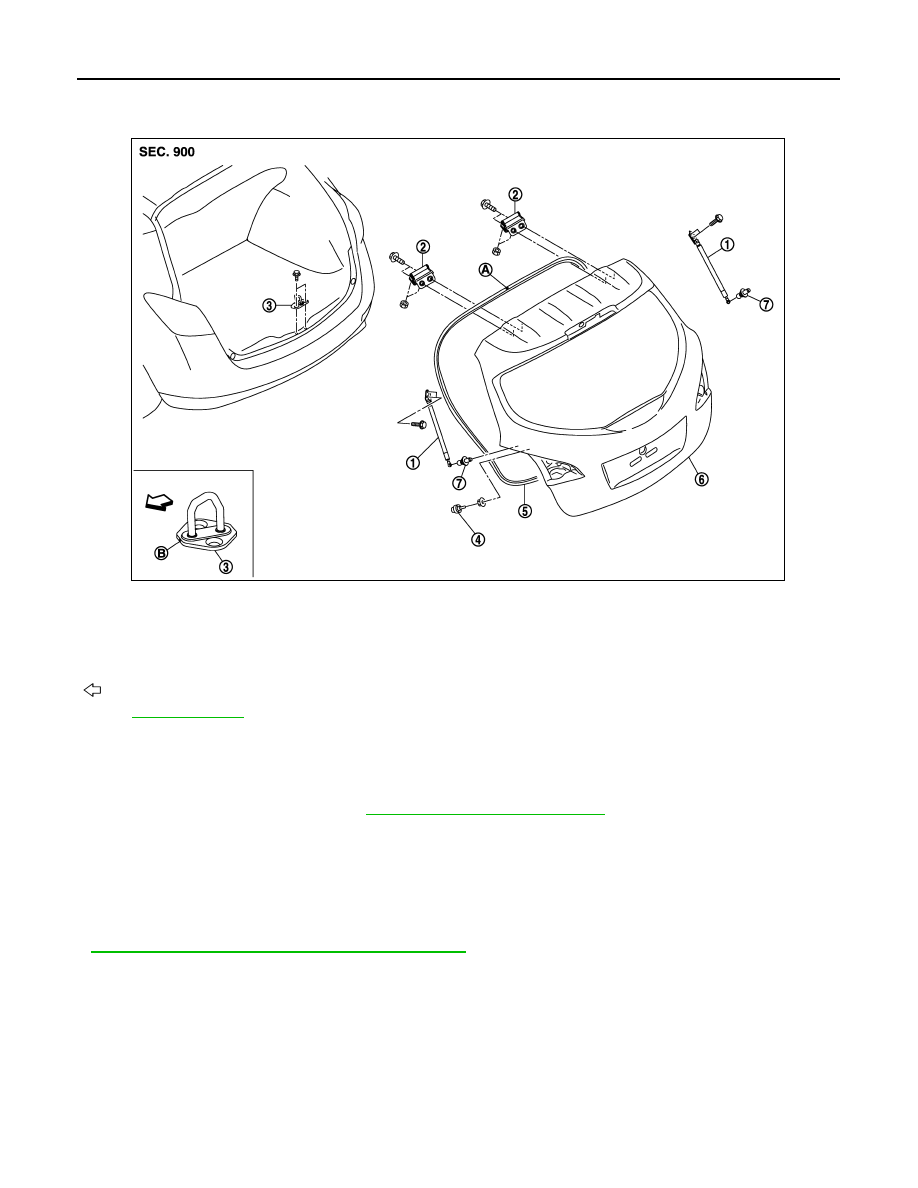

BACK DOOR STRIKER : Exploded View

INFOID:0000000009719245

BACK DOOR STRIKER : Removal and Installation

INFOID:0000000009719246

REMOVAL

1.

Remove luggage rear plate. Refer to

INT-35, "Removal and Installation"

.

2.

Remove mounting bolts, and then remove back door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check back door open/close operation after installation.
• When removing and installing back door striker, be sure to perform the fitting adjustment. Refer to

DLK-330, "BACK DOOR ASSEMBLY : Adjustment"

.

BACK DOOR HINGE

1.

Back door stay

2.

Back door hinge

3.

Back door striker

4.

Bumper rubber

5.

Back door weather-strip

6.

Back door assembly

7.

Stud ball

A

: Center mark

B

: Front mark

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3496ZZ

BACK DOOR

DLK-333

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

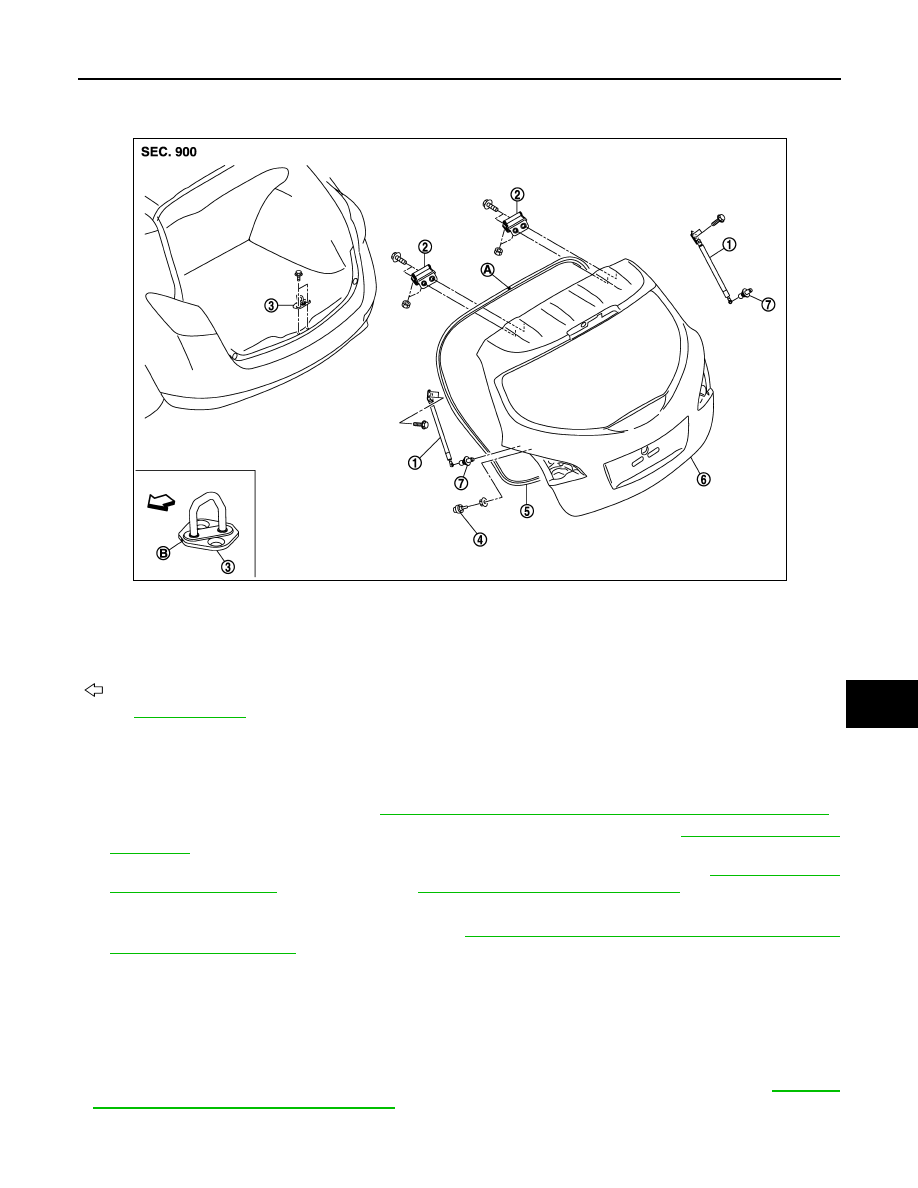

BACK DOOR HINGE : Exploded View

INFOID:0000000009719247

BACK DOOR HINGE : Removal and Installation

INFOID:0000000009719248

REMOVAL

1.

Remove back door assembly. Refer to

DLK-328, "BACK DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove luggage side finisher lower and luggage side finisher upper. Refer to

INT-38, "Removal and

Installation"

.

3.

Using a remover tool, remove headlining clip at the rear side of headlining. Refer to

INT-26, "NORMAL

ROOF : Exploded View"

 (NORMAL ROOF),

INT-30, "SUNROOF : Exploded View"

 (SUNROOF).

4.

Remove rear side of headlining.

5.

Remove power back door drive assembly. Refer to

DLK-352, "POWER BACK DOOR DRIVE ASSEMBLY

: Removal and Installation"

.

6.

Remove back door hinge mounting nuts (body side), and then remove back door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check back door open/close operation after installation.
• Check back door hinge rotating part for poor lubrication. If necessary, apply body grease.
• When removing and installing back door assembly, perform the fitting adjustment. Refer to

DLK-330,

"BACK DOOR ASSEMBLY : Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of back door hinge mounting

nuts.

1.

Back door stay

2.

Back door hinge

3.

Back door striker

4.

Bumper rubber

5.

Back door weather-strip

6.

Back door assembly

7.

Stud ball

A

: Center mark

B

: Front mark

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3496ZZ

DLK-334

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

BACK DOOR STAY

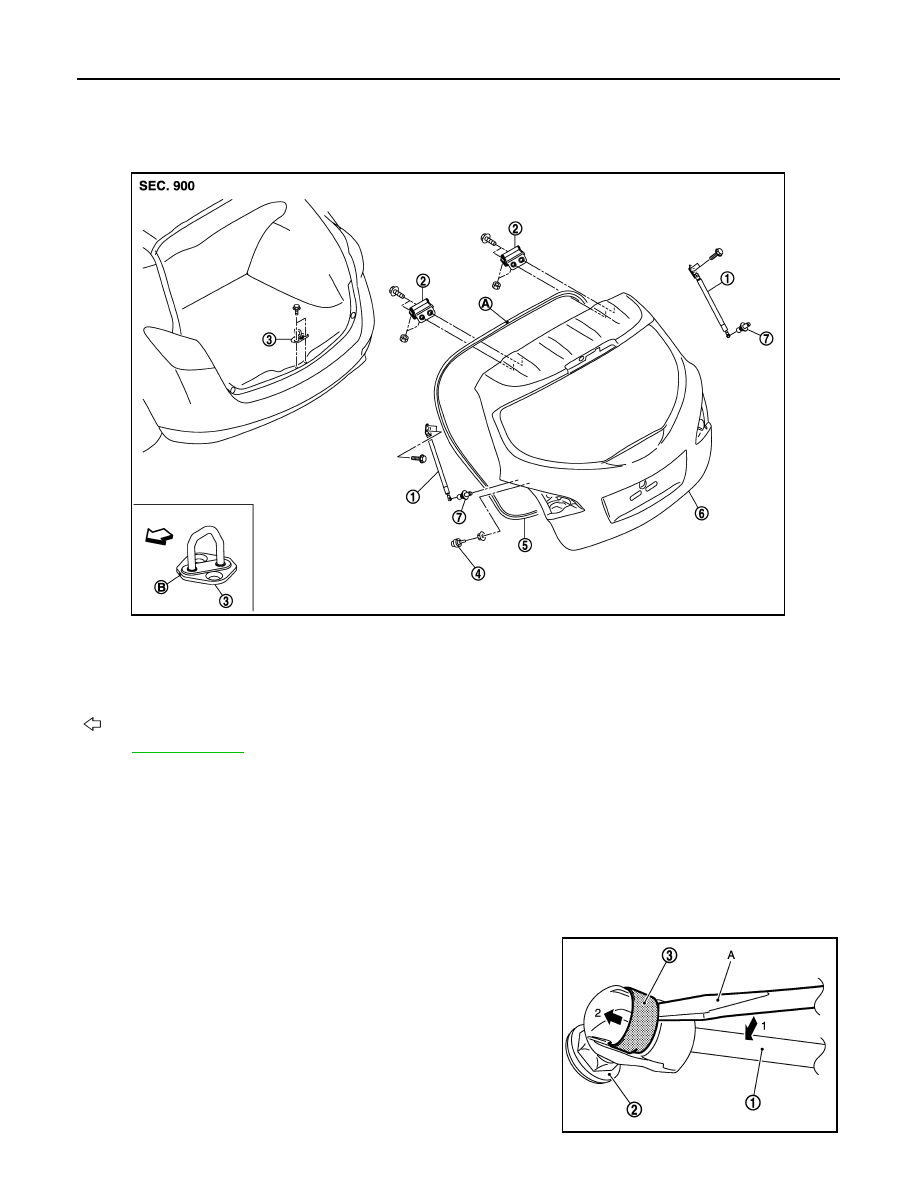

BACK DOOR STAY : Exploded View

INFOID:0000000009719249

BACK DOOR STAY : Removal and Installation

INFOID:0000000009719250

REMOVAL

1.

Support back door assembly with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding back door open when removing back door
stay.

2.

Remove mounting bolts of back door stay (body side).

3.

Remove metal clip (3) located on the connection between the
back door stay (1) and the stud ball (2) (back door side), by
using a flat-bladed screwdriver (A).

4.

Disengage and remove back door stay from stud ball (back door
side).

1.

Back door stay

2.

Back door hinge

3.

Back door striker

4.

Bumper rubber

5.

Back door weather-strip

6.

Back door assembly

7.

Stud ball

A

: Center mark

B

: Front mark

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3496ZZ

JMKIA2255ZZ
