Nissan Murano. Manual - part 429





REAR DOOR

DLK-327

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR CHECK LINK

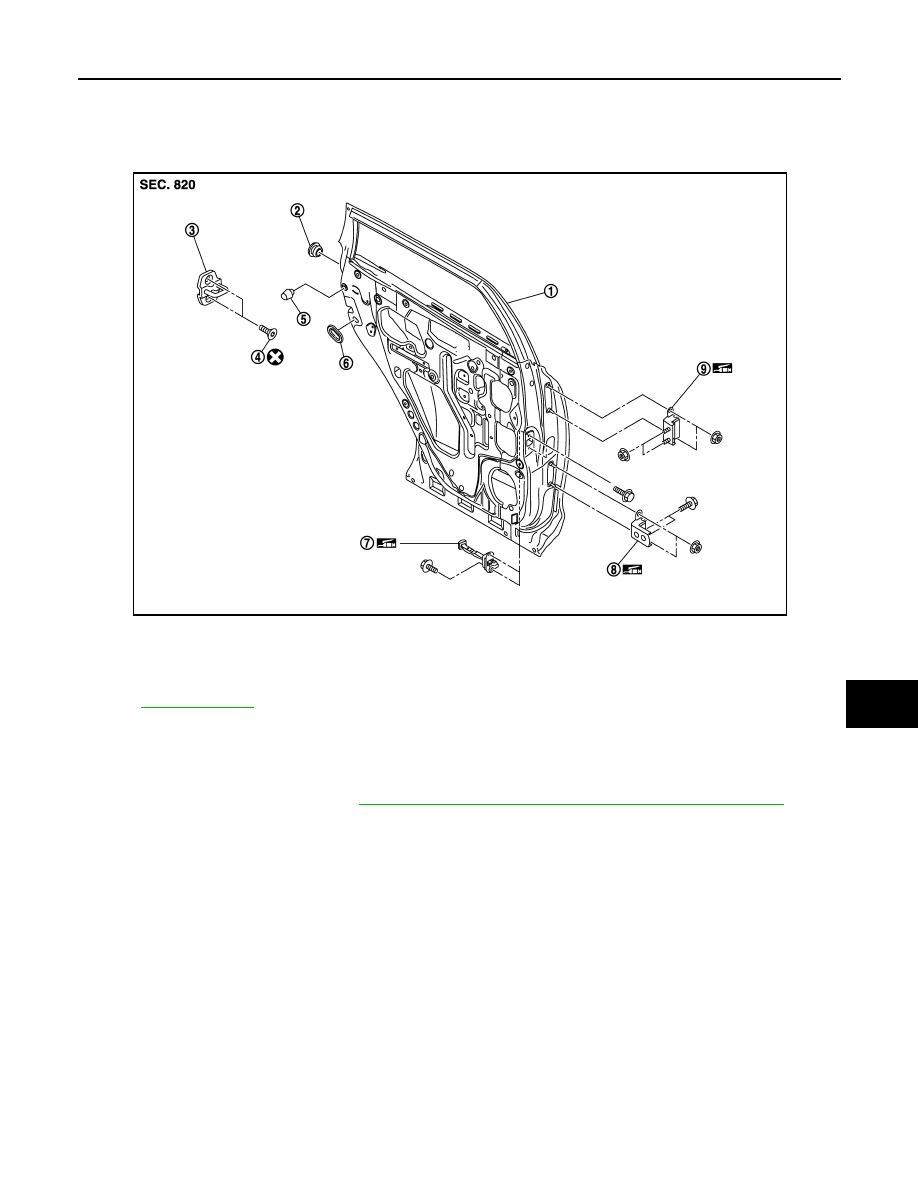

DOOR CHECK LINK : Exploded View

INFOID:0000000009719240

DOOR CHECK LINK : Removal and Installation

INFOID:0000000009719241

REMOVAL

1.

Remove rear door finisher. Refer to

INT-17, "REAR DOOR FINISHER : Removal and Installation"

.

2.

Fully close the rear door window.

3.

Remove rear door speaker.

4.

Remove mounting bolts of the check link on the vehicle.

5.

Remove mounting bolts of the check link on door panel.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check rear door open/close operation after installation.

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Seal rubber

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3686ZZ

DLK-328

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

BACK DOOR

BACK DOOR ASSEMBLY

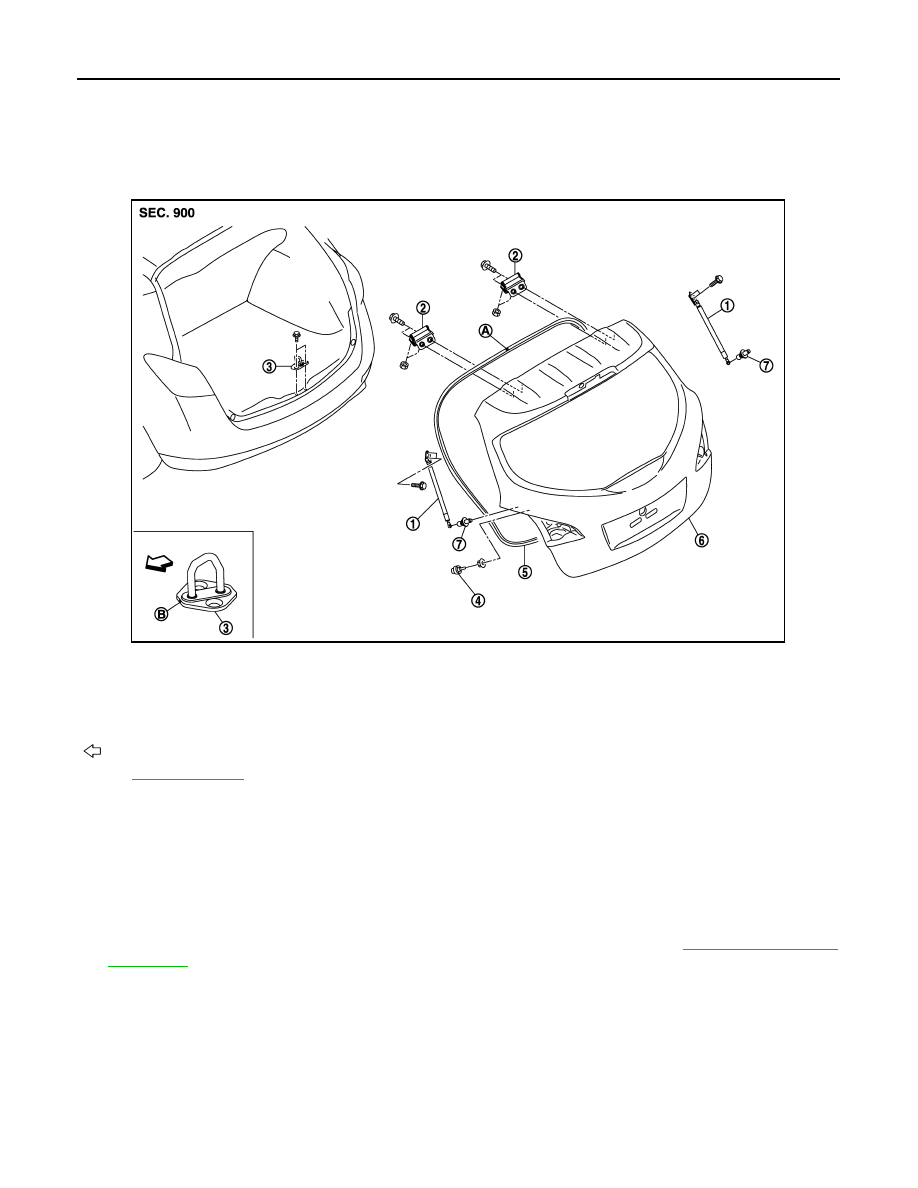

BACK DOOR ASSEMBLY : Exploded View

INFOID:0000000009719242

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009719243

CAUTION:

Perform work with 2 workers, because of its heavy weight.
NOTE:
The back door harness constitute the back door assembly.

REMOVAL

1.

Remove back door finisher inner, back door hinge cover, back door plate. Refer to

INT-38, "Removal and

Installation"

1.

Back door stay

2.

Back door hinge

3.

Back door striker

4.

Bumper rubber

5.

Back door weather-strip

6.

Back door assembly

7.

Stud ball

A

: Center mark

B

: Front mark

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3496ZZ

BACK DOOR

DLK-329

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

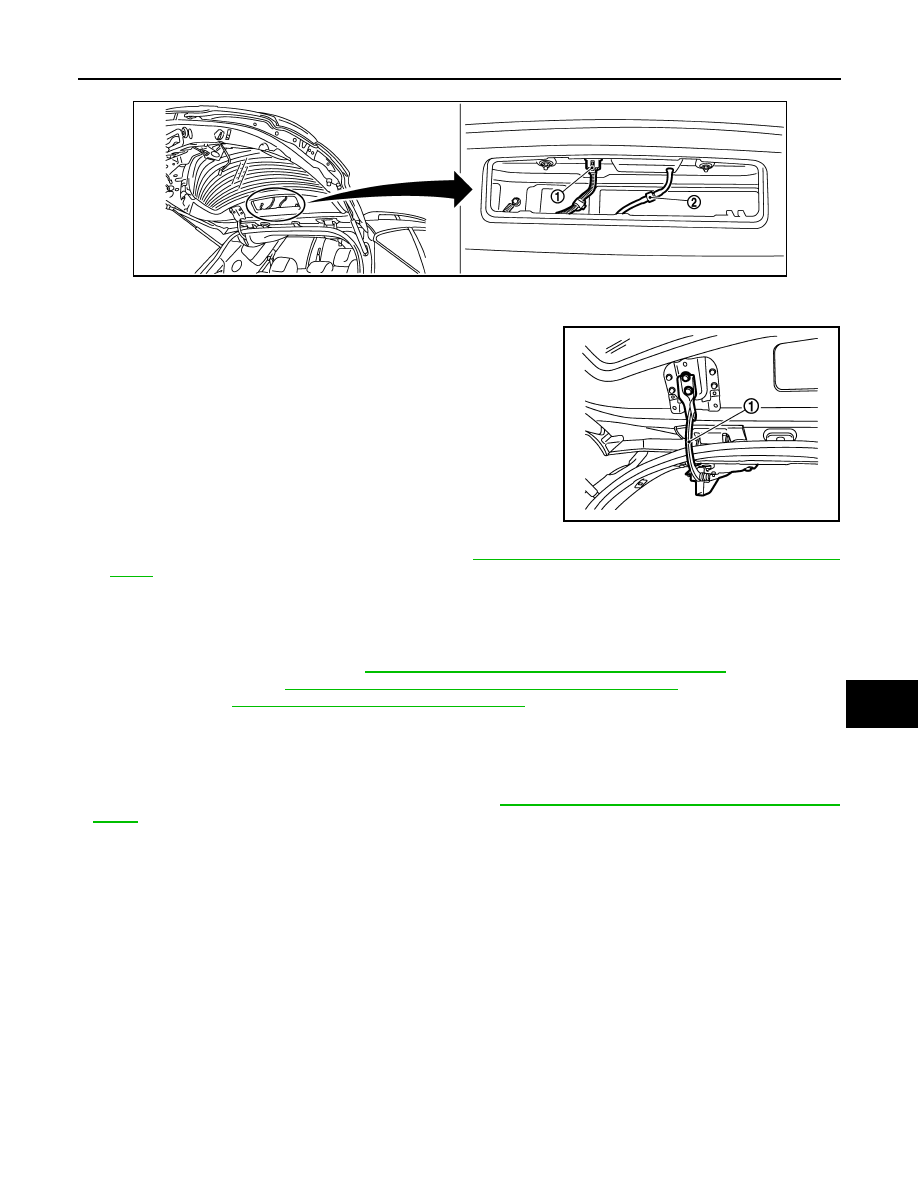

Remove grommet, and then disconnect connector (1), and washer tube (2).

3.

Pull harness and washer tube out of back door.

4.

Support back door lock with the proper material to prevent it from falling.

5.

Remove mounting bolts of power back door drive assembly (1).
(back door side)

6.

Remove back door stay on back door side. Refer to

DLK-334, "BACK DOOR STAY : Removal and Instal-

lation"

.

7.

Remove back door hinge mounting bolts on back door and remove back door assembly.

8.

Remove the following parts after removing back door assembly.
• Bumper rubber
• Stud ball
• Back door lock assembly: Refer to

DLK-351, "DOOR LOCK : Removal and Installation"

.

• Touch sensor: Refer to

DLK-354, "TOUCH SENSOR : Removal and Installation"

.

• Patch: Refer to

DLK-351, "DOOR LOCK : Exploded View"

.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check back door open/close, lock/unlock operation after installation.
• After installation, perform fitting adjustment. Refer to

DLK-330, "BACK DOOR ASSEMBLY : Adjust-

ment"

.

JMKIA1917ZZ

JMKIA1918ZZ

DLK-330

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

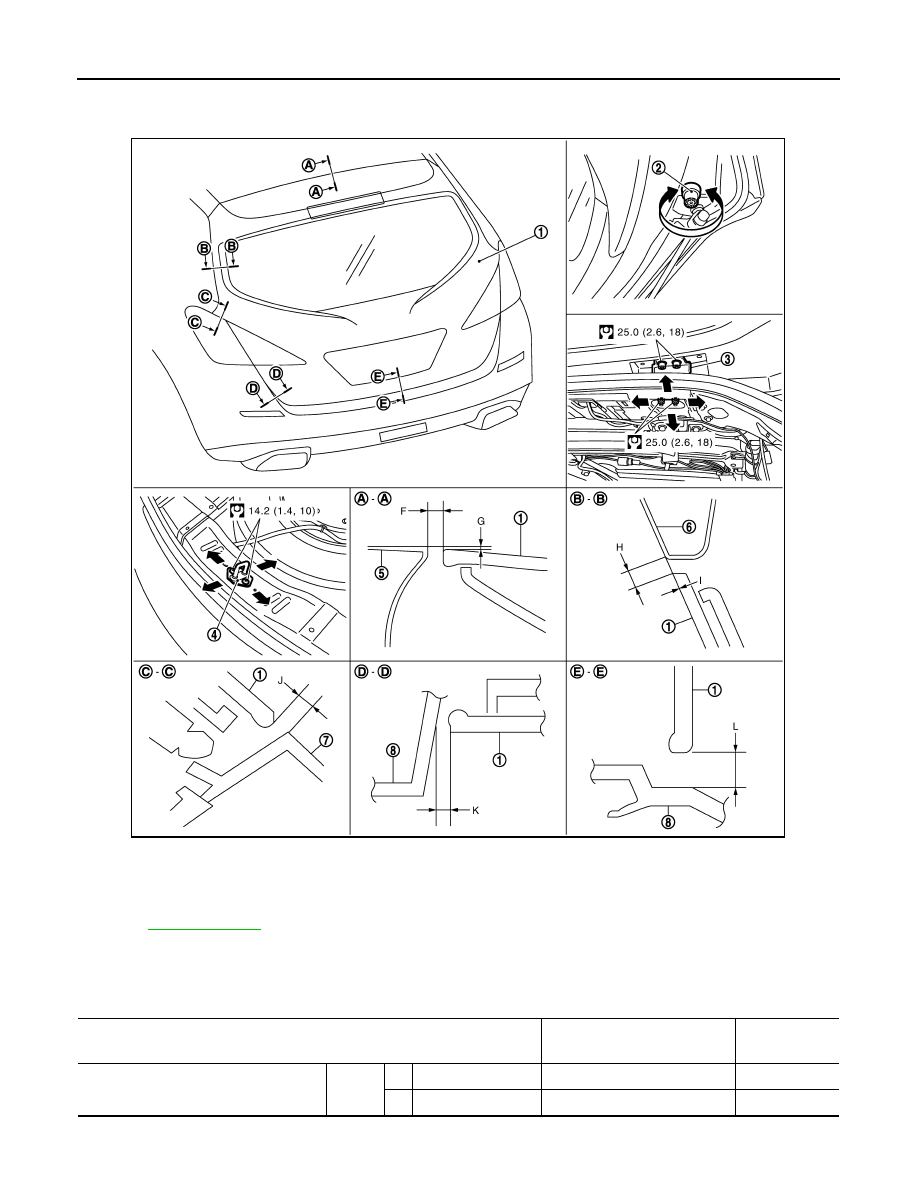

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000009719244

Check the clearance and the surface height between back door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Unit: mm (in)

1.

Back door assembly

2.

Bumper rubber

3.

Back door hinge

4.

Back door striker

5.

Roof panel

6.

Body side outer

7.

Rear combination lamp

8.

Rear bumper fascia

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1835GB

Portion

Standard

Difference

(RH/LH)

Back door – Roof

A – A

F

Clearance

5.0 – 9.0 (0.197 – 0.354)

G

Surface height

-1.0 – 3.0 (-0.039 – 0.118)
