REAR DOOR

DOOR ASSEMBLY

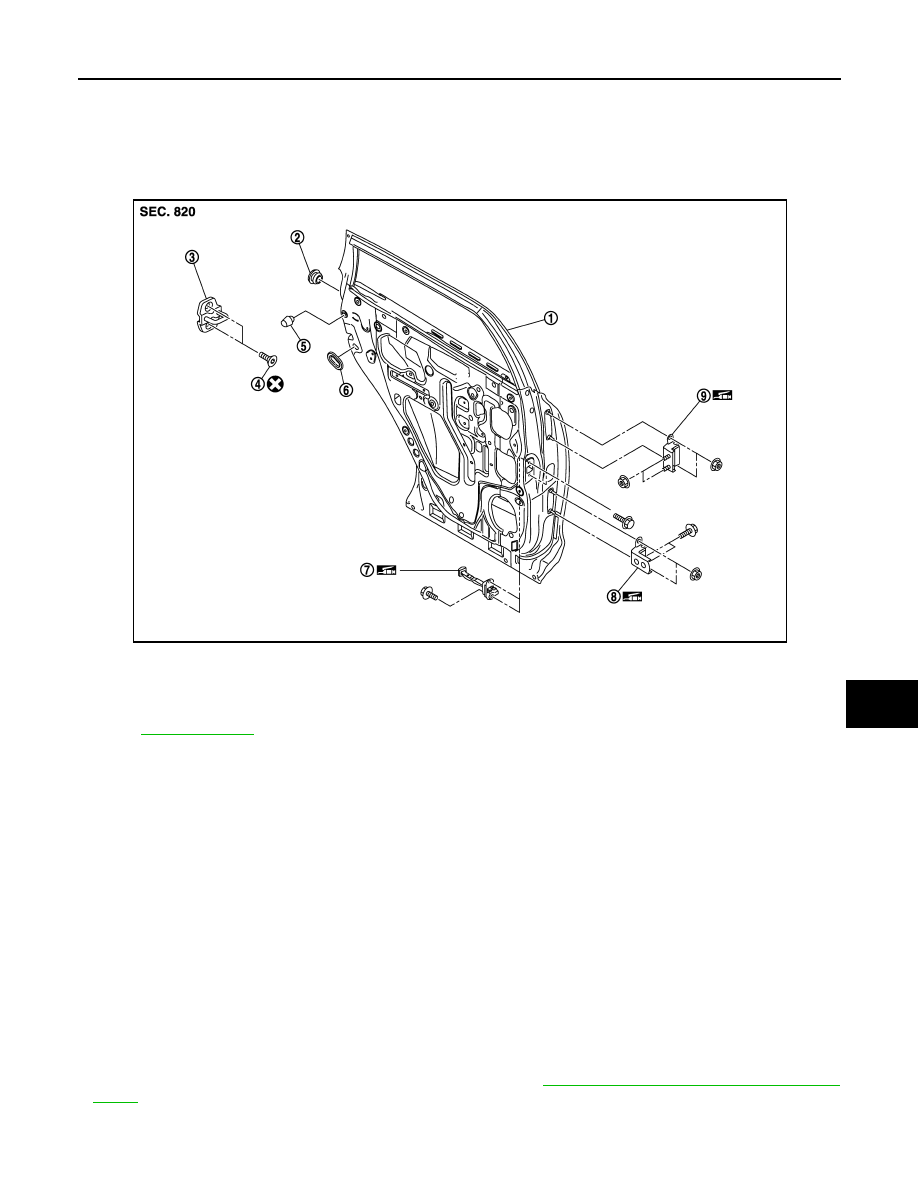

DOOR ASSEMBLY : Exploded View

INFOID:0000000009719233

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009719234

CAUTION:

• Perform work with 2 workers, because of it’s heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove mounting bolts of door check link on the vehicle.

2.

Remove rear door harness grommet, and then pull out door harness from the vehicle.

3.

Disconnect rear door harness connector.

4.

Remove door hinge mounting nuts (door side), and then remove rear door assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close, lock/unlock operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installation, perform the fitting adjustment. Refer to

DLK-324, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Seal rubber

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3686ZZ

DLK-324

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

DOOR ASSEMBLY : Adjustment

INFOID:0000000009719235

Check the clearance and surface height between rear door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

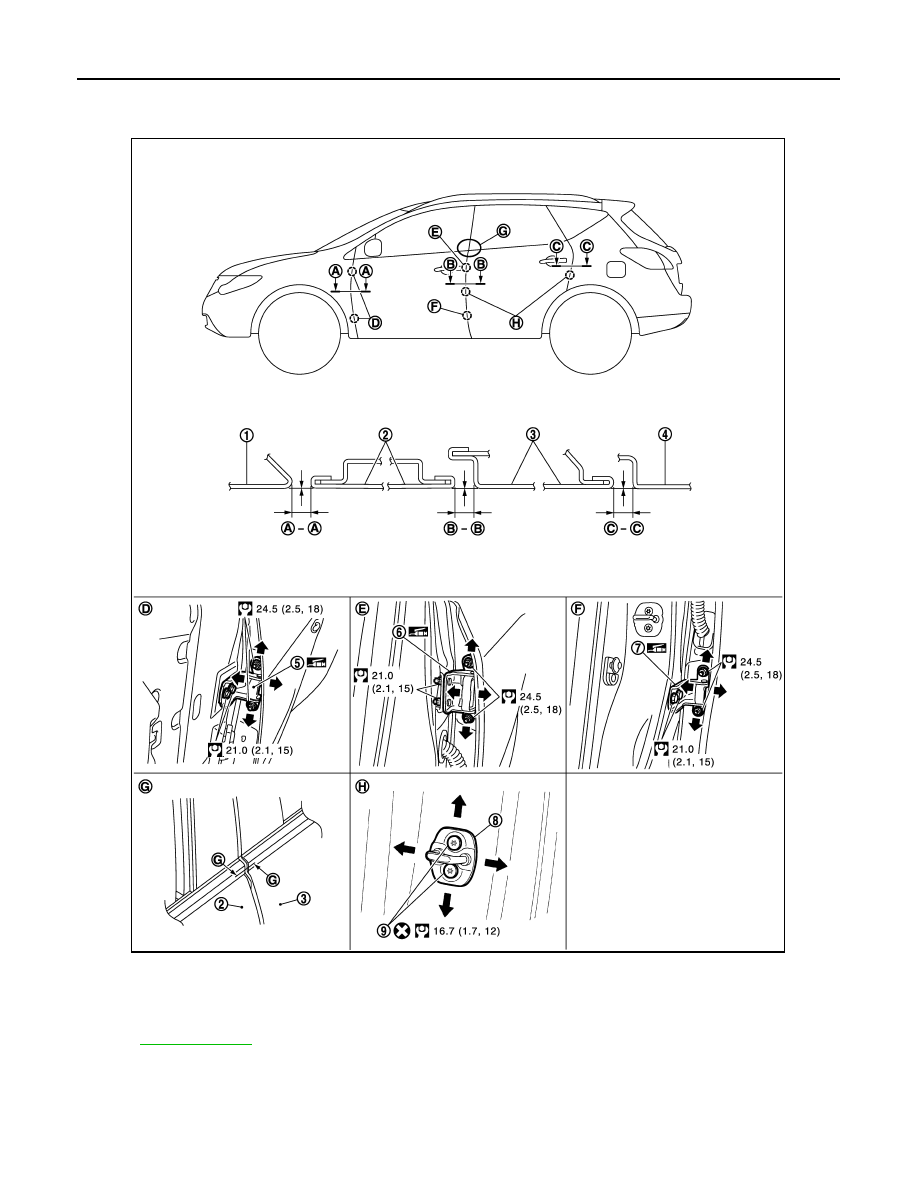

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Front door hinge

6.

Rear door hinge (upper)

7.

Rear door hinge (lower)

8.

Door striker

9.

TORX bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3687GB

REAR DOOR

DLK-325

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Unit: mm (in)

1.

Remove center pillar lower garnish. Refer to

INT-20, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of rear door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting nuts and bolts on body side.

6.

Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension.

7.

After adjustment tighten bolts and nuts to the specified torque.

8.

Install center pillar lower garnish. Refer to

INT-20, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Exploded View

INFOID:0000000009719236

DOOR STRIKER : Removal and Installation

INFOID:0000000009719237

REMOVAL

Portion

Clearance

Surface height

Front door – Rear door

B – B

3.4 – 5.4 (0.134 – 0.213)

-1.0 – 1.0 (-0.039 – 0.039)

Rear door – Body side outer

C – C

3.4 – 5.4 (0.134 – 0.213)

-1.0 – 1.0 (-0.039 – 0.039)

Front door – Rear door

G – G

2.9 – 5.9 (0.114 – 0.237)

-1.5 – 1.5 (-0.059 – 0.059)

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Seal rubber

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3686ZZ

DLK-326

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

Remove TORX bolts, and then remove door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close, lock/unlock operation after installation.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-324, "DOOR ASSEMBLY :

Adjustment"

.

DOOR HINGE

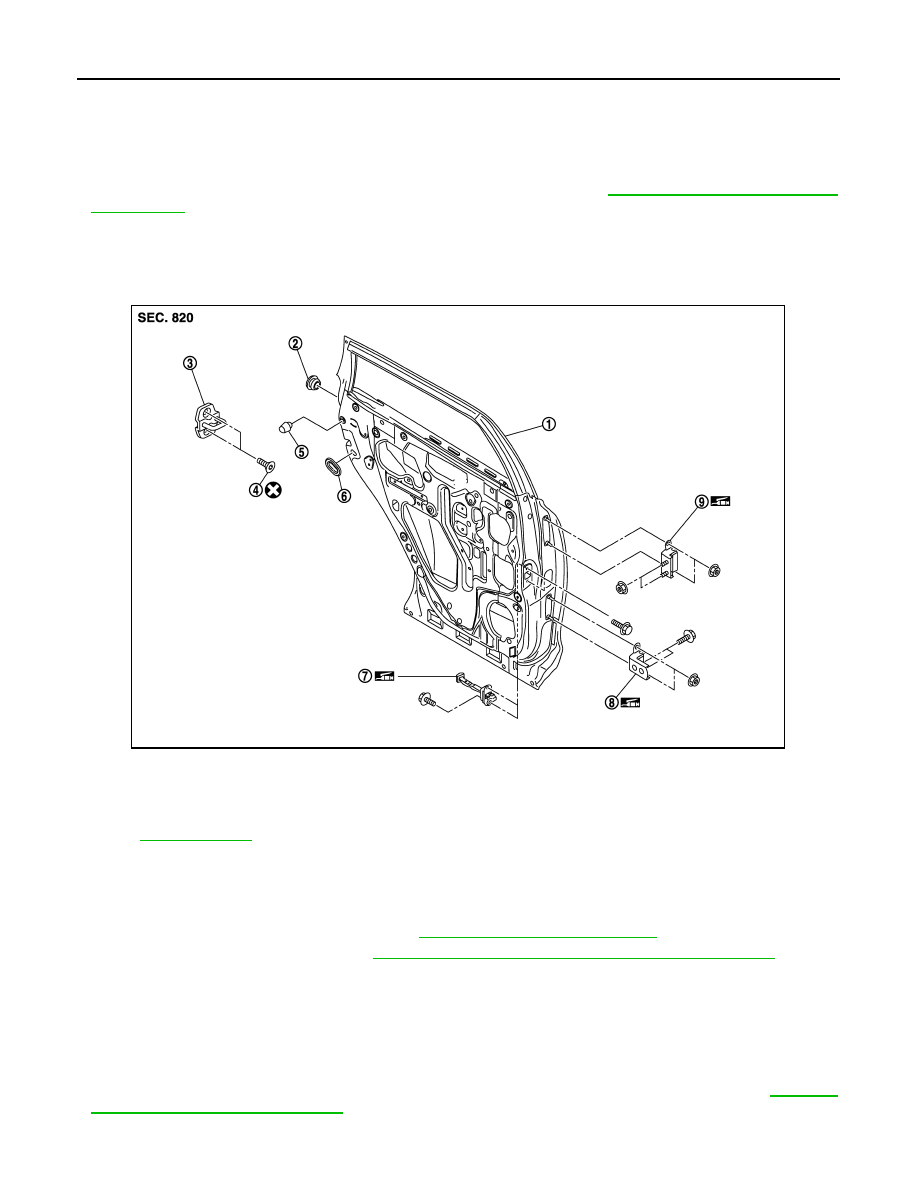

DOOR HINGE : Exploded View

INFOID:0000000009719238

DOOR HINGE : Removal and Installation

INFOID:0000000009719239

REMOVAL

1.

Remove center pillar lower garnish. Refer to

INT-20, "Removal and Installation"

.

2.

Remove rear door assembly. Refer to

DLK-323, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove rear door hinge mounting bolts and nuts (body side), and then remove door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• When removing and installing rear door assembly, perform the fitting adjustment. Refer to

DLK-324,

"DOOR ASSEMBLY : Adjustment"

.

• After installing, apply the touch-up paint (the body color) onto the head of door hinge mounting nuts.

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Seal rubber

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3686ZZ
