DAS-94

< REMOVAL AND INSTALLATION >

[LDW]

CAMERA CONTROL UNIT

REMOVAL AND INSTALLATION

CAMERA CONTROL UNIT

Exploded View

INFOID:0000000009723294

Removal and Installation

INFOID:0000000009723295

REMOVAL

CAUTION:

Before replacing camera control unit, perform “Read/Write Configuration” to save or print current
vehicle specification. For details, refer to

DAS-52, "Description"

.

1.

Remove luggage side finisher lower (RH). Refer to

INT-35, "Removal and Installation"

.

2.

Disengage air tube clip from camera control unit bracket.

3.

Remove camera control unit screws, disconnect camera control unit connector and remove the camera
control unit.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Must be perform additional service when replacing camera control unit. Refer to

DAS-51, "Work Proce-

dure"

.

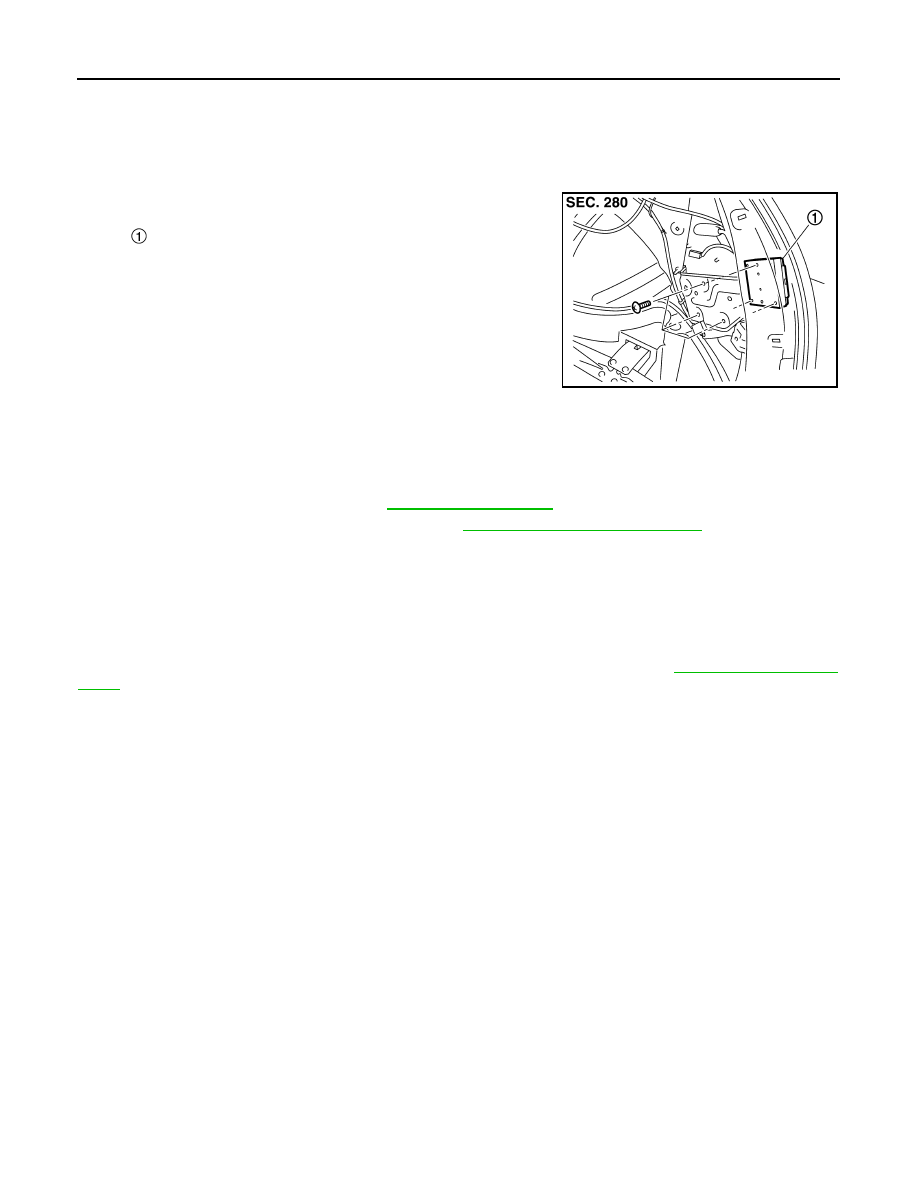

Camera control unit

JPNIA0796ZZ

DAS

REAR VIEW CAMERA

DAS-95

< REMOVAL AND INSTALLATION >

[LDW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

REAR VIEW CAMERA

Exploded View

INFOID:0000000009723296

Removal and Installation

INFOID:0000000009723297

REMOVAL

1.

Remove back door finisher inner. Refer to

INT-38, "Removal and Installation"

.

2.

Remove finisher.

3.

Disconnect air tube and washer tube from rear view camera.

4.

Remove rear view camera mounting screws, disconnect rear view camera connector and remove rear
view camera from back door assembly.

CAUTION:

To prevent a malfunction resulting from a short circuit, never allow washer fluid to drip from tube
to rear view camera and connector.

INSTALLATION

Install in the reverse order of removal.

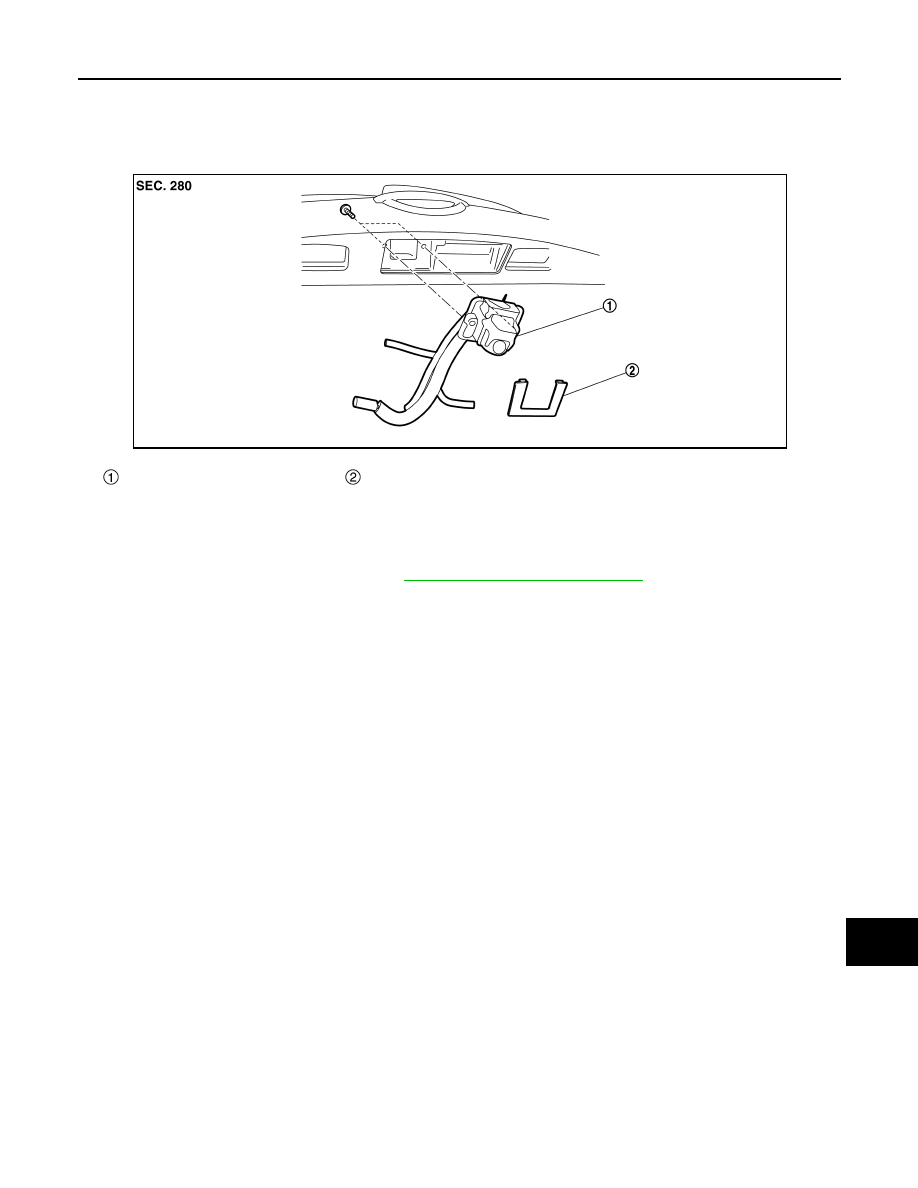

Rear view camera

Finisher

JSOIA0656ZZ

DAS-96

< REMOVAL AND INSTALLATION >

[LDW]

PUMP CONTROL UNIT

PUMP CONTROL UNIT

Exploded View

INFOID:0000000009723298

Removal and Installation

INFOID:0000000009723299

REMOVAL

1.

Remove luggage floor front finisher. Refer to

INT-35, "Removal and Installation"

.

2.

Remove luggage mask. Refer to

INT-34, "Exploded View"

.

3.

Remove pump control unit mounting screws, disconnect pump control unit harness connector and remove
pump control unit.

INSTALLATION

Install in the reverse order of removal.

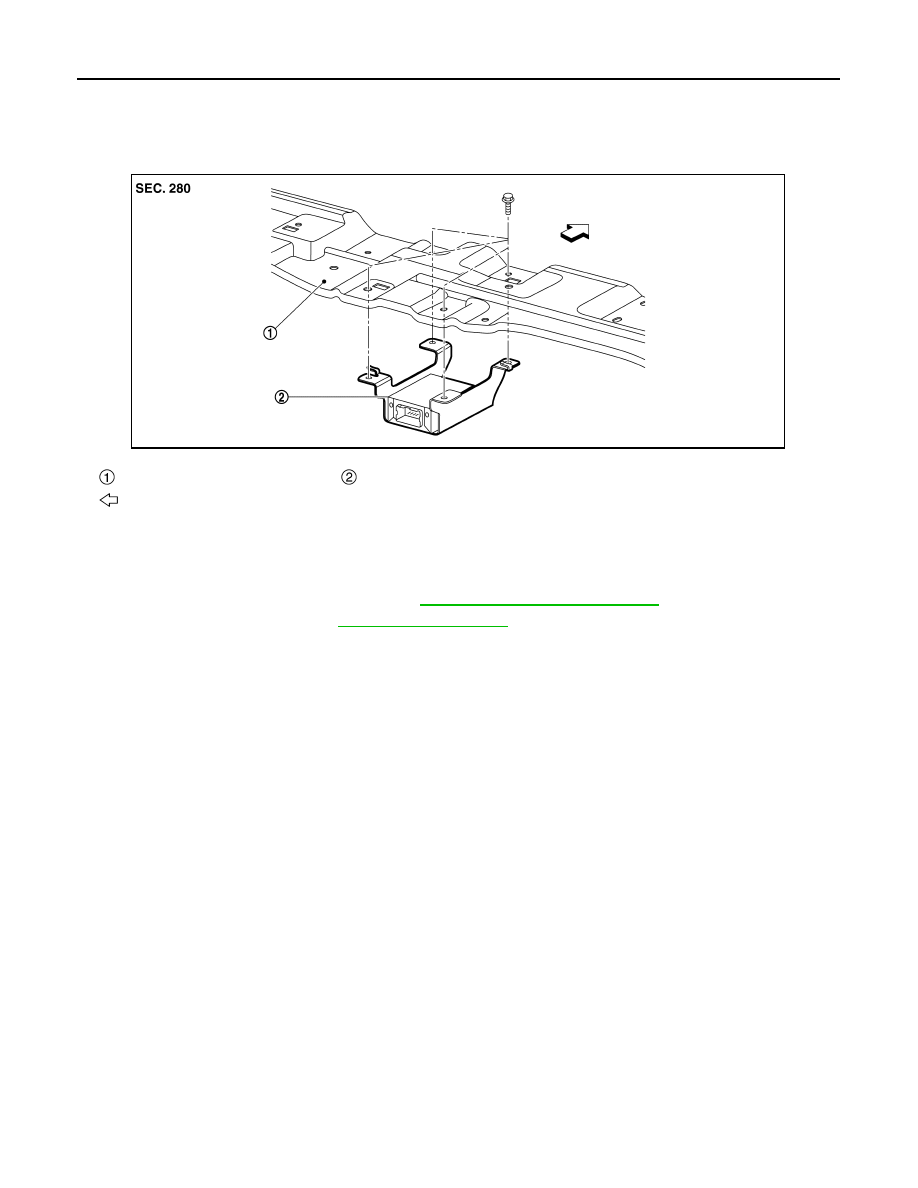

Luggage trim bracket

Pomp control unit

: Vehicle front

JSOIA0661ZZ

DAS

AIR PUMP

DAS-97

< REMOVAL AND INSTALLATION >

[LDW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

AIR PUMP

Exploded View

INFOID:0000000009723300

Removal and Installation

INFOID:0000000009723301

REMOVAL

1.

Remove luggage floor spacer LH. Refer to

INT-35, "Removal and Installation"

.

2.

Disconnect air tube and air pump harness connector.

3.

Remove air pump cover bolts and nut and remove air pump cover.

4.

Remove air pump from luggage floor spacer LH.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Remove double-sided tape remaining on luggage floor spacer LH with a double-sided tape remover,
after removing air pump.

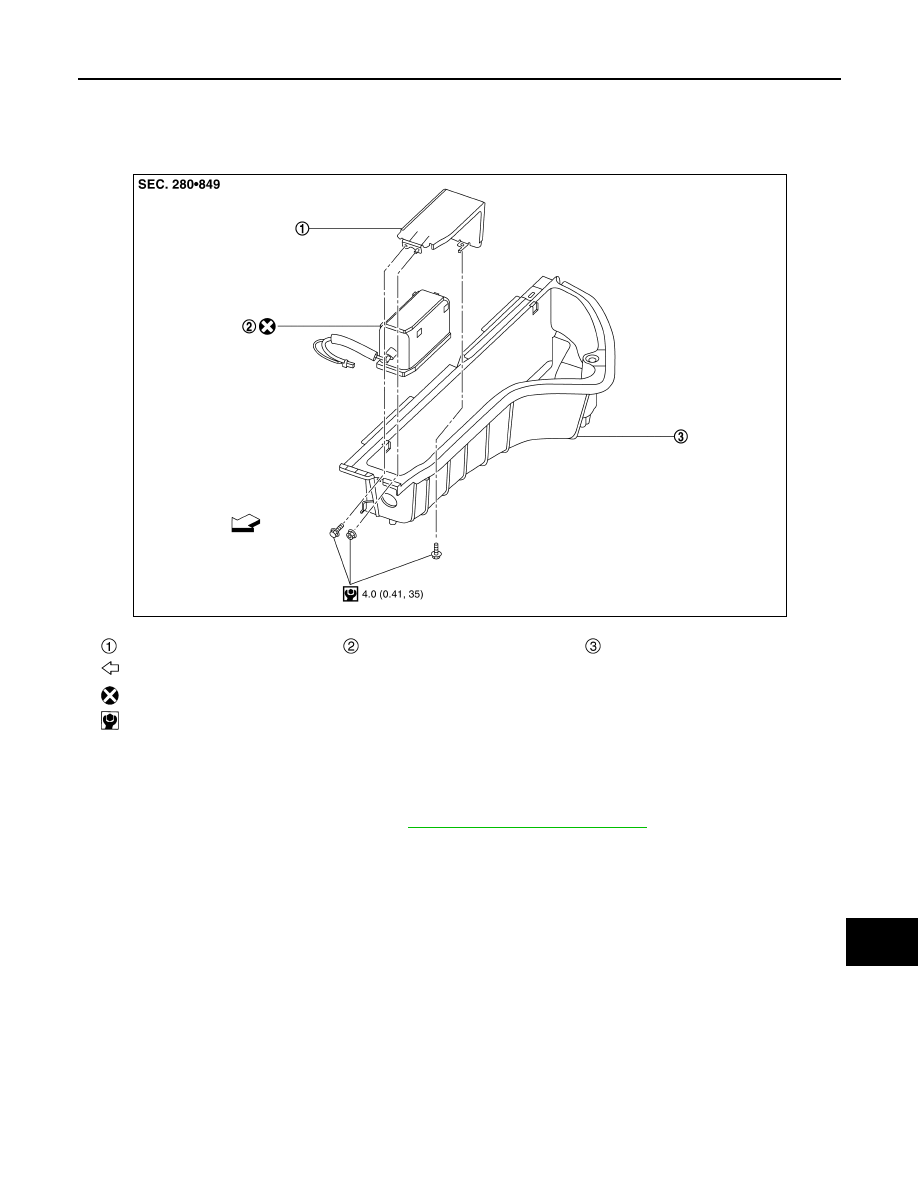

Air pump cover

Air pump

Luggage floor spacer LH

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JSOIA0662ZZ
