WASHER SWITCHING SOLENOID VALVE

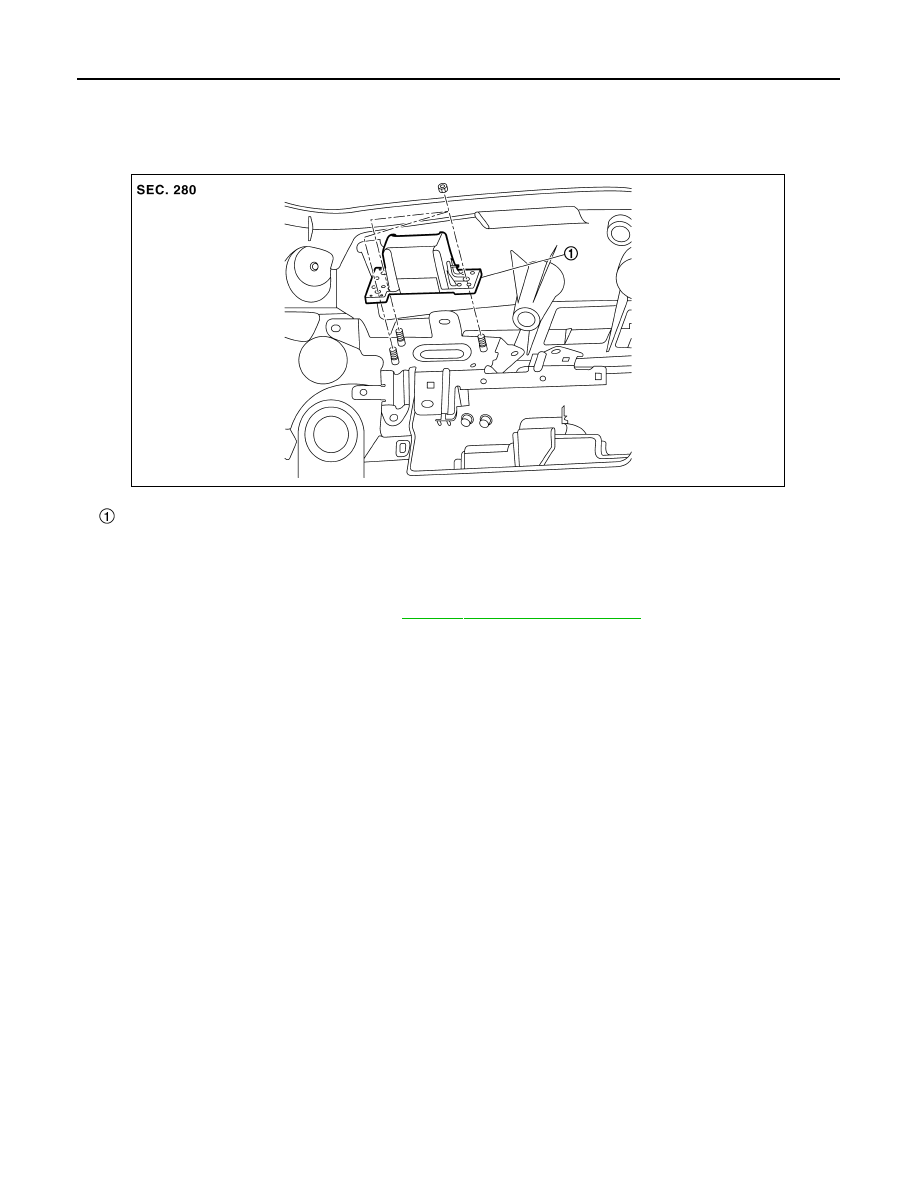

WASHER SWITCHING SOLENOID VALVE

Exploded View

INFOID:0000000009723302

Removal and Installation

INFOID:0000000009723303

REMOVAL

1.

Remove back door finisher inner. Refer to

INT-38, "Removal and Installation"

.

2.

Remove the nuts.

3.

Remove washer switching solenoid valve.

INSTALLATION

Install in the reverse order of removal.

Washer switching solenoid valve

JSOIA0663ZZ

DAS

REAR VIEW CAMERA WASHER/AIR NOZZLE & TUBE

DAS-99

< REMOVAL AND INSTALLATION >

[LDW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

REAR VIEW CAMERA WASHER/AIR NOZZLE & TUBE

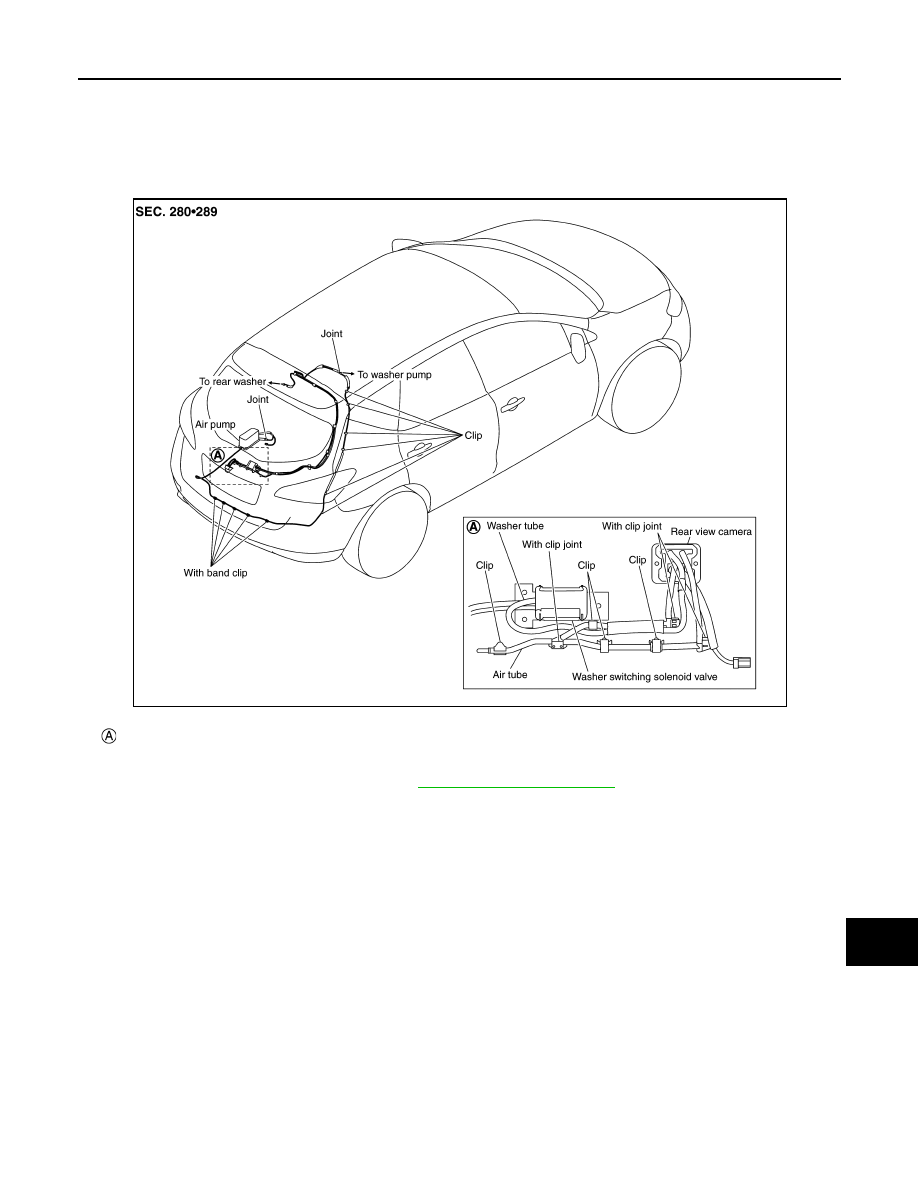

Exploded View

INFOID:0000000009723304

REAR VIEW CAMERA WASHER / AIR NOZZLE & TUBE

NOTE:
For washer pump and rear washer path, refer to

WW-145, "Hydraulic Layout"

.

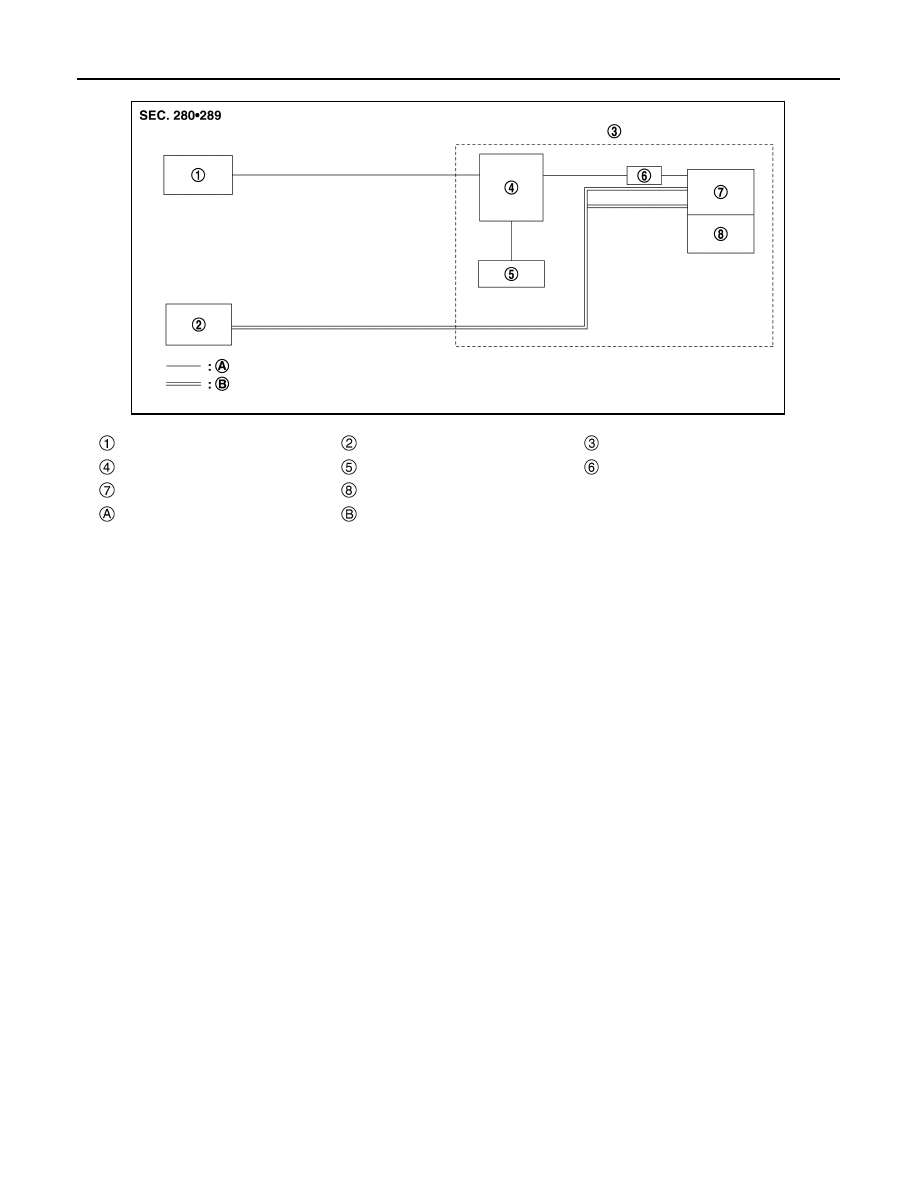

HYDRAULIC LAYOUT

Details

JSOIA0664GB

DAS-100

< REMOVAL AND INSTALLATION >

[LDW]

REAR VIEW CAMERA WASHER/AIR NOZZLE & TUBE

Washer pump

Air pump

Back door

Washer switching solenoid valve

Rear washer nozzle

Check valve

Air/washer nozzle

Rear view camera

Washer tube

Air tube

JSOIA0669ZZ

DAS
