RAIN SENSOR

RAIN SENSOR

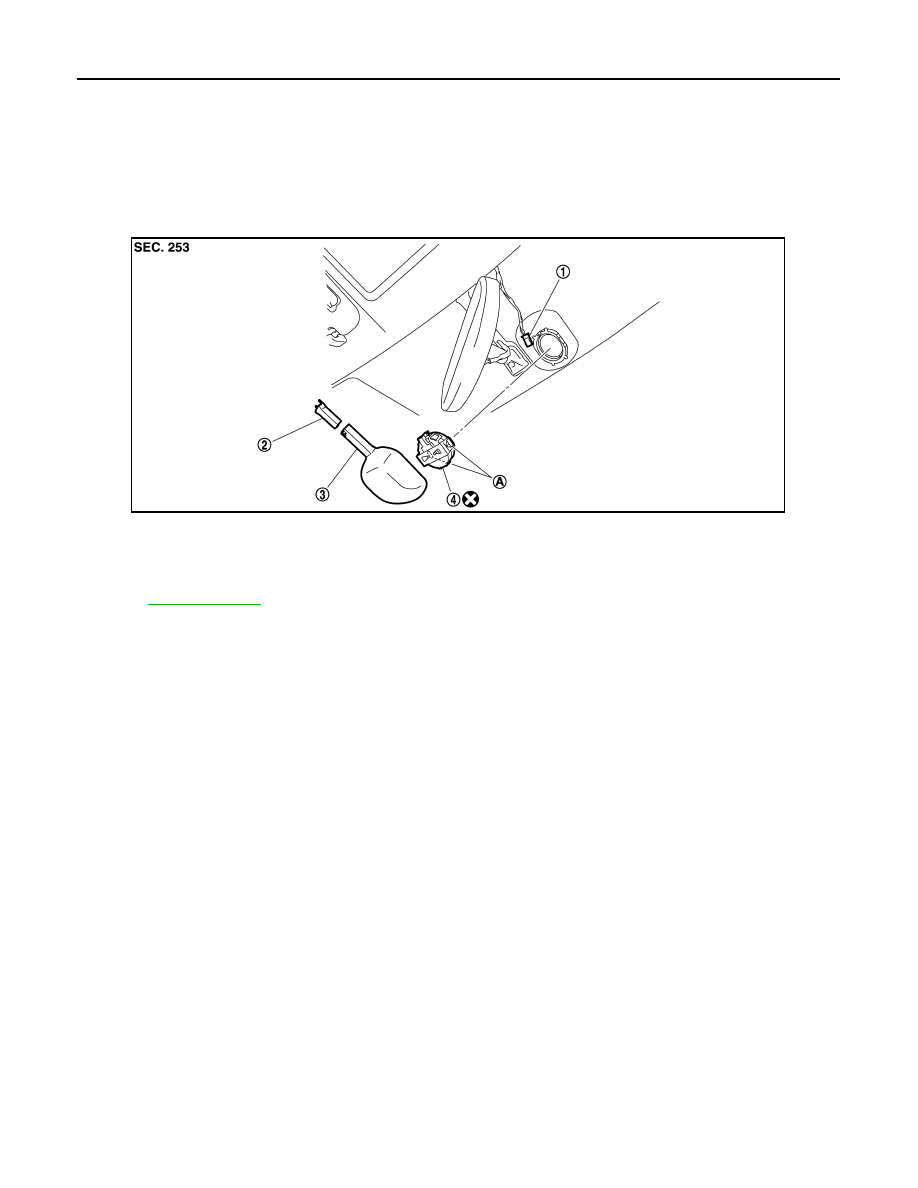

Exploded View

INFOID:0000000009719784

CAUTION:

When the rain sensor is removed from windshield, the rain sensor cannot be re-used.

REMOVAL

Removal and Installation

INFOID:0000000009719785

REMOVAL

1.

Remove the inside mirror cover (upper and lower).

2.

Disengage the both sides of metal spring clips, and remove the rain sensor from the windshield.

3.

Disconnect rain sensor connector.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Surface of windshield should be cleaned.
• Never touch gel/adhesive of new part.
• Lock the metal spring clips and install the rain sensor securely.

1.

Rain sensor connector

2.

Inside mirror cover (upper)

3.

Inside mirror cover (lower)

4.

Rain sensor

A.

Metal spring clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0817ZZ

WIPER AND WASHER SWITCH

WW-141

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER AND WASHER SWITCH

Exploded View

INFOID:0000000009719786

Refer to

BCS-99, "Exploded View"

.

WW-142

< REMOVAL AND INSTALLATION >

REAR WIPER ARM

REAR WIPER ARM

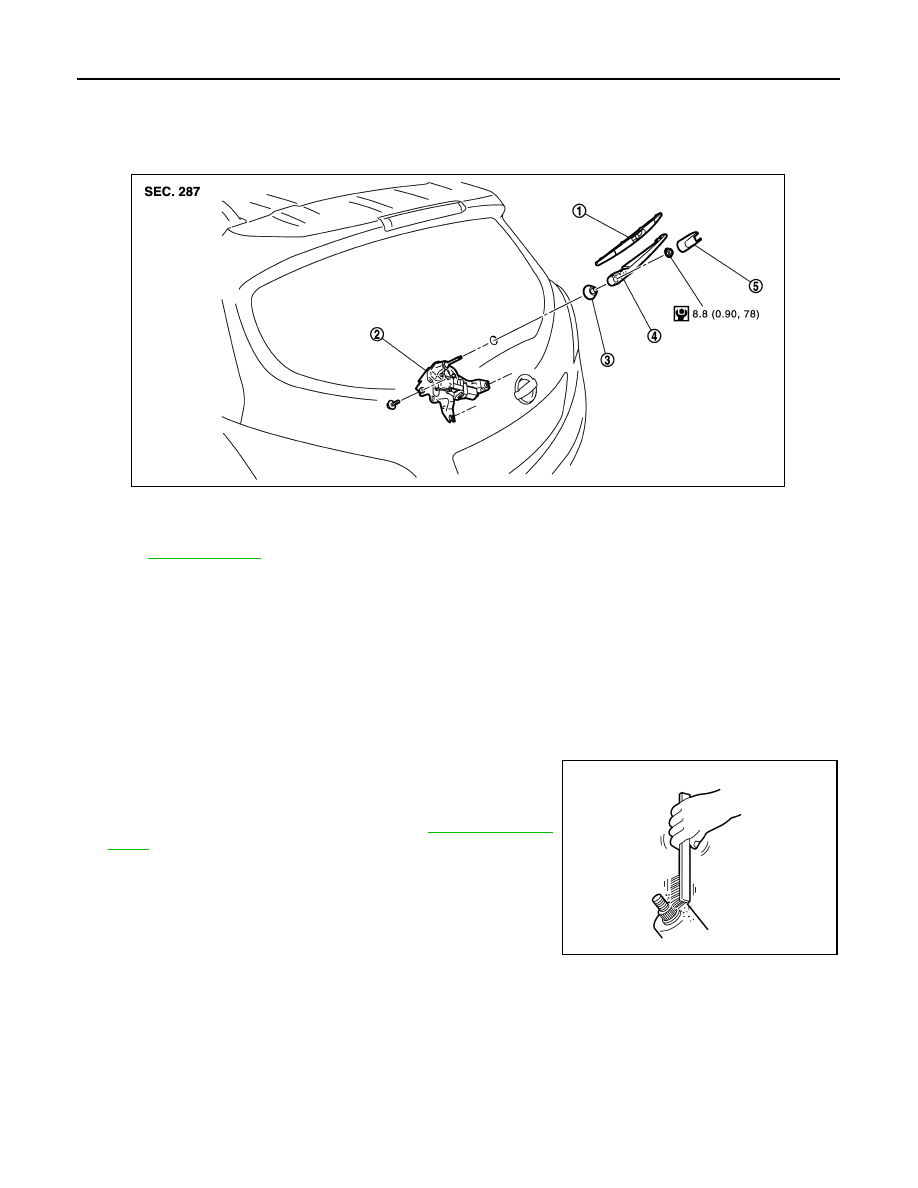

Exploded View

INFOID:0000000009719787

Removal and Installation

INFOID:0000000009719788

REMOVAL

1.

Operate the rear wiper to the auto stop position.

2.

Remove rear wiper arm cover.

3.

Remove the rear wiper arm mounting nut.

4.

Raise rear wiper arm, and remove wiper arm from the vehicle.

INSTALLATION

1.

Clean wiper arm mount as shown in the figure to prevent nut
from being loosened.

2.

Operate the rear wiper motor to the auto stop position.

3.

Adjust the rear wiper blade position. Refer to

WW-142, "Adjust-

ment"

.

4.

Install the rear wiper arm by tightening the mounting nut.

5.

Inject the washer fluid.

6.

Operate the rear wiper to the auto stop position.

7.

Check that the rear wiper blades stop at the specified position.

8.

Install rear wiper arm cover.

Adjustment

INFOID:0000000009719789

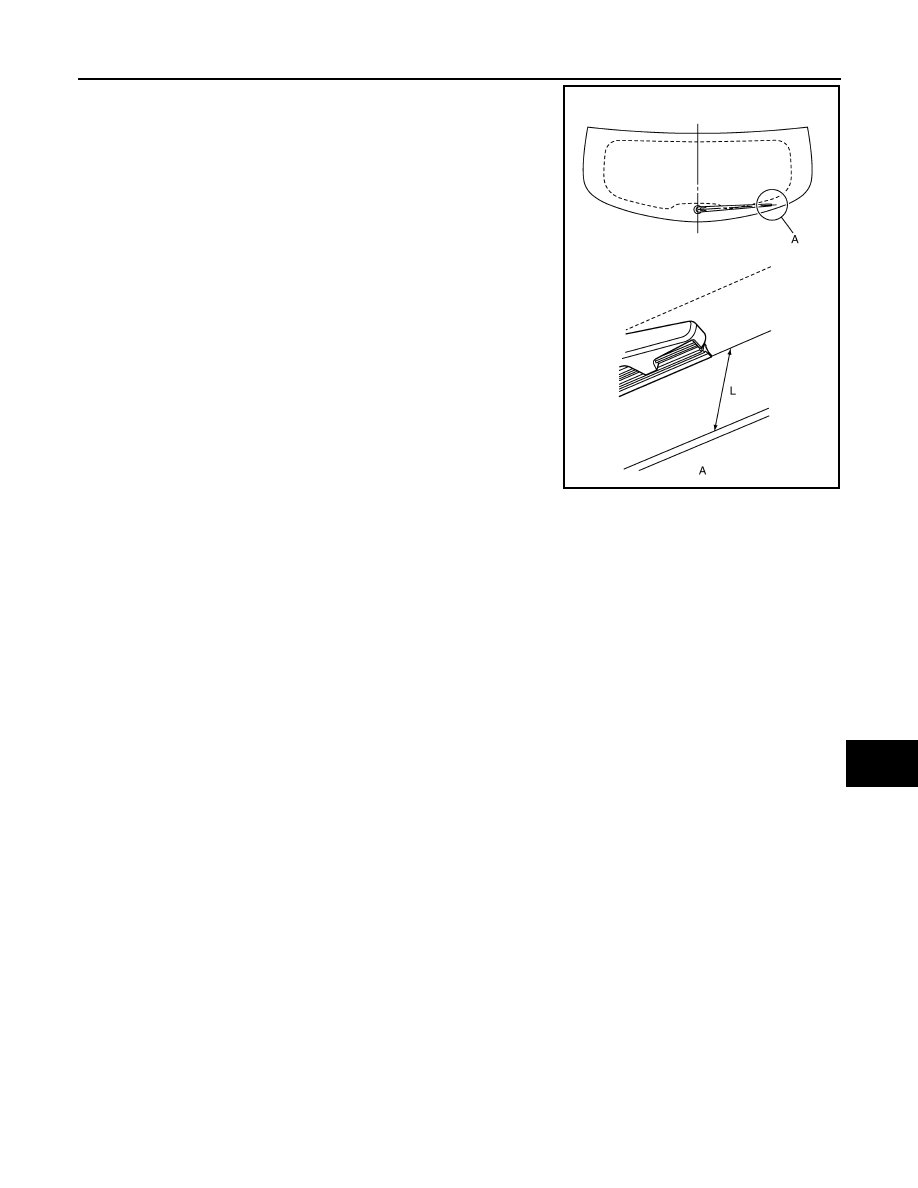

REAR WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of back door glass and top of wiper blade center.

1.

Rear wiper blade

2.

Rear wiper motor

3.

Pivot seal

4.

Rear wiper arm

5.

Rear wiper arm cover

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA1428GB

SKIA0082J

REAR WIPER ARM

WW-143

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Standard clearance

L

: 48.8

±

7.5 mm (1.92

±

 0.295 in)

JPLIA0966ZZ
