WW-144

< REMOVAL AND INSTALLATION >

REAR WIPER MOTOR

REAR WIPER MOTOR

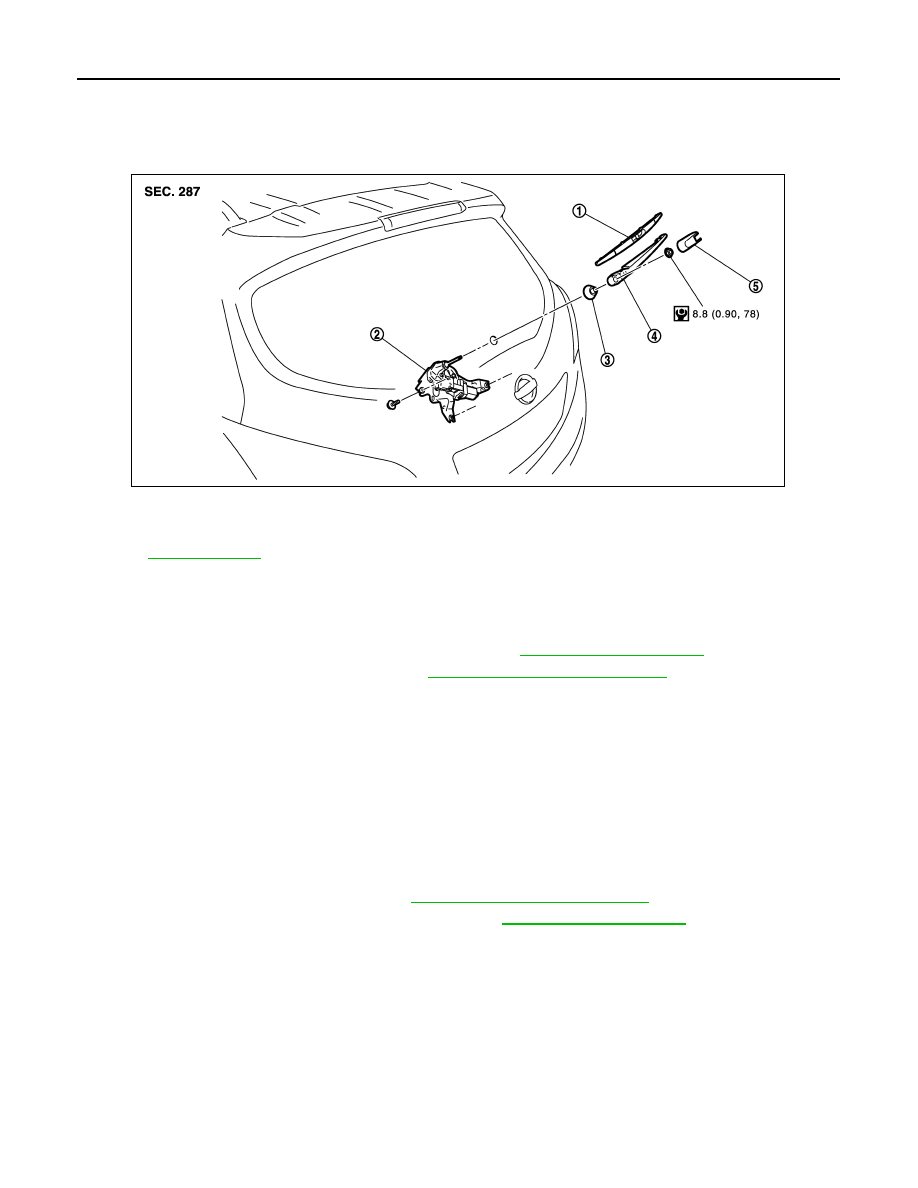

Exploded View

INFOID:0000000009719790

Removal and Installation

INFOID:0000000009719791

REMOVAL

1.

Remove rear wiper arm cover and rear wiper arm. Refer to

WW-142, "Exploded View"

.

2.

Remove the back door finisher inner. Refer to

INT-38, "Removal and Installation"

.

3.

Disconnect the rear wiper motor connector.

4.

Remove the rear wiper motor mounting bolts.

5.

Remove the rear wiper motor from the vehicle.

6.

Remove the pivot seal.

INSTALLATION

1.

Install the pivot seal.

2.

Install the rear wiper motor to the vehicle.

3.

Connect the rear wiper motor connector.

4.

Operate the rear wiper to the auto stop position.

5.

Install the back door finisher inner. Refer to

INT-38, "Removal and Installation"

.

6.

Install rear wiper arm cover and rear wiper arm. Refer to

WW-142, "Exploded View"

.

1.

Rear wiper blade

2.

Rear wiper motor

3.

Pivot seal

4.

Rear wiper arm

5.

Rear wiper arm cover

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA1428GB

REAR WASHER NOZZLE AND TUBE

WW-145

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REAR WASHER NOZZLE AND TUBE

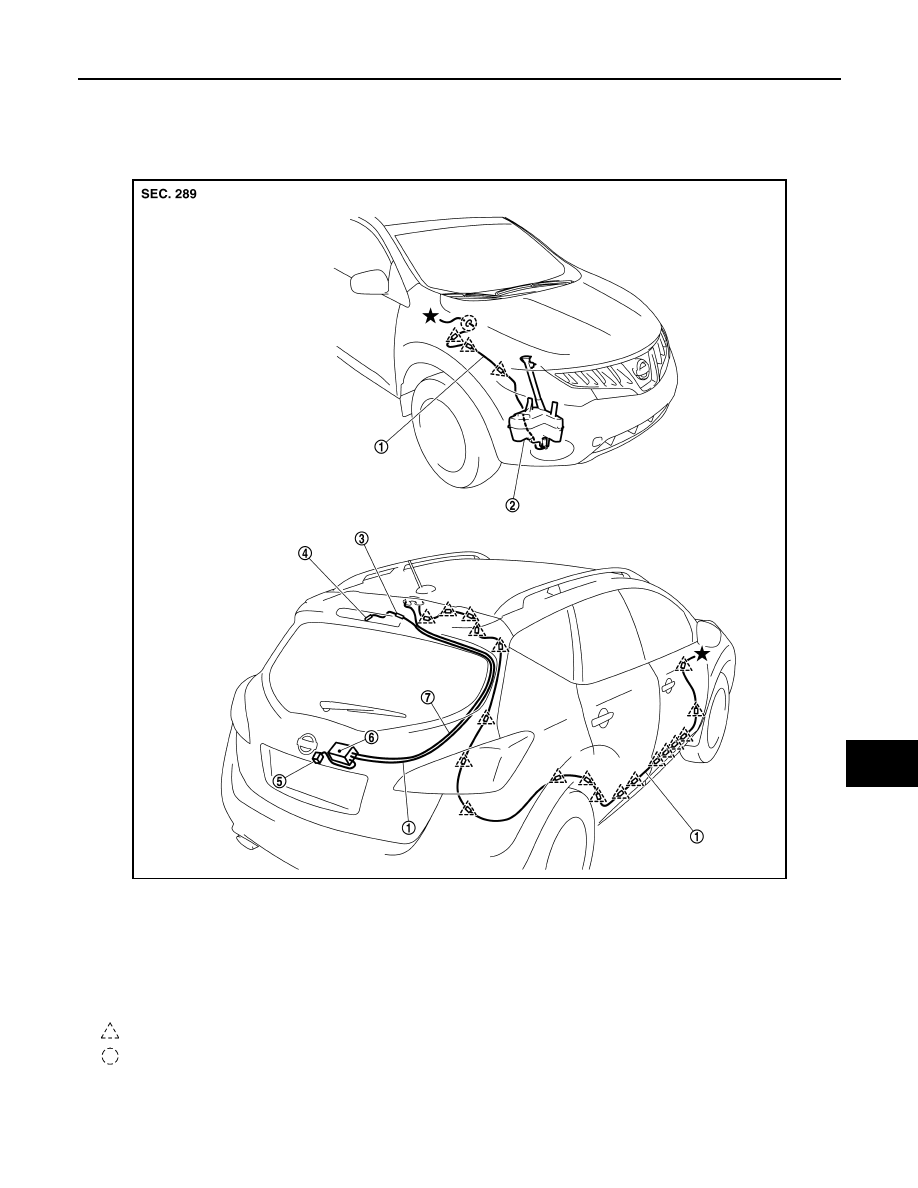

Hydraulic Layout

INFOID:0000000009719792

With LDW/BSW

JMLIA3418ZZ

1.

Rear washer tube
(From washer tank to washer
switching solenoid valve)

2.

Washer tank

3.

Check valve

4.

Rear washer nozzle

5.

Nozzle

6.

Washer switching solenoid valve

7.

Rear washer tube
(From washer switching solenoid
valve to rear washer nozzle)

: Clip

: Grommet

WW-146

< REMOVAL AND INSTALLATION >

REAR WASHER NOZZLE AND TUBE

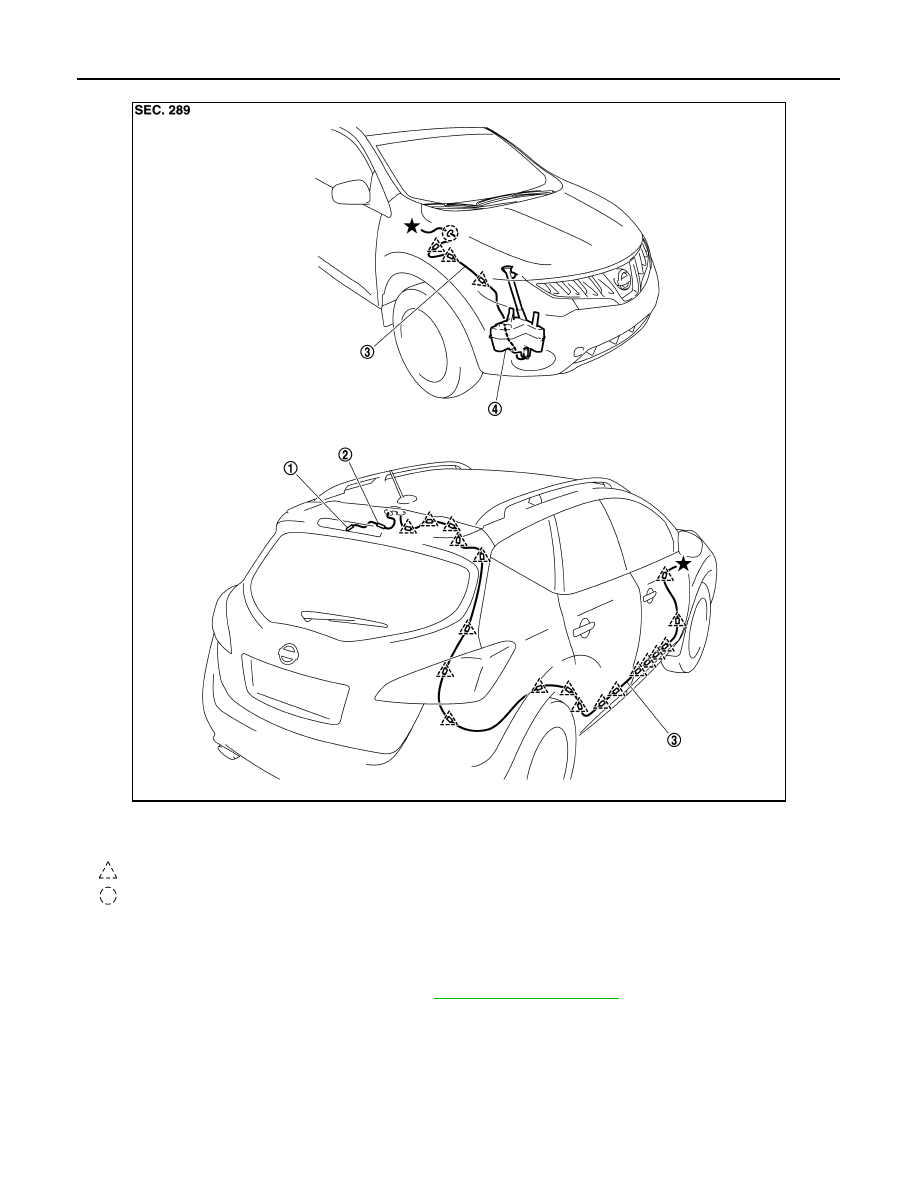

Without LDW/BSW

Removal and Installation

INFOID:0000000009719793

REMOVAL

1.

Remove the high-mounted stop lamp. Refer to

EXL-189, "Exploded View"

.

2.

Remove the rear washer tube from the rear washer nozzle.

JPLIA0879ZZ

1.

Rear washer nozzle

2.

Check valve

3.

Rear washer tube

4.

Washer tank

: Clip

: Grommet

REAR WASHER NOZZLE AND TUBE

WW-147

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

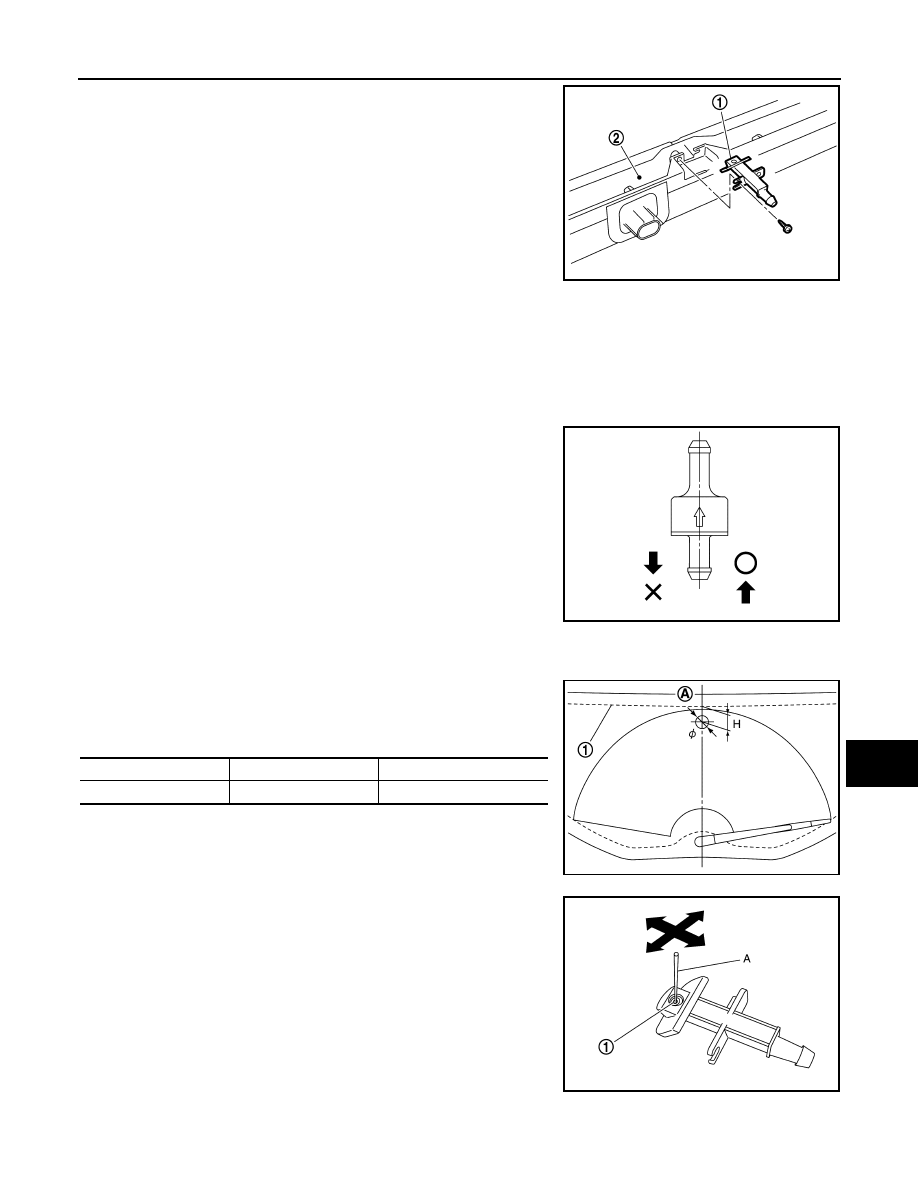

3.

Remove the rear washer nozzle (1) from the high-mounted stop
lamp (2).

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000009719794

INSPECTION

Check valve Inspection

Check that air can pass through the hose by blowing forward (toward
the nozzle), and check that air cannot pass through by sucking.

ADJUSTMENT

Washer Nozzle Spray Position adjustment

Adjust spray positions to match the positions shown in the figure.

Unit: mm (in)

Insert a needle or similar object (A) into the spray opening (1) and
move up/down and left/right to adjust the spray position.
NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a needle
or small pin.

JPLIA0880ZZ

JPLIA0428ZZ

1

: Black printed frame line

Spray position

H (Height)

φ

 (Spray position area)

A

30 (1.18)

30 (1.18)

JPLIA0881ZZ

JPLIA0882ZZ
