WIPER BLADE

WIPER BLADE

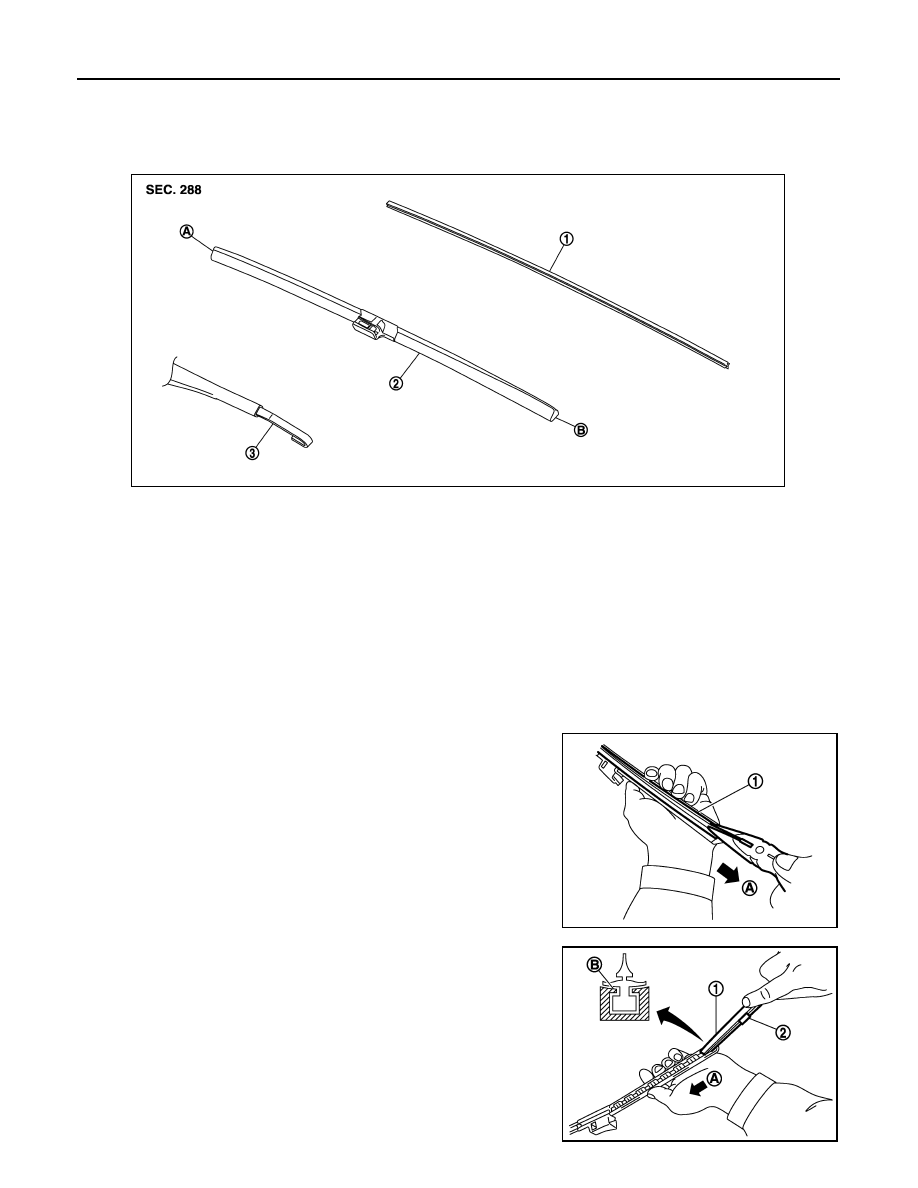

Exploded View

INFOID:0000000009719778

Removal and Installation

INFOID:0000000009719779

REMOVAL

Remove the wiper blade from the wiper arm.

INSTALLATION

Install the front wiper blade to the wiper arm.

Replacement

INFOID:0000000009719780

1.

Hold the rip of old wiper refill (1) at the rear end of the wiper
blade with long-nose pliers, and pull out the wiper refill to the
direction (A).

2.

Insert the tip of new wiper refill (1) into the rear end of wiper
blade. Slide the wiper refill to the direction (A) while pressing the
wiper refill onto the wiper blade rear end.
NOTE:
• Insert the wiper refill to be held securely by tab (B) of wiper

blade.

• After the wiper refill is fully inserted, remove the holder

*

 (2).

*

: Attached to service parts.

1.

Wiper refill

2.

Wiper blade

3.

Wiper arm

A.

Wiper blade end

B.

Wiper blade tip

JPLIA1587ZZ

JPLIA1583ZZ

JPLIA1584ZZ

WIPER BLADE

WW-137

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

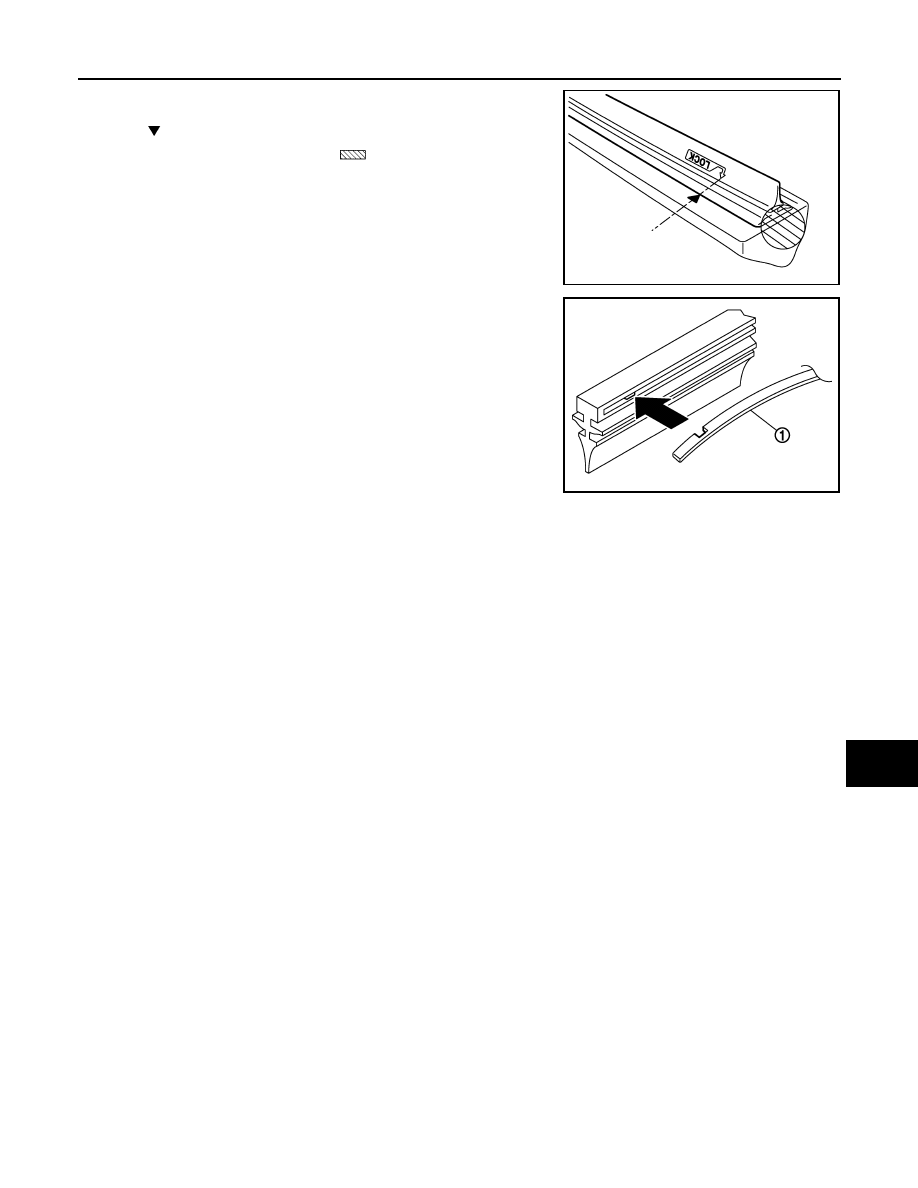

3.

Inert the wiper refill until the stopper at the rear end of wiper refill
fits in the tab. Check that “LOCK” mark on wiper refill is aligned
with “ ” mark on wiper blade.

4.

Untwist the twisted wiper refill (

) at the rear end of wiper

blade, if any.

5.

Check the following items after replacing wiper refill.
• Wiper refill is not twisted at all.
• Wiper refill thoroughly fits in the tab on wiper blade.
• Wiper refill is inserted from the proper direction.

NOTE:

When the vertebra is detached.

• Insert the vertebra (1) into the wiper blade to the same bending

direction.

• If a vertebra has a notch, fit it to a protrusion inside the wiper refill.

JPLIA1585ZZ

JPLIA1586ZZ

WW-138

< REMOVAL AND INSTALLATION >

FRONT WIPER DRIVE ASSEMBLY

FRONT WIPER DRIVE ASSEMBLY

Exploded View

INFOID:0000000009719781

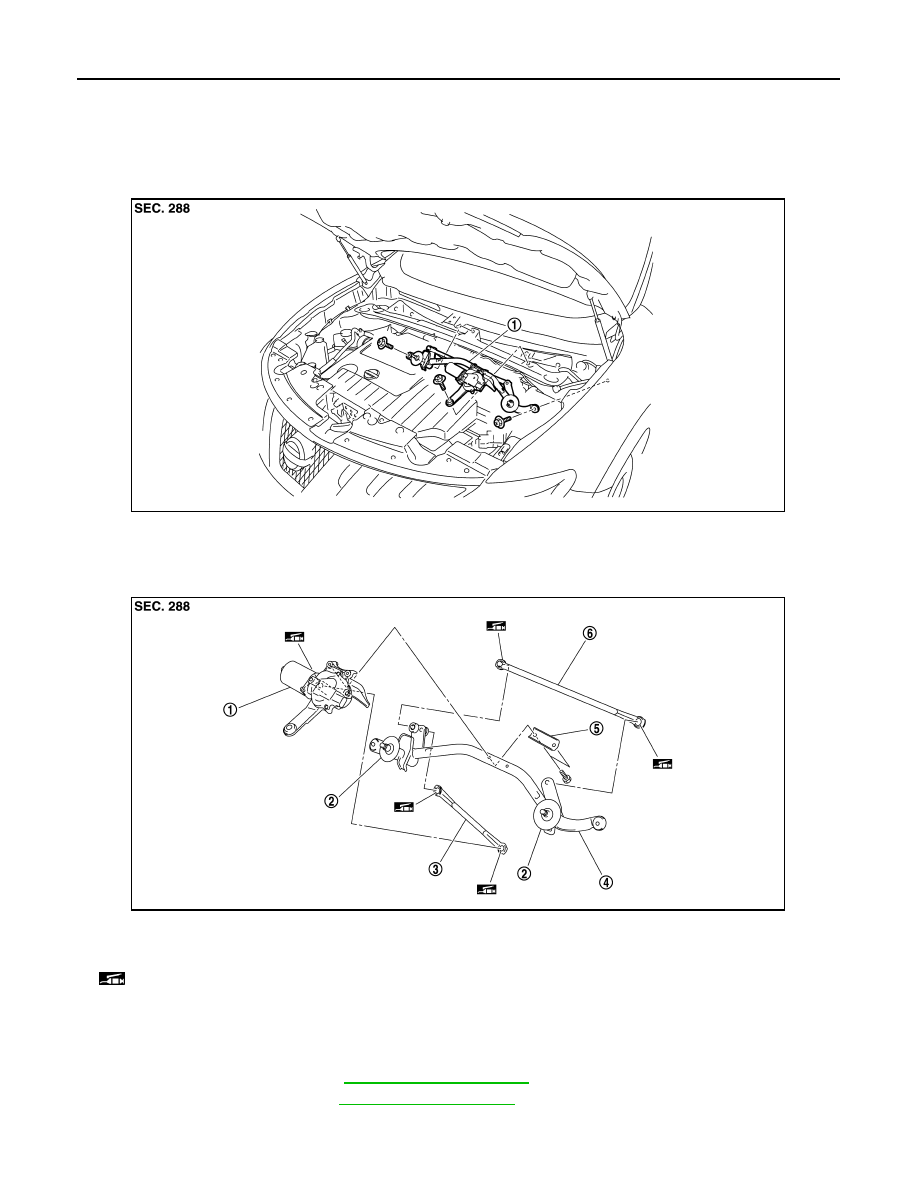

REMOVAL VIEW

DISASSEMBLY VIEW

Removal and Installation

INFOID:0000000009719782

REMOVAL

1.

Remove front wiper arm. Refer to

WW-134, "Exploded View"

.

2.

Remove cowl top cover. Refer to

EXT-23, "Exploded View"

.

3.

Remove bolts from the front wiper drive assembly.

1.

Front wiper drive assembly

JPLIA0875ZZ

1.

Front wiper motor

2.

Shaft seal

3.

Front wiper linkage 2

4.

Front wiper frame

5.

Bracket

6.

Front wiper linkage 1

: Multi

−

purpose grease or an equivalent

JPLIA0876ZZ

FRONT WIPER DRIVE ASSEMBLY

WW-139

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

4.

Disconnect the front wiper motor connector.

5.

Remove front wiper drive assembly from the vehicle.

INSTALLATION

1.

Install the front wiper drive assembly to the vehicle.

2.

Connect the front wiper motor connector.

3.

Operate the front wiper to move it to the auto stop position.

4.

Install the cowl top cover. Refer to

EXT-23, "Exploded View"

.

5.

Install front wiper arms. Refer to

WW-134, "Exploded View"

.

Disassembly and Assembly

INFOID:0000000009719783

DISASSEMBLY

1.

Remove the front wiper linkage 1 and 2 from the front wiper drive assembly.

CAUTION:

Never bend the linkage or damage the plastic part of the ball joint when removing the front wiper
linkage.

2.

Remove the front wiper motor mounting screws, and then remove the front wiper motor from the front
wiper frame.

ASSEMBLY

1.

Connect the front wiper motor connector.

2.

Operate the front wiper to move it to the auto stop position.

3.

Disconnect the front wiper motor connector.

4.

Install front wiper motor to front wiper frame.

5.

Install the front wiper linkage 2 to the front wiper motor and the front wiper frame.

6.

Install the front wiper linkage 1 to the front wiper frame.

CAUTION:

• Never drop front wiper motor or cause it to come into contact with other parts.
• Be careful for the grease condition at the front wiper motor and front wiper linkage joint

(retainer). Apply multi

−

purpose grease or an equivalent if necessary.
