WASHER TANK

REMOVAL AND INSTALLATION

WASHER TANK

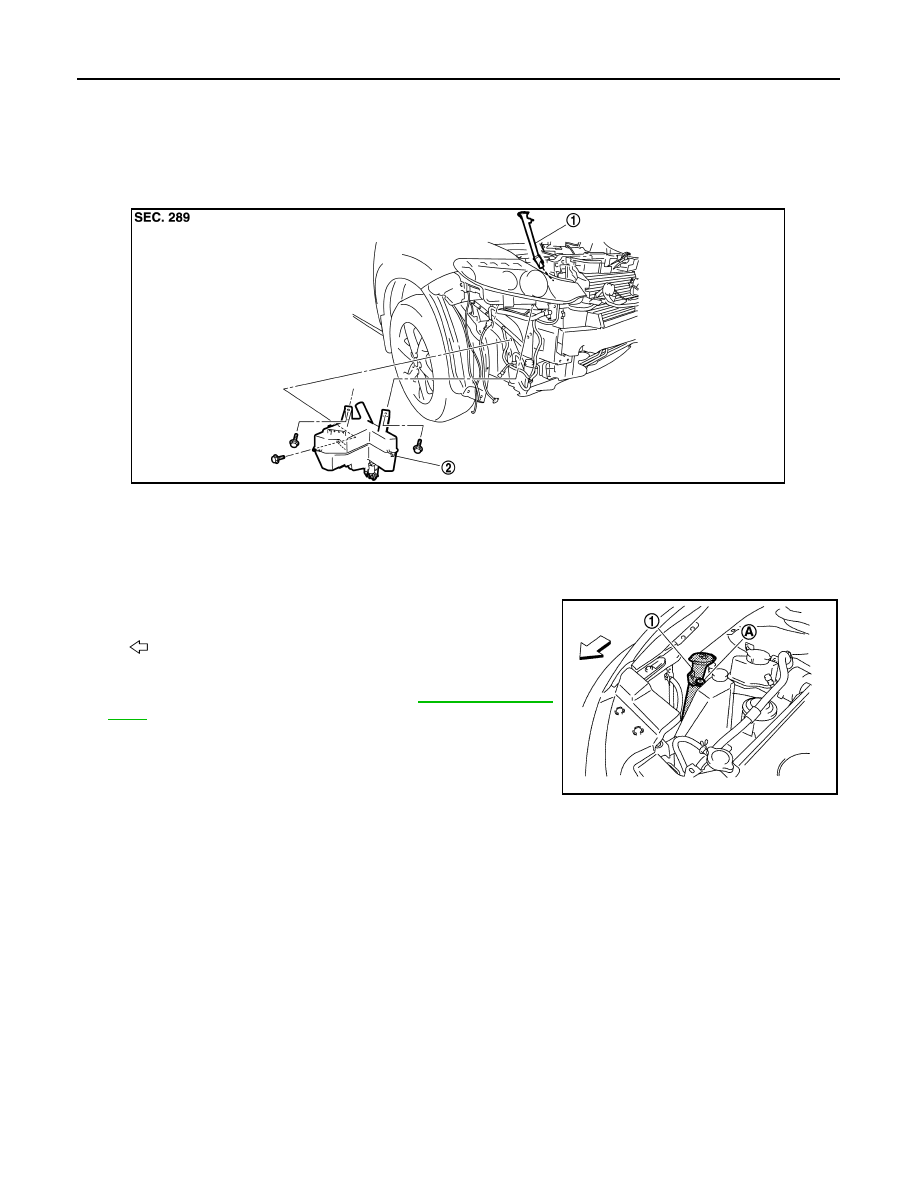

Exploded View

INFOID:0000000009719766

Removal and Installation

INFOID:0000000009719767

REMOVAL

1.

Remove the clip (A).

2.

Pull out the washer tank inlet (1) from the washer tank.

3.

Remove the front bumper fascia. Refer to

EXT-14, "Exploded

View"

.

4.

Disconnect washer pump connector.

5.

Disconnect washer level switch connector.

6.

Remove front washer tube and rear washer tube.

7.

Remove washer tank mounting bolts.

8.

Remove the washer tank from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Add water up to the top of the washer tank inlet after installing. Check that there is no leakage.

1.

Washer tank inlet

2.

Washer tank

JPLIA0866ZZ

: Vehicle front

JPLIA0867ZZ

WASHER PUMP

WW-129

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER PUMP

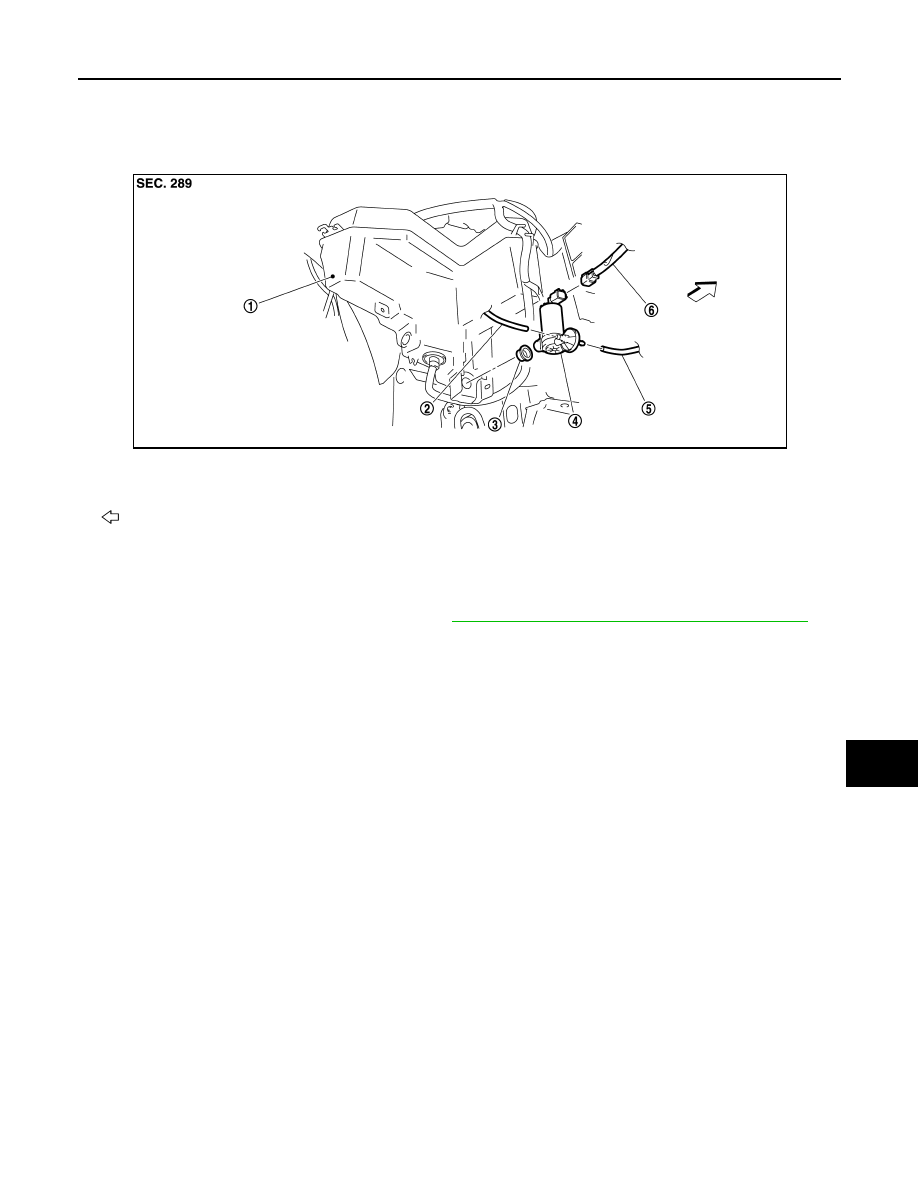

Exploded View

INFOID:0000000009719768

Removal and Installation

INFOID:0000000009719769

REMOVAL

1.

Remove the fender protector RH (front). Refer to

EXT-26, "FENDER PROTECTOR : Exploded View"

.

2.

Disconnect washer pump connector.

3.

Remove front washer tube and rear washer tube.

4.

Remove washer pump from the washer tank.

5.

Remove the packing from the washer tank.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never twist the packing when installing the washer pump.

1.

Washer tank

2.

Rear washer tube

3.

Packing

4.

Washer pump

5.

Front washer tube

6.

Washer pump connector

: Vehicle front

JPLIA0868ZZ

WW-130

< REMOVAL AND INSTALLATION >

WASHER LEVEL SWITCH

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000009719770

The washer level switch must be replaced together with the washer tank as an assembly. Refer to

WW-128,

"Removal and Installation"

.

FRONT WASHER NOZZLE AND TUBE

WW-131

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WASHER NOZZLE AND TUBE

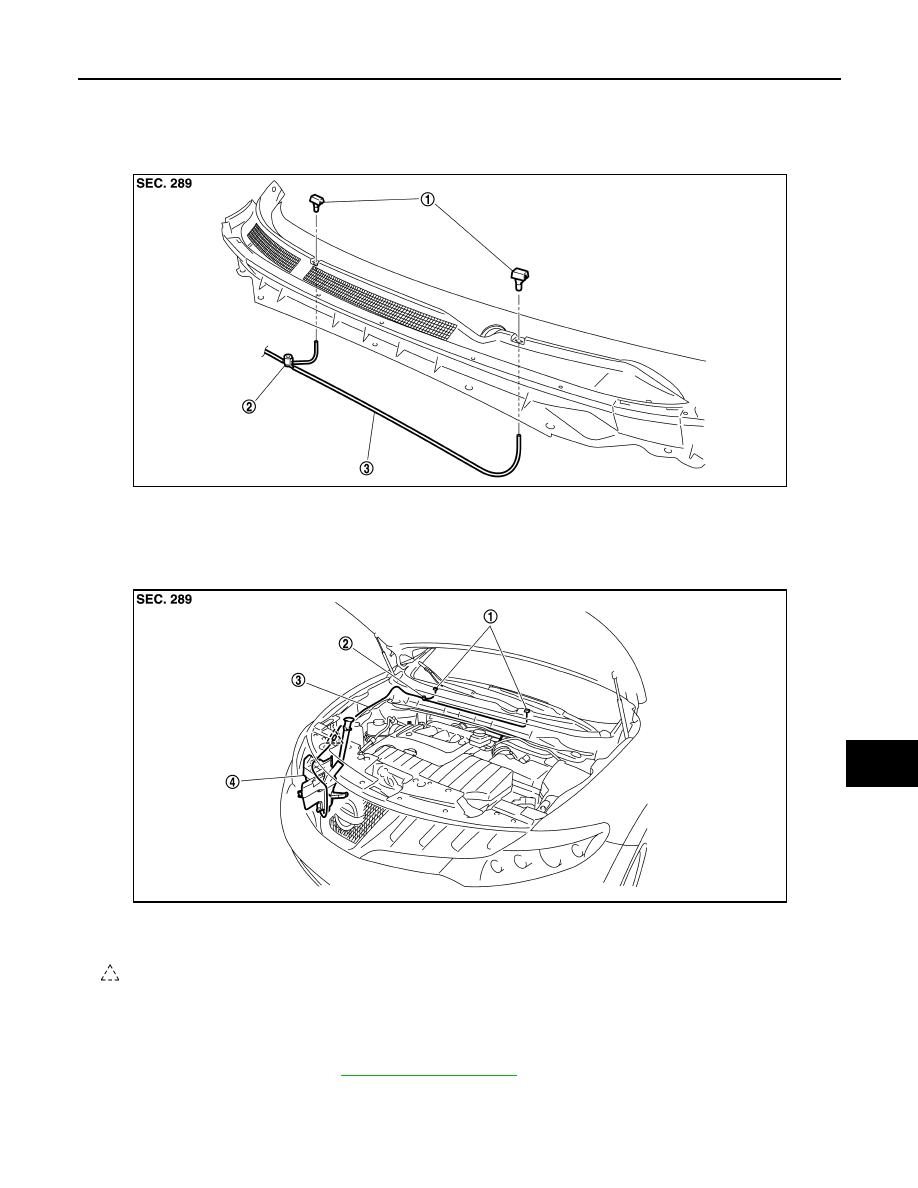

Exploded View

INFOID:0000000009719771

Hydraulic Layout

INFOID:0000000009719772

Removal and Installation

INFOID:0000000009719773

REMOVAL

1.

Remove cowl top cover. Refer to

EXT-23, "Exploded View"

.

2.

Disconnect front washer tube from front washer nozzle.

1.

Front washer nozzle

2.

Check valve

3.

Front washer tube

JPLIA0869ZZ

1.

Front washer nozzle

2.

Check valve

3.

Front washer tube

4.

Washer tank

: Clip

JPLIA0870ZZ
