Nissan Murano. Manual - part 1514





WW-124

< SYMPTOM DIAGNOSIS >

FRONT WIPER DOES NOT OPERATE

Is the measurement value normal?

YES

>> Replace front wiper motor.

NO

>> Replace IPDM E/R.

5.

CHECK FRONT WIPER REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

1.

Select “FR WIP REQ” of IPDM E/R data monitor item.

2.

Switch the front wiper switch to HI and LO.

3.

With operating the front wiper switch, check the status of “FR WIP REQ”.

Is the status of item normal?

YES

>> Replace IPDM E/R.

NO

>> GO TO 6.

6.

CHECK COMBINATION SWITCH

Perform the inspection of the combination switch. Refer to

BCS-94, "Symptom Table"

.

Is combination switch normal?

YES

>> Replace BCM. Refer to

BCS-98, "Exploded View"

.

NO

>> Repair or replace the applicable parts.

Terminals

Test item

Voltage (Approx.)

(+)

(

)

IPDM E/R

Ground

FRONT WIPER

Connector

Terminal

E10

4

Lo

Battery voltage

Off

0 V

5

Hi

Battery voltage

Off

0 V

Monitor item

Condition

Monitor status

FR WIP REQ

Front wiper switch HI

On

Hi

Off

Stop

Front wiper switch LO

On

Low

Off

Stop

PRECAUTIONS

WW-125

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

PRECAUTION

PRECAUTIONS

FOR CALIFORNIA AND CANADA

FOR CALIFORNIA AND CANADA : Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"

INFOID:0000000009719762

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

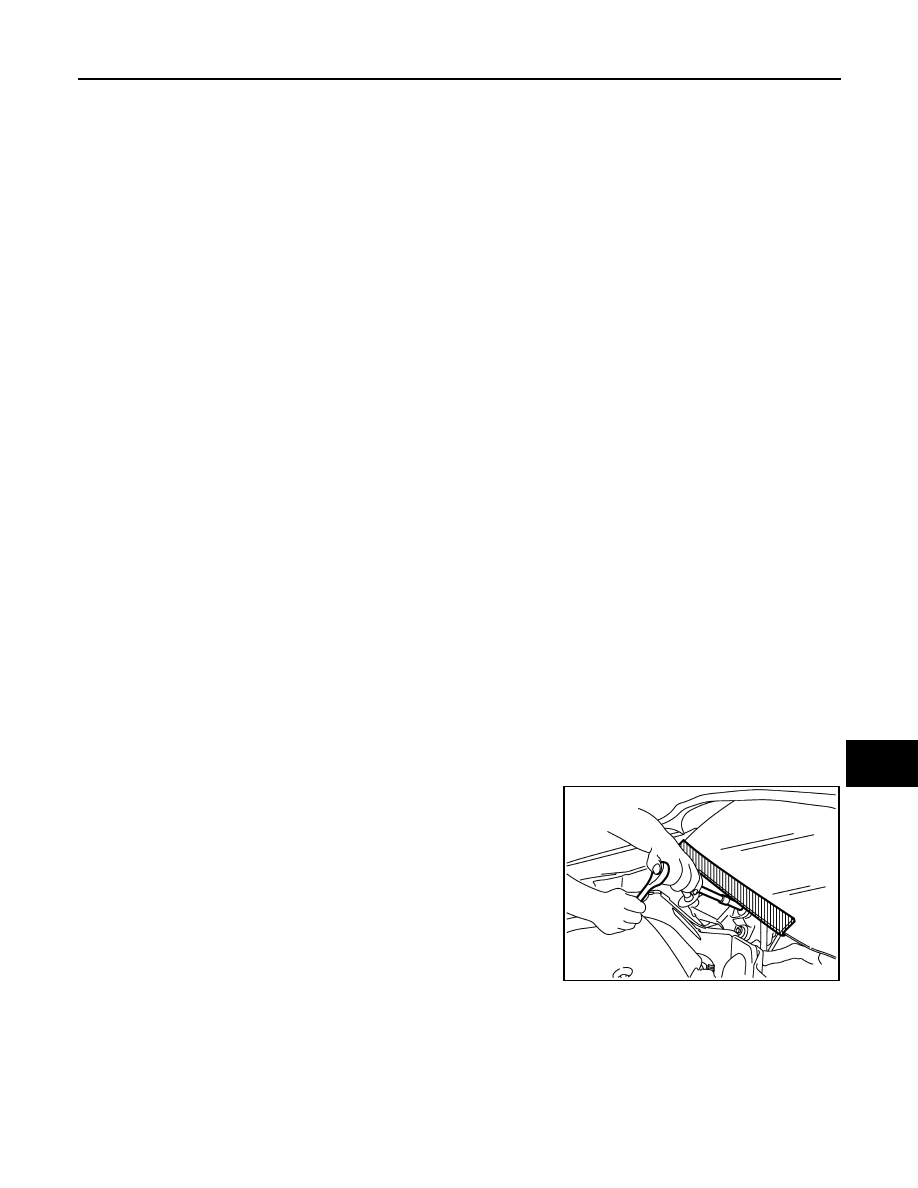

FOR CALIFORNIA AND CANADA : Precaution for Procedure without Cowl Top Cover

INFOID:0000000009719763

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

PIIB3706J

WW-126

< PRECAUTION >

PRECAUTIONS

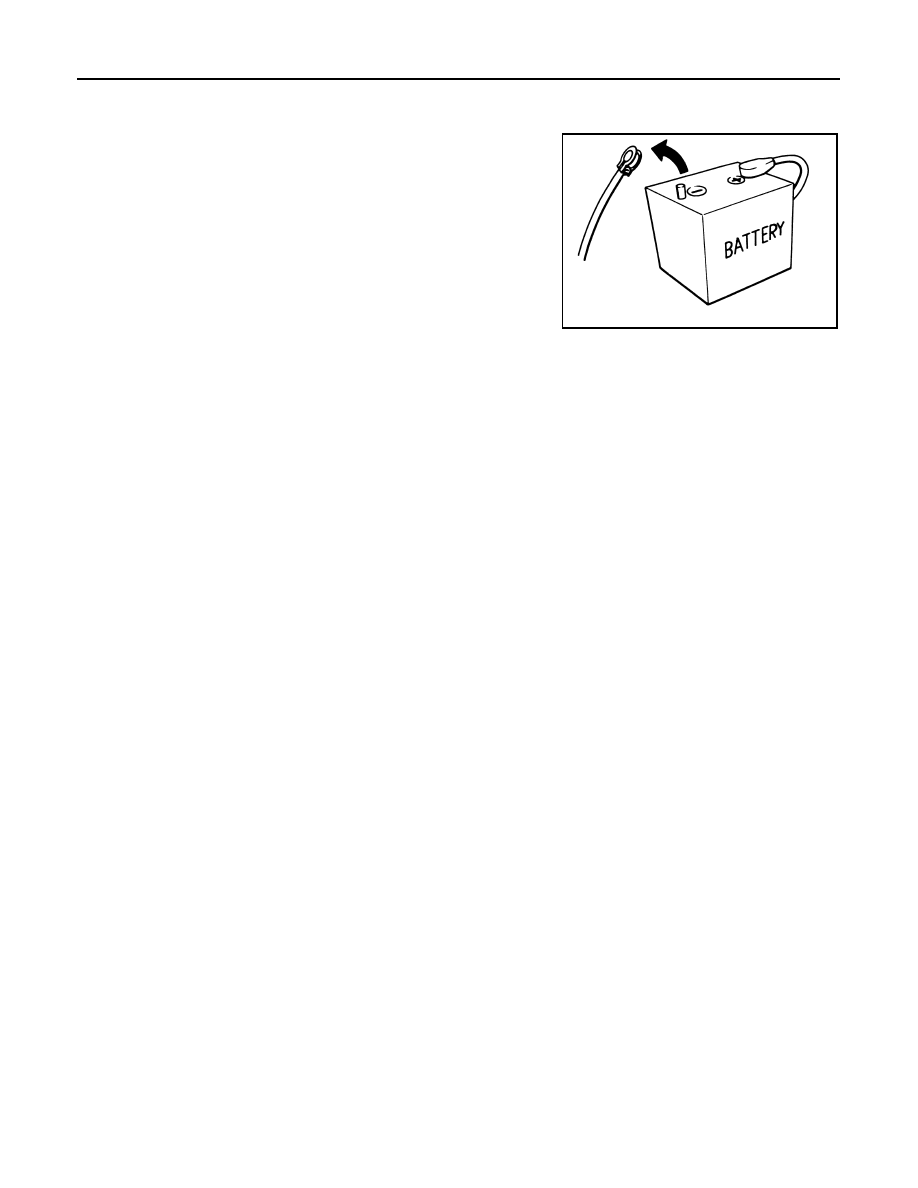

FOR CALIFORNIA AND CANADA : Precautions for Removing of Battery Terminal

INFOID:0000000010101863

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

FOR MEXICO

FOR MEXICO : Precaution for Supplemental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER"

INFOID:0000000009719764

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

SEF289H

PRECAUTIONS

WW-127

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

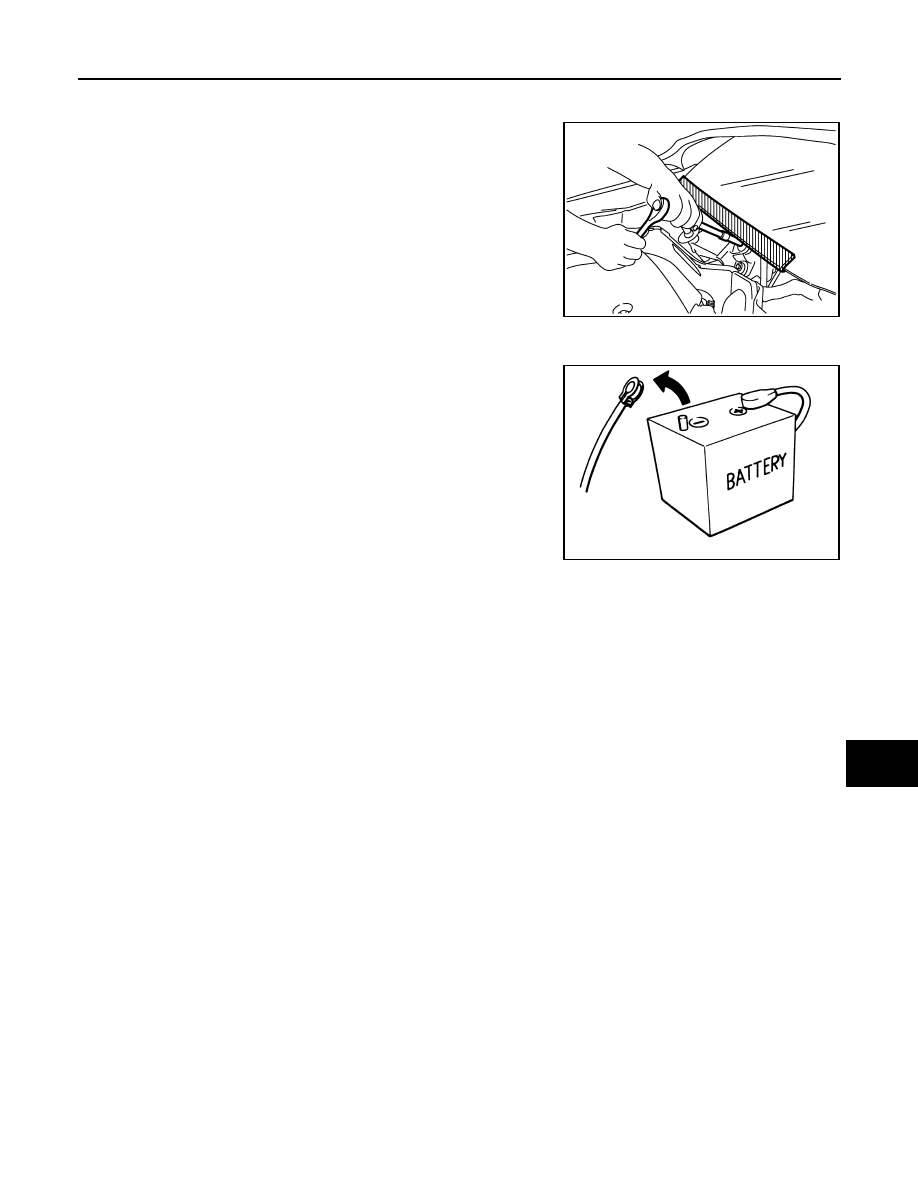

FOR MEXICO : Precaution for Procedure without Cowl Top Cover

INFOID:0000000009719765

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

FOR MEXICO : Precautions for Removing of Battery Terminal

INFOID:0000000010101862

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

PIIB3706J

SEF289H
