Nissan Murano. Manual - part 1435





VTL-96

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

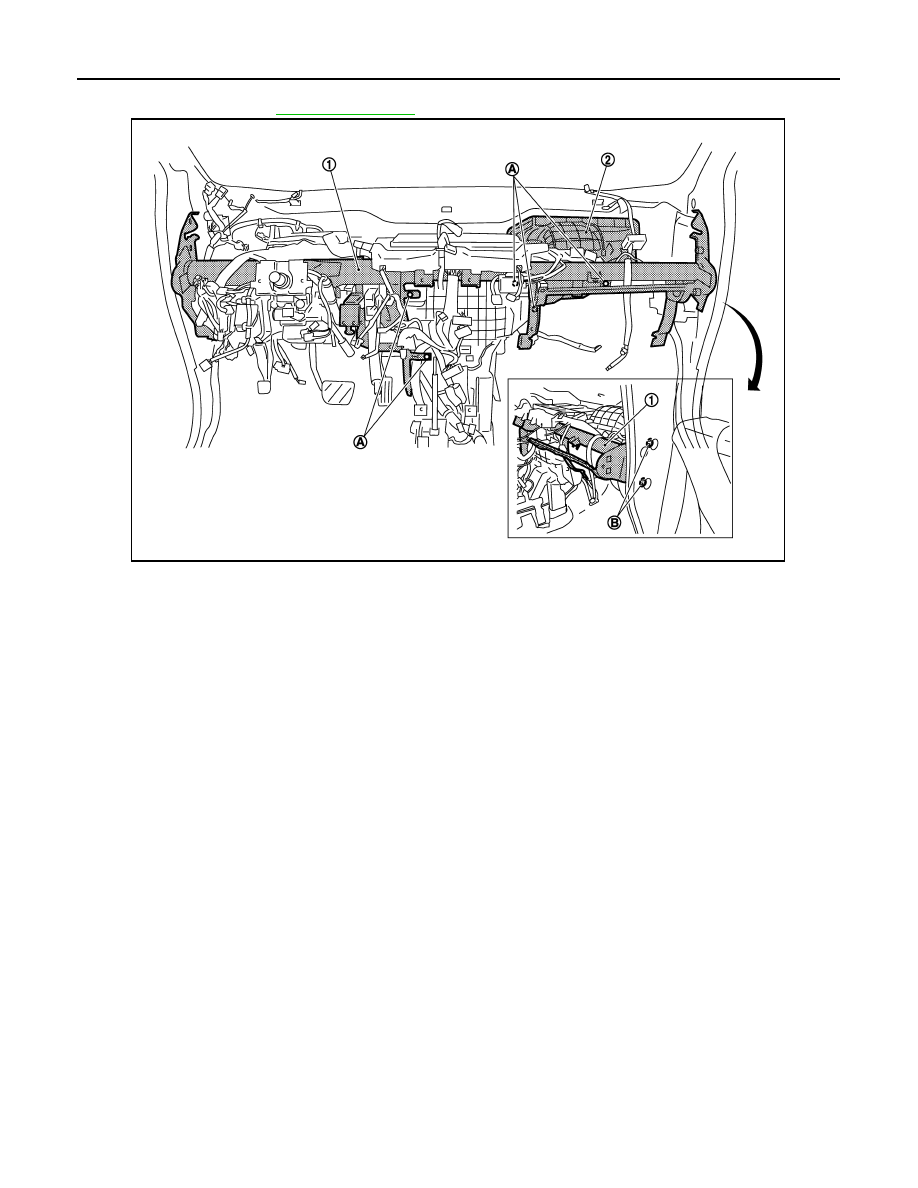

BLOWER UNIT

5.

Remove mounting bolts (B) and then remove blower unit assembly (2) while pulling the steering member
(1) to the front. Refer to

GI-4, "Components"

 for symbols in the figure.

INSTALLATION

Install in the reverse order of removal.

JPIIA1230ZZ

BLOWER MOTOR

VTL-97

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

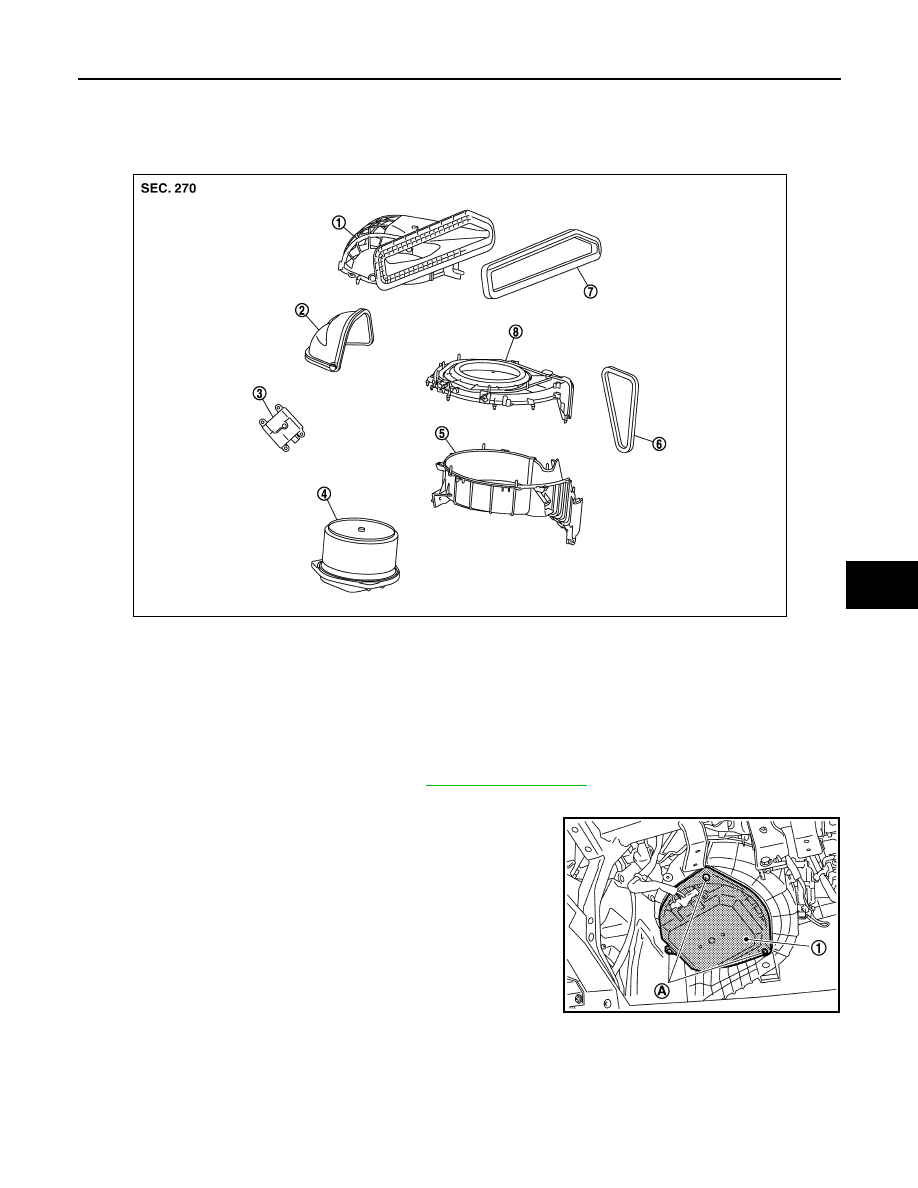

BLOWER MOTOR

Exploded View

INFOID:0000000009721171

Removal and Installation

INFOID:0000000009721172

REMOVAL

1.

Remove instrument lower panel RH. Refer to

IP-14, "Exploded View"

2.

Disconnect blower motor connector.

3.

Remove fixing screws (A) and then remove blower motor (1).

INSTALLATION

Install in the reverse order of removal.

1.

Shutter box case

2.

Intake door

3.

Intake door motor

4.

Blower motor assembly

5.

Intake lower case

6.

Outlet seal

7.

Intake seal

8.

Intake upper case

JPIIA0455ZZ

JPIIA0568ZZ

VTL-98

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

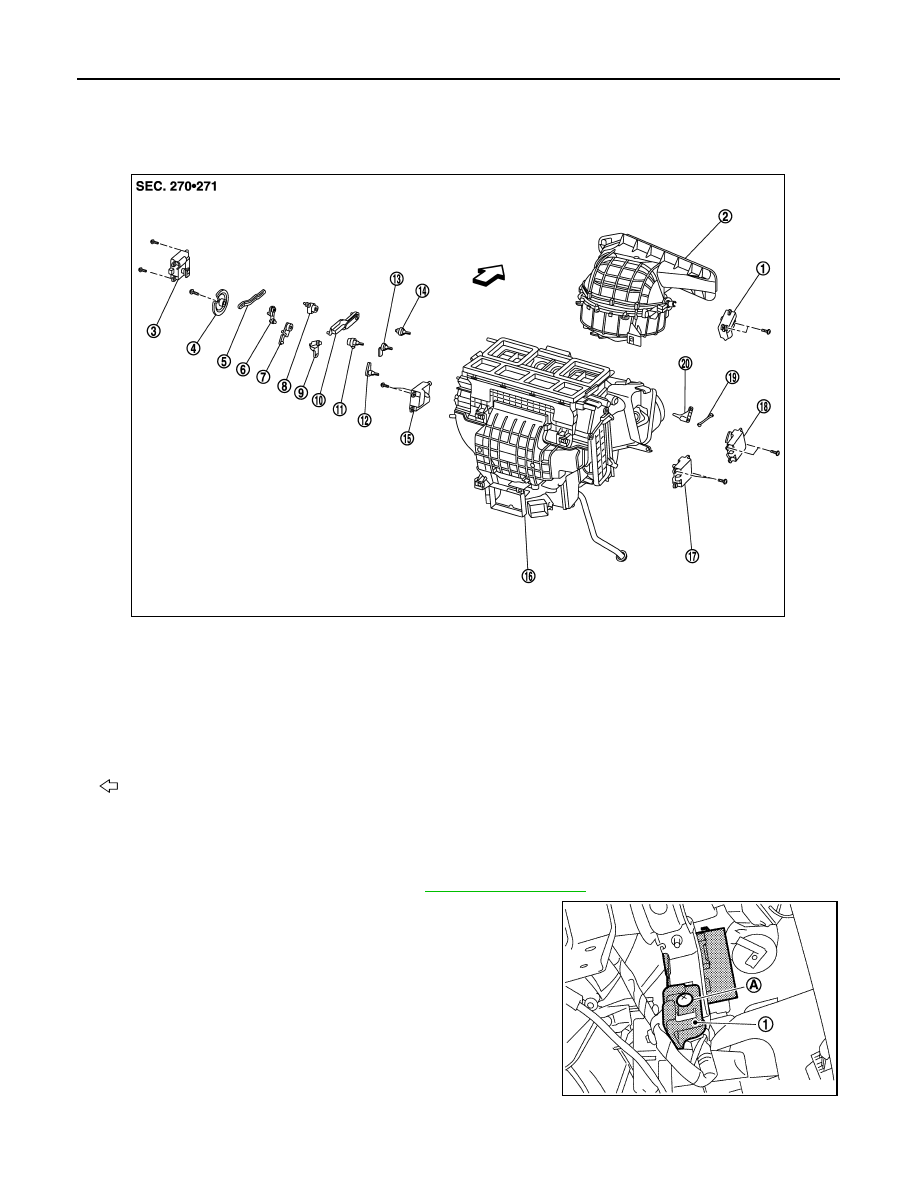

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR

Exploded View

INFOID:0000000009721173

Removal and Installation

INFOID:0000000009721174

REMOVAL

1.

Remove instrument lower panel RH. Refer to

IP-14, "Exploded View"

2.

Remove fixing screw (A) and then move the key less controller
assembly bracket (1) to a position where it does not inhibit work.

3.

Disconnect intake door motor connector.

1.

Intake door motor

2.

Bower unit assembly

3.

Mode door motor

4.

Main link

5.

Rod link

6.

Max. cool door link

7.

Max. cool door link

8.

Mode door lever

9.

Ventilator door link

10. Defroster door link

11.

Ventilator door lever

12. Foot door lever

13. Max. cool door lever

14.

Defroster door lever

15. Air mix door motor (Driver side)

16. Heater & cooling unit assembly

17.

Air mix door motor (Passenger side) 18. Upper ventilator door motor

19. Upper ventilator door rod

20.

Upper ventilator door lever

: Vehicle front

JPIIA1238ZZ

JPIIA0569ZZ

INTAKE DOOR MOTOR

VTL-99

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

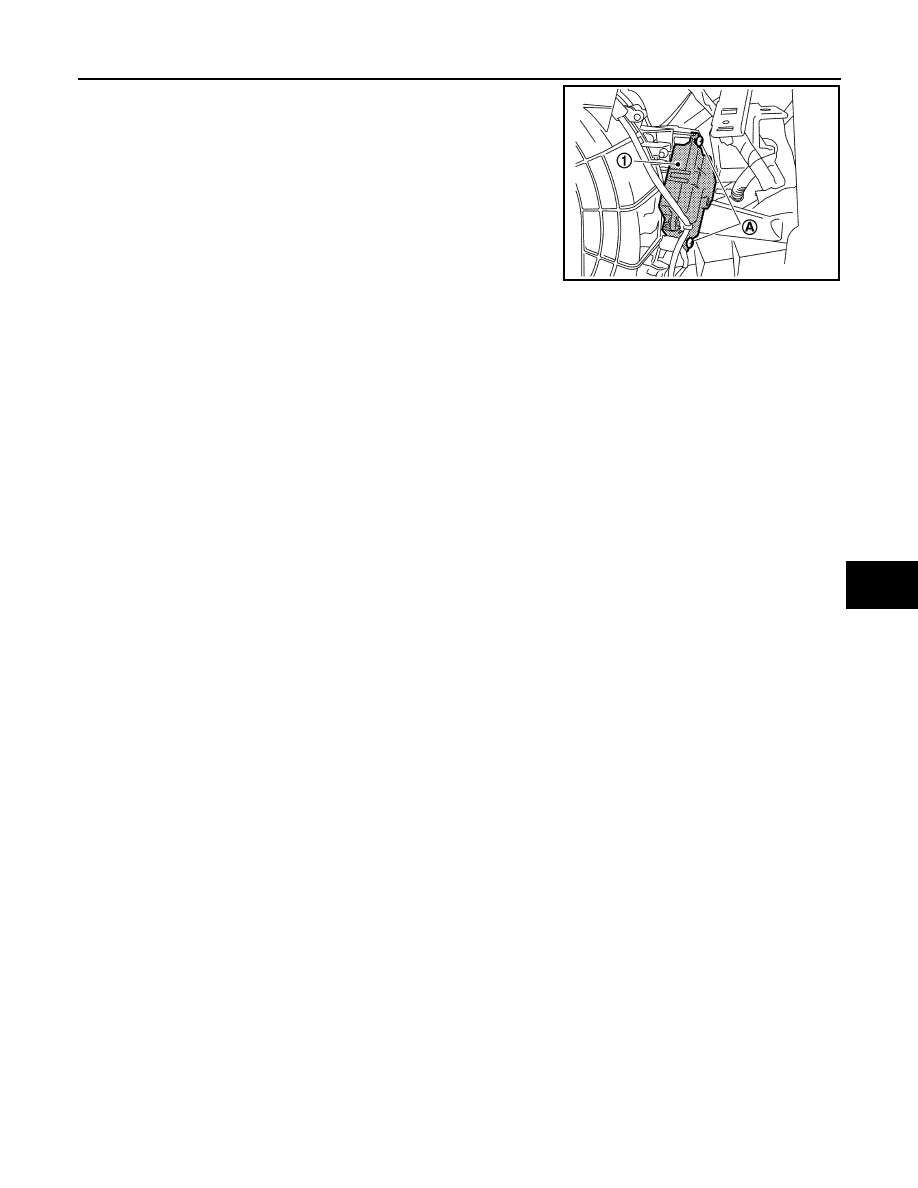

4.

Remove fixing screws (A) and then remove intake door motor
(1).

INSTALLATION

Install in the reverse order of removal.

JPIIA0570ZZ
