Nissan Murano. Manual - part 1433

VTL-88

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

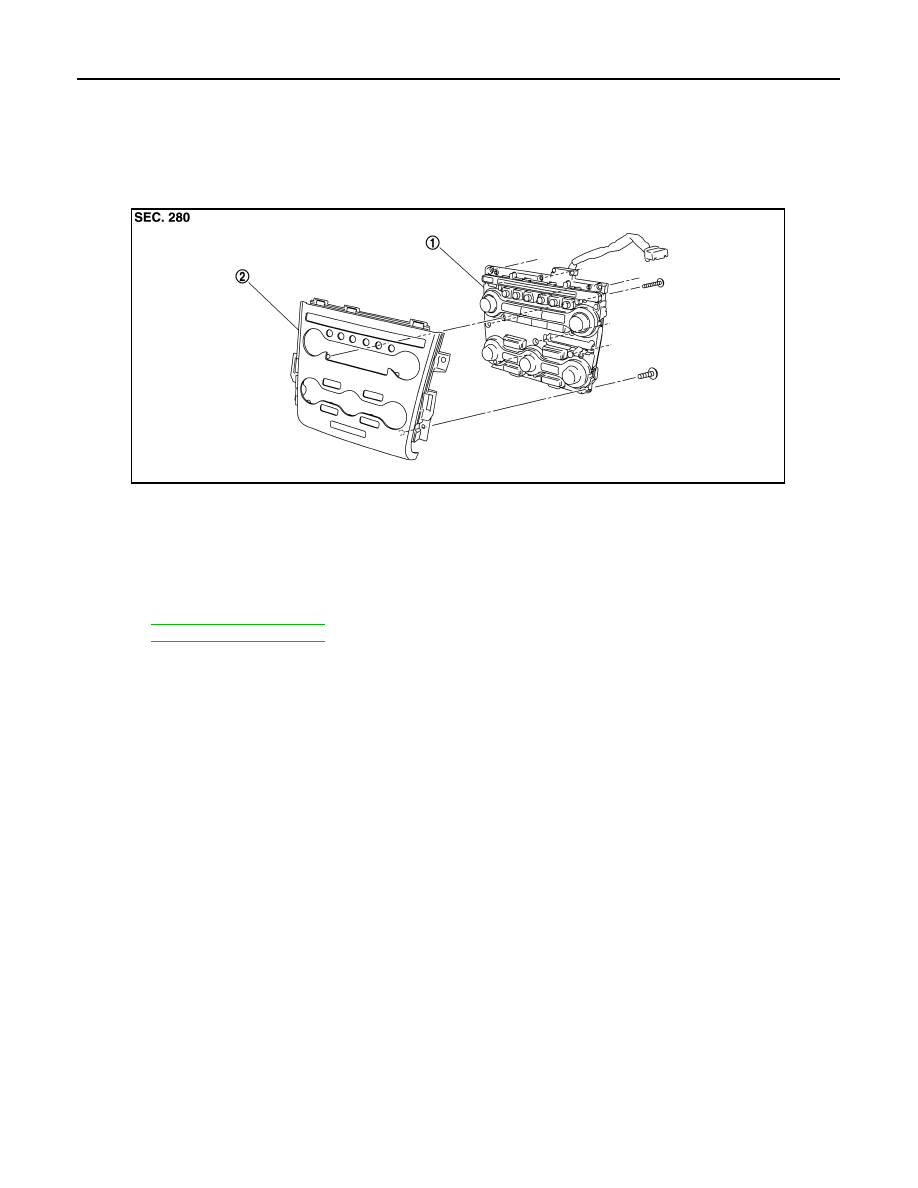

PRESET SWITCH

REMOVAL AND INSTALLATION

PRESET SWITCH

Exploded View

INFOID:0000000009721157

Removal and Installation

INFOID:0000000009721158

REMOVAL

Remove preset switch. Refer to the following.
• Refer to

AV-286, "Exploded View"

 (BOSE AUDIO WITHOUT NAVIGATION).

• Refer to

AV-458, "Exploded View"

 (BOSE AUDIO WITH NAVIGATION).

INSTALLATION

Install in the reverse order of removal.

1.

Preset switch

2.

Cluster lid C

JPNIA0790ZZ

A/C AUTO AMP.

VTL-89

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

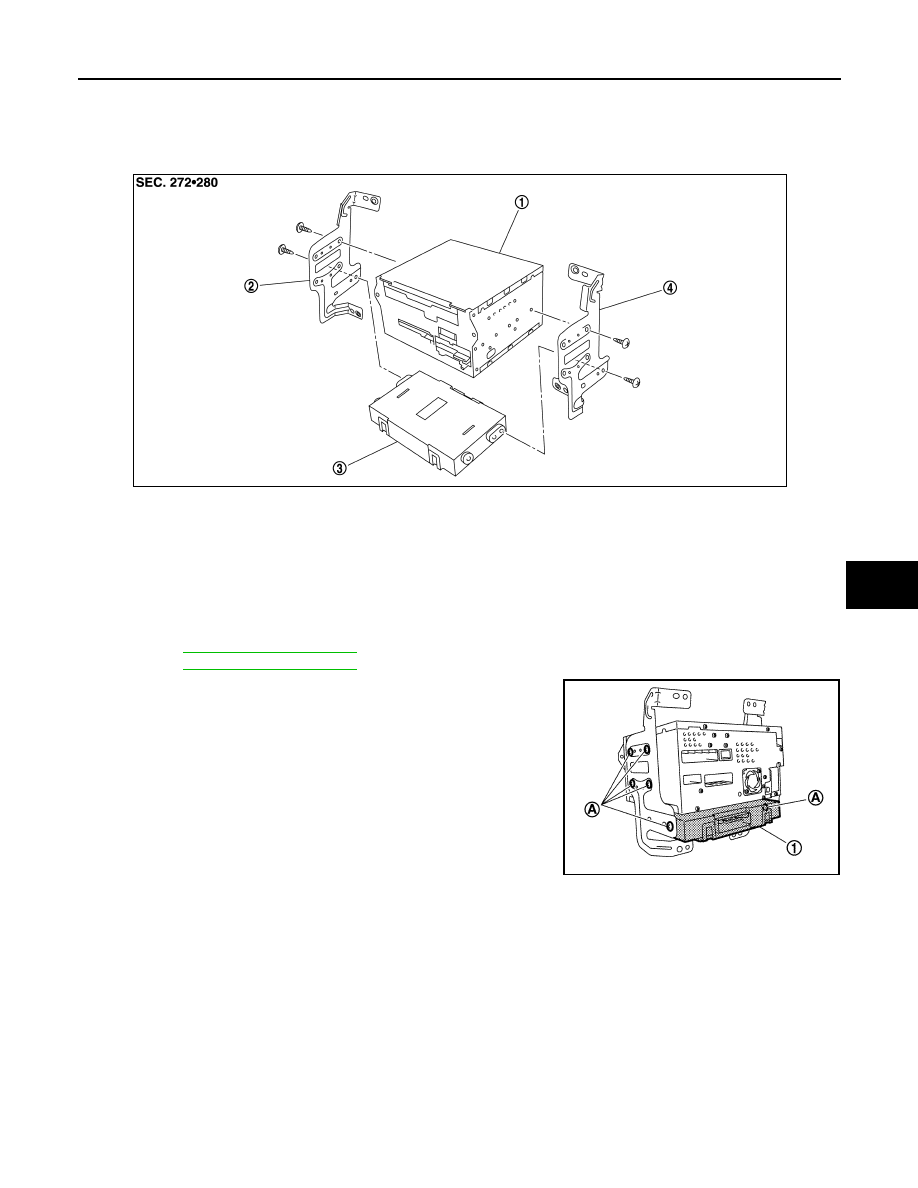

A/C AUTO AMP.

Exploded View

INFOID:0000000009721159

Removal and Installation

INFOID:0000000009721160

REMOVAL

1.

Remove AV control unit. Refer to the following.
• Refer to

AV-276, "Exploded View"

 (BOSE AUDIO WITHOUT NAVIGATION).

• Refer to

AV-448, "Exploded View"

 (BOSE AUDIO WITH NAVIGATION).

2.

Remove fixing screws (A) and then remove A/C auto amp. (1).

INSTALLATION

Install in the reverse order of removal.

1.

AV control unit

2.

Bracket LH

3.

A/C auto amp.

4.

Bracket RH

JPIIA0553ZZ

JPIIA0554ZZ

VTL-90

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

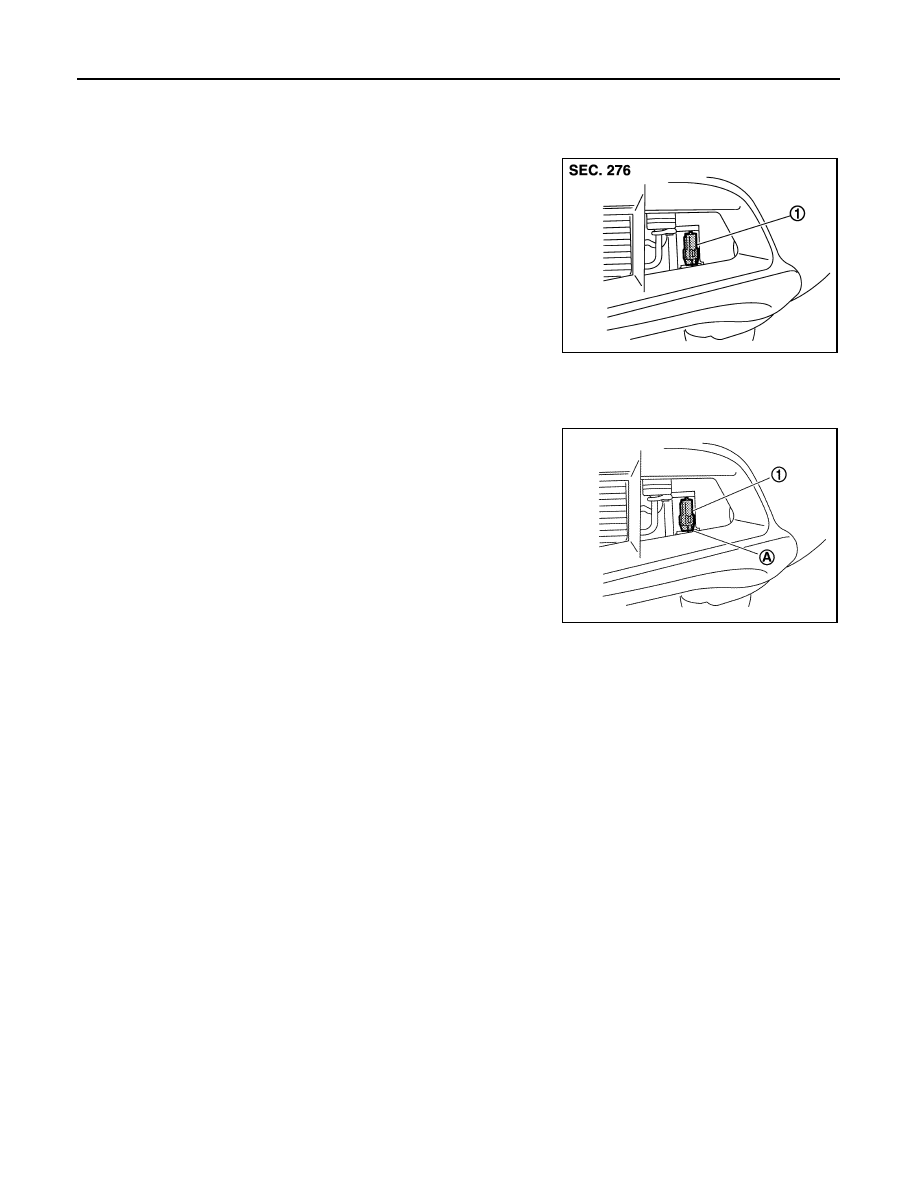

AMBIENT SENSOR

AMBIENT SENSOR

Exploded View

INFOID:0000000009721161

Removal and Installation

INFOID:0000000009721162

REMOVAL

Disconnect ambient sensor connector (A) and then remove ambient
sensor (1).

INSTALLATION

Install in the reverse order of removal.

1.

Ambient sensor

JPIIA1300ZZ

JPIIA0556ZZ

IN-VEHICLE SENSOR

VTL-91

< REMOVAL AND INSTALLATION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

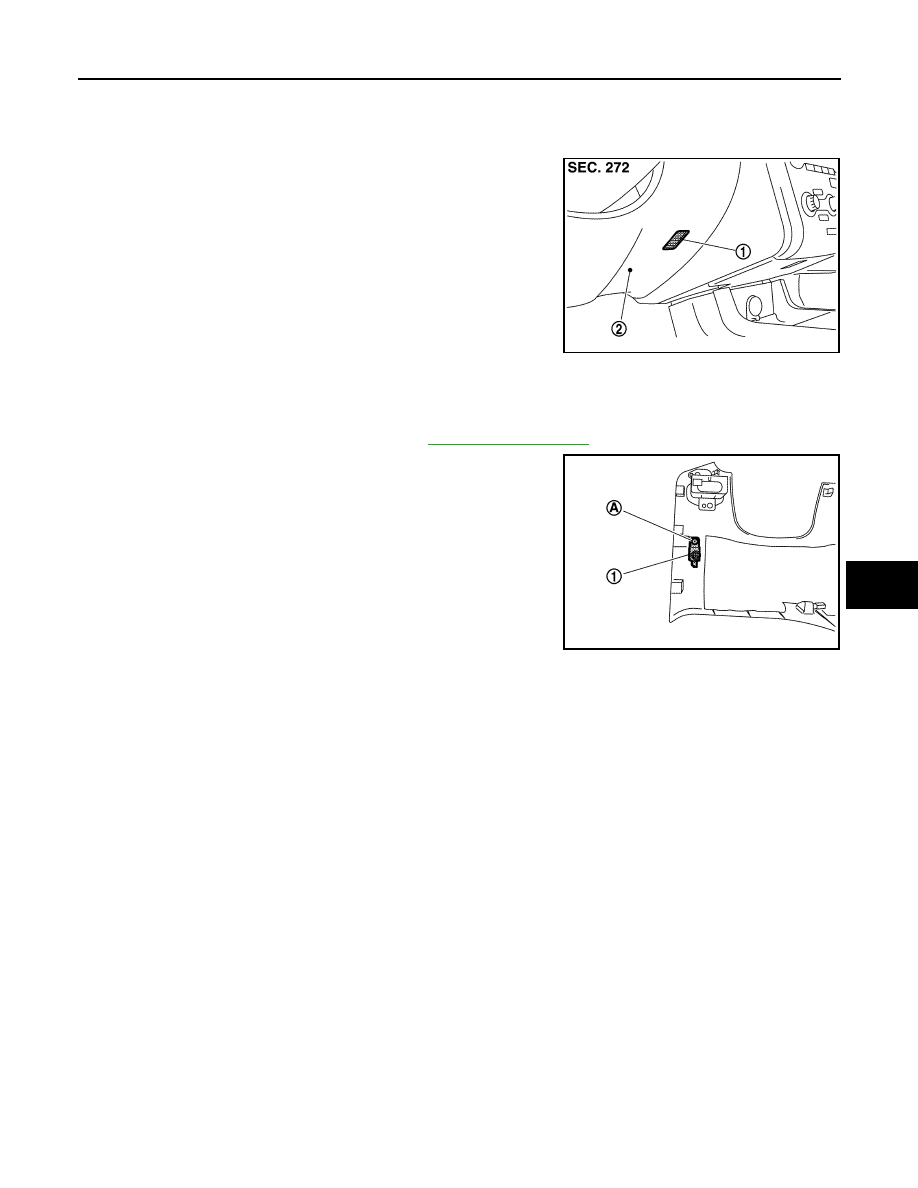

IN-VEHICLE SENSOR

Exploded View

INFOID:0000000009721163

Removal and Installation

INFOID:0000000009721164

REMOVAL

1.

Remove instrument lower panel LH.  Refer to

IP-14, "Exploded View"

.

2.

Remove fixing screw (A) and then remove in-vehicle sensor (1).

INSTALLATION

Install in the reverse order of removal.

1.

In-vehicle sensor

2.

Instrument lower panel LH

JPIIA0557ZZ

JPIIA0558ZZ
