MWI-28

< SYSTEM DESCRIPTION >

METER SYSTEM

• The combination meter receives the fuel consumption monitor signal from the ECM and the vehicle speed

signal from the ABS actuator and electric unit (control unit) via CAN communication.

• The combination meter calculates instantaneous fuel consumption according to the fuel consumption moni-

tor signal and the vehicle speed signal received via CAN communication.

AVERAGE FUEL CONSUMPTION

• The combination meter receives the fuel consumption monitor signal from the ECM and the vehicle speed

signal from the ABS actuator and electric unit (control unit) via CAN communication.

• The combination meter calculates the average fuel consumption according to the fuel consumption monitor

signal and the vehicle speed signal received via CAN communication.

• The average fuel consumption displayed on the information display is uploaded in approximately 30-second

intervals.

NOTE:
When turning ON the ignition switch after triggering a reset or removing/installing the battery, “

−−−−

” is indi-

cated until 30-seconds/500 m (0.31 miles) of driving.

AVERAGE VEHICLE SPEED

• The combination meter receives the vehicle speed signal from the ABS actuator and electric unit (control

unit) via CAN communication.

• Measures the time while the ignition switch is ON through the combination meter.
• The combination meter the average vehicle speed according to the above signals.
• The average vehicle speed displayed on the information display is uploaded in approximately 30-second

intervals.

NOTE:
When turning ON the ignition switch after triggering a reset or removing/installing the battery, “

−−−−

” is indi-

cated until 30 seconds.

TRAVEL TIME

Measures the time while the ignition switch is ON through the combination meter.

TRAVEL DISTANCE

• The combination meter receives the vehicle speed signal from the ABS actuator and electric unit (control

unit) via CAN communication.

• The combination meter calculates the vehicle distance according to the vehicle speed signal. The vehicle

distance is displayed.

POSSIBLE DRIVING DISTANCE

The combination meter calculates possible driving distance according to the vehicle speed signal and fuel
consumption monitor signal transmitted via CAN communication and the fuel level sensor signal transmitted
from the fuel level sensor.
NOTE:
• When turning ON the ignition switch after removing/installing the battery, “

−−−−

” is indicated until 30 sec-

onds.

• The indicated values may not match each other when refueling with the ignition switch ON. Refer to

MWI-

101, "INFORMATION DISPLAY : Description"

.

AMBIENT AIR TEMPERATURE

• The combination meter receives the ambient sensor signal from the ambient sensor.
• The combination meter calculates the ambient temperature according to the ambient sensor signal.
• The indicated temperature does not increase if the vehicle speed is less than 20 km/h (12 MPH).
NOTE:
• The ambient sensor input value that is displayed on “Data Monitor” of CONSULT is the value before the cor-

rection. It may not match the indicated temperature on the information display.

• The ambient temperature may be indicated higher than the actual temperature, depending on heat in the

engine, the road surface temperature, and so on.

SETTING

MWI

METER SYSTEM

MWI-29

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Setting item list

* : Press and hold the switch (1 second or more).

Items

Setting range

Setting unit

Description

ALERT

TIME TO REST

No setting - 6 hours

30 minutes,

[60 minutes]*

Time to rest is displayed on the informa-
tion display if the vehicle reached the set
travel distance.

ICY

ON/OFF

Low outside temp is displayed on the in-
formation display if the ambient tempera-
ture is 3

°

C (37

°

F) or less.

MAINTENANCE

ENGINE OIL

No setting - 18,500 miles,
(No setting - 30,000 km)

250 miles (500 km),

[500 miles (1,000 km)]*

The engine oil replacement interval is dis-
played on the information display if the ve-
hicle reached the set distance.

OIL FILTER

No setting - 18,500 miles,
(No setting - 30,000 km)

250 miles (500 km),

[500 miles (1,000 km)]*

The oil filter replacement interval is dis-
played on the information display if the ve-
hicle reached the set distance.

TIRE

No setting - 18,500 miles,
(No setting - 30,000 km)

250 miles (500 km),

[500 miles (1,000 km)]*

The tire replacement interval is displayed
on the information display if the vehicle
reached the set distance.

OTHER

No setting - 18,500 miles,
(No setting - 30,000 km)

250 miles (500 km),

[500 miles (1,000 km)]*

The other replacement interval is dis-
played on the information display if the ve-
hicle reached the set distance.

DISPLAY

LANGUAGE

ENGLISH/FRANCAIS

The language setting can be changed.

UNIT

US/METRIC

The unit setting can be changed.

DIAL EFFECTS

ON/OFF

The dial effects setting can be changed.

MWI-30

< SYSTEM DESCRIPTION >

METER SYSTEM

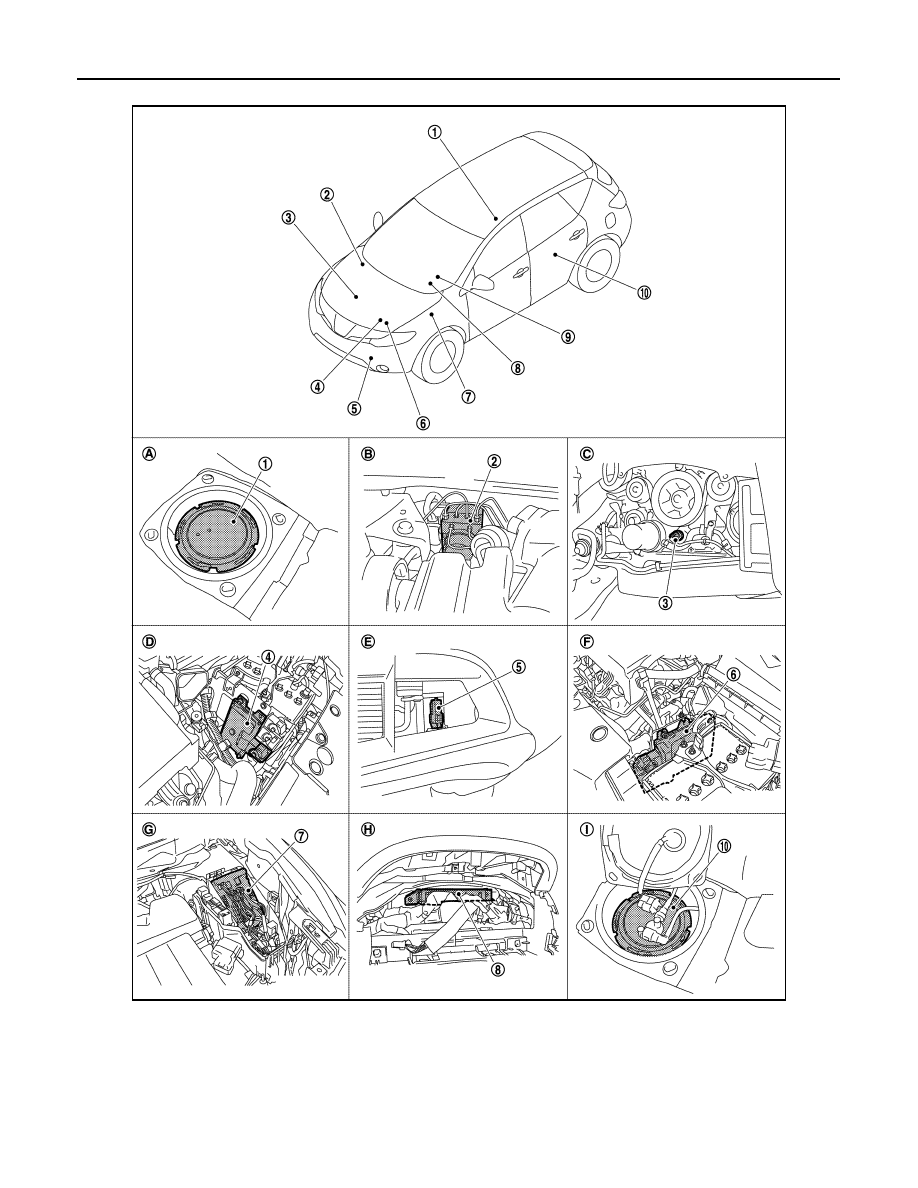

INFORMATION DISPLAY : Component Parts Location

INFOID:0000000009721258

JPNIA0813ZZ

1.

Fuel level sensor unit (sub)

2.

ABS actuator and electric unit (con-
trol unit)

3.

Oil pressure switch

4.

TCM

5.

Ambient sensor

6.

ECM

7.

IPDM E/R

8.

BCM

9.

Combination meter

10.

Fuel level sensor unit and fuel pump
(main)

MWI

METER SYSTEM

MWI-31

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

INFORMATION DISPLAY : Component Description

INFOID:0000000009721259

A.

Lower right side of rear seat

B.

Engine room (RH)

C.

Engine front side

D.

Engine room (LH)

E.

Front bumper (left back)

F.

Engine room (LH)

G.

Engine room (LH)

H.

Behind the combination meter

I.

Lower left side of rear seat

Unit

Description

Combination meter

Controls the information display according to the signal received from each unit.

Fuel level sensor unit

Refer to

MWI-46, "Description"

.

ECM

Transmits the following signals to the combination meter via CAN communication.

• Engine speed signal

• Fuel filler cap warning display signal

• Fuel consumption monitor signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

BCM

Transmits signals provided by various units to the combination meter via CAN communication.

Meter control switch

Transmits the following signals to the combination meter.

• Enter switch signal

• Select switch signal

Washer level switch

Transmits the washer level signal to the combination meter.

Parking brake switch

Refer to

MWI-54, "Description"

.

Door switch

Transmits the door switch signals to BCM.

IPDM E/R

Transmits the ambient sensor signal to the combination meter.

Ambient sensor

Detects the ambient air temperature and transmits the ambient sensor signal to the IPDM E/R.
