COMPASS

COMPASS

Description

INFOID:0000000009721260

DESCRIPTION

• This electronic compass is able to display 8 primary directions: N, NE, E, SE, S, SW, W, NW.
• The compass switch (1) is used to operate the compass.

Switch Operation

• All standard compasses determine direction relative to magnetic north, however, this electronic compass is

designed to display direction relative to true north.

• The difference between magnetic north and true north varies from place to place across the surface of the

earth.

• This electronic compass must be “told” approximately where it is on the earth’s surface so that the magnetic

north reading can be properly converted into a true north display.

• To tell the electronic compass where it’s at, the earth is separated into numbered “Zone Variances”. The

zone variance number in which the compass is to function must be entered into this electronic compass.

• Each zone is magnetically about 4.2

°

 wide. Typically, anything under a 22.5

°

 total zone change is not noticed

on the electronic compass display. However, if a change over 22.5

°

 occurs, a reading may be off by one or

more primary directions.

• On long trips, the vehicle may leave its original zone and enter one or more new zones. Generally, you do

not need to reset the compass zone if you travel between 3 or 4 zones, such as business travel or vacation.
The typical driver will not notice any difference on the display within 3 or 4 zones. However, if the vehicle is
“permanently” moved to a new location, it is recommended that the compass zone be reset.

ZONE VARIATION SETTING PROCEDURE

1.

Press and hold the compass switch for 3 – 9 seconds.

2.

The current zone setting appears on the compass display.

3.

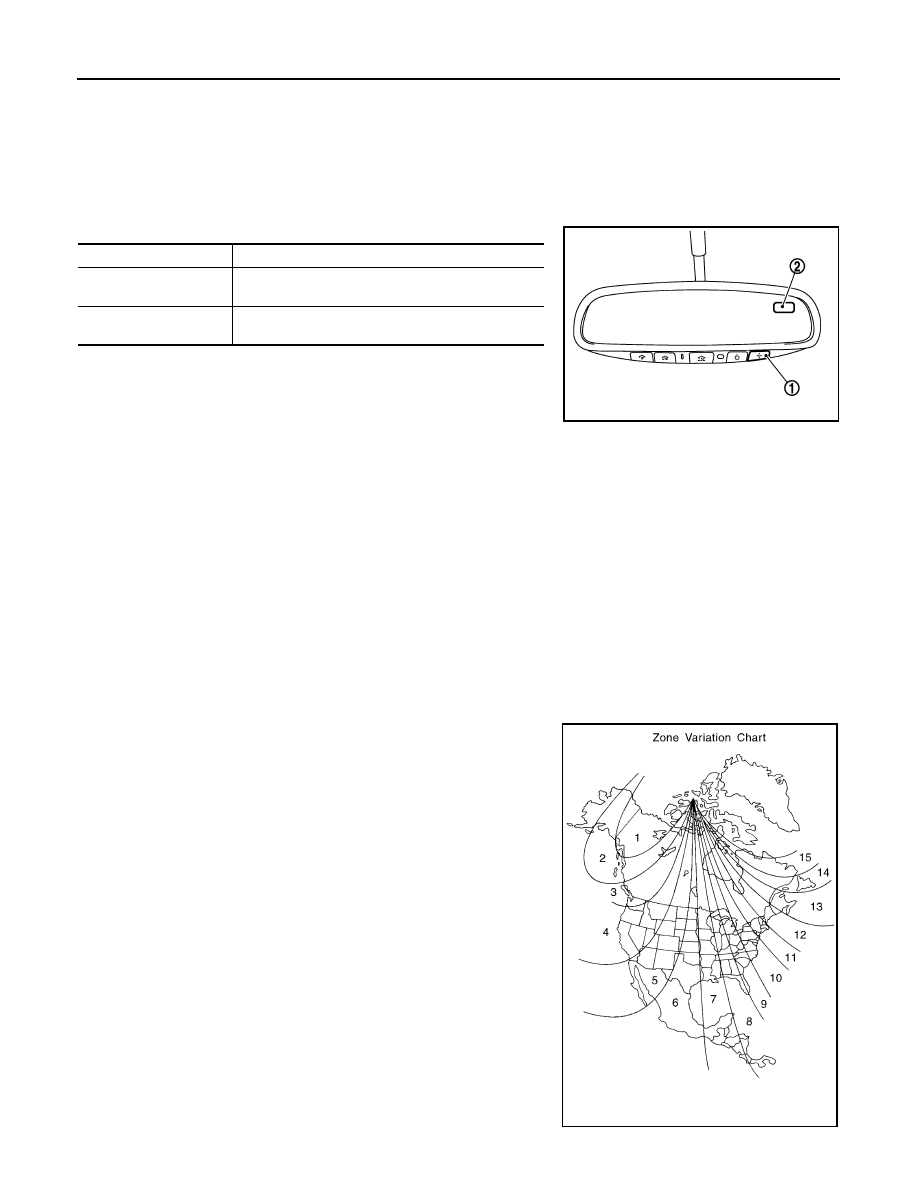

Find the current geographical location number in the zone varia-
tion chart.

4.

Select the new zone number. (Press the compass switch until
the new zone number appears on the compass display.)

5.

After select the new zone number, the compass display will
automatically shows a direction within a few seconds.

6.

Perform the following calibration procedure for more accurate
indications.

Press

Compass is turned ON/OFF

Press and hold
(for 3- 9 sec.)

Compass display (2) turns to zone variation change
mode

Press and hold (for more
than 9 sec.)

Compass display turns to calibration mode

SKIB8868E

SEL168Y

MWI

COMPASS

MWI-33

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CALIBRATION PROCEDURE

NOTE:
The compass calibrates itself under normal driving conditions. However, occasional circumstances may cause
the compass to operate inaccurately. Example: Driving from rural (wide open) areas to crowded city areas, or
if an aftermarket (i.e., non original equipment) antenna with a magnetic base is attached to the vehicle. Cali-
brate the mirror compass if the display shows only one direction or a limited number of directions.
NOTE:
• If “magnetic hats” are used in the dealership for vehicle identification, remove the hat from the vehicle before

performing the following steps. Do not put the hat back on the vehicle after the procedure is completed.

• Drive the vehicle to an open level area; away from large metallic objects, structures, and overhead power

lines.

• Turn off “non-essential” electrical accessories (rear window defrost, heater/air conditioning, wipers) and

close the doors.

1.

Verify the correct compass zone setting for the geographical location.

2.

Press and hold the compass switch for more than 9 seconds.

3.

“C” is displayed on the compass display when calibration starts.

4.

Drive slowly [less than 8 km/h (5 MPH)] in a circle until the “C / CAL” is replaced with primary headings (N,
NE, E, SE, S, SW, W, or NW).
NOTE:
This will require driving at least 2 complete 360 degree circles, 3 complete circles may be required.

5.

The compass calibration procedure is now complete. The compass should operate normally.
NOTE:
If at any time the compass continually displays the incorrect direction or the reading is erratic or locked,
repeat the calibration procedure.

Component Parts Location

INFOID:0000000009721261

Special Repair Requirement

INFOID:0000000009721262

1.

PERFORM ZONE VARIATION SETTING

Perform the zone variation setting. Refer to

MWI-32, "Description"

.

>> GO TO 2.

2.

PERFORM CALIBRATION

Perform the calibration. Refer to

MWI-32, "Description"

.

>> Setting completion

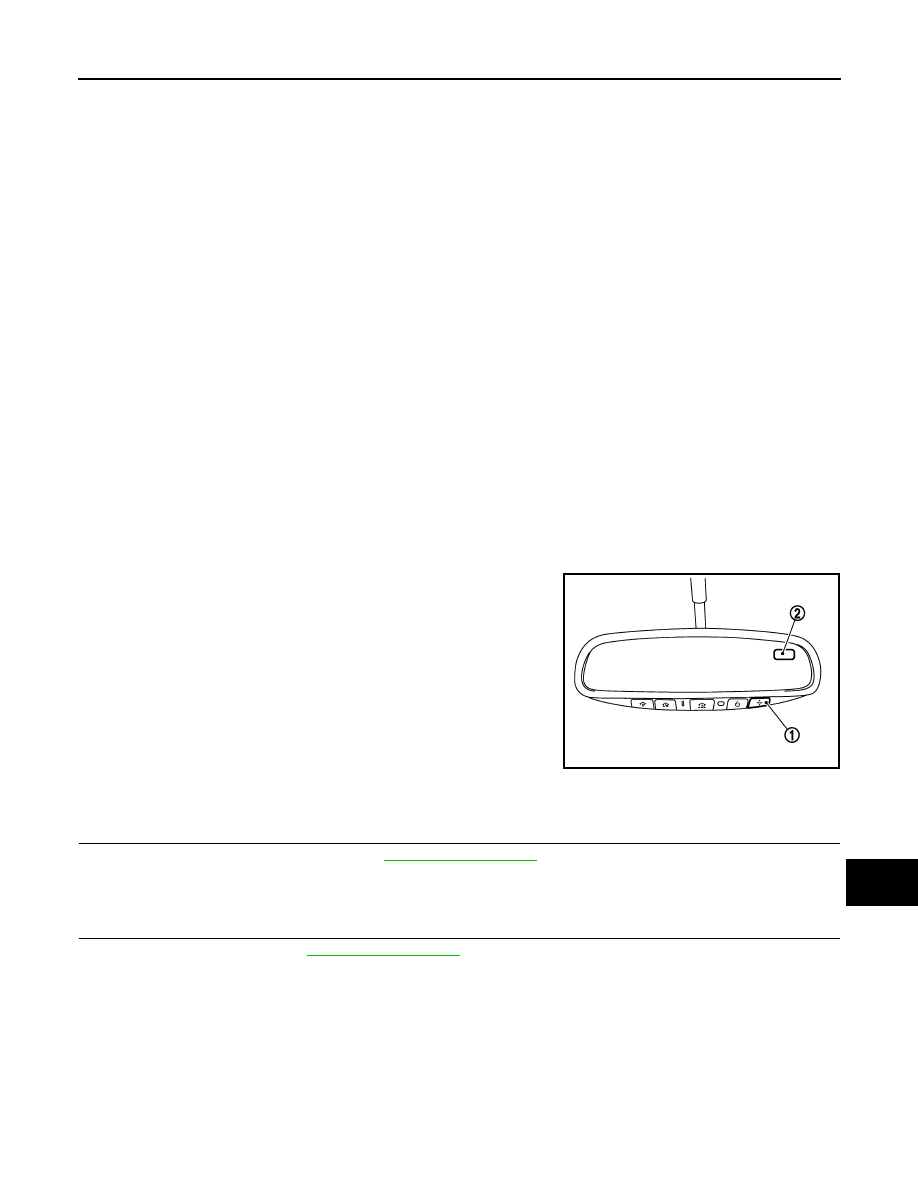

1

: Compass switch

2

: Compass display

SKIB8868E

MWI-34

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (METER)

DIAGNOSIS SYSTEM (METER)

Diagnosis Description

INFOID:0000000009721263

SELF-DIAGNOSIS MODE

• Information display LCD segment operation can be checked in self-diagnosis mode.
• Meters/gauges can be checked in self-diagnosis mode.

OPERATION PROCEDURE

1.

Turn ignition switch OFF.

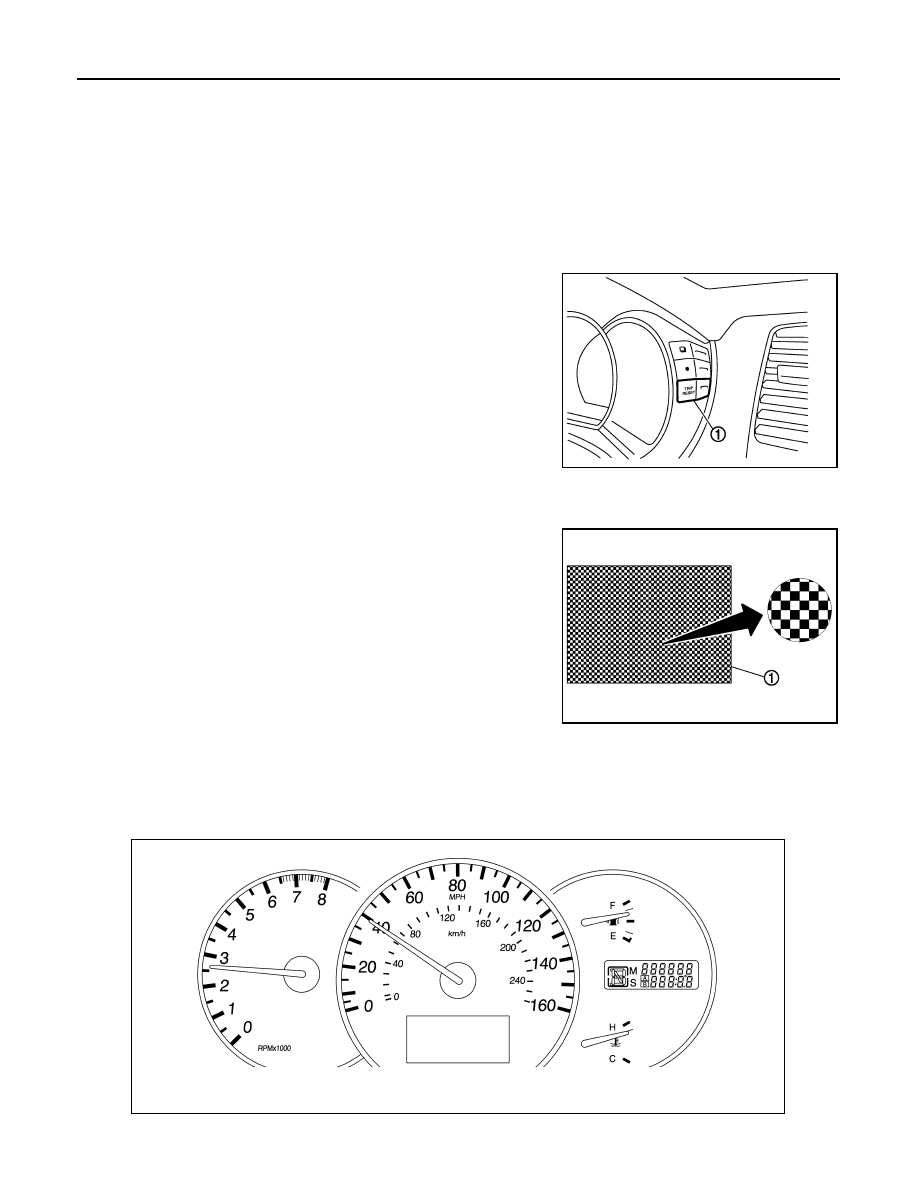

2.

While pressing the trip reset switch (1), turn ignition switch ON.
NOTE:
If the diagnosis function is activated with “trip A” displayed, the
mileage on “trip A” is reset to “0000.0”. (The same way for “trip
B”.)

3.

Make sure that the trip meter displays “0000.0”.

4.

Press the trip reset switch at least 3 times. (Within 7 seconds
after the ignition switch is turned ON.)

5.

The unified meter control unit is turned to self-diagnosis mode.
• All the segments on the odo/trip meter and shift position indicator illuminate.
• The segment dots of the information display LCD (1) blink

alternately.

• Engine coolant temperature gauge and fuel gauge return to

zero, simultaneously.

NOTE:
• Check combination meter power supply and ground circuit when the self-diagnosis mode of the combi-

nation meter does not start. Replace combination meter if abnormal.

• If any of the segments are not displayed, replace combination meter.

6.

Each meter activates by pressing the trip reset switch.

NOTE:

JPNIA0743ZZ

JPNIA0766ZZ

JSNIA3701ZZ

MWI

DIAGNOSIS SYSTEM (METER)

MWI-35

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• If any of the meters or gauges are not activated, replace combination meter.
• The figure is reference.

CONSULT Function (METER/M&A)

INFOID:0000000009721264

CONSULT APPLICATION ITEMS

CONSULT can perform the following diagnosis modes via CAN communication and the combination meter.

SELF DIAG RESULT

Refer to

MWI-77, "DTC Index"

.

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Display Item List

X: Applicable

System

Diagnosis mode

Description

METER/M&A

Self Diagnostic Result

The combination meter checks the conditions and displays memorized errors.

Data Monitor

Displays the combination meter input/output data in real time.

W/L ON History

Lighting history of the warning lamp and indicator lamp can be checked.

Display item [Unit]

MAIN

SIGNALS

Description

SPEED METER
[km/h]

X

Value of vehicle speed signal received from ABS actuator and electric unit (control
unit) via CAN communication.
NOTE:
655.35 is displayed when the malfunction signal is received.

SPEED OUTPUT
[km/h]

X

Vehicle speed signal value transmitted to other units via CAN communication.
NOTE:
655.35 is displayed when the malfunction signal is received.

ODO OUTPUT
[km/h or mph]

Odometer signal value transmitted to other units via CAN communication.

TACHO METER
[rpm]

X

Value of the engine speed signal received from ECM via CAN communication.
NOTE:
8191.875 is displayed when the malfunction signal is received.

FUEL METER
[L]

X

Fuel level indicated on combination meter.

W TEMP METER
[

°

C]

X

Value of engine coolant temperature signal is received from ECM via CAN com-
munication.
NOTE:
215 is displayed when the malfunction signal is input.

FUEL CAP W/L
[On/Off]

Status of fuel filler cap warning display detected from fuel filler cap warning display
signal received from ECM via CAN communication.

ABS W/L
[On/Off]

Status of ABS warning lamp detected from ABS warning lamp signal is received
from ABS actuator and electric unit (control unit) via CAN communication.

VDC/TCS IND
[On/Off]

Status of VDC OFF indicator lamp detected from VDC OFF indicator lamp signal
is received from ABS actuator and electric unit (control unit) via CAN communica-
tion.

SLIP IND
[On/Off]

Status of VDC warning lamp detected from VDC warning lamp signal received
from ABS actuator and electric unit (control unit) via CAN communication.

BRAKE W/L
[On/Off]

Status of brake warning lamp detected from brake warning lamp signal is received
from ABS actuator and electric unit (control unit) via CAN communication.
NOTE:
Displays “Off” if the brake warning lamp is illuminated when the valve check starts,
the parking brake switch is turned ON or the brake fluid level switch is turned ON.
