BACK DOOR LOCK

DLK-925

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

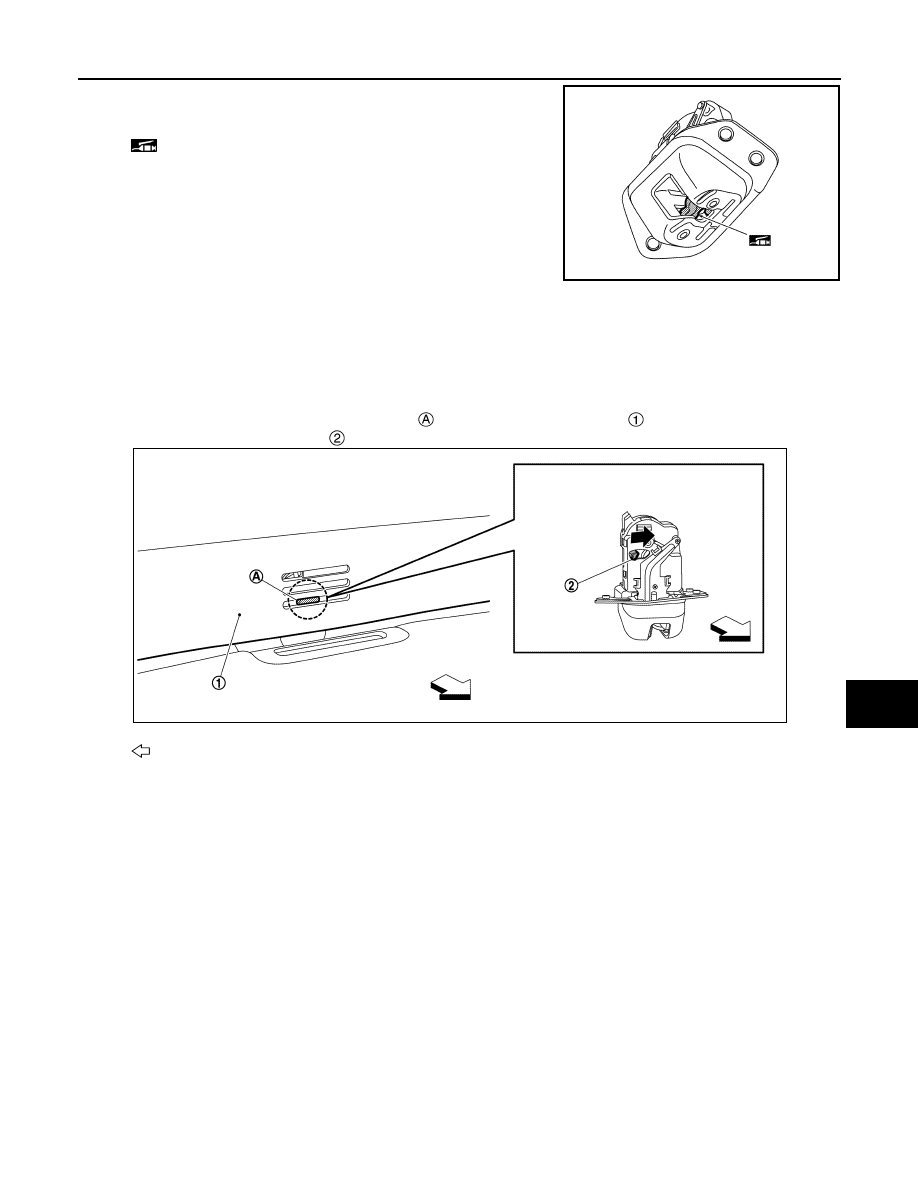

3.

Check door lock assembly for poor lubrication. Apply body
grease to door lock if necessary.

DOOR LOCK : Unlock procedures

INFOID:0000000010728713

UNLOCK PROCEDURES

NOTE:
Release lock according to the following procedures when lock cannot be unlocked due to a malfunction of
door lock assembly or battery discharge.
Insert a screwdriver, etc. into tool insertion hole

 of back door inner finisher

, and then back door lock is

unlocked by operating opener lever

 in the direction of arrow as shown in the figure.

: Body grease

JMKIB1220ZZ

: Vehicle front

JMKIB3162ZZ

DLK-926

< REMOVAL AND INSTALLATION >

[TYPE 4]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

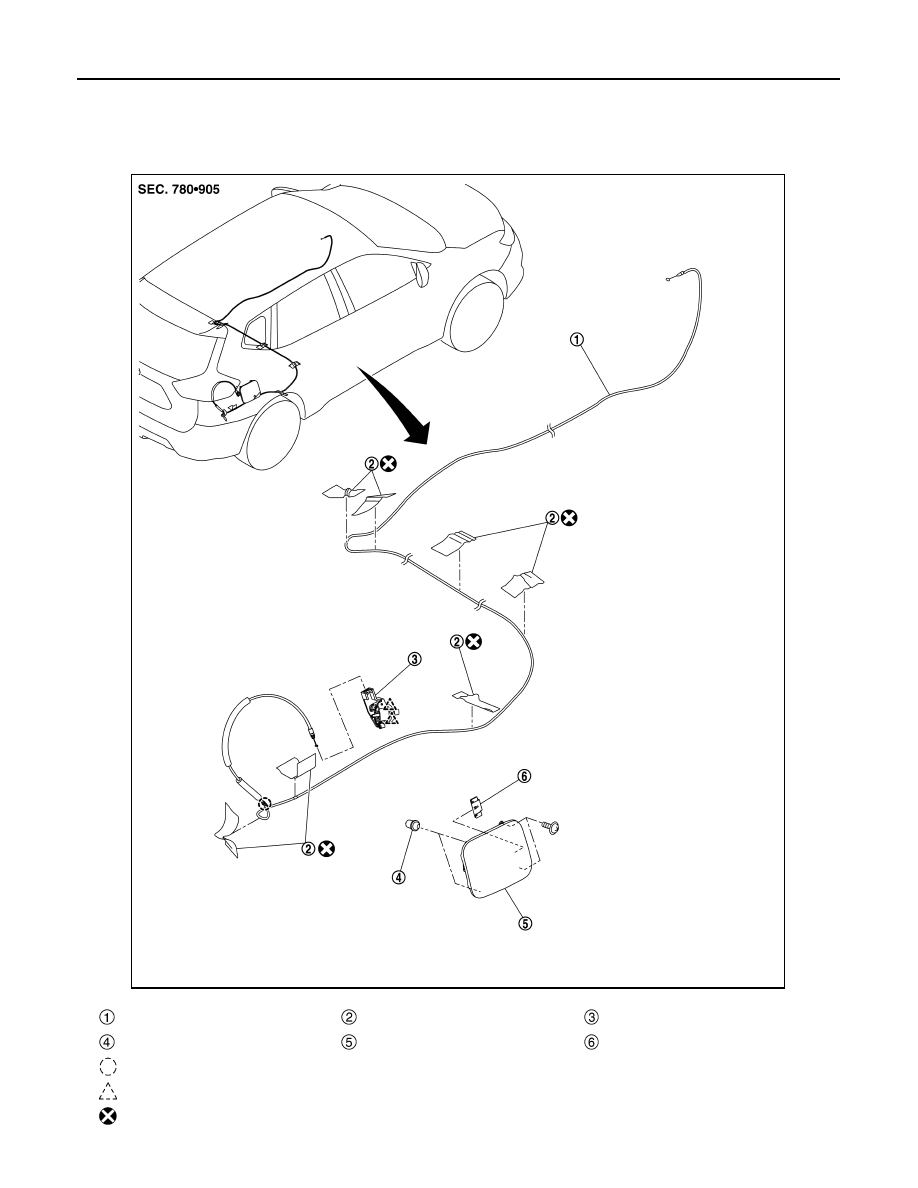

Exploded View

INFOID:0000000010728679

Fuel filler lid opener cable

Cable protector

Fuel filler lid lock assembly

Bumper rubber

Fuel filler lid assembly

Spring

: Clip

: Pawl

: Always replace after every disassembly.

JMKIB3488ZZ

FUEL FILLER LID OPENER

DLK-927

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

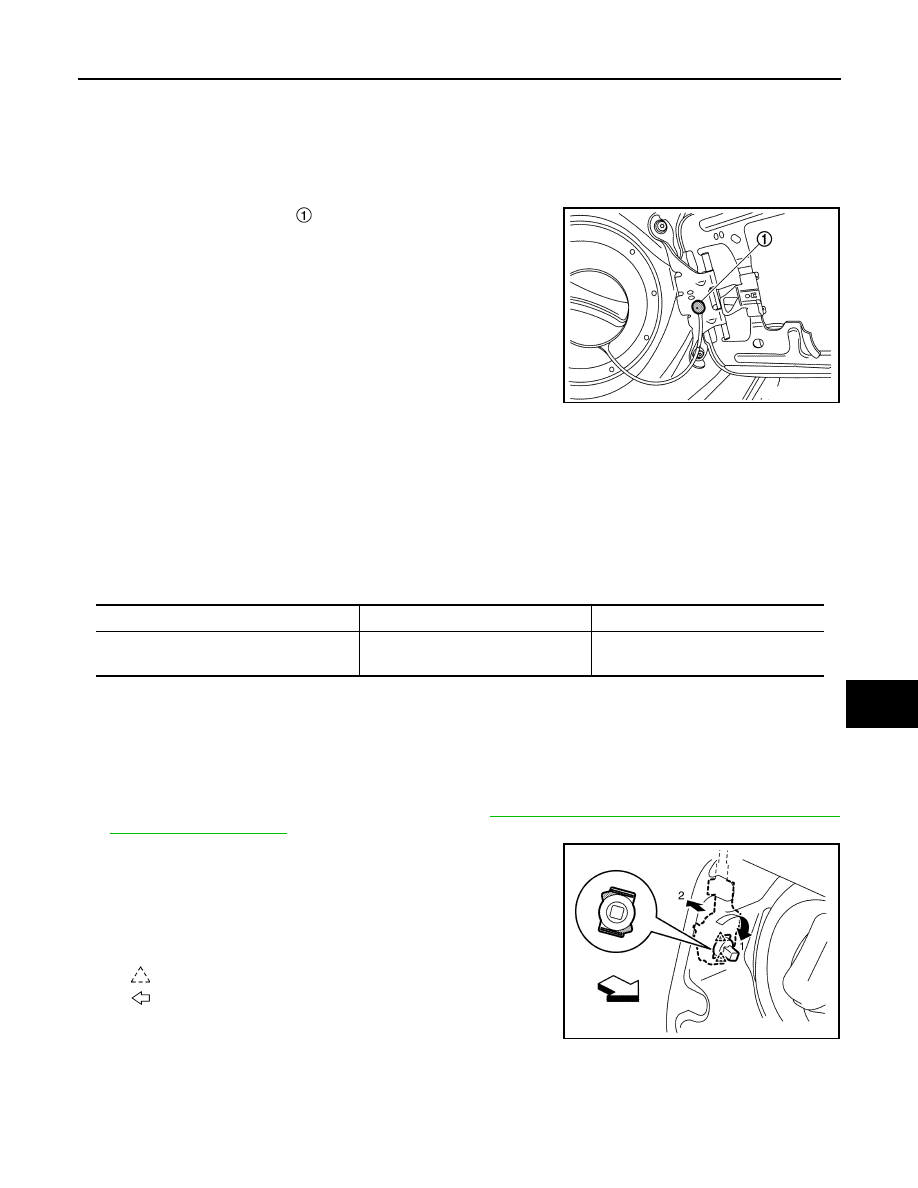

FUEL FILLER LID

FUEL FILLER LID : Removal and Installation

INFOID:0000000010728680

REMOVAL

1.

Fully open fuel filler lid.

2.

Remove fuel mounting pin

.

3.

Remove mounting bolts, and then remove fuel filler lid assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, apply the touch-up paint (the body color) onto the head of the mounting screws.
• After installation, check fuel filler lid assembly open/close, lock/unlock operation.
NOTE:
• The following table shows the specified values for checking normal installation status.
• Fitting adjustment cannot be performed.

Unit: mm [in]

FUEL FILLER LID LOCK

FUEL FILLER LID LOCK : Removal and Installation

INFOID:0000000010728681

REMOVAL

1.

Fully open fuel filler lid.

2.

Remove luggage side lower finisher RH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

3.

Rotate fuel filler lid lock assembly to disengage pawls and
remove fuel filler lid lock assembly according to the numerical
order 1

→

2 indicated by arrows as shown in the figure.

NOTE:
Operation is performed easily when rotating fuel filler lid lock
from passenger room side.

JMKIB3183ZZ

Clearance

Evenness

Fuel filler lid – Body side outer

2.5 – 4.5

[0.098 – 0.177]

(

−

1.0) – (+1.0)

[(

−

0.039) – (+0.039)]

: Pawl

: Vehicle front

JMKIB1094ZZ

DLK-928

< REMOVAL AND INSTALLATION >

[TYPE 4]

FUEL FILLER LID OPENER

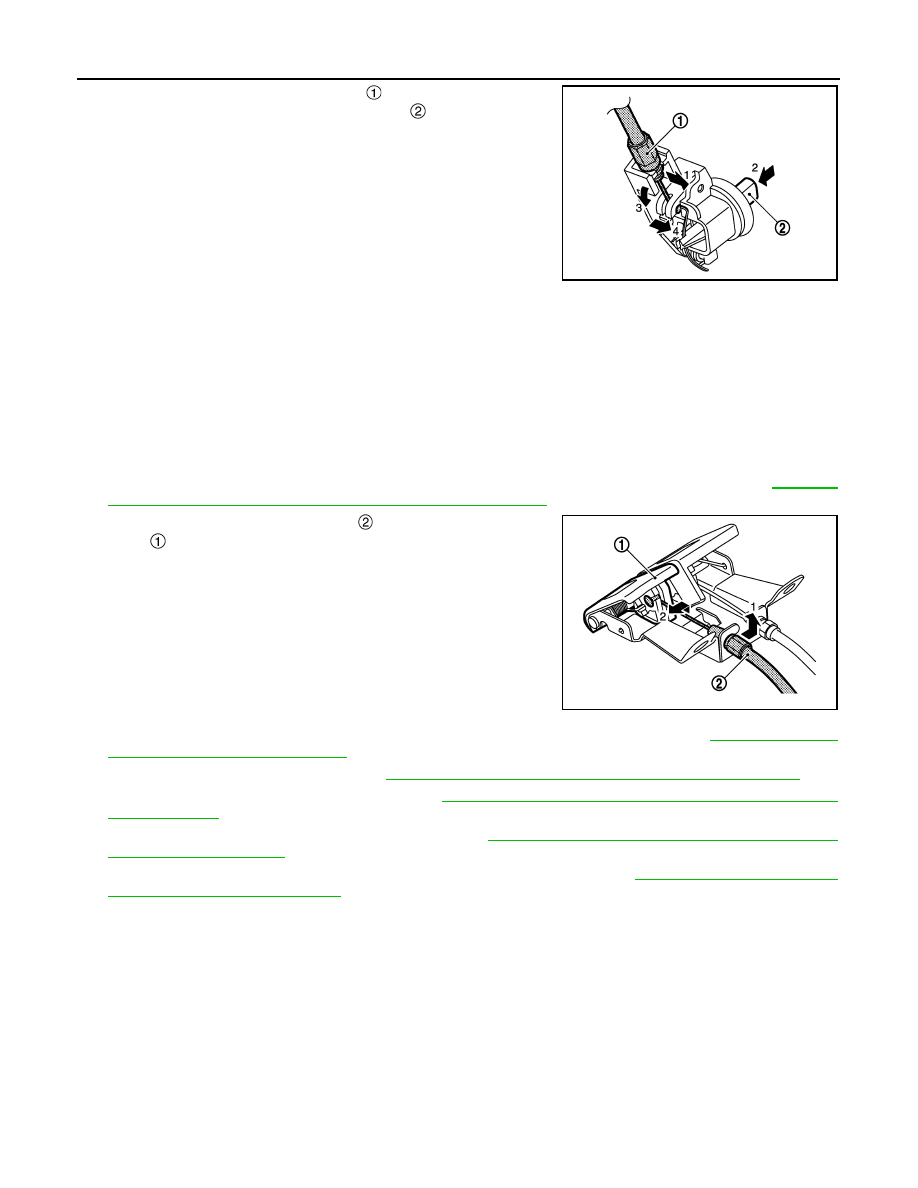

4.

Disengage fuel filler lid opener cable

 and remove fuel filler lid

opener cable while pressing stopper pin

 according to the

numerical order 1

→

4 indicated by arrows as shown in the figure.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

FUEL FILLER OPENER CABLE

FUEL FILLER OPENER CABLE : Removal and Installation

INFOID:0000000010728682

REMOVAL

1.

Remove hood lock control handle mounting bolts, and then hood lock control handle. Refer to

DLK-912,

"HOOD LOCK CONTROL HANDLE : Removal and Installation"

.

2.

Remove fuel filler lid opener cable

 from fuel filler lid opener

lever

 according to the numerical order 1

→

2 indicated by

arrows as shown in the figure.

3.

Remove kicking plate inner LH and rear kicking plate inner (LH and RH). Refer to

INT-24, "KICKING

PLATE : Removal and Installation"

.

4.

Remove dash side finisher LH. Refer to

INT-26, "DASH SIDE FINISHER : Removal and Installation"

.

5.

Remove center pillar lower garnish LH. Refer to

INT-27, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

6.

Remove luggage side lower finisher RH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

7.

Remove fuel filler lid opener cable from fuel filler lid lock assembly. Refer to

DLK-927, "FUEL FILLER LID

LOCK : Removal and Installation"

.

8.

Remove fuel filler lid opener cable from harness protectors.

9.

Remove fuel filler lid opener cable fixing clips, and then remove fuel filler lid opener cable.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.
