REAR DOOR LOCK

DLK-921

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• After installation, check door lock. Refer to

DLK-921, "DOOR LOCK : Inspection"

.

DOOR LOCK : Inspection

INFOID:0000000010728716

1.

After opening and closing the door, check that door is fixed to the vehicle body normally.

2.

Check the lock/unlock operation of door lock.

3.

Check door lock assembly for poor lubrication. Apply body
grease to door lock if necessary.

INSIDE HANDLE

INSIDE HANDLE : Removal and Installation

INFOID:0000000010728717

REMOVAL

1.

Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

2.

Remove inside handle mounting bolt.

3.

Disengage inside handle

 from door panel

 while sliding

inside handle toward vehicle rear, and then separate inside han-
dle.

4.

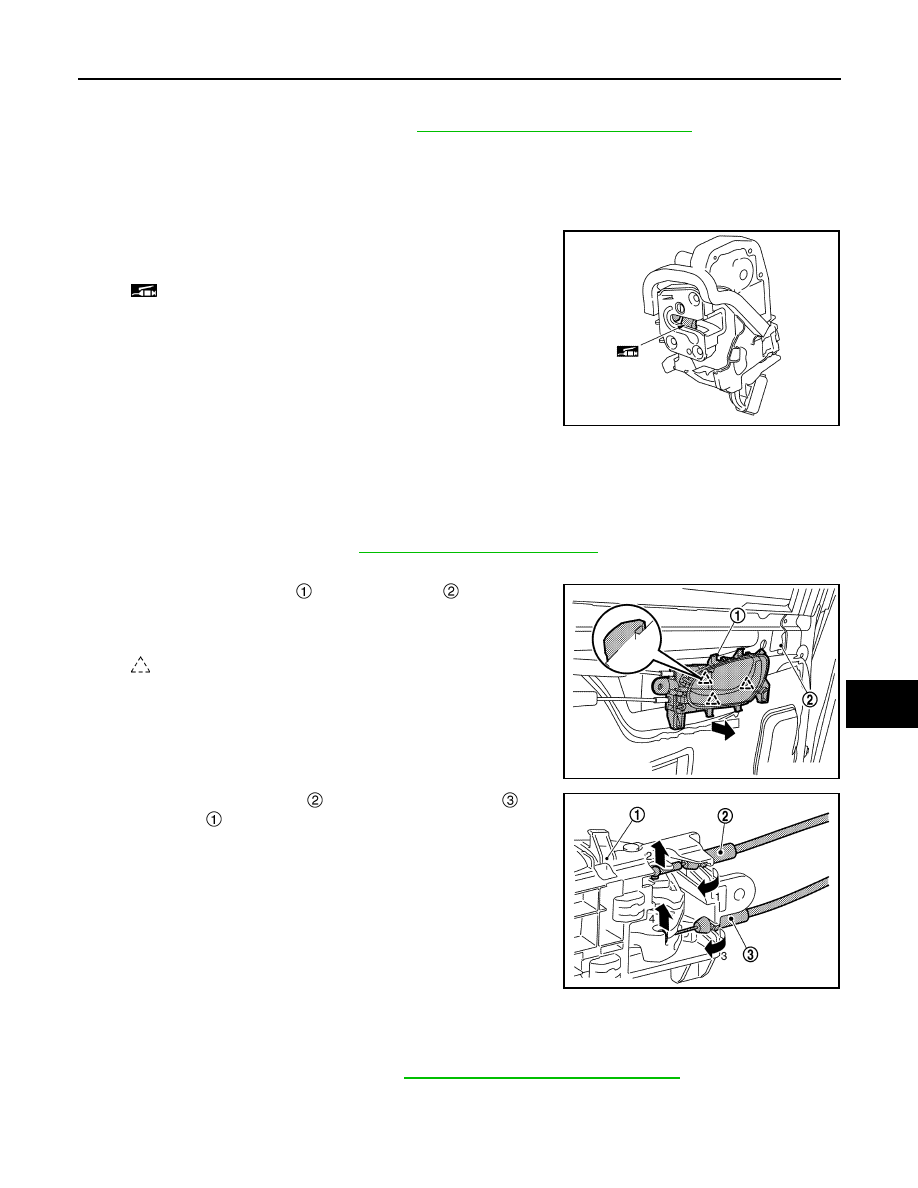

Disengage lock knob cable

 and inside handle cable

 from

inside handle

 according to the numerical order 1

→

4 indicated

by arrows as shown in the figure.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check door lock. Refer to

DLK-921, "DOOR LOCK : Inspection"

.

OUTSIDE HANDLE

: Body grease

JMKIA8534ZZ

: Pawl

JMKIB3527ZZ

JMKIB3521ZZ

DLK-922

< REMOVAL AND INSTALLATION >

[TYPE 4]

REAR DOOR LOCK

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010728718

REMOVAL

1.

Fully close the rear door glass.

2.

Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

3.

Remove inside handle. Refer to

DLK-921, "INSIDE HANDLE : Removal and Installation"

.

4.

Remove sealing screen and rear door lower sash. Refer to

GW-52, "REAR DOOR LOWER SASH :

Removal and Installation"

.

5.

Remove door side grommet

, and then loosen TORX bolt

 from grommet hole.

6.

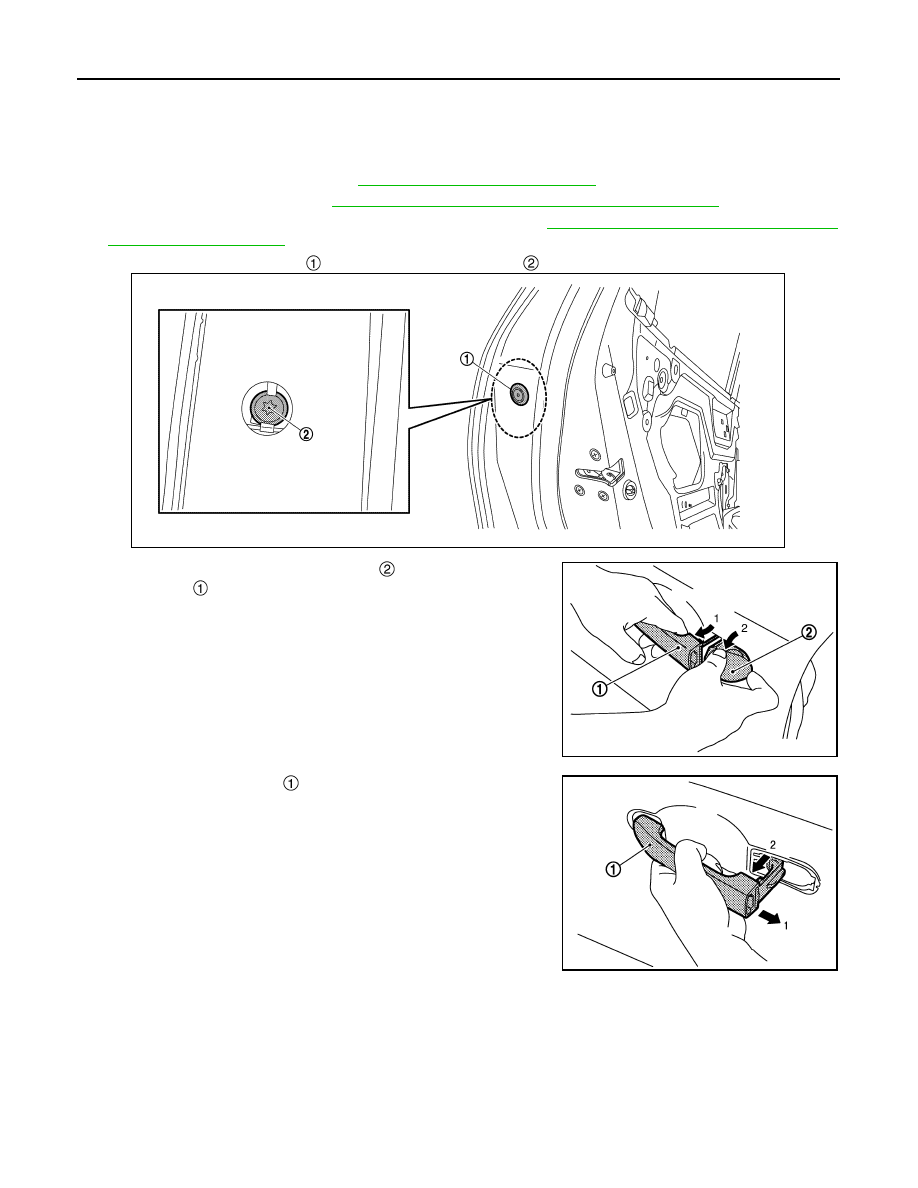

Remove outside handle escutcheon

 while pulling outside

handle grip

 according to the numerical order 1

→

2 indicated

by arrows as shown in the figure.

7.

Slide outside handle grip

 toward rear of vehicle and remove it

according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

JMKIB3528ZZ

JMKIB2479ZZ

JMKIA0524ZZ

REAR DOOR LOCK

DLK-923

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

8.

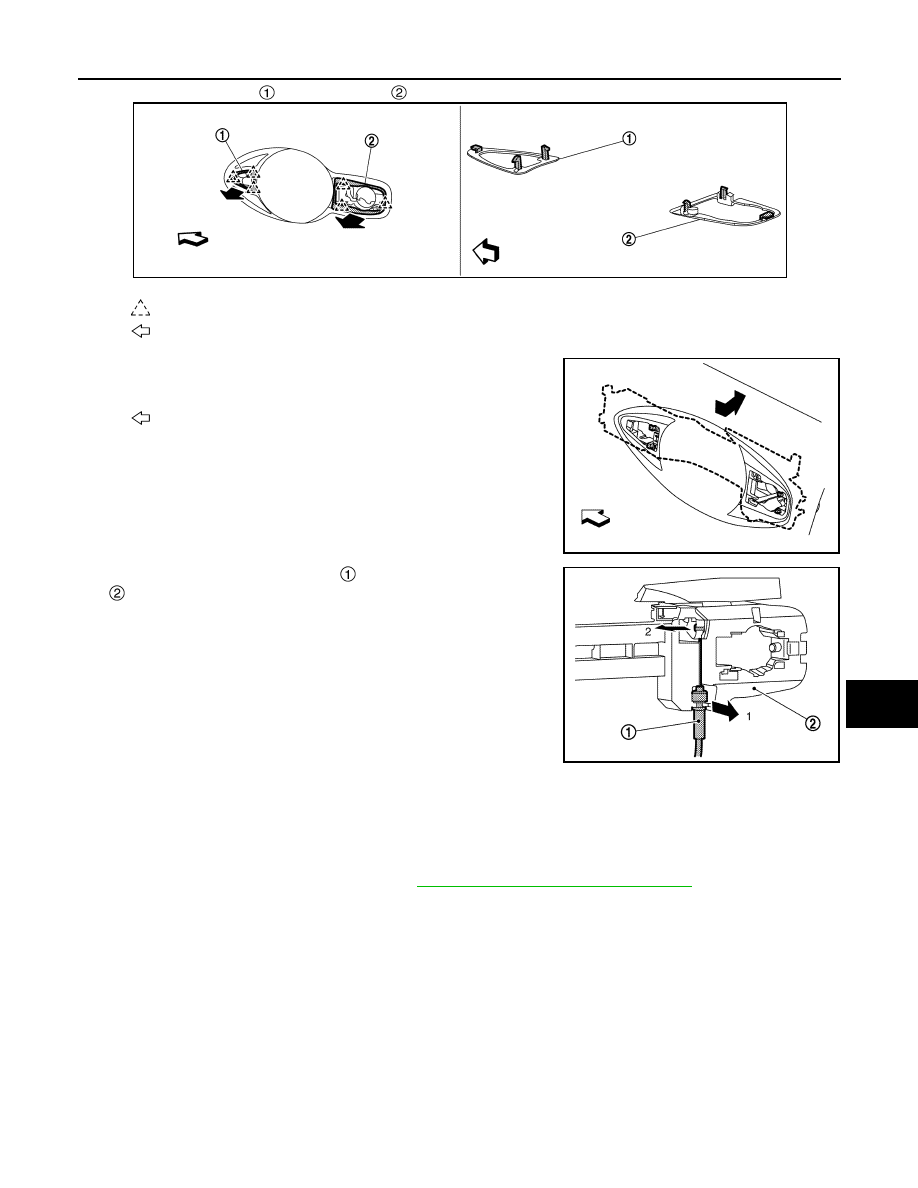

Remove front gasket

 and rear gasket

.

9.

Slide outside handle bracket toward rear of vehicle and remove
it.

10. Disconnect outside handle cable

 from outside handle bracket

 according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• After installation, check door lock. Refer to

DLK-921, "DOOR LOCK : Inspection"

.

: Pawl

: Vehicle front

JMKIB1627ZZ

: Vehicle front

JMKIB2034ZZ

JMKIB3525ZZ

DLK-924

< REMOVAL AND INSTALLATION >

[TYPE 4]

BACK DOOR LOCK

BACK DOOR LOCK

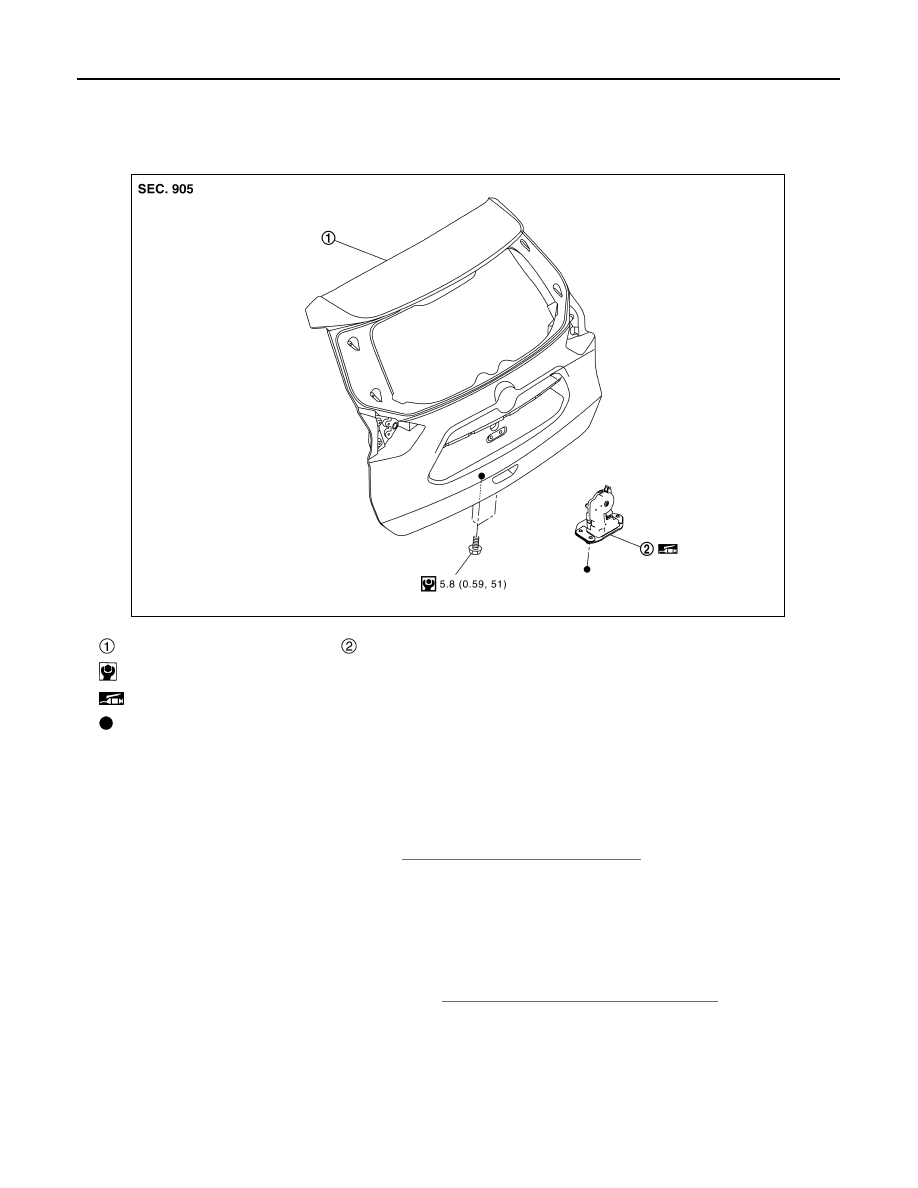

Exploded View

INFOID:0000000010728710

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000010728711

REMOVAL

1.

Remove back door inner finisher. Refer to

INT-47, "Removal and Installation"

.

2.

Disconnect back door lock assembly harness connector.

3.

Remove back door lock assembly mounting bolts, and then remove back door lock assembly from back
door panel.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check back door lock. Refer to

DLK-924, "DOOR LOCK : Inspection"

.

DOOR LOCK : Inspection

INFOID:0000000010728712

1.

After opening and closing the back door, check that door is fixed to the vehicle body normally.

2.

Check the lock/unlock operation of door lock.

Back door panel

Back door lock assembly

: N·m (kg-m, in-lb)

: Body grease

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3481GB
