HOOD LOCK

DLK-913

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

Remove fuel filler lid opener cable from fuel filler lid opener lever. Refer to

DLK-928, "FUEL FILLER

OPENER CABLE : Removal and Installation"

.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, perform hood lock control inspection. Refer to

DLK-911, "HOOD LOCK : Inspection"

.

HOOD LOCK CONTROL CABLE

HOOD LOCK CONTROL CABLE : Removal and Installation

INFOID:0000000010728661

REMOVAL

1.

Remove air duct 1. Refer to

EM-31, "Removal and Installation"

 (MR20DD) or

EM-175, "Removal and

Installation"

 (QR25DE) or

EM-308, "Removal and Installation"

 (R9M).

2.

Disconnect hood lock control cable assembly from hood lock assembly. Refer to

DLK-910, "HOOD LOCK

: Removal and Installation"

.

3.

Remove fender protector LH. Refer to

EXT-35, "FENDER PROTECTOR : Removal and Installation"

.

4.

Remove hood lock control cable fixing clips.

5.

Disconnect hood lock control cable assembly from hood lock control handle. Refer to

DLK-912, "HOOD

LOCK CONTROL HANDLE : Removal and Installation"

.

6.

Remove dash side finisher LH. Refer to

INT-26, "DASH SIDE FINISHER : Removal and Installation"

.

7.

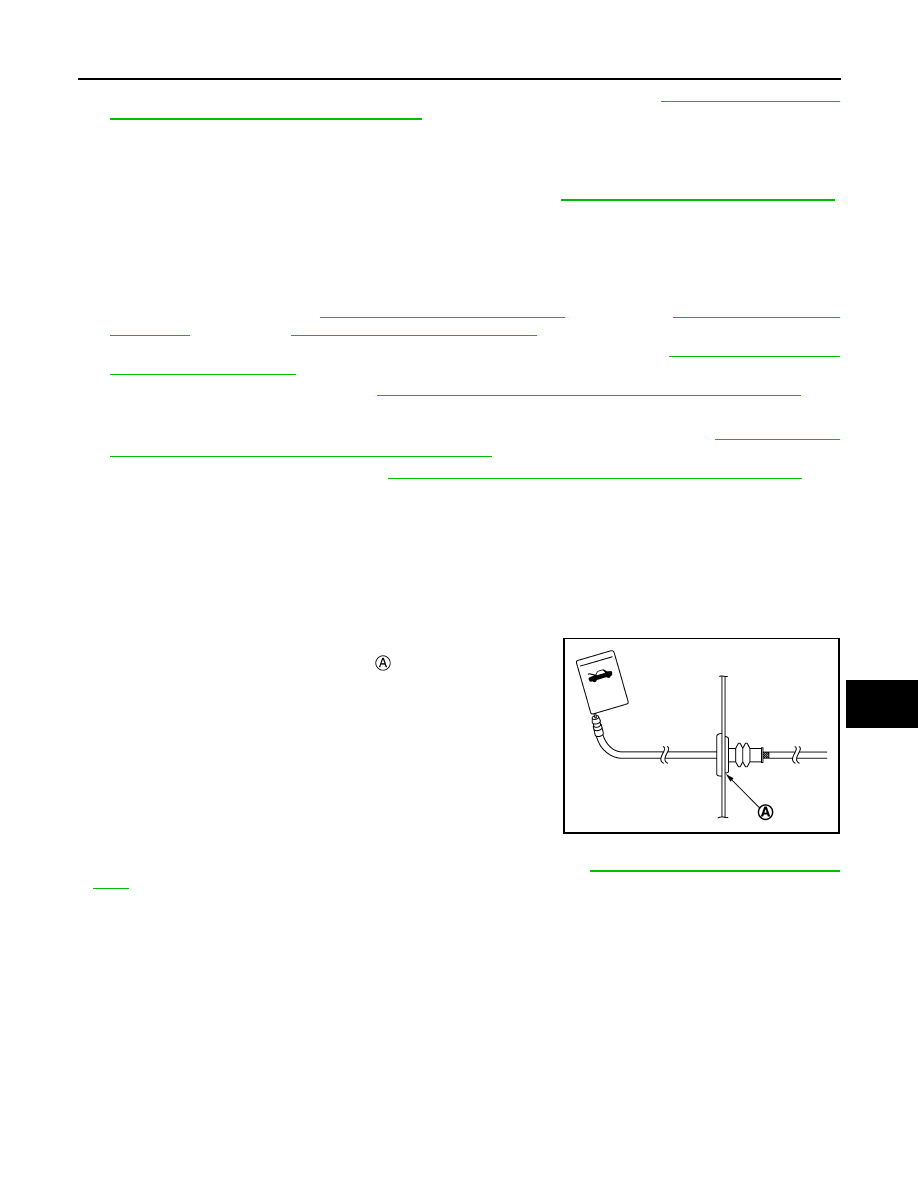

Remove grommet of the lower dash, and pull the hood lock control cable assembly toward inside vehicle.

CAUTION:

While pulling, never damage (peeling) the outside of hood lock control cable.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.
• Install grommet in the panel hole surely.
• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet

 properly.

• After installation, perform hood lock control inspection. Refer to

DLK-911, "HOOD LOCK : Inspec-

tion"

.

HOOD LOCK BELL CRANK

HOOD LOCK BELL CRANK : Removal and Installation

INFOID:0000000010728662

REMOVAL

JMKIA5814ZZ

DLK-914

< REMOVAL AND INSTALLATION >

[TYPE 4]

HOOD LOCK

1.

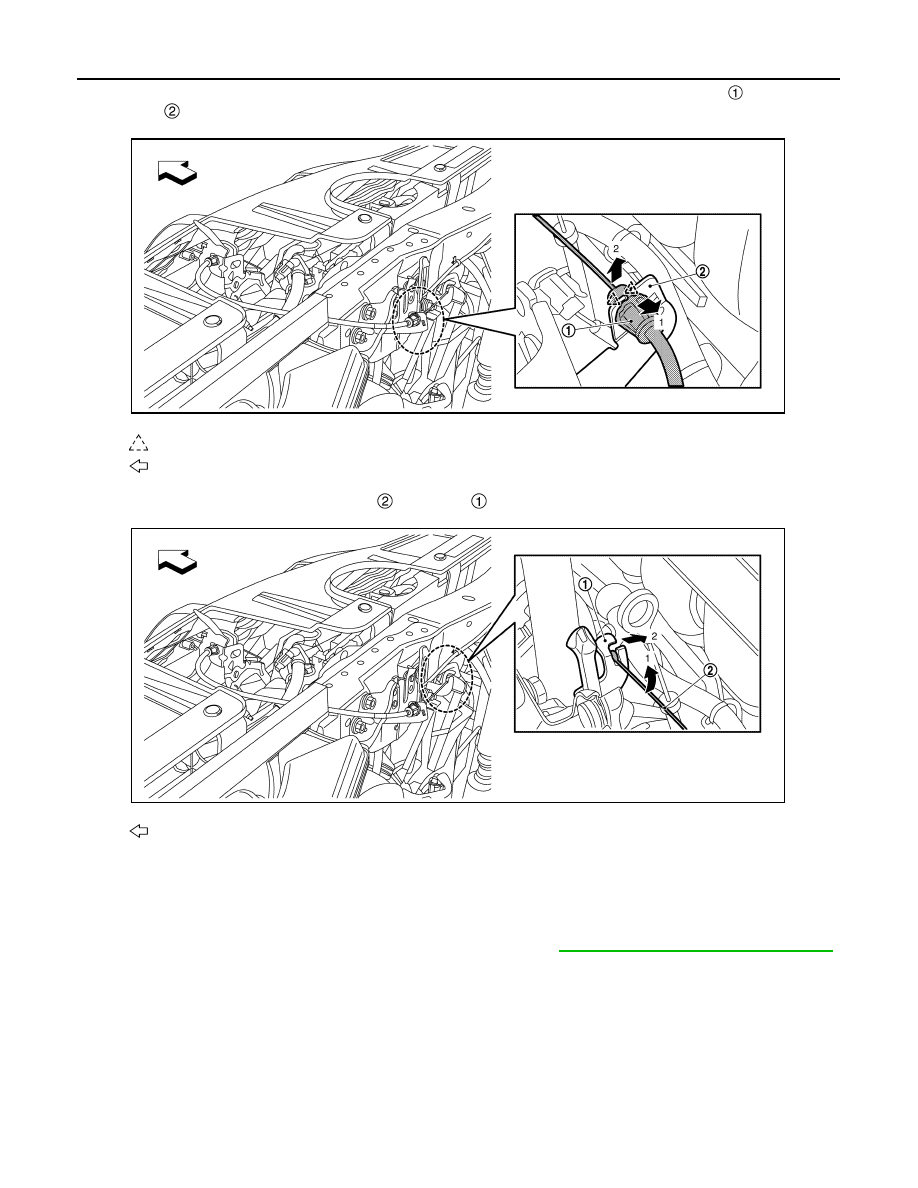

Disengage pawls of hood lock bell crank cable and disconnect hood lock bell crank cable

 from housing

bracket

 of hood lock assembly according to the numerical order 1

→

2 indicated by arrows as shown in

the figure.

2.

Disconnect hood lock bell crank cable

 from lever

 of hood lock assembly according to the numerical

order 1

→

2 indicated by arrows as shown in the figure.

3.

Remove hood lock bell crank assembly mounting bolts, and then remove hood lock bell crank assembly.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, perform hood lock control inspection. Refer to

DLK-911, "HOOD LOCK : Inspection"

.

: Pawl

: Vehicle front

JMKIB2981ZZ

: Vehicle front

JMKIB2982ZZ

FRONT DOOR LOCK

DLK-915

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR LOCK

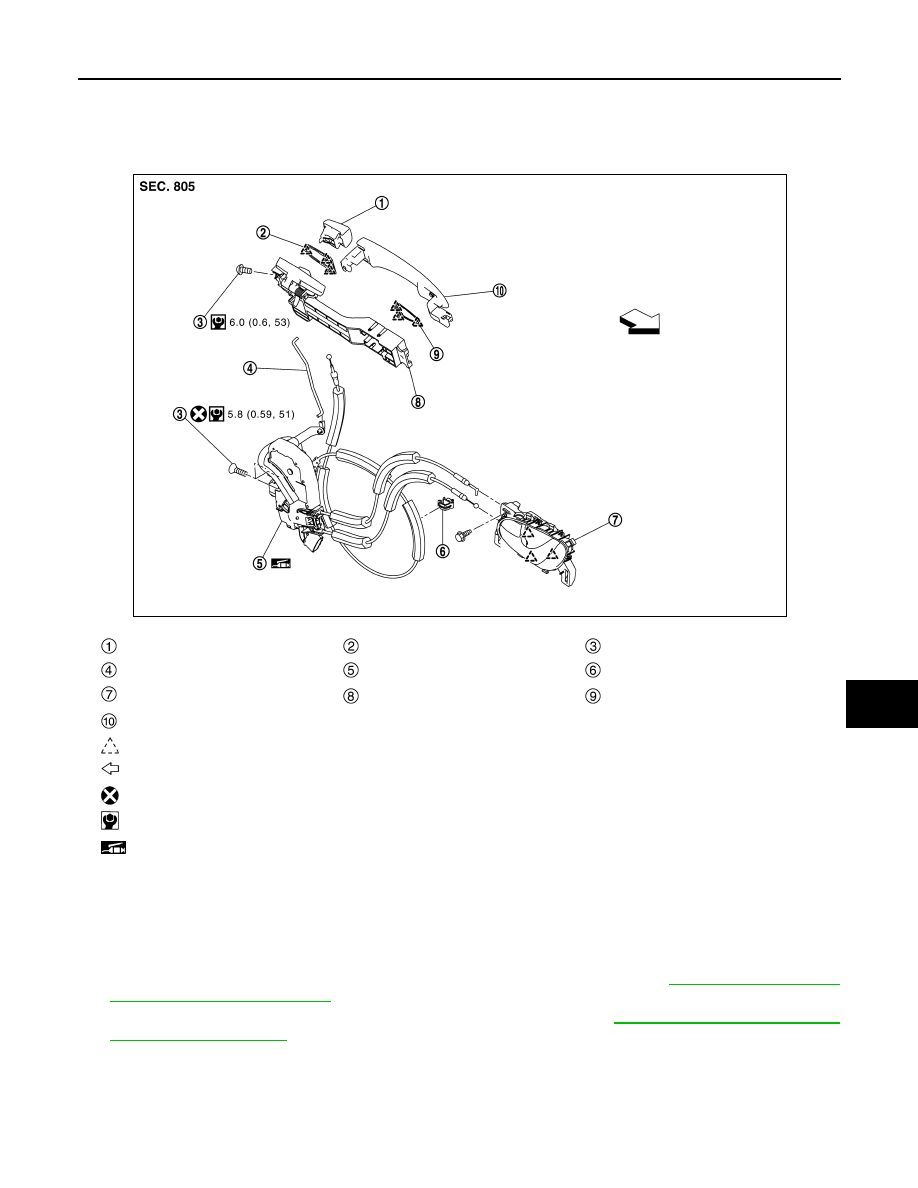

Exploded View

INFOID:0000000010728663

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000010728664

REMOVAL

1.

Disconnect lock knob cable and inside handle cable from inside handle. Refer to

DLK-916, "INSIDE HAN-

DLE : Removal and Installation"

.

2.

Disconnect outside handle cable from outside handle bracket. Refer to

DLK-917, "OUTSIDE HANDLE :

Removal and Installation"

.

3.

Disconnect door lock assembly connector.

4.

Remove door lock assembly TORX bolts, and then remove door lock assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

Outside handle escutcheon

Rear gasket

TORX bolt

Key rod (driver side)

Door lock assembly

Cable clip

Inside handle

Outside handle bracket

Front gasket

Outside handle grip

: Pawl

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

JMKIB3519GB

DLK-916

< REMOVAL AND INSTALLATION >

[TYPE 4]

FRONT DOOR LOCK

CAUTION:

• Never reuse TORX bolt. Always replace it with a new one when it is removed.
• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• When installing key rod, rotate key rod holder until a click is felt.
• After installation, check door lock. Refer to

DLK-916, "DOOR LOCK : Inspection"

.

DOOR LOCK : Inspection

INFOID:0000000010728665

1.

After opening and closing the door, check that door is fixed to the vehicle body normally.

2.

Check the lock/unlock operation of door lock.

3.

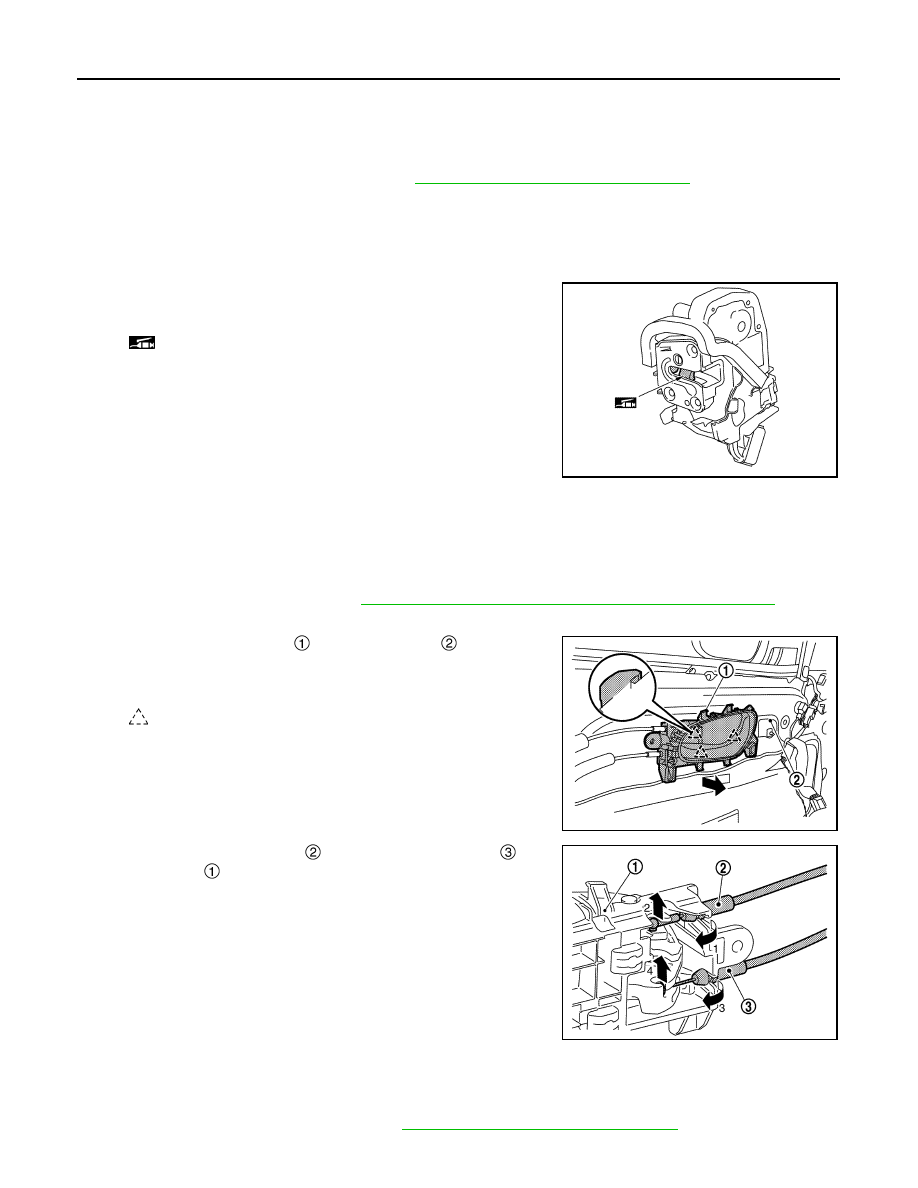

Check door lock assembly for poor lubrication. Apply body
grease to door lock if necessary.

INSIDE HANDLE

INSIDE HANDLE : Removal and Installation

INFOID:0000000010728666

REMOVAL

1.

Remove front door finisher. Refer to

INT-26, "DASH SIDE FINISHER : Removal and Installation"

.

2.

Remove inside handle mounting bolt.

3.

Disengage inside handle

 from door panel

 while sliding

inside handle toward vehicle rear, and then separate inside han-
dle.

4.

Disengage lock knob cable

 and inside handle cable

 from

inside handle

 according to the numerical order 1

→

4 indicated

by arrows as shown in the figure.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check door lock. Refer to

DLK-916, "DOOR LOCK : Inspection"

.

: Body grease

JMKIA8534ZZ

: Pawl

JMKIB3520ZZ

JMKIB3521ZZ
