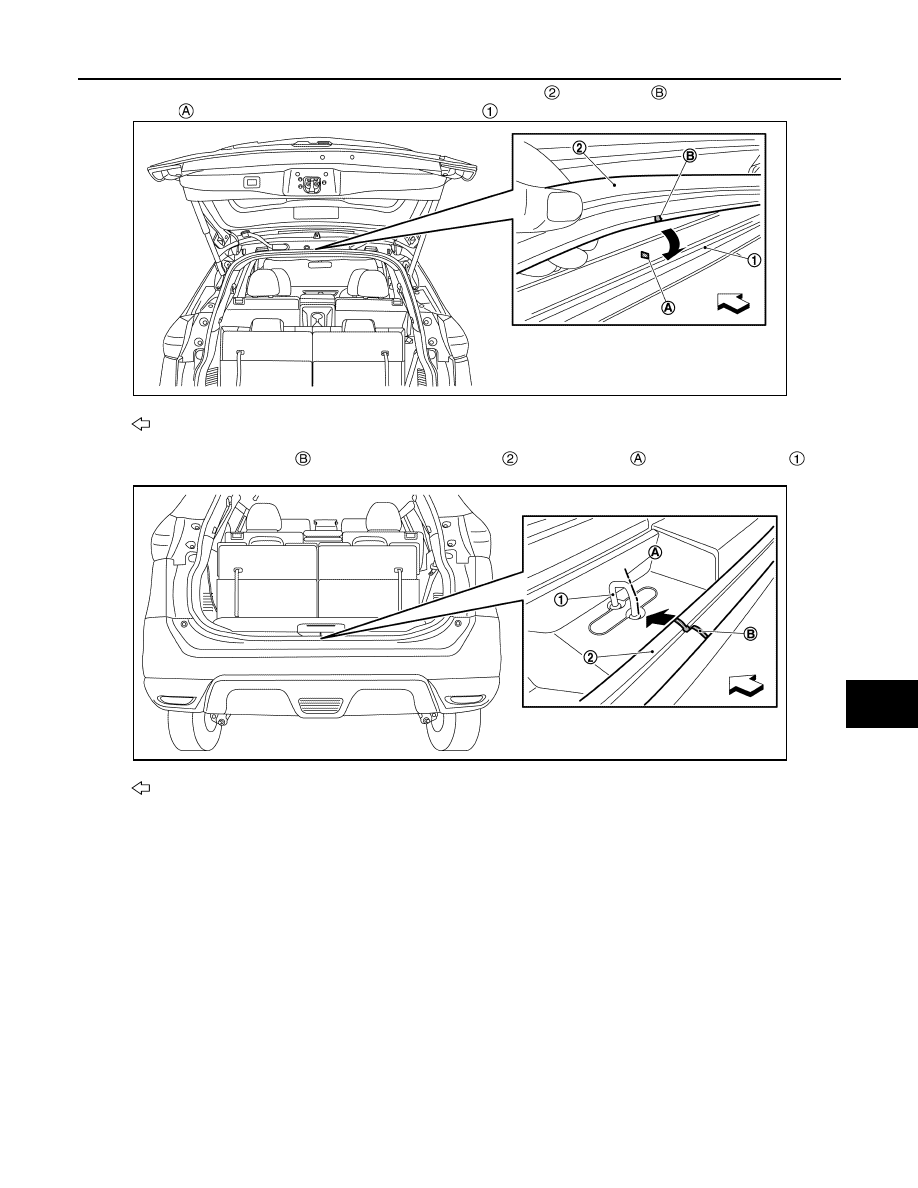

1.

Working from the upper section, align back door weather-strip

 center mark

 with vehicle center posi-

tion mark

 and install weather-strip onto the vehicle

.

2.

Align the connecting point

 of back door weather-strip

 with the center

 of back door striker

, and

then install weather-strip onto the vehicle.

3.

Pull back door weather-strip gently to ensure that there is no loose section.

CAUTION:

Check that weather-strip fits tightly in each corner.

: Vehicle front

JMKIB3151ZZ

: Vehicle front

JMKIB3152ZZ

DLK-910

< REMOVAL AND INSTALLATION >

[TYPE 4]

HOOD LOCK

HOOD LOCK

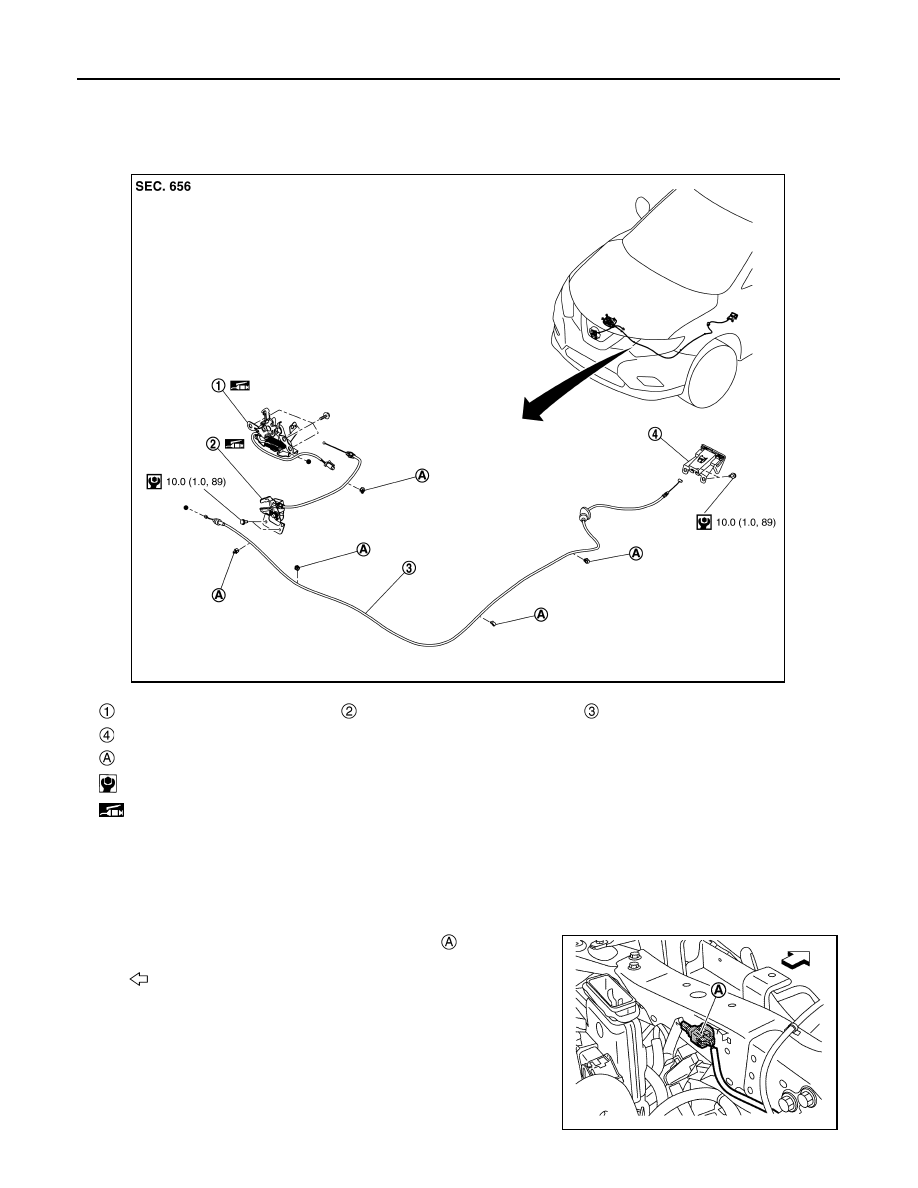

Exploded View

INFOID:0000000010728657

HOOD LOCK

HOOD LOCK : Removal and Installation

INFOID:0000000010728658

REMOVAL

1.

Disconnect hood lock switch harness connector

 (if equipped).

Hood lock assembly

Hood lock bell crank assembly

Hood lock control cable assembly

Hood lock control handle assembly

Cable clip

: N·m (kg-m, in-lb)

: Body grease

JMKIB3484GB

: Vehicle front

JMKIB2974ZZ

HOOD LOCK

DLK-911

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Disconnect hood lock bell crank cable from hood lock assembly. Refer to

DLK-913, "HOOD LOCK BELL

CRANK : Removal and Installation"

.

3.

Remove hood lock assembly mounting bolts, and then remove hood lock assembly.

4.

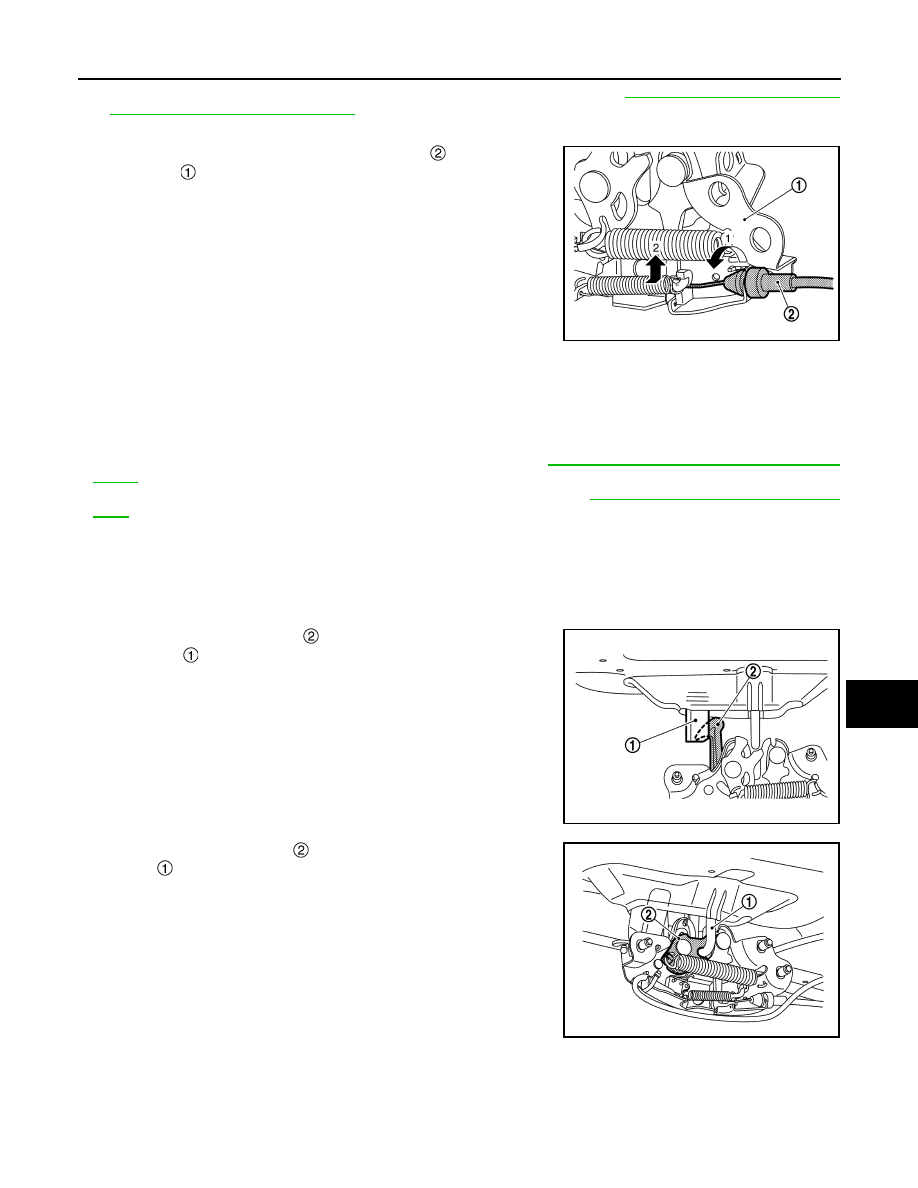

Disconnect hood lock control cable assembly

 from hood lock

assembly

 according to the numerical order 1

→

2 indicated by

arrows as shown in the figure.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.
• Check that hood lock control cable is properly engaged with hood lock.
• After installation, perform hood fitting adjustment. Refer to

DLK-871, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-911, "HOOD LOCK : Inspec-

tion"

.

HOOD LOCK : Inspection

INFOID:0000000010728659

NOTE:
If the hood lock cable is bent or deformed, replace it.

1.

Check that hood opener operating is condition 49 N (5.0 kg, 11.0 lb) or below.

2.

Check that secondary latch

 is securely engaged with second-

ary striker

 from the dead load of hood assembly.

3.

Check that primary latch

 is securely engaged with primary

striker

 when hood assembly is closed [free-fall from approxi-

mately 200 mm (7.874 in) height].

4.

While operating the hood opener carefully, check that the front end of the hood is lifted by approximately
20 mm (0.787 in) (A). Also, check that the hood opener returns to the original position.

JMKIB3486ZZ

JMKIB3518ZZ

JMKIB3499ZZ

DLK-912

< REMOVAL AND INSTALLATION >

[TYPE 4]

HOOD LOCK

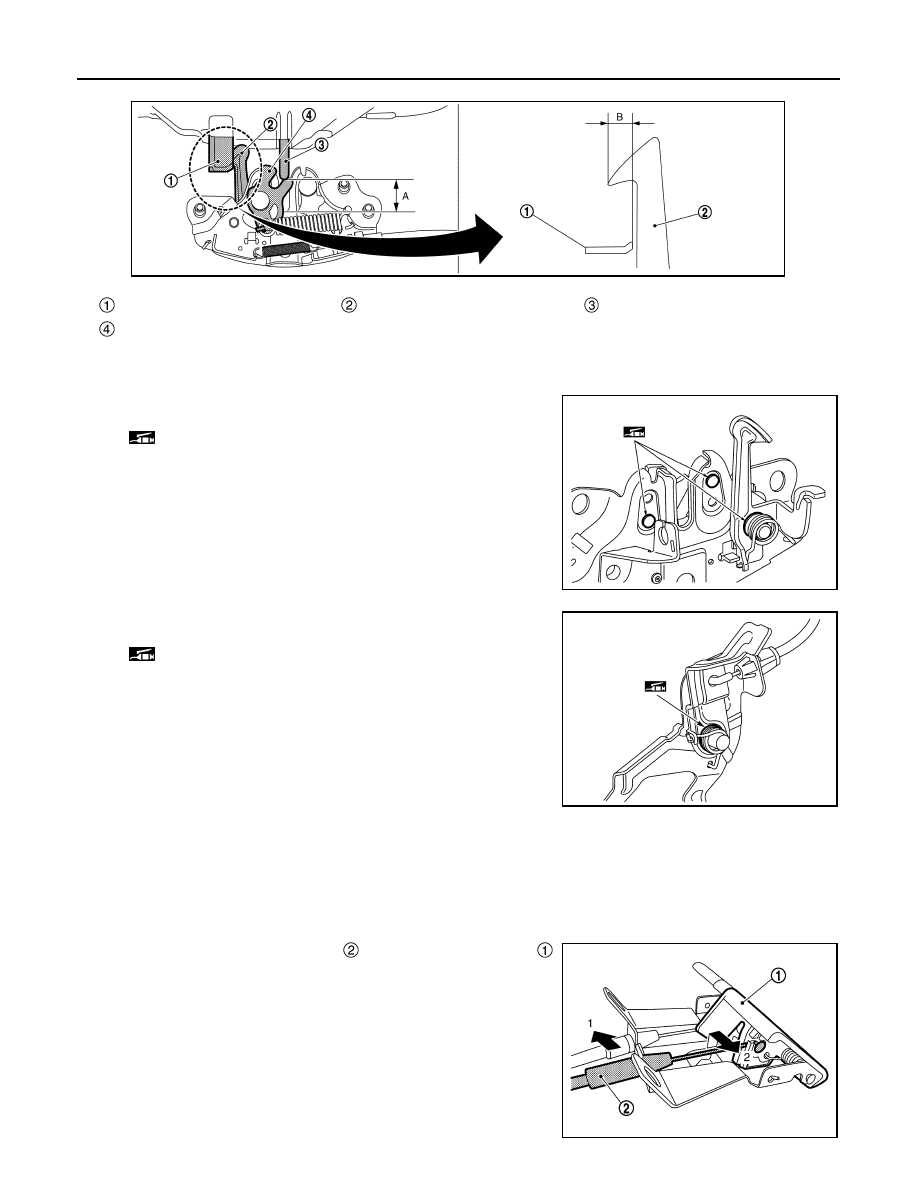

5.

Check that secondary latch is properly engaged with secondary striker [6.8 mm (0.268 in)] (B).

6.

Check the hood lock lubrication condition. If necessary, apply body grease to hood lock.
• Hood lock assembly

• Hood lock bell crank assembly

HOOD LOCK CONTROL HANDLE

HOOD LOCK CONTROL HANDLE : Removal and Installation

INFOID:0000000010728660

REMOVAL

1.

Remove hood lock control handle mounting bolts, and then remove hood lock control handle.

2.

Remove hood lock control cable

 from hood opener lever

according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

Secondary striker

Secondary latch

Primary striker

Primary latch

JMKIB3549ZZ

: Body grease

JMKIB2979ZZ

: Body grease

JMKIB2980ZZ

JMKIB0324ZZ
