REAR DOOR

DLK-901

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

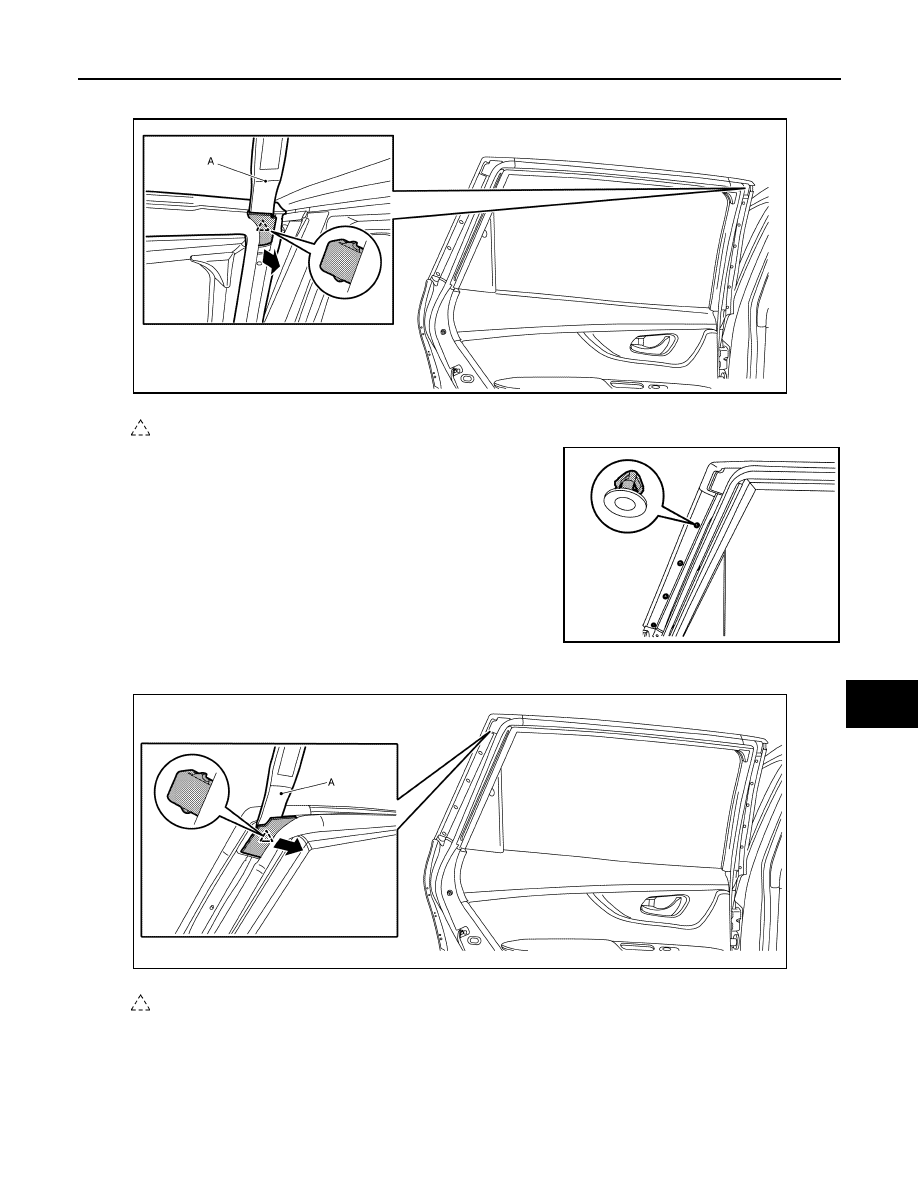

4.

Disengage fixing pawl on front upper end of rear door weather-strip using a remover tool (A), and then
remove weather-strip clip.

5.

Remove rear fixing clips from weather-strip.

6.

Disengage fixing pawl on rear upper end of rear door weather-strip using a remover tool (A), and then
remove weather-strip clip.

7.

Remove door check link mounting bolt of vehicle body side.

8.

Remove rear door weather-strip from rear door panel.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIB3515ZZ

JMKIB3516ZZ

: Pawl

JMKIB3517ZZ

DLK-902

< REMOVAL AND INSTALLATION >

[TYPE 4]

BACK DOOR

BACK DOOR

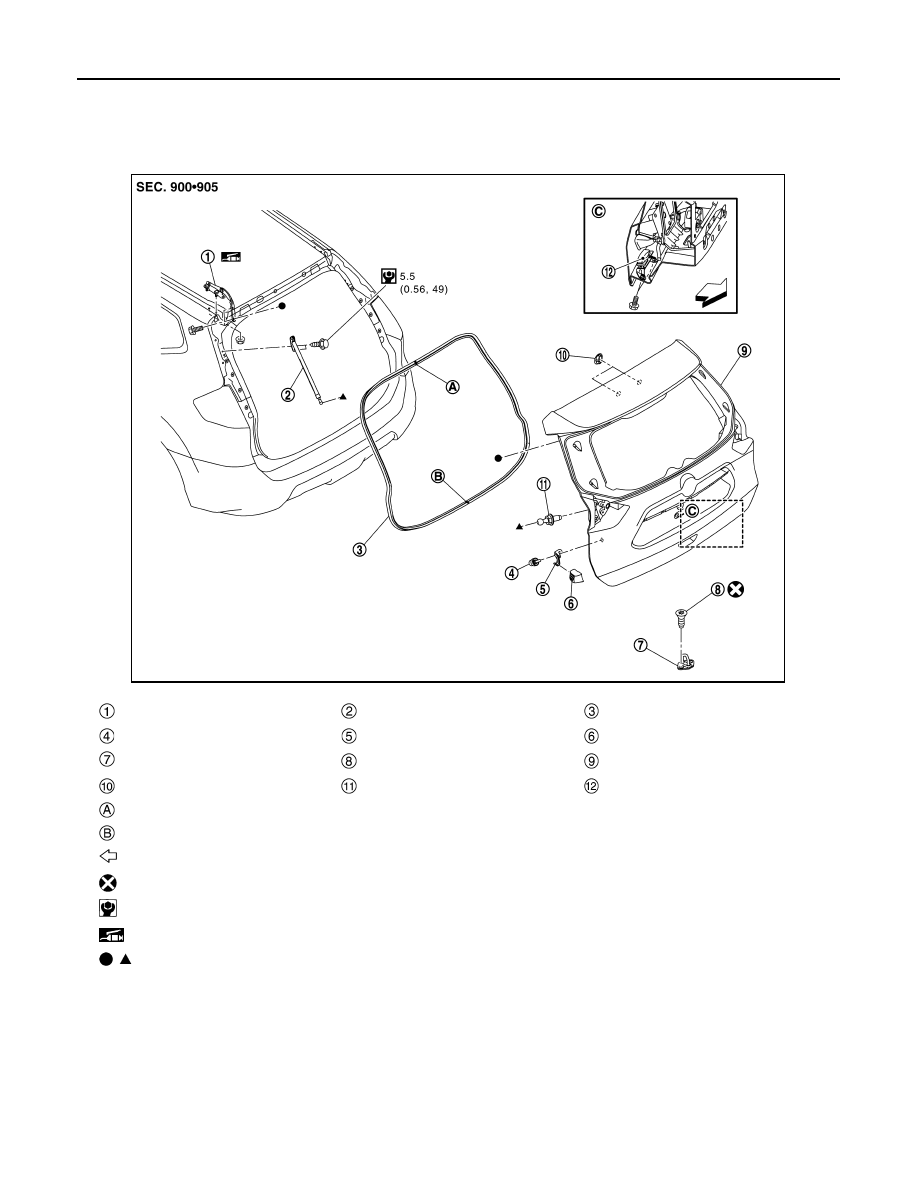

Exploded View

INFOID:0000000010728697

BACK DOOR ASSEMBLY

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010728698

CAUTION:

• Back door is made of resin. Never apply strong force to it, and be careful to prevent contact with oil.
• Perform work with 2 workers, because of its heavy weight.
• Use protective tape or shop cloth to protect from damage during removal and installation.

Back door hinge

Back door stay

Back door weather-strip

Bumper rubber

Wedge bracket

Back door wedge

Back door striker

TORX bolt

Back door panel

Plug

Stud ball

Back door damper

: Center mark

: Seam

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

,

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB2695GB

BACK DOOR

DLK-903

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

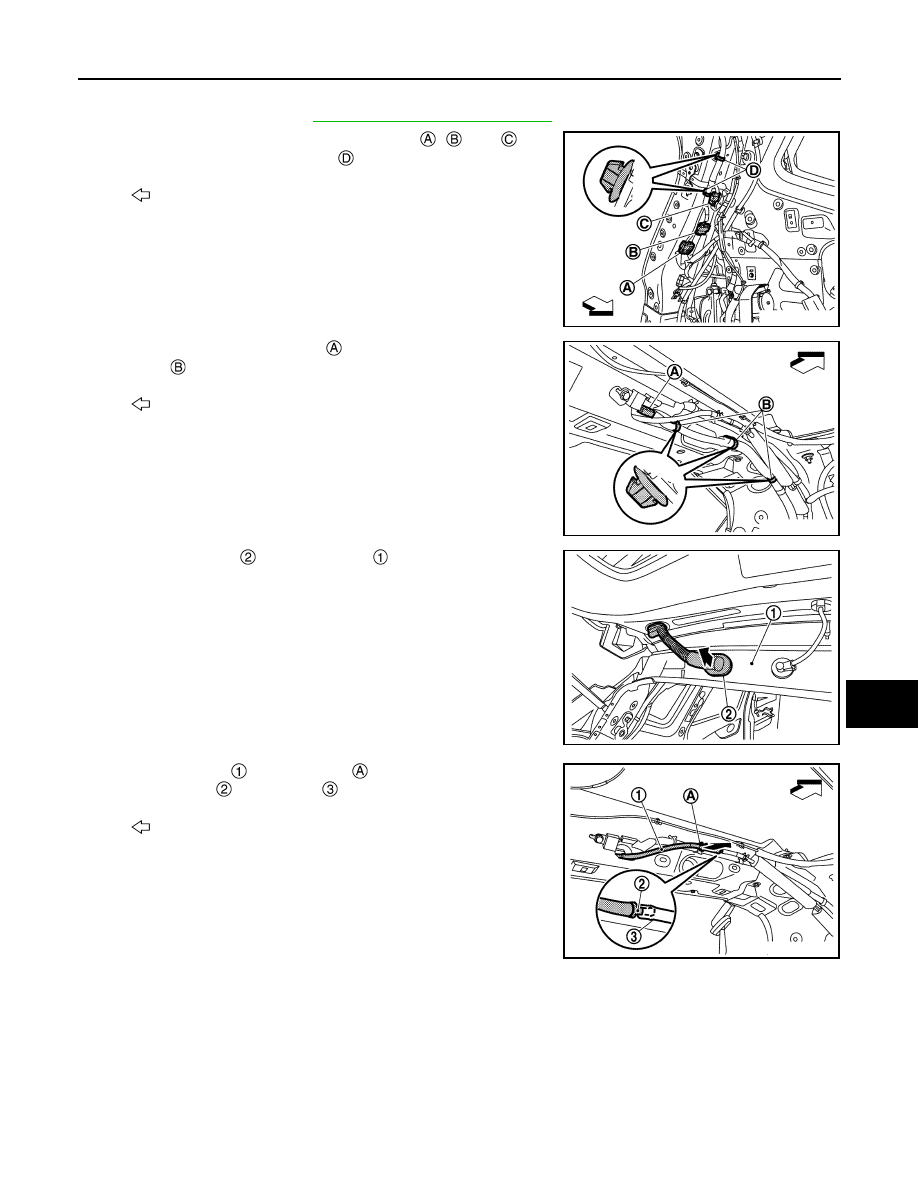

REMOVAL

1.

Remove headlining. Refer to

INT-37, "Removal and Installation"

.

2.

Disconnect back door harness connectors

,

 and

, and

then remove harness fixing clips

.

3.

Disconnect harness connector

, and then remove harness fix-

ing clips

.

4.

Remove grommet

 from roof panel

, and then pull out back

door harness from vehicle body.

5.

Remove air tube

 from tube clip

, and then disconnect tube

joint connector

 and air tube

 (with around view monitor).

: Vehicle front

JMKIB3115ZZ

: Vehicle front

JMKIB3116ZZ

JMKIB3117ZZ

: Vehicle front

JMKIB3118ZZ

DLK-904

< REMOVAL AND INSTALLATION >

[TYPE 4]

BACK DOOR

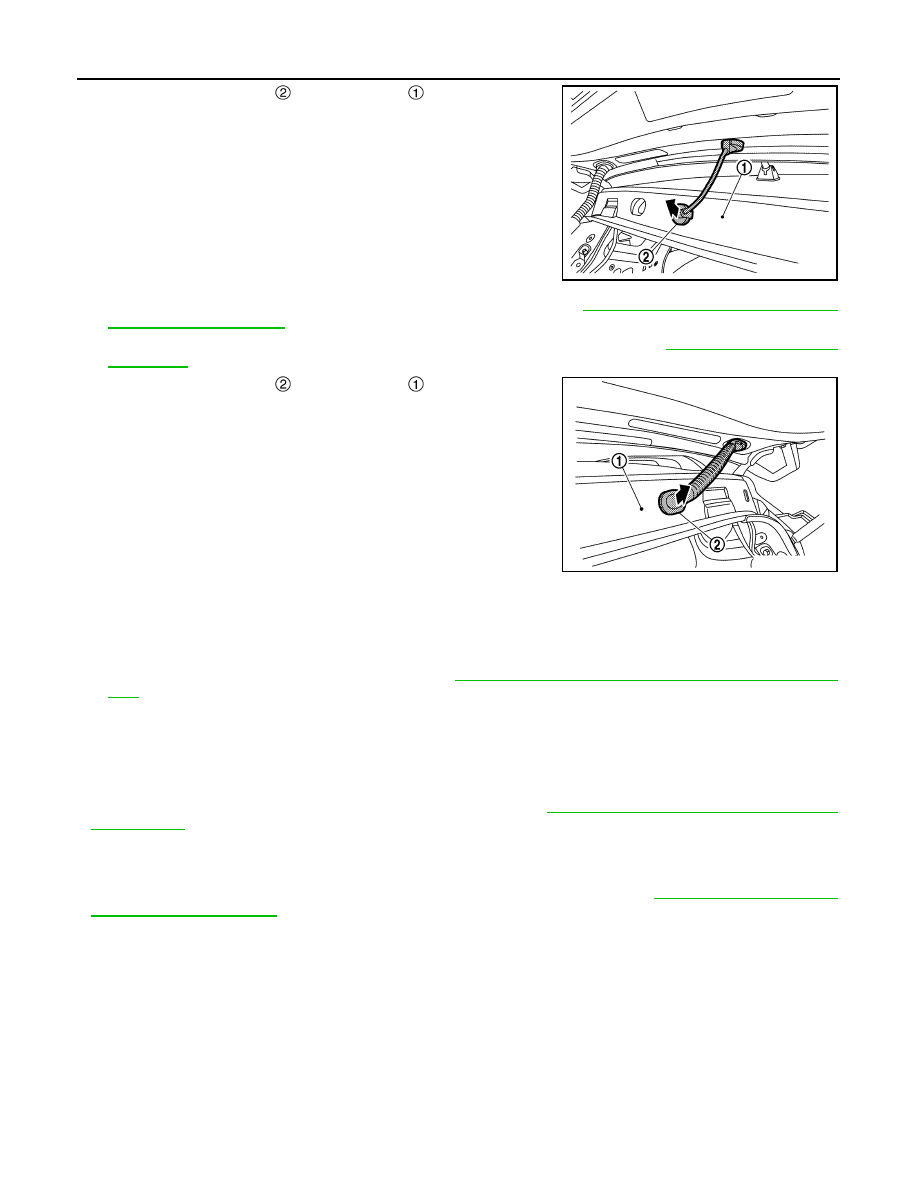

6.

Remove tube grommet

 from roof panel

, and then pull out

air tube from vehicle body.

7.

Disconnect rear washer tube A and rear washer tube B. Refer to

WW-102, "REAR WASHER TUBE :

Removal and Installation"

.

8.

Disconnect rear view camera washer tube (with around view monitor). Refer to

DAS-156, "Removal and

Installation"

.

9.

Remove tube grommet

 from roof panel

, and then pull out

rear washer tube B and rear camera washer tube from vehicle
body.

10. Support back door with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

11. Remove back door stay from back door. Refer to

DLK-907, "BACK DOOR STAY : Removal and Installa-

tion"

.

12. Remove back door hinge mounting nuts of back door and remove back door assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, perform the fitting adjustment. Refer to

DLK-905, "BACK DOOR ASSEMBLY :

Adjustment"

.

• After installation, check whether harness is not pinched. If harness is pinched, pull harness down-

ward lightly.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check that door opens and closes normally. Refer to

DLK-904, "BACK DOOR

ASSEMBLY : Inspection"

.

BACK DOOR ASSEMBLY : Inspection

INFOID:0000000010728699

1.

Open and close the back door. Check that door hinge rotation portion moves smoothly.

JMKIB3119ZZ

JMKIB3120ZZ
