FRONT DOOR LOCK

DLK-917

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010728667

REMOVAL

1.

Fully close the front door glass.

2.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

3.

Remove inside handle. Refer to

DLK-916, "INSIDE HANDLE : Removal and Installation"

.

4.

Remove sealing screen and front door glass run lower sash. Refer to

GW-43, "FRONT DOOR GLASS

RUN LOWER SASH : Removal and Installation"

.

5.

Disengage outside handle cable

 from cable clip

.

6.

Disengage rod holder

 and disconnect key rod

 from door lock assembly

 according to the numerical

order 1

→

2 indicated by arrows as shown in the figure (driver side).

: Vehicle front

: Vehicle front

JMKIB3522ZZ

JMKIB3523ZZ

DLK-918

< REMOVAL AND INSTALLATION >

[TYPE 4]

FRONT DOOR LOCK

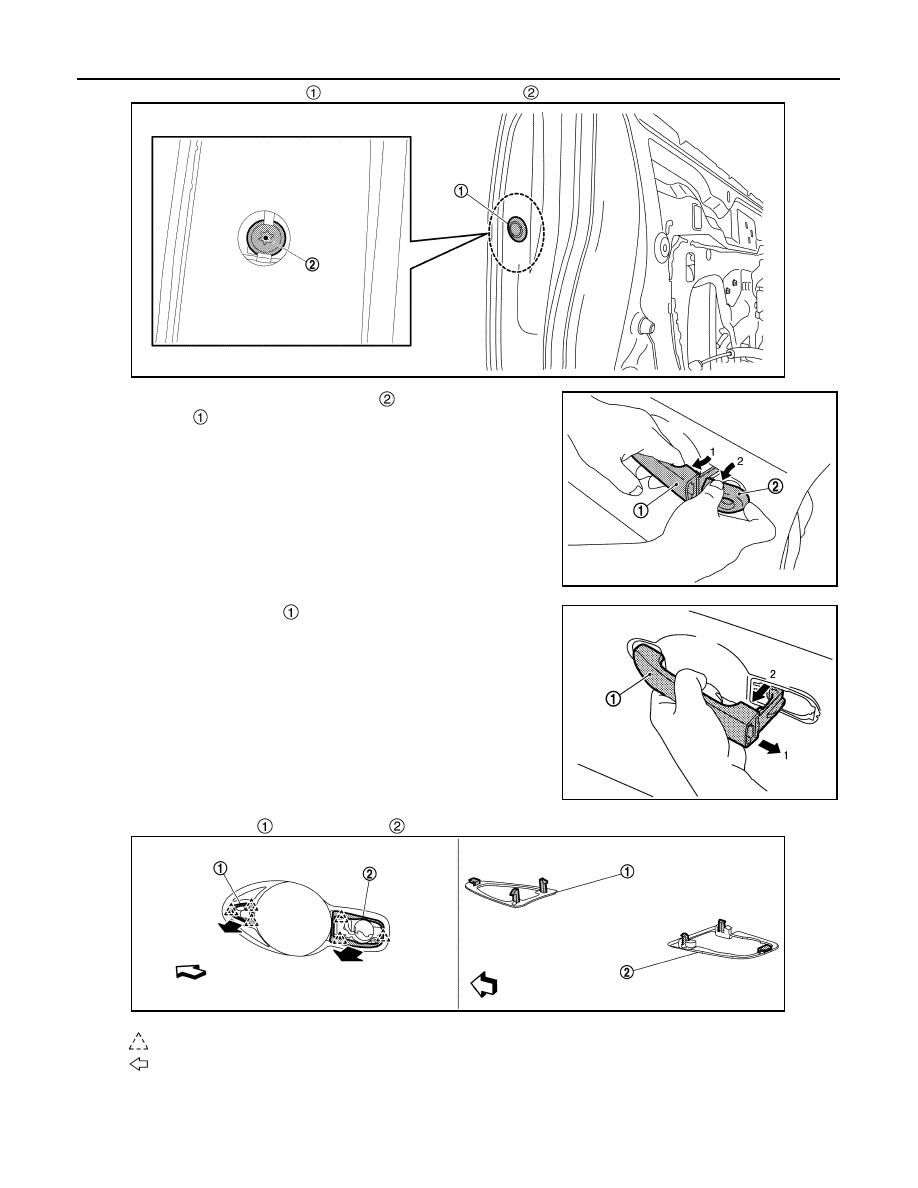

7.

Remove door side grommet

, and then loosen TORX bolt

 from grommet hole.

8.

Remove outside handle escutcheon

 while pulling outside

handle grip

 according to the numerical order 1

→

2 indicated

by arrows as shown in the figure.

9.

Slide outside handle grip

 toward rear of vehicle and remove it

according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

10. Remove front gasket

 and rear gasket

.

JMKIB3524ZZ

JMKIA8374ZZ

JMKIA0524ZZ

: Pawl

: Vehicle front

JMKIB1627ZZ

FRONT DOOR LOCK

DLK-919

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

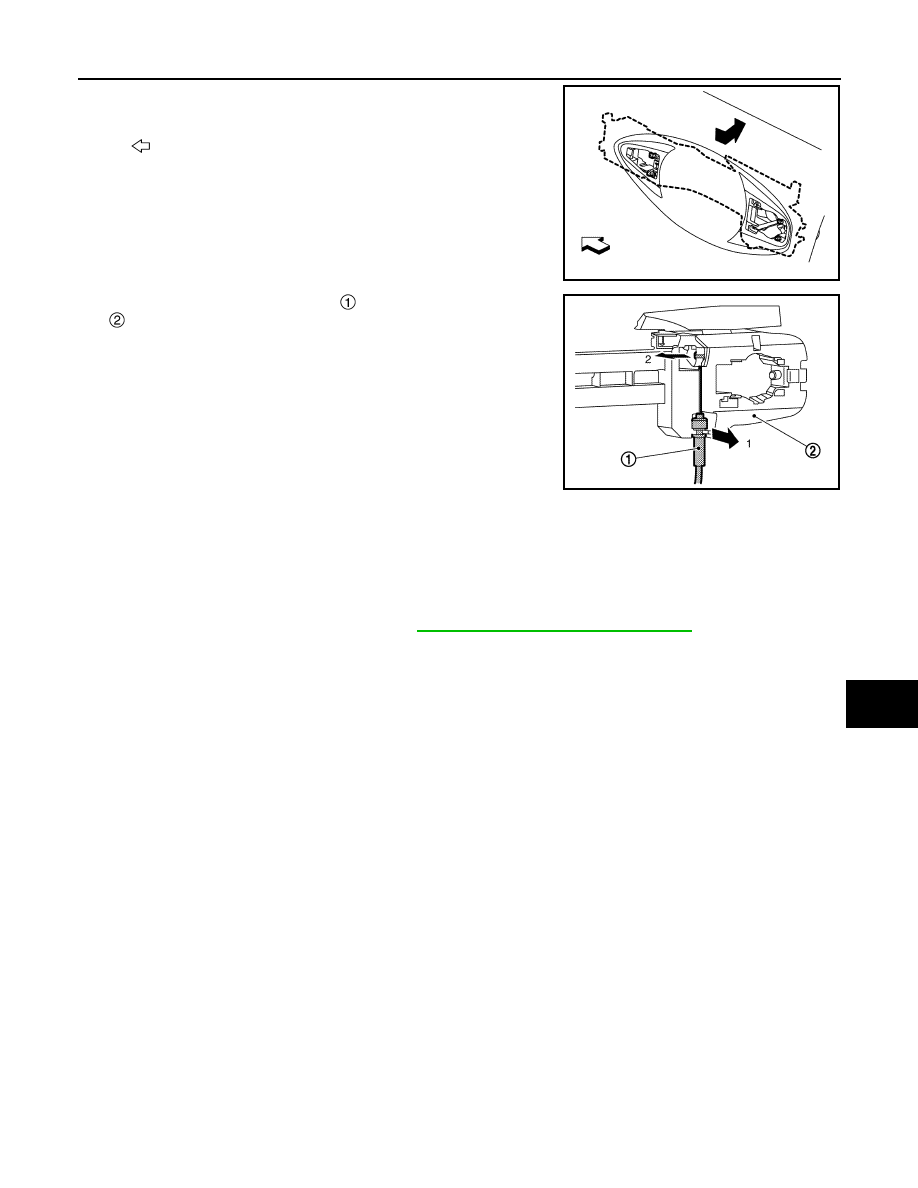

11. Slide outside handle bracket toward rear of vehicle and remove

it.

12. Disconnect outside handle cable

 from outside handle bracket

 according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• When installing key rod, rotate key rod holder until a click is felt.
• After installation, check door lock. Refer to

DLK-916, "DOOR LOCK : Inspection"

.

: Vehicle front

JMKIB2034ZZ

JMKIB3525ZZ

DLK-920

< REMOVAL AND INSTALLATION >

[TYPE 4]

REAR DOOR LOCK

REAR DOOR LOCK

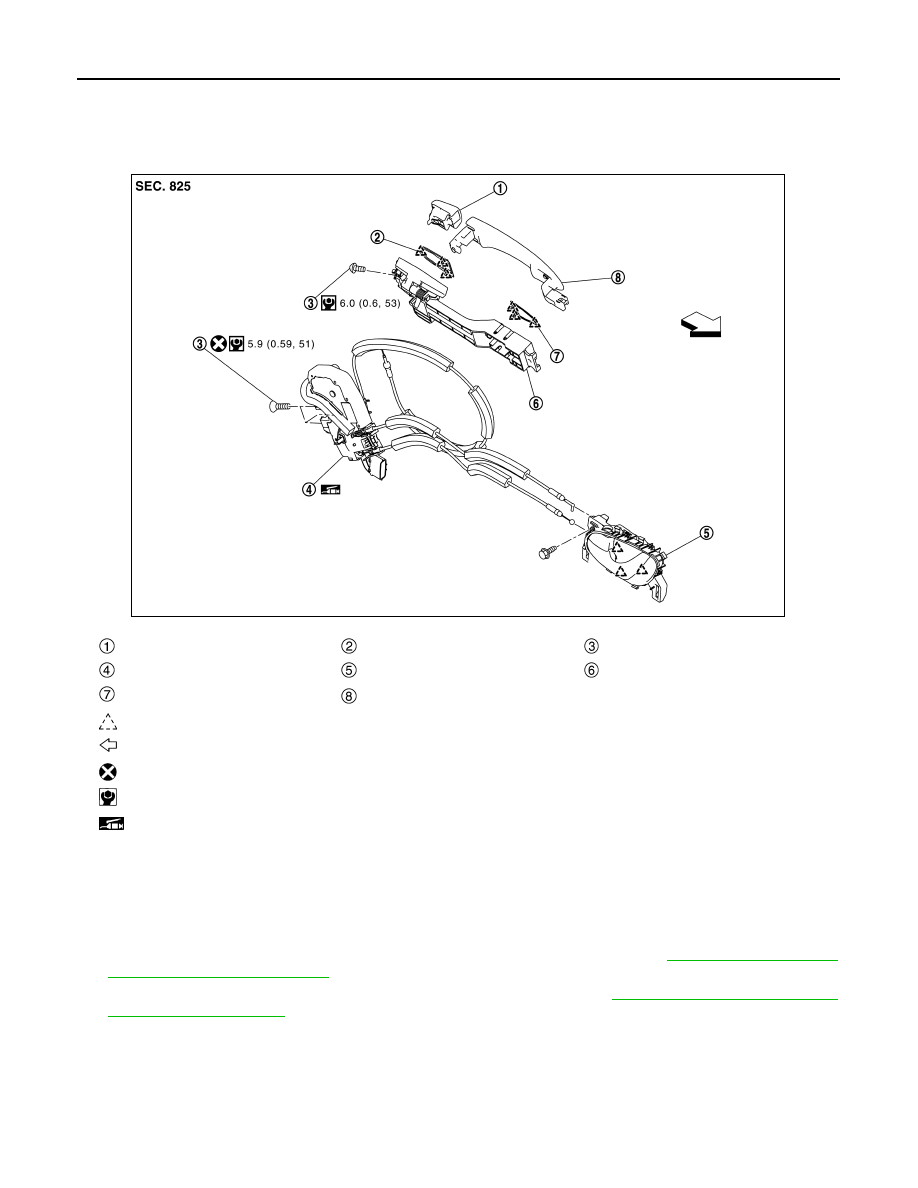

Exploded View

INFOID:0000000010728714

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000010728715

REMOVAL

1.

Disconnect lock knob cable and inside handle cable from inside handle. Refer to

DLK-921, "INSIDE HAN-

DLE : Removal and Installation"

.

2.

Disconnect outside handle cable from outside handle bracket. Refer to

DLK-922, "OUTSIDE HANDLE :

Removal and Installation"

.

3.

Disconnect door lock assembly connector.

4.

Remove door lock assembly TORX bolts, and then remove door lock assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse TORX bolt. Always replace it with a new one when it is removed.

Outside handle escutcheon

Rear gasket

TORX bolt

Door lock assembly

Inside handle

Outside handle bracket

Front gasket

Outside handle grip

: Pawl

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

JMKIB3526GB
