DOOR SWITCH

Removal and Installation

INFOID:0000000011009612

REMOVAL

1.

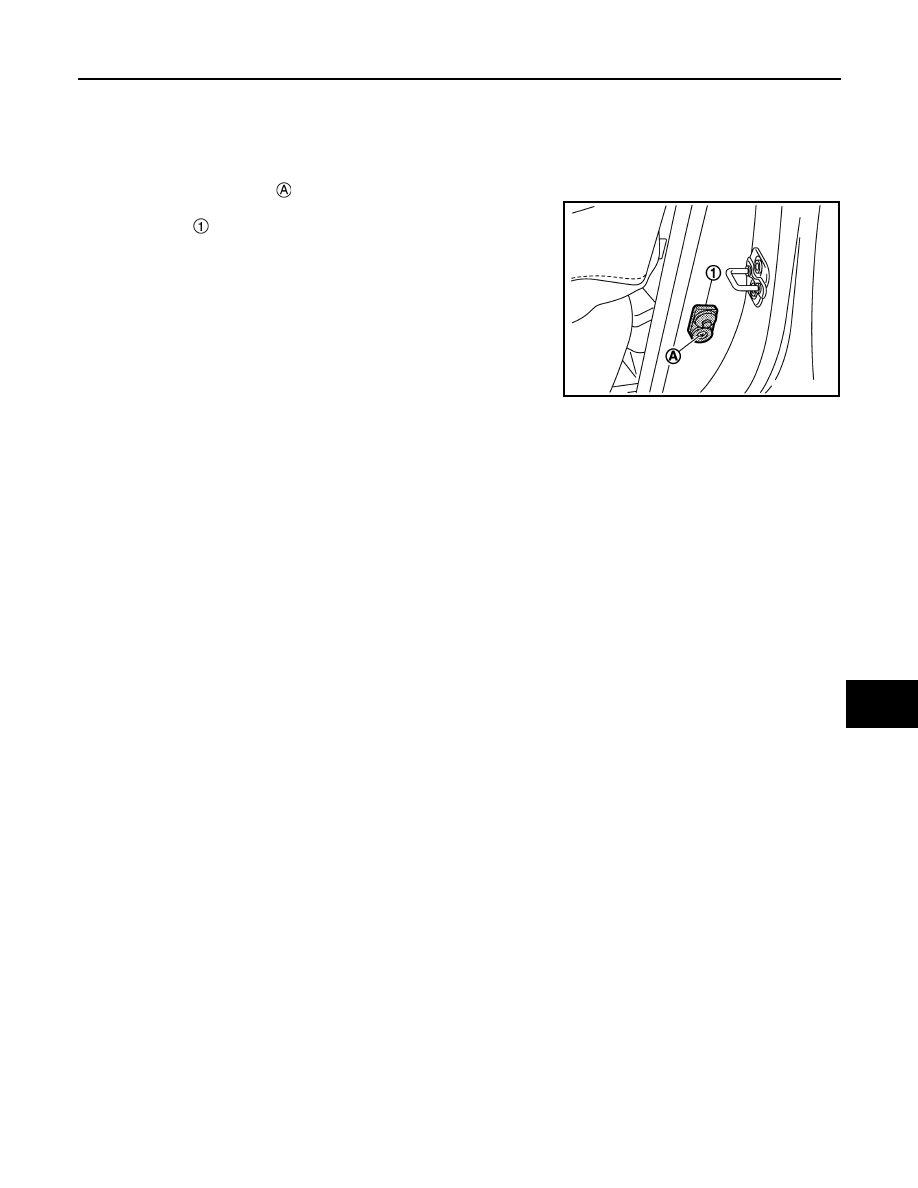

Remove the TORX bolt

.

2.

Disconnect door switch harness connector and then remove
door switch

.

INSTALLATION

Install in the reverse order of removal.

JMKIA2173ZZ

DLK-930

< REMOVAL AND INSTALLATION >

[TYPE 4]

KEYFOB BATTERY

KEYFOB BATTERY

Removal and Installation

INFOID:0000000011009613

REMOVAL

1.

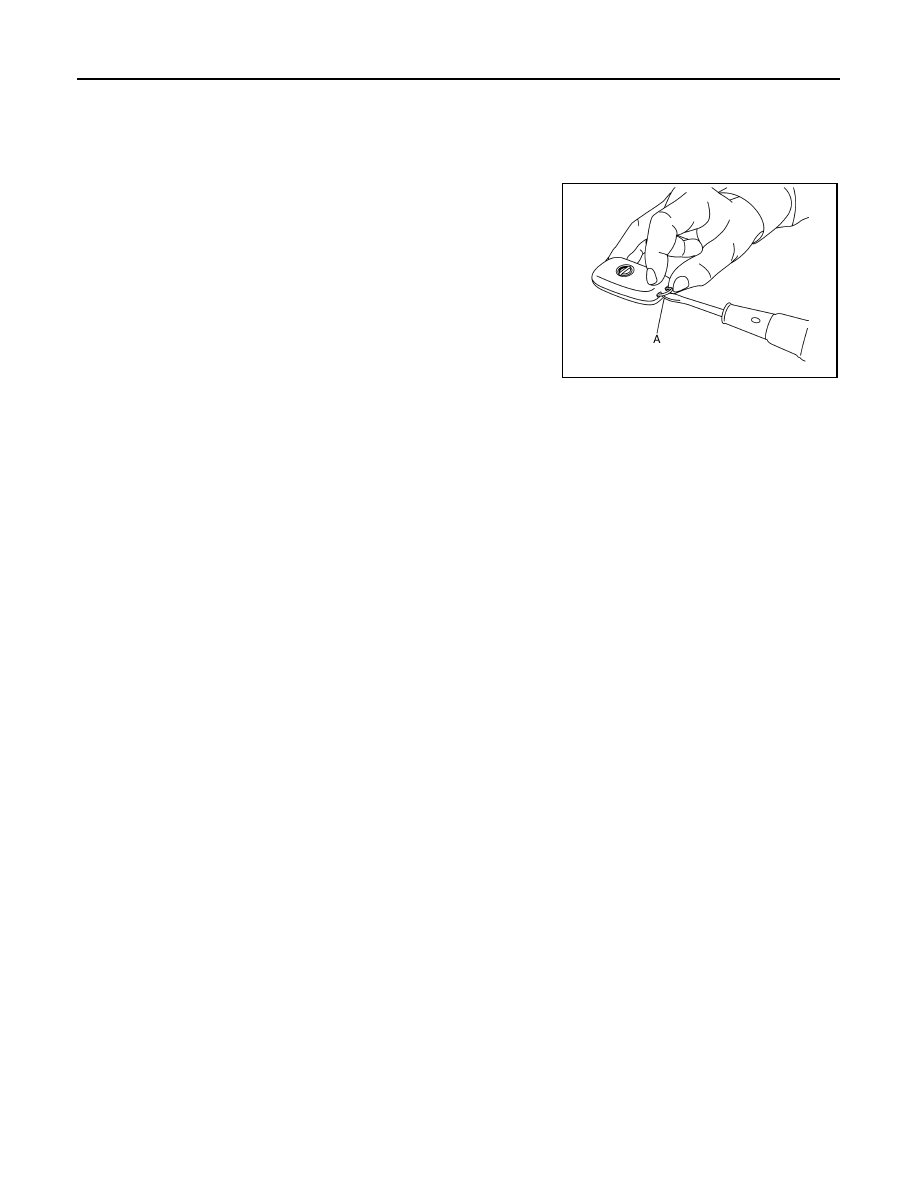

Insert a flat-blade screwdriver (A) wrapped with a cloth into the
slit of the corner and twist it to separate the upper part from the
lower part.

CAUTION:

• Do not touch the circuit board or battery terminal.
• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

2.

Replace the battery with new one.

CAUTION:

• When replacing battery, keep dirt, grease, and other foreign materials off the electrode contact

area.

• After replacing the battery, check that all Intelligent Key functions work normally.

INSTALLATION

Install in the reverse order of removal.

JMKIB3016ZZ

Battery replacement

:Coin-type lithium battery
(CR2032)
